ZT93 datasheet, PDF - EEWORLD Datasheet

ZT93: Description1000mA, 80V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-39; CategoryDiscrete semiconductor The transistor; File Size73KB，2 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

ZT93 Overview

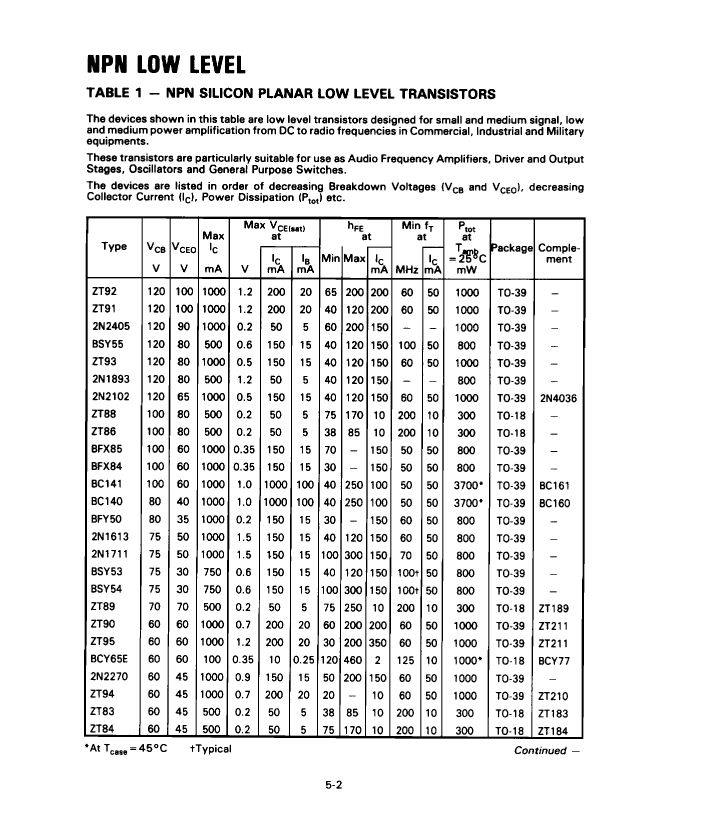

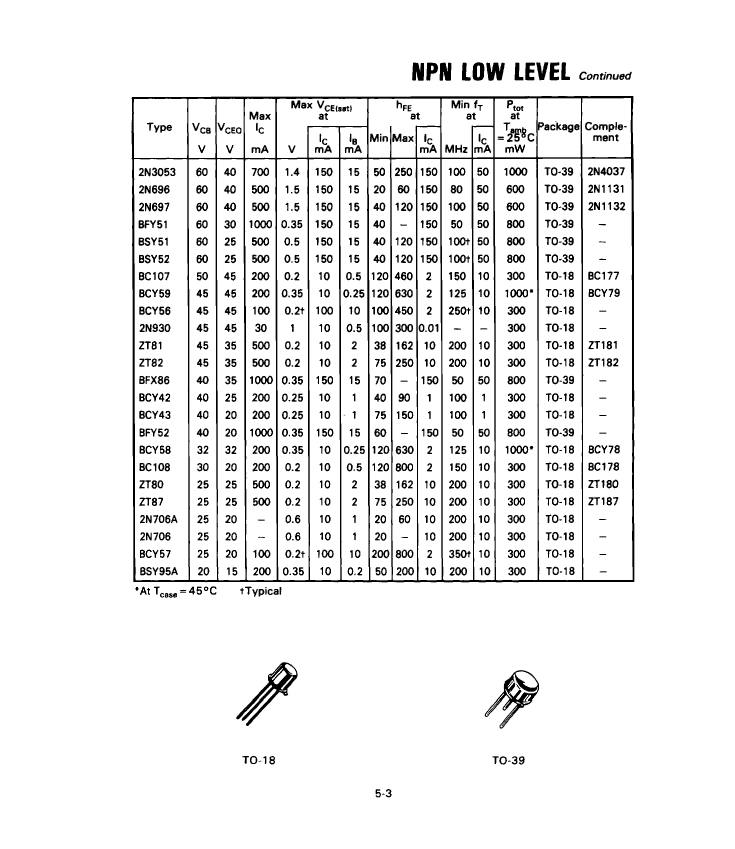

1000mA, 80V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-39

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Diodes Incorporated
package instruction	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW NOISE
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	80 V
Configuration	SINGLE
Minimum DC current gain (hFE)	40
JEDEC-95 code	TO-39
JESD-30 code	O-MBCY-W3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	175 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	235
Polarity/channel type	NPN
Maximum power dissipation(Abs)	1 W
Certification status	Not Qualified
Guideline	CECC
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	60 MHz
VCEsat-Max	0.5 V

	ZT93
Description	1000mA, 80V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-39
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Diodes Incorporated
package instruction	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW NOISE
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	80 V
Configuration	SINGLE
Minimum DC current gain (hFE)	40
JEDEC-95 code	TO-39
JESD-30 code	O-MBCY-W3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	175 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	235
Polarity/channel type	NPN
Maximum power dissipation(Abs)	1 W
Certification status	Not Qualified
Guideline	CECC
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	60 MHz
VCEsat-Max	0.5 V
