Datasheet> All Categories > Discrete semiconductor> The transistor> ZTX338

ZTX338: Description800mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92 STYLE, E-LINE PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size233KB，3 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

ZTX338 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZTX338	-	-	View	Buy Now

ZTX338 Overview

800mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92 STYLE, E-LINE PACKAGE-3

ZTX338 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Diodes Incorporated
package instruction	IN-LINE, R-PSIP-W3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	0.8 A
Collector-emitter maximum voltage	25 V
Configuration	SINGLE
Minimum DC current gain (hFE)	100
JESD-30 code	R-PSIP-W3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	200 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	235
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.75 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz
VCEsat-Max	0.7 V

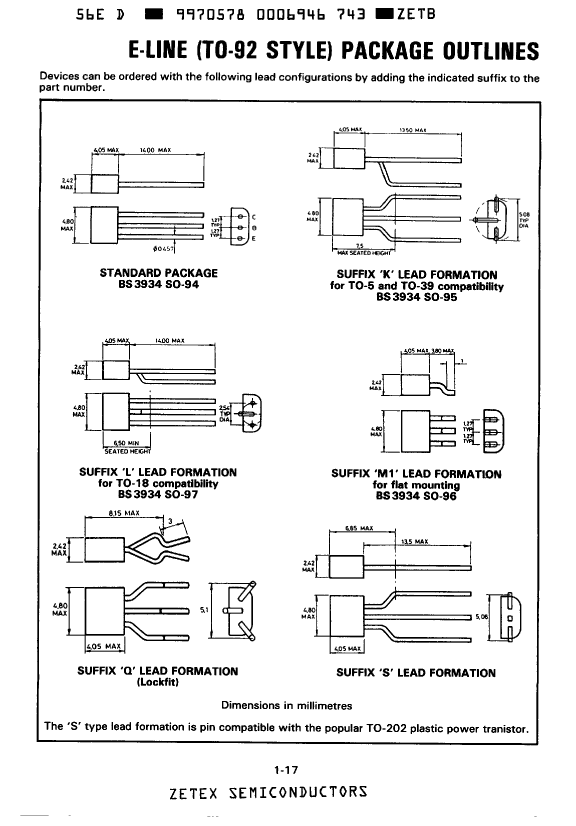

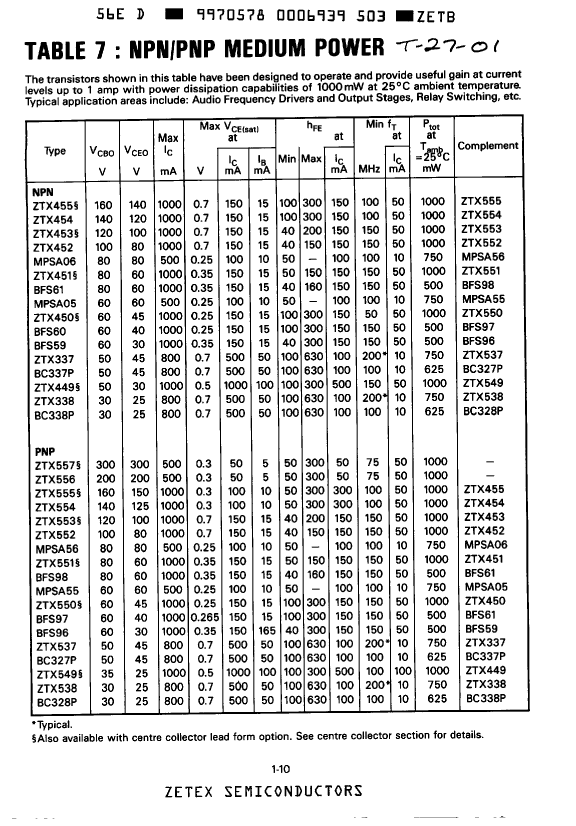

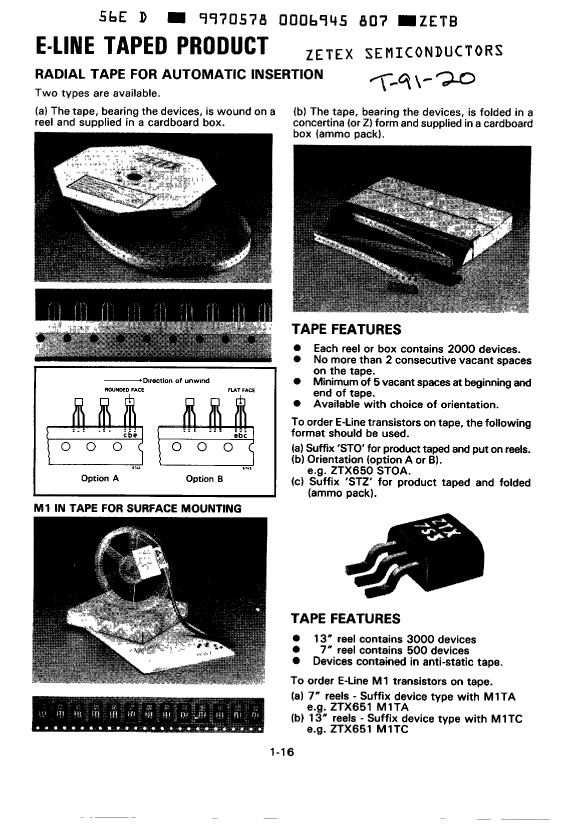

Preview

Download Datasheet

View All

ZTX338 Related Products

	ZTX338	BC327P	BFS96	BC337P	BFS98	ZTX538	ZTX537
Description	800mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92 STYLE, E-LINE PACKAGE-3	800mA, 45V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92 STYLE, E-LINE PACKAGE-3	1000mA, 30V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92 STYLE, E-LINE PACKAGE-3	800mA, 45V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92 STYLE, E-LINE PACKAGE-3	1000mA, 60V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92 STYLE, E-LINE PACKAGE-3	800mA, 25V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92 STYLE, E-LINE PACKAGE-3	800mA, 45V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92 STYLE, E-LINE PACKAGE-3
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
package instruction	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.8 A	0.8 A	1 A	0.8 A	1 A	0.8 A	0.8 A
Collector-emitter maximum voltage	25 V	45 V	30 V	45 V	60 V	25 V	45 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	100	100	40	100	40	100	100
JESD-30 code	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	235	235	235	235	235	235	235
Polarity/channel type	NPN	PNP	PNP	NPN	PNP	PNP	PNP
Maximum power dissipation(Abs)	0.75 W	0.625 W	0.5 W	0.625 W	0.5 W	0.75 W	0.75 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	200 MHz	100 MHz	150 MHz	100 MHz	150 MHz	200 MHz	200 MHz
VCEsat-Max	0.7 V	0.7 V	0.35 V	0.7 V	0.35 V	0.7 V	0.7 V
