ZTX788ASTOE

Description
Small Signal Bipolar Transistor, 3A I(C), 15V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size55KB,2 Pages
ManufacturerDiodes Incorporated
Download Datasheet Parametric Compare View All

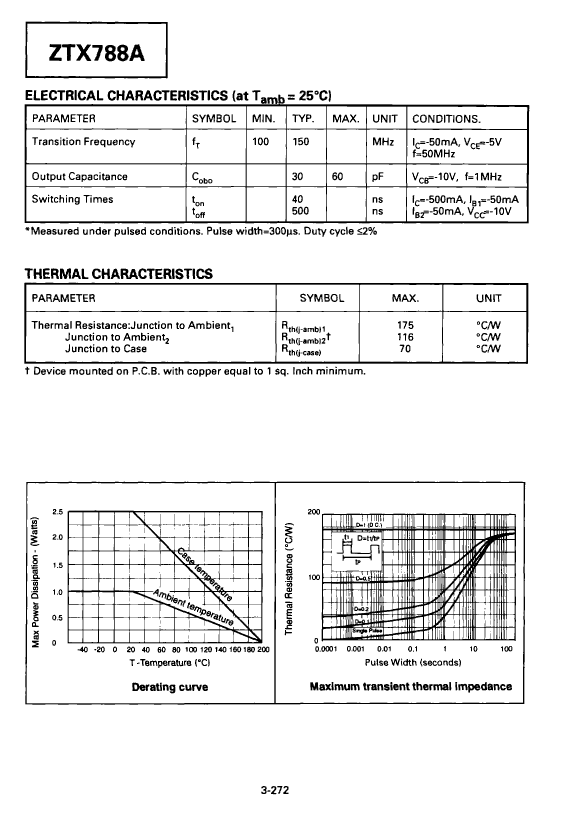

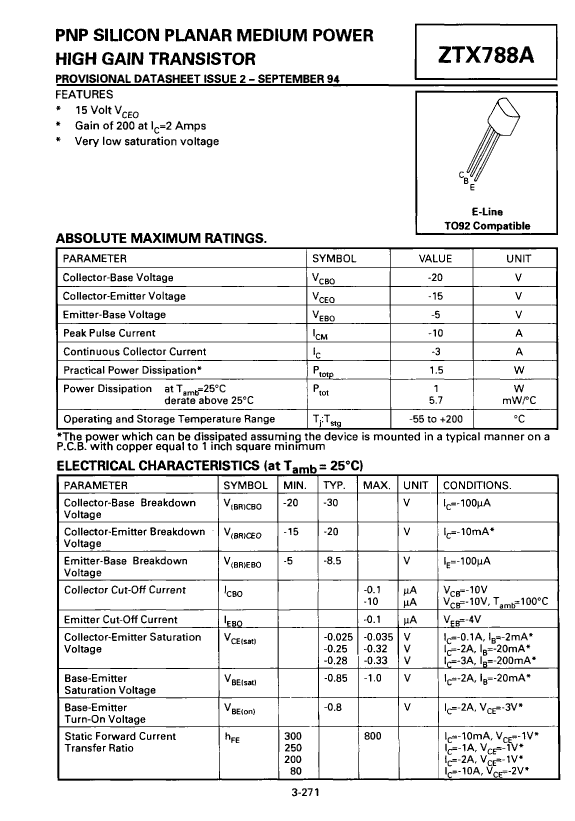

ZTX788ASTOE Overview

Small Signal Bipolar Transistor, 3A I(C), 15V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, 3 PIN

ZTX788ASTOE Parametric

Parameter NameAttribute value
MakerDiodes Incorporated
Parts packaging codeTO-92
package instructionCYLINDRICAL, O-PBCY-W3
Contacts3
Reach Compliance Codeunknow
ECCN codeEAR99
Maximum collector current (IC)3 A
Collector-emitter maximum voltage15 V
ConfigurationSINGLE
Minimum DC current gain (hFE)80
JESD-30 codeO-PBCY-W3
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals3
Maximum operating temperature200 °C
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formCYLINDRICAL
Peak Reflow Temperature (Celsius)260
Polarity/channel typePNP
Certification statusNot Qualified
surface mountNO
Terminal surfaceMATTE TIN
Terminal formWIRE
Terminal locationBOTTOM
Maximum time at peak reflow temperature40
Transistor component materialsSILICON
Nominal transition frequency (fT)150 MHz
Maximum off time (toff)500 ns
Maximum opening time (tons)40 ns

ZTX788ASTOE Related Products

ZTX788ASTOE ZTX788ASTOF
Description Small Signal Bipolar Transistor, 3A I(C), 15V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, 3 PIN Small Signal Bipolar Transistor, 3A I(C), 15V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, 3 PIN
Parts packaging code TO-92 TO-92
package instruction CYLINDRICAL, O-PBCY-W3 CYLINDRICAL, O-PBCY-W3
Contacts 3 3
Reach Compliance Code unknow unknown
ECCN code EAR99 EAR99
Maximum collector current (IC) 3 A 3 A
Collector-emitter maximum voltage 15 V 15 V
Configuration SINGLE SINGLE
Minimum DC current gain (hFE) 80 80
JESD-30 code O-PBCY-W3 O-PBCY-W3
JESD-609 code e3 e3
Humidity sensitivity level 1 1
Number of components 1 1
Number of terminals 3 3
Maximum operating temperature 200 °C 200 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape ROUND ROUND
Package form CYLINDRICAL CYLINDRICAL
Peak Reflow Temperature (Celsius) 260 260
Polarity/channel type PNP PNP
Certification status Not Qualified Not Qualified
surface mount NO NO
Terminal surface MATTE TIN MATTE TIN
Terminal form WIRE WIRE
Terminal location BOTTOM BOTTOM
Maximum time at peak reflow temperature 40 40
Transistor component materials SILICON SILICON
Nominal transition frequency (fT) 150 MHz 150 MHz
Maximum off time (toff) 500 ns 500 ns
Maximum opening time (tons) 40 ns 40 ns
