ICL3221, ICL3222, ICL3223, ICL3232, ICL3241, ICL3243
One Microamp Supply-Current, +3V to +5.5V, 250kbps, RS-232
Transmitters/Receivers
The
ICL3221, ICL3222, ICL3223, ICL3232, ICL3241,
ICL3243
(ISL32xx) devices are 3.0V to 5.5V powered
RS-232 transmitters/receivers that meet ElA/TIA-232
and V.28/V.24 specifications, even at V
CC
= 3.0V.
Targeted applications are PDAs, notebook, and laptop
computers where the low operational power
consumption and even lower standby power
consumption are critical. Efficient on-chip charge
pumps, coupled with manual and automatic
power-down functions (except for the ICL3232),
reduce the standby supply current to a 1µA trickle.
Small footprint packaging, and the use of small, low
value capacitors ensure board space savings as well.
Data rates greater than 250kbps are ensured at worst
case load conditions. This family is fully compatible
with 3.3V only systems, mixed 3.3V and 5.0V
systems, and 5.0V only systems.
The ICL324x are 3-driver, 5-receiver devices that
provide a complete serial port suitable for laptop or
notebook computers. Both devices also include
noninverting always-active receivers for “wake-up”
capability.
The ICL3221, ICL3223 and ICL3243 feature an
automatic powerdown function that powers down the
on-chip power-supply and driver circuits. Power-down
occurs when an attached peripheral device is shut off
or the RS-232 cable is removed, conserving system
power automatically without changes to the hardware
or operating system. These devices power up again
when a valid RS-232 voltage is applied to any
receiver input.
Table 1 on page 6
summarizes the features of the
devices represented by this datasheet, while
Application Note
AN9863
summarizes the features of
each device comprising the ICL32xx 3V family.
Features
• RoHS Compliant
• 15kV ESD protected (Human Body Model)
• Drop-in replacements for MAX3221, MAX3222,
MAX3223, MAX3232, MAX3241, MAX3243,
SP3243
• ICL3221 is a low-power, pin compatible upgrade for
5V MAX221
• ICL3222 is a low-power, pin compatible upgrade for
5V MAX242, and SP312A
• ICL3232 is a low-power upgrade for HIN232/ICL232
and pin compatible competitor devices
• RS-232 compatible with V
CC
= 2.7V
• Meets EIA/TIA-232 and V.28/V.24 specifications at
3V
• Latch-up free
• On-chip voltage converters require only four
external 0.1µF capacitors
• Manual and automatic powerdown features (except
ICL3232)
• Assured mouse driveability (ICL324x only)
• Receiver hysteresis for improved noise immunity
• Assured minimum data rate: 250kbps
• Assured minimum slew rate: 6V/μs
• Wide power supply range: single +3V to +5.5V
• Low supply current in powerdown state:1µA
Applications
• Any system requiring RS-232 communication ports
○ Battery powered, hand-held, and portable
equipment
○ Laptop computers, Notebooks
○ Modems, printers, and other peripherals
○ Digital cameras
○ Cellular/mobile phones
Related Literature
For a full list of related documents, visit our website:
•
ICL3221, ICL3222, ICL3223, ICL3232, ICL3241,
and
ICL3243
device pages
FN4805 Rev.23.00
Apr.26.19
Page 1 of 36
ICL3221, ICL3222, ICL3223, ICL3232, ICL3241, ICL3243
Contents
1.
1.1
1.2
1.3
1.4
2.
2.1
2.2
2.3
2.4
3.
4.
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Typical Operating Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
4
6
8
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Thermal Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Recommended Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Typical Performance Curves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Application Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.1
4.1.1
4.2
4.3
4.4
4.5
4.5.1
4.5.2
4.5.3
4.6
4.7
4.8
4.9
4.10
4.11
4.12
4.13
4.14
Charge Pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Charge Pump Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Receivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Low Power Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Powerdown Functionality (Except ICL3232) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Software Controlled (Manual) Powerdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INVALID Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic Powerdown (ICL3221/23/43 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Receiver ENABLE Control (ICL3221/22/23/41 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Capacitor Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Supply Decoupling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation Down to 2.7V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transmitter Outputs when Exiting Powerdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mouse Driveability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High Data Rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interconnection with 3V and 5V Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin Compatible Replacements For 5V Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13
13
14
14
15
15
15
16
18
19
19
19
19
20
20
20
21
22
5.
6.
7.
Die Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Revision History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Package Outline Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
FN4805 Rev.23.00
Apr.26.19
Page 2 of 36
ICL3221, ICL3222, ICL3223, ICL3232, ICL3241, ICL3243
1. Overview
1.
1.1
Overview

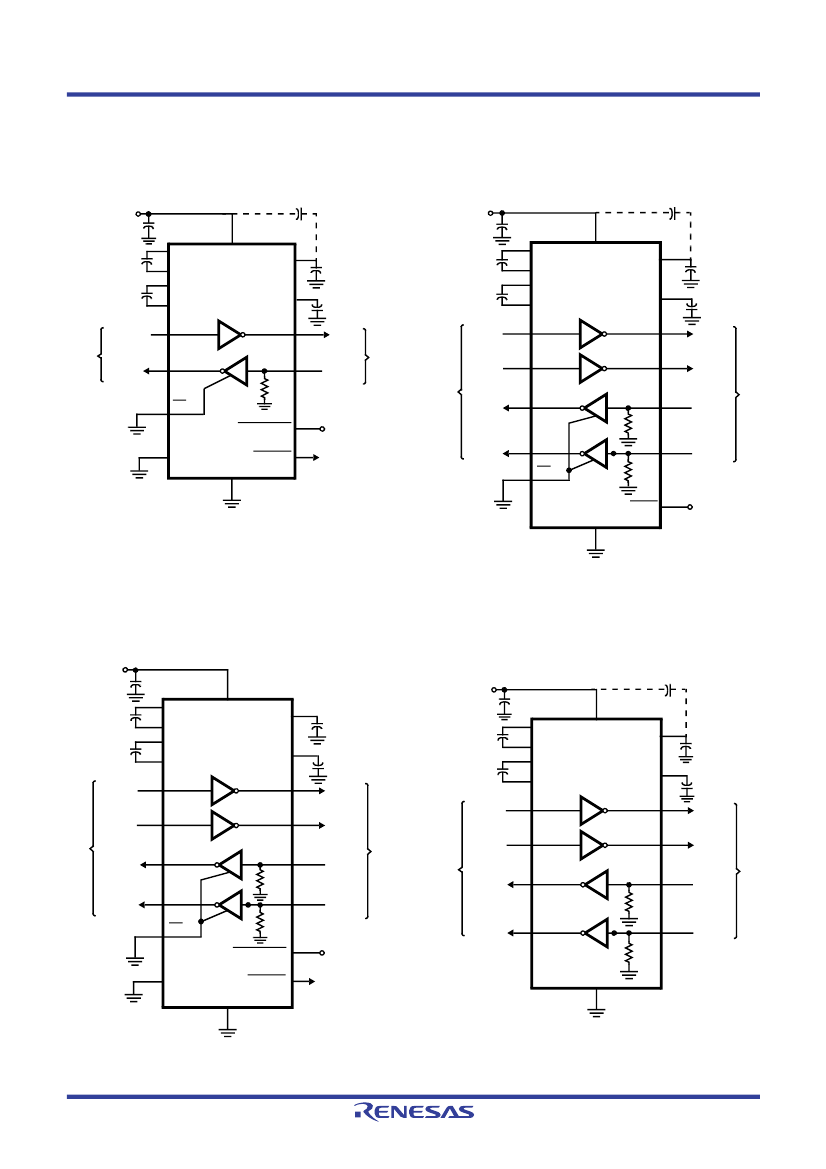

Typical Operating Circuits
ICL3221
C
3
(Optional Connection, Note)
+3.3V
+
+
+3.3V
0.1µF
15
V
CC
V+
3
+ C
3
0.1µF
C
4
+ 0.1µF
T1
OUT
RS-232
Levels
TTL/CMOS
Logic Levels
R1
IN
C
1
0.1µF
C
2
0.1µF
+
0.1µF
+
2
4
5
+
6
12
11
C1+
C1-
C2+
C2-
T
1
T
2
V-
15
8
ICL3222
C
3
(Optional Connection, Note)
+
17
V
CC
3
V+
7
+
+ C
3
0.1µF
C
4
0.1µF
T1
OUT
T2
OUT
RS-232
Levels
RS-232
Levels
14
R
1
R2
OUT
10
1 EN
R
2
5kΩ
18
5kΩ
9
R2
IN
R1
IN
GND
16
SHDN
V
CC
C
1
0.1µF
C
2
0.1µF
TTL/CMOS
Logic Levels
2
+ C1+
4
C1-
5
+ C2+
6
C2-
11
V- 7
T
1
13
T1
IN
R1
OUT
T1
IN
T2
IN
9
R
1
1 EN
FORCEOFF
12
FORCEON
GND
14
INVALID
5kΩ
8
16
10
R1
OUT
13
V
CC
To Power
Control
Logic
NOTE: The negative terminal of C
3
can be
connected to either V
CC
or GND
NOTE: The negative terminal of C
3
can be
connected to either V
CC
or GND
ICL3223
+3.3V
+
0.1µF
2
+
4
5
+
6
13
12
C1+
C1-
C2+
C2-
T
1
T
2
19
V
CC
V+
3
+ C
3
0.1µF
C
4
0.1µF
+
T1
OUT
T1
IN
T2
OUT
RS-232
Levels
TTL/CMOS
Logic Levels
T2
IN
+3.3V
ICL3232
C
3
(Optional Connection, Note)
+
16
V
CC
V+
2
+ C
3
0.1µF
C
4
0.1µF
+
T1
OUT
T2
OUT
13
R
1
R2
OUT
V
CC
To Power
Control Logic
9
R
2
GND
15
5kΩ
5kΩ
8
R2
IN
V-
T
1
T
2
6
14
7
R1
IN
+
0.1μF
1
+
+
3
4
5
11
10
C1+
C1-
C2+
C2-
C
1
0.1µF
C
2
0.1µF
V- 7
17
8
C
1
0.1µF
C
2
0.1µF
T1
IN
TTL/CMOS
Logic Levels
T2
IN
R1
OUT
15
R
1
5kΩ
16
R1
IN
R2
OUT
10
1
EN
R
2
5kΩ
9
R1
OUT
12
R2
IN
FORCEOFF
14
FORCEON
GND
18
INVALID
20
11
NOTE: The negative terminal of C
3
can be
connected to either V
CC
or GND
FN4805 Rev.23.00
Apr.26.19
Page 3 of 36
ICL3221, ICL3222, ICL3223, ICL3232, ICL3241, ICL3243

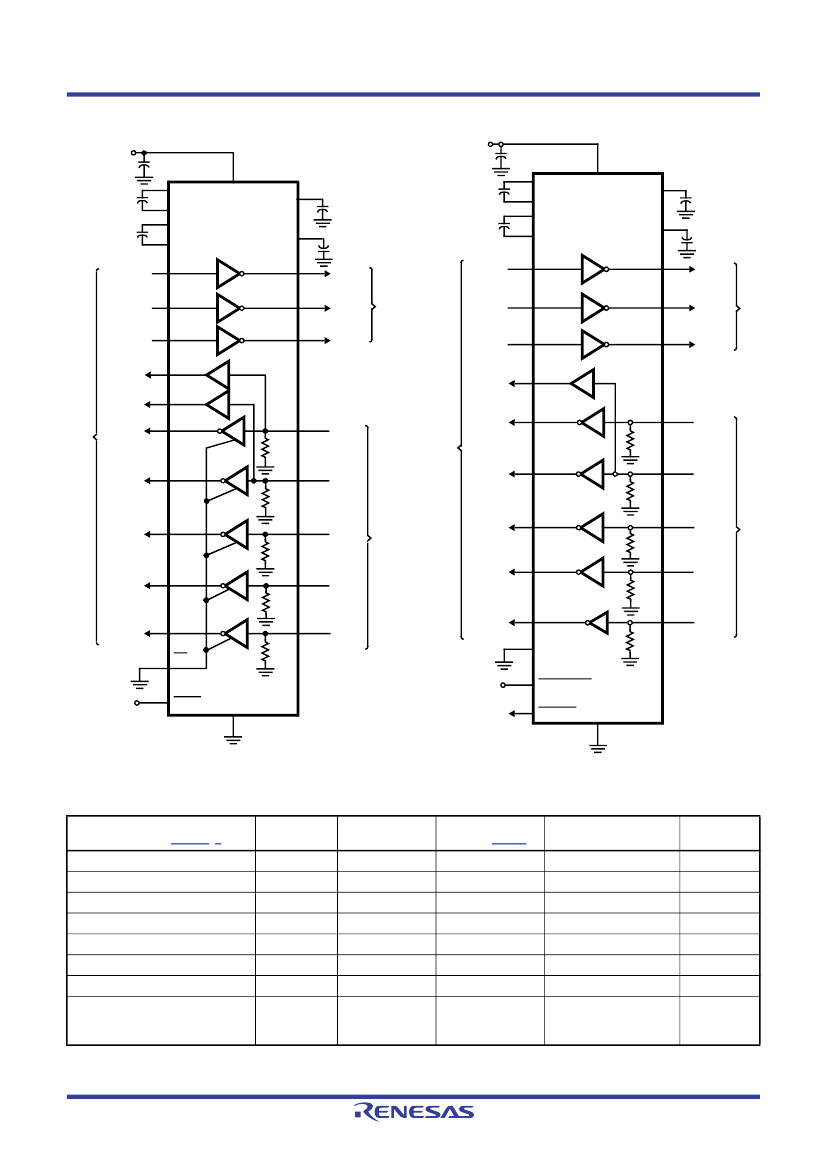

ICL3241
