Z16C3510VSG datasheet, PDF - EEWORLD Datasheet

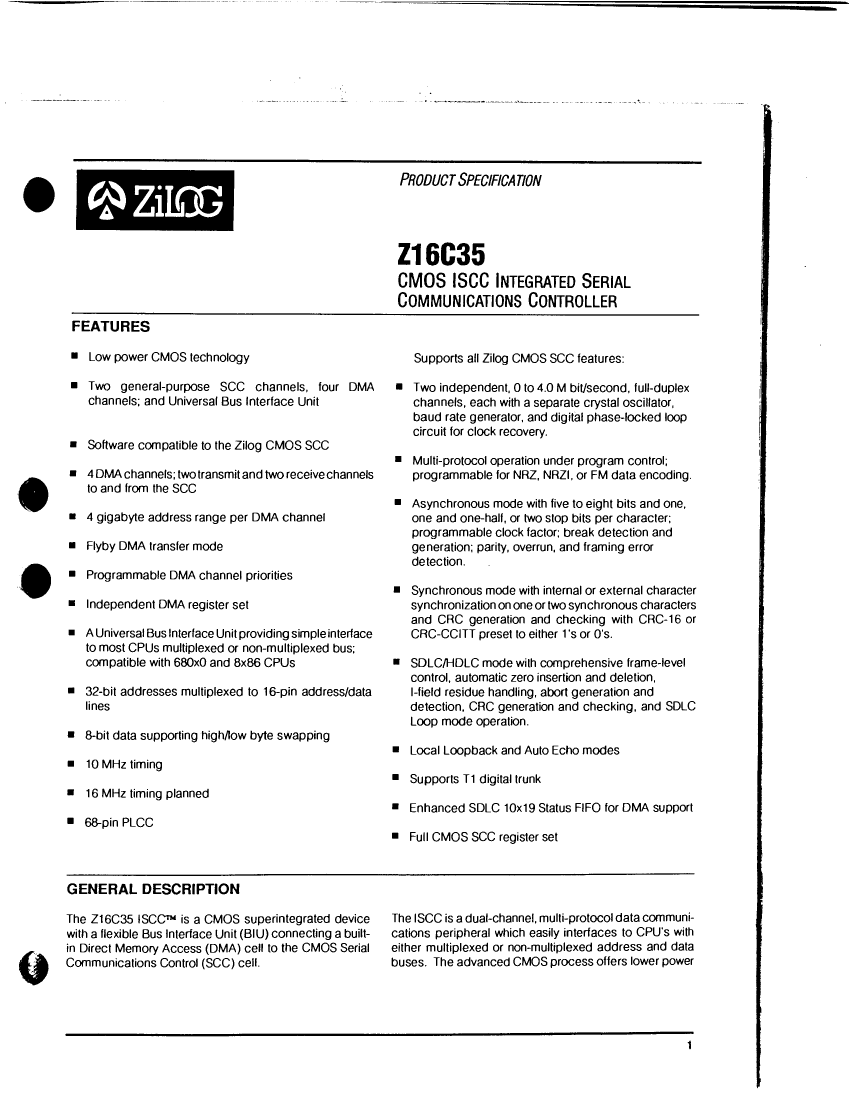

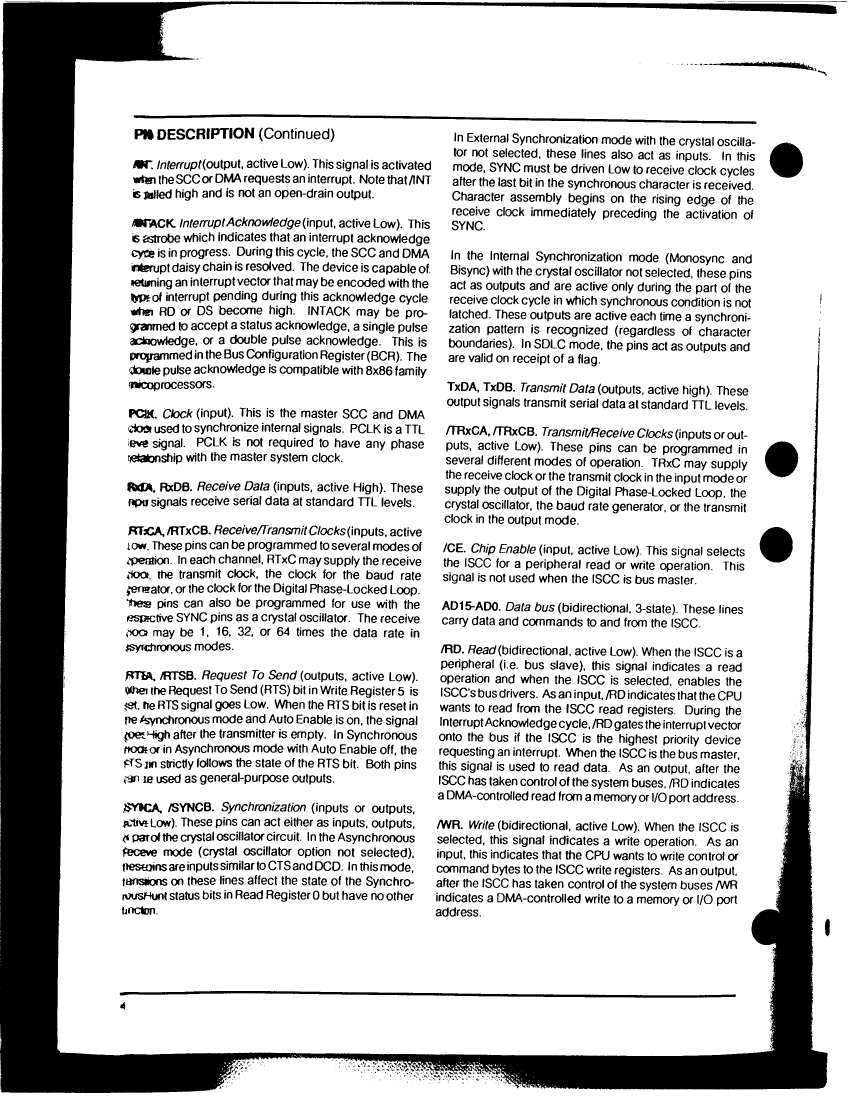

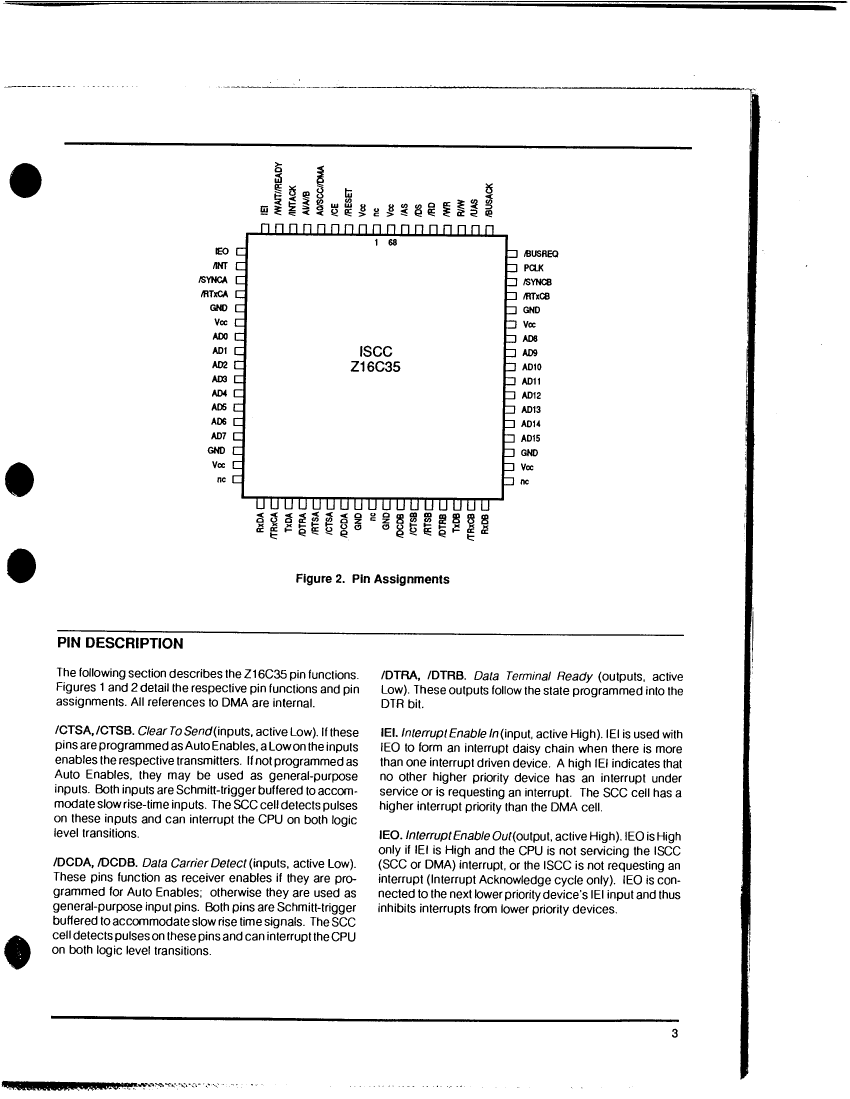

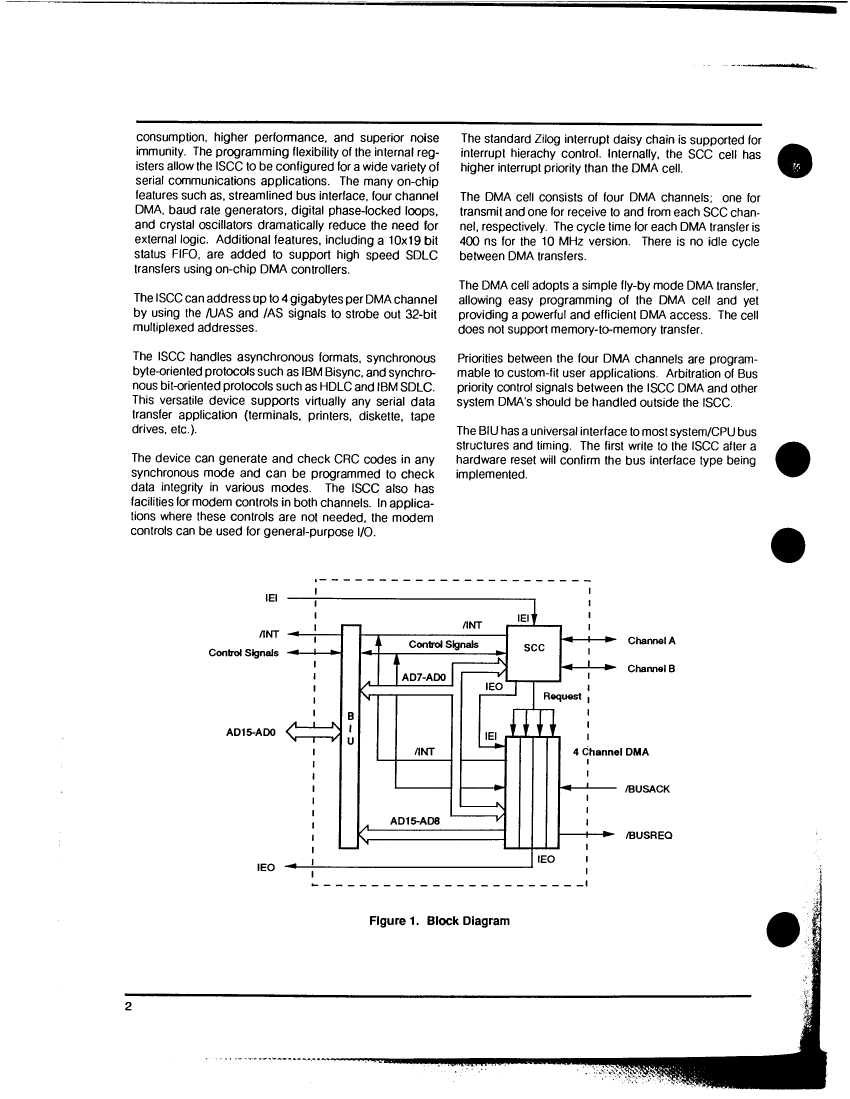

Z16C3510VSG: DescriptionSerial I/O Controller, 2 Channel(s), 0.5MBps, CMOS, PQCC68, PLASTIC, LCC-68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，63 Pages; ManufacturerIXYS; Environmental Compliance

Download Datasheet Parametric View All

Z16C3510VSG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Z16C3510VSG	-	-	View	Buy Now

Serial I/O Controller, 2 Channel(s), 0.5MBps, CMOS, PQCC68, PLASTIC, LCC-68

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	IXYS
Parts packaging code	LCC
package instruction	PLASTIC, LCC-68
Contacts	68
Reach Compliance Code	compli
Other features	TWO MODEM CONTROL I/OS USABLE AS GP I/OS; 10 X 19 FRAME STATUS FIFO; 32 BIT ADDRESSING CAPABILITY
Address bus width	16
boundary scan	NO
Bus compatibility	68000; 8086
maximum clock frequency	10 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; BISYNC; EXT SYNC
Data encoding/decoding methods	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	0.5 MBps
External data bus width	16
JESD-30 code	S-PQCC-J68
JESD-609 code	e3
length	24.2316 mm
low power mode	NO
Number of DMA channels	4
Number of I/O lines
Number of serial I/Os	2
Number of terminals	68
On-chip data RAM width
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.57 mm
Maximum slew rate	50 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	40
width	24.2316 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
