Z86C1505PSG datasheet, PDF - EEWORLD Datasheet

Z86C1505PSG: DescriptionMicrocontroller, 8-Bit, MROM, 5MHz, CMOS, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size805KB，28 Pages; ManufacturerIXYS; Environmental Compliance

Download Datasheet Parametric Compare View All

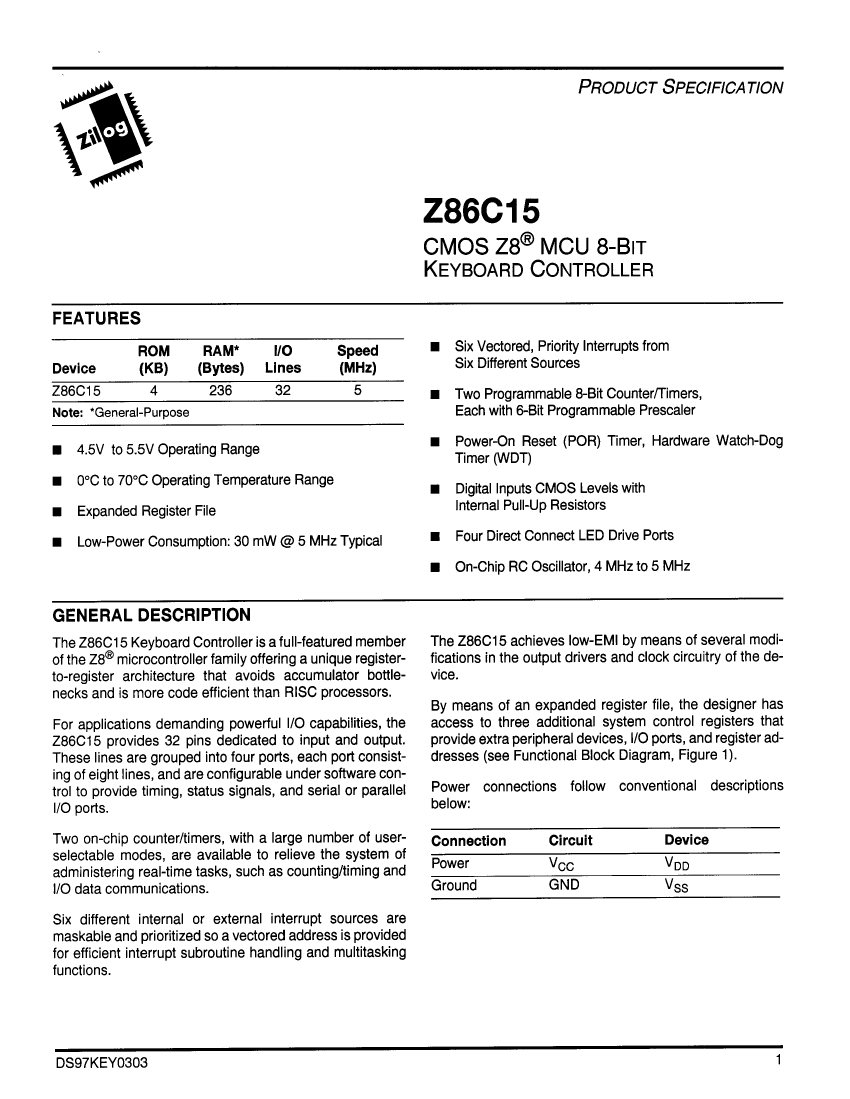

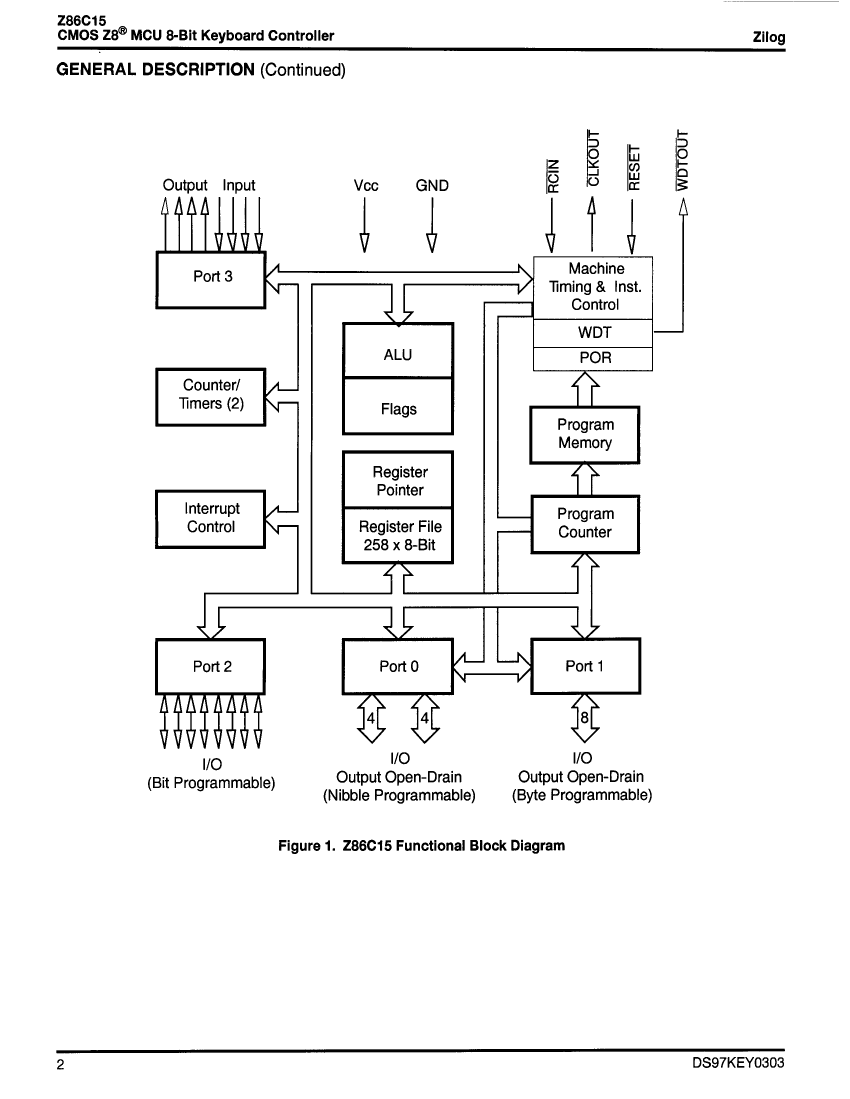

Z86C1505PSG Overview

Microcontroller, 8-Bit, MROM, 5MHz, CMOS, PDIP40, PLASTIC, DIP-40

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	IXYS

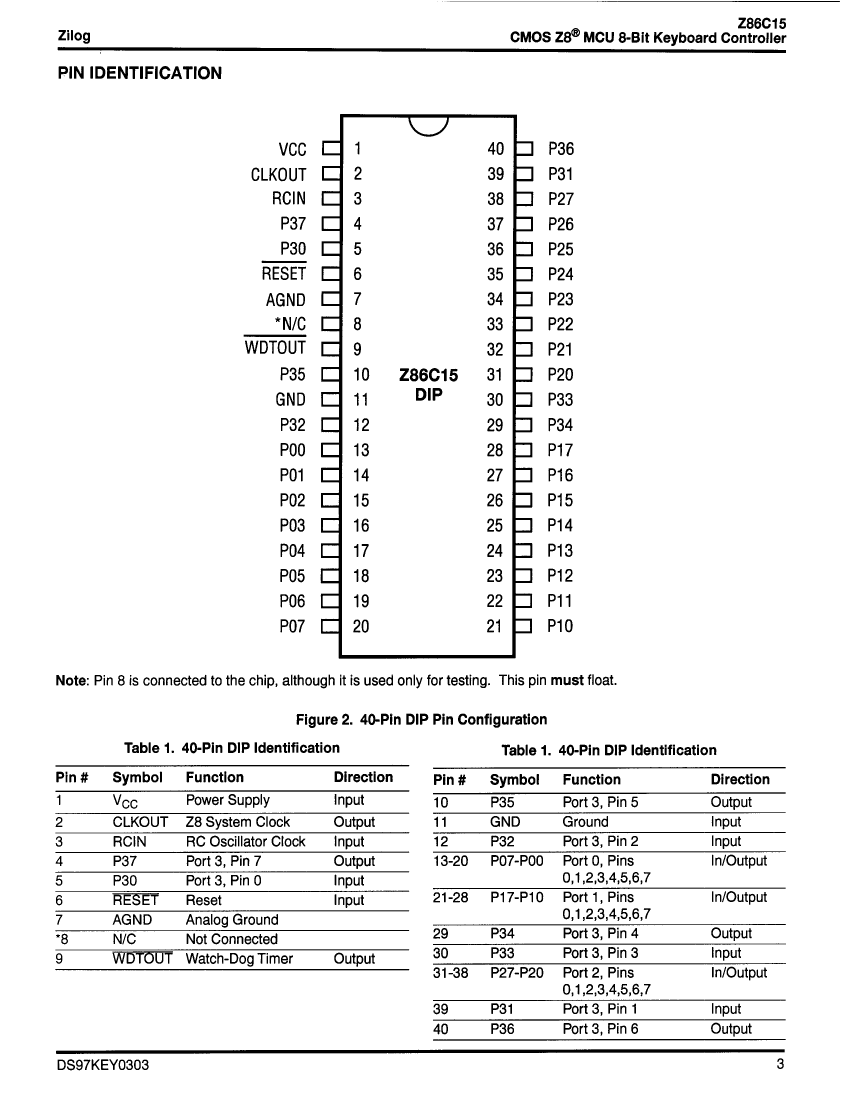

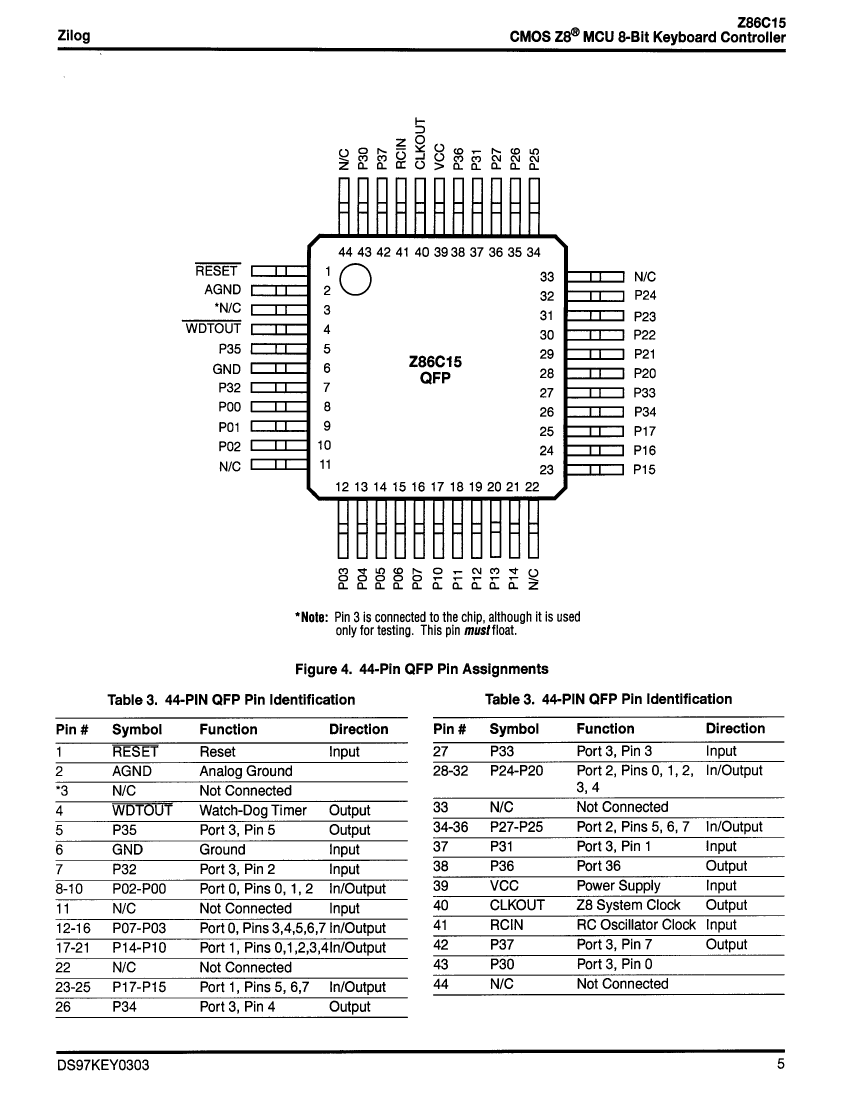

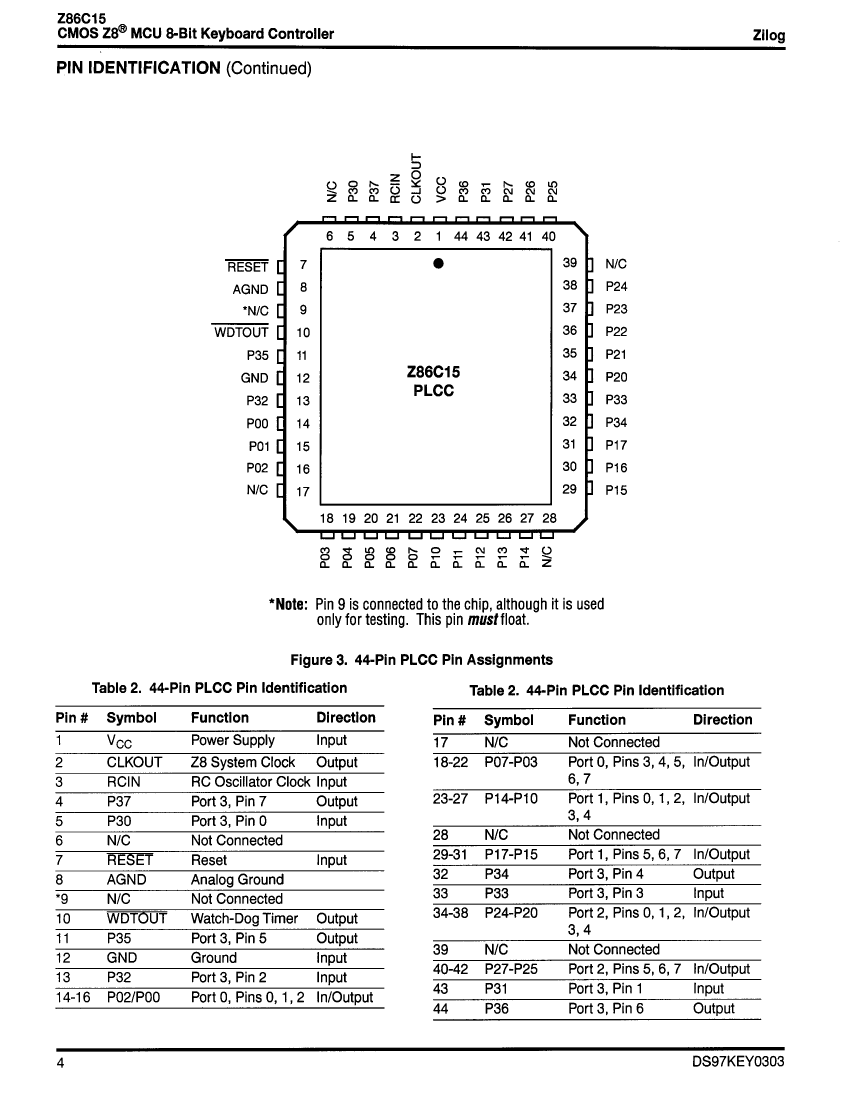

Parts packaging code	DIP
package instruction	PLASTIC, DIP-40
Contacts	40
Reach Compliance Code	compli
Has ADC	NO
Address bus width
bit size	8
maximum clock frequency	5 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T40
JESD-609 code	e3
length	52.325 mm
Number of I/O lines	32
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	4.24 mm
speed	5 MHz
Maximum slew rate	4 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

	Z86C1505PSG	Z86C1505PSC
Description	Microcontroller, 8-Bit, MROM, 5MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, 5MHz, CMOS, PDIP40, PLASTIC, DIP-40
Is it lead-free?	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible
Maker	IXYS	IXYS
Parts packaging code	DIP	DIP
package instruction	PLASTIC, DIP-40	PLASTIC, DIP-40
Contacts	40	40
Reach Compliance Code	compli	unknow
Has ADC	NO	NO
bit size	8	8
maximum clock frequency	5 MHz	5 MHz
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	R-PDIP-T40	R-PDIP-T40
JESD-609 code	e3	e0
length	52.325 mm	52.325 mm
Number of I/O lines	32	32
Number of terminals	40	40
Maximum operating temperature	70 °C	70 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	225	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
ROM programmability	MROM	MROM
Maximum seat height	4.24 mm	4.24 mm
speed	5 MHz	5 MHz
Maximum slew rate	4 mA	4 mA
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin (Sn)	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	30	NOT SPECIFIED
width	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
