Z86C2112PSC datasheet, PDF - EEWORLD Datasheet

Z86C2112PSC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，25 Pages; ManufacturerIXYS

Download Datasheet Parametric View All

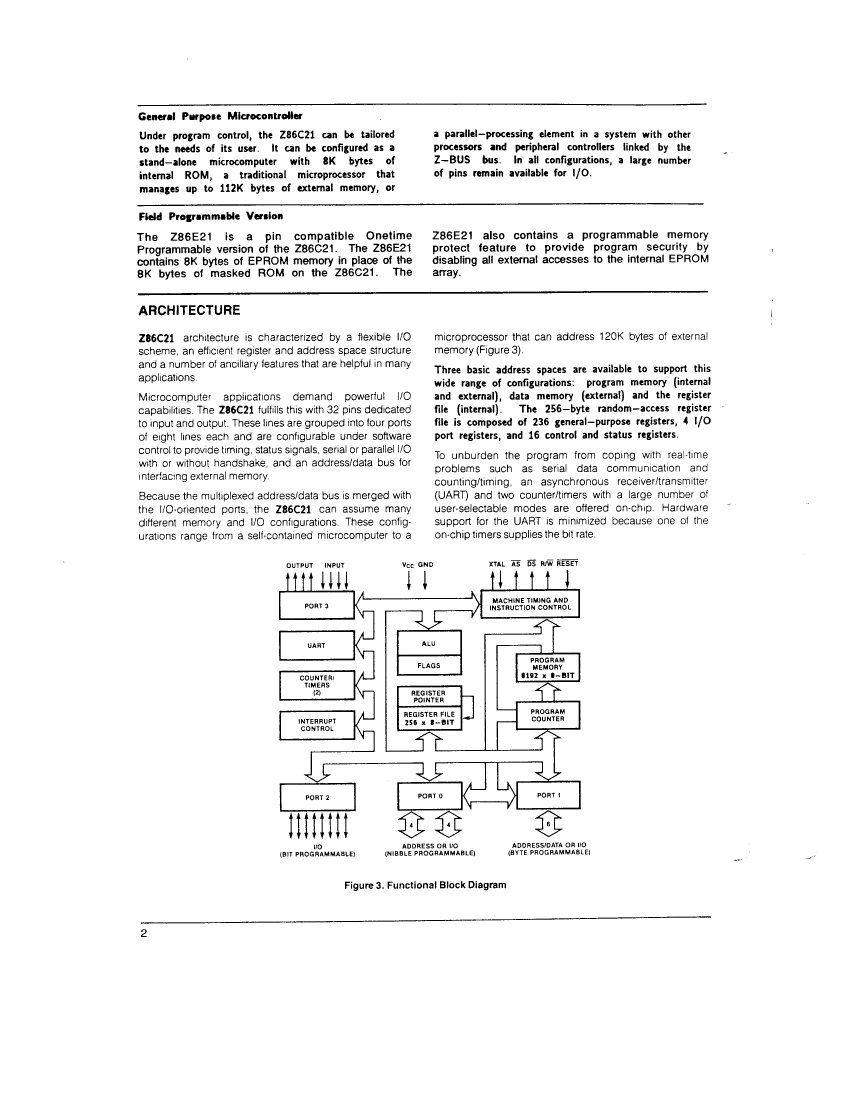

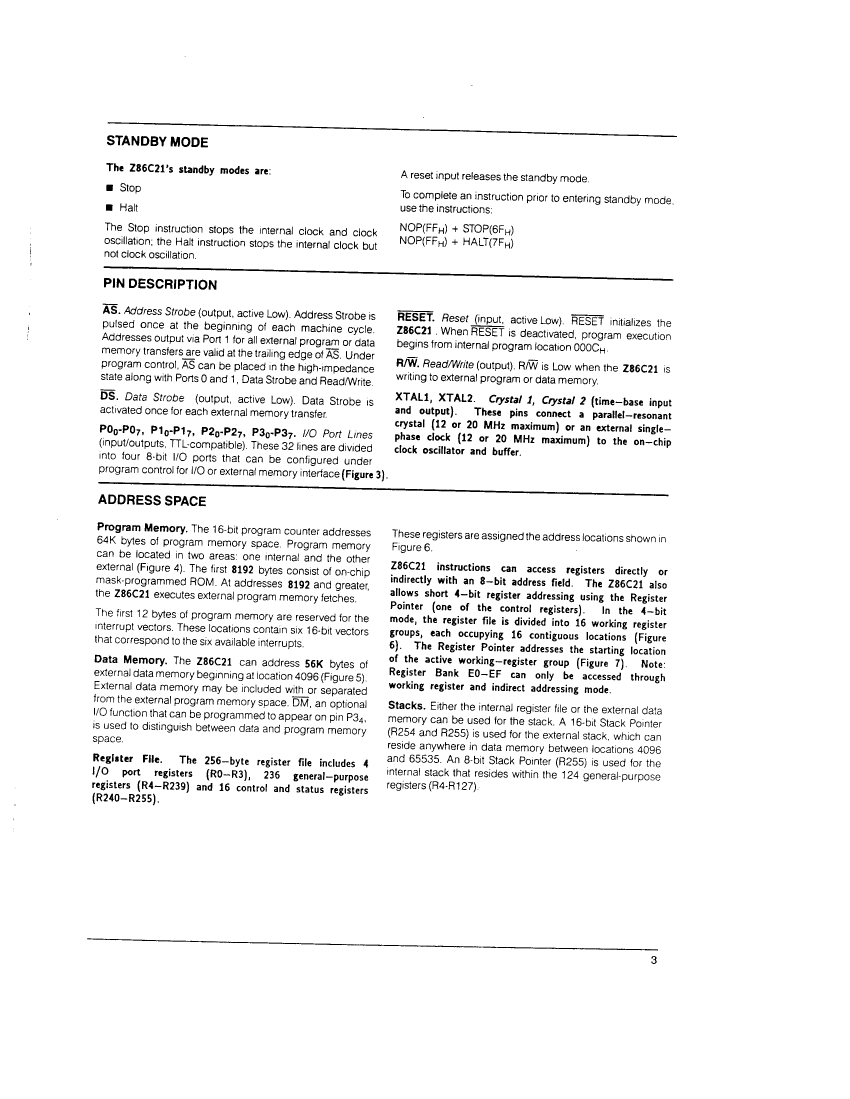

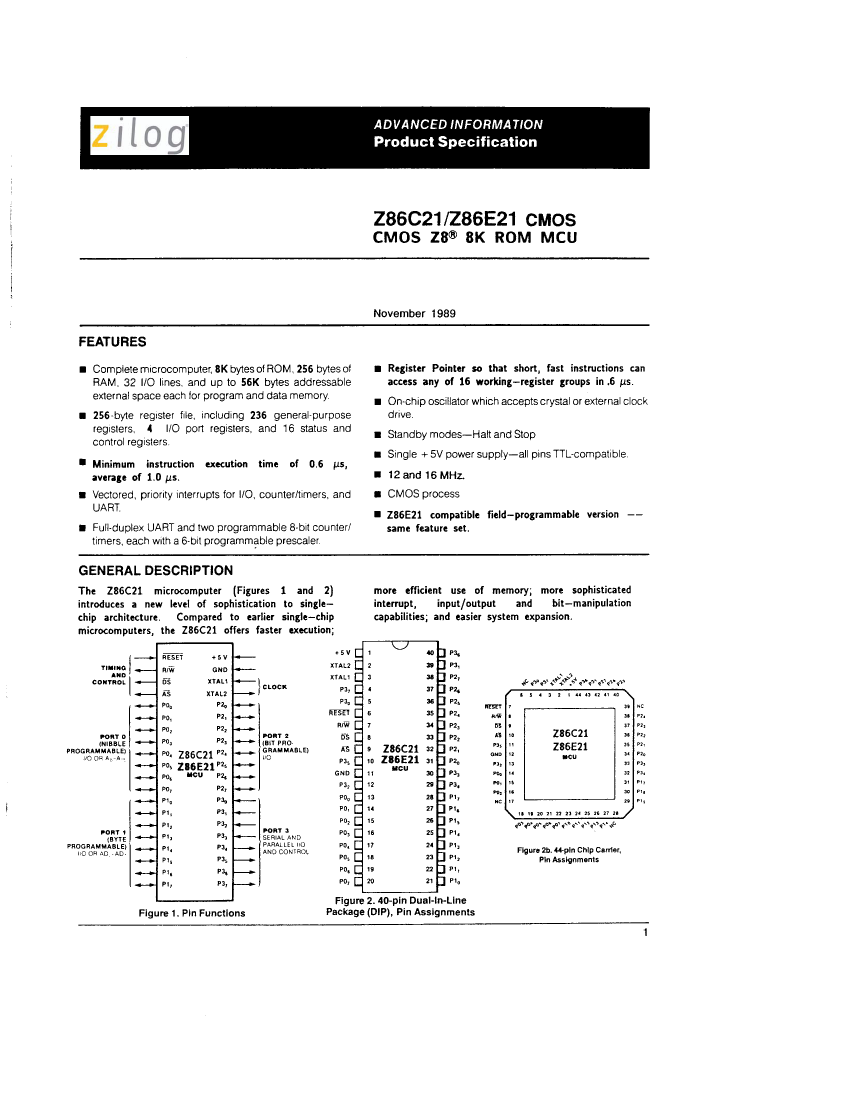

Z86C2112PSC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IXYS
Parts packaging code	DIP
package instruction	PLASTIC, DIP-40
Contacts	40
Reach Compliance Code	unknow
Has ADC	NO
Other features	RAM/ROM PROTECT; OPTIONAL LOW EMI MODE; TWO STANDBY MODES
Address bus width	16
bit size	8
boundary scan	NO
CPU series	Z8
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	52.325 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	4
Number of I/O lines	32
Number of serial I/Os	1
Number of terminals	40
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	236
RAM (number of words)	256
rom(word)	8192
ROM programmability	MROM
Maximum seat height	4.24 mm
speed	12 MHz
Maximum slew rate	30 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
