Z86C4012VEC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z86C4012VEC

Z86C4012VEC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PQCC44, PLASTIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，51 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

Z86C4012VEC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PQCC44, PLASTIC, LCC-44

Z86C4012VEC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IXYS
Parts packaging code	LCC
package instruction	PLASTIC, LCC-44
Contacts	44
Reach Compliance Code	unknow
Has ADC	NO
Other features	OPTIONAL LOW EMI MODE; ROM/RAM PROTECT; TWO STANDBY MODES
Address bus width	16
bit size	8
boundary scan	NO
CPU series	Z8
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-N44
JESD-609 code	e0
length	7 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	6
Number of I/O lines	32
Number of serial I/Os
Number of terminals	44
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCN
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225
power supply	3.3/5 V
Certification status	Not Qualified
RAM (bytes)	236
RAM (number of words)	236
rom(word)	4096
ROM programmability	MROM
speed	12 MHz
Maximum slew rate	20 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	7 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

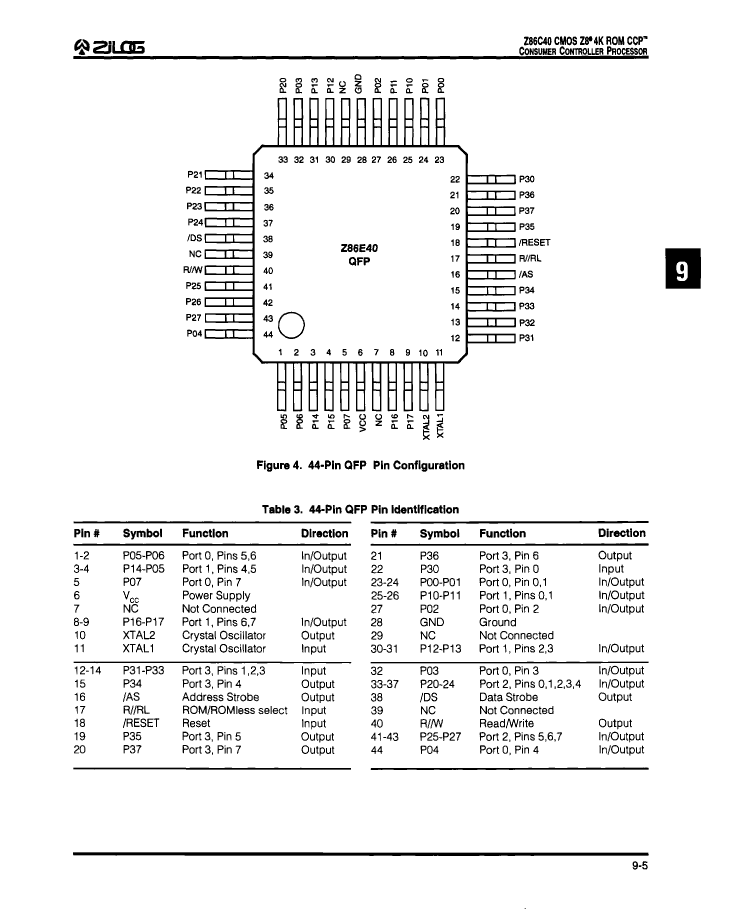

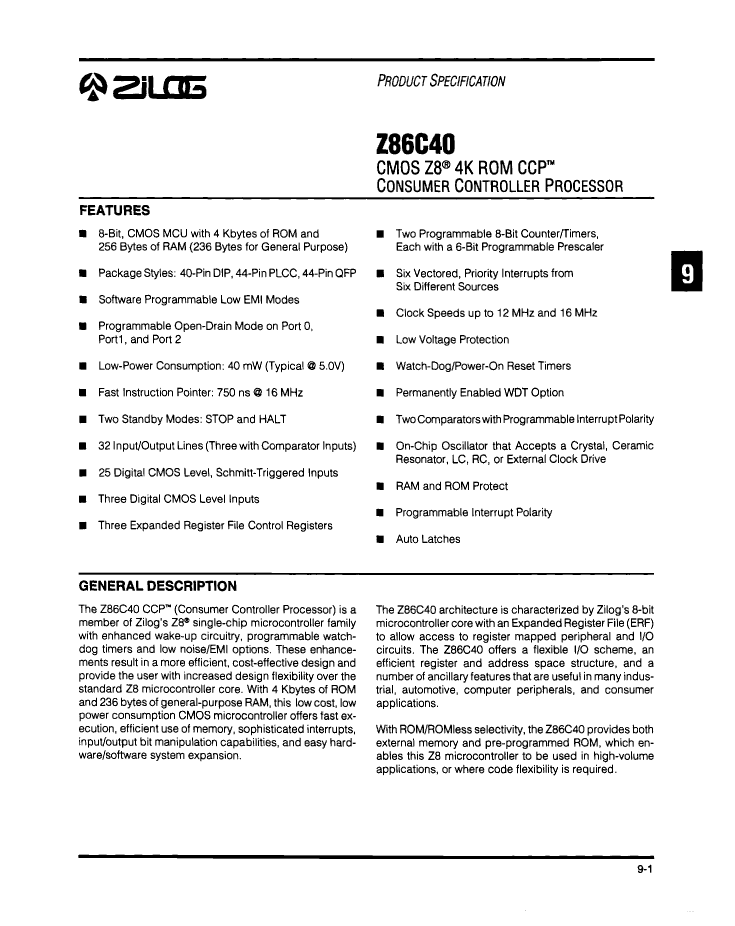

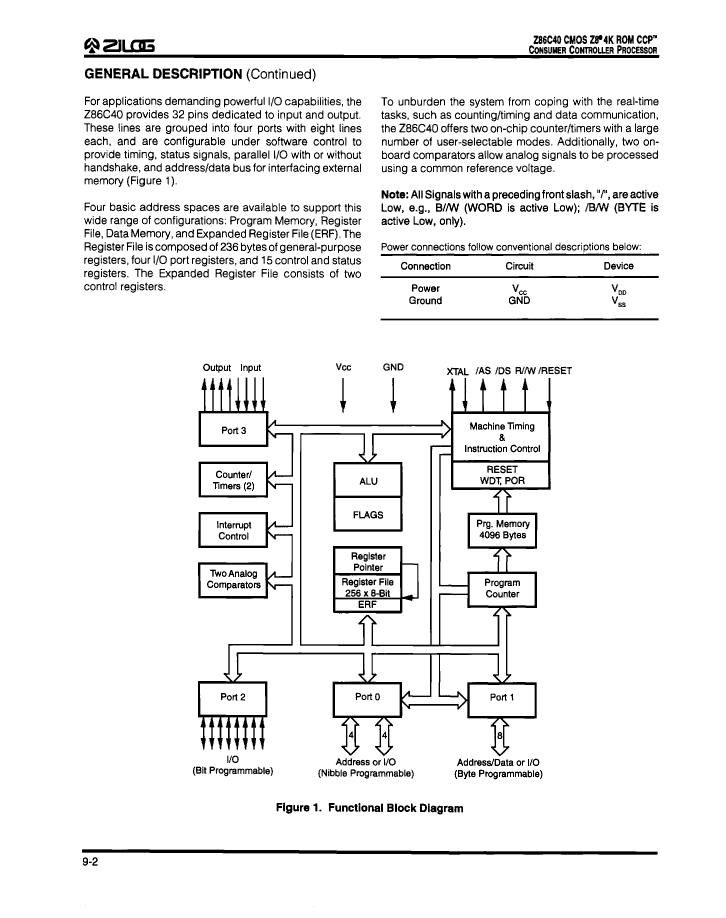

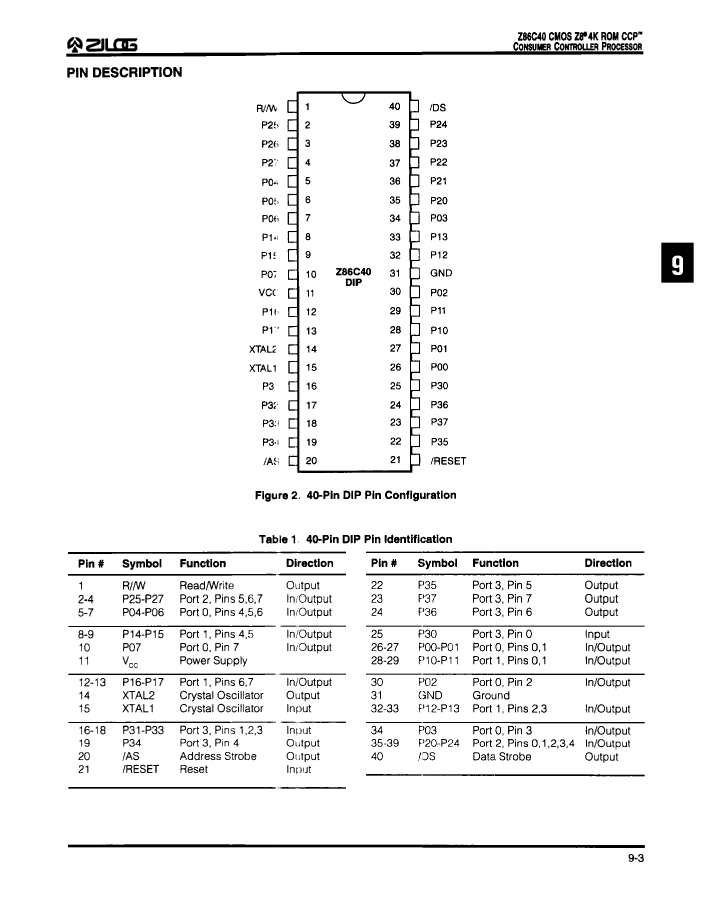

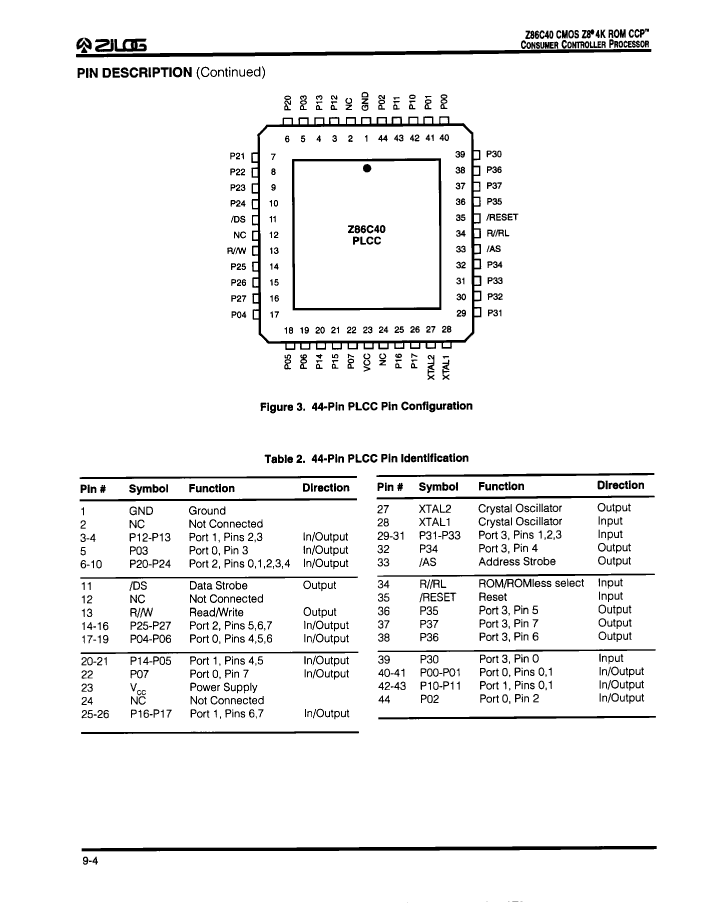

Z86C4012VEC Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Z86C4012VEC Related Products

	Z86C4012VEC	Z86C4012VEG	Z86C4012VSG	Z86C4012VSC
Description	Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, MROM, 12MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, MROM, 12MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PQCC44, PLASTIC, LCC-44
Is it lead-free?	Contains lead	Lead free	Lead free	Contains lead
Maker	IXYS	IXYS	IXYS	IXYS
Parts packaging code	LCC	LCC	LCC	LCC
package instruction	PLASTIC, LCC-44	PLASTIC, LCC-44	PLASTIC, LCC-44	PLASTIC, LCC-44
Contacts	44	44	44	44
Reach Compliance Code	unknow	compliant	compliant	unknow
Has ADC	NO	NO	NO	NO
Other features	OPTIONAL LOW EMI MODE; ROM/RAM PROTECT; TWO STANDBY MODES	OPTIONAL LOW EMI MODE; ROM/RAM PROTECT; TWO STANDBY MODES	OPTIONAL LOW EMI MODE; ROM/RAM PROTECT; TWO STANDBY MODES	OPTIONAL LOW EMI MODE; ROM/RAM PROTECT; TWO STANDBY MODES
Address bus width	16	16	16	16
bit size	8	8	8	8
boundary scan	NO	NO	NO	NO
maximum clock frequency	12 MHz	12 MHz	12 MHz	12 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
External data bus width	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO
JESD-30 code	S-PQCC-N44	S-PQCC-N44	S-PQCC-N44	S-PQCC-N44
JESD-609 code	e0	e3	e3	e0
length	7 mm	7 mm	7 mm	7 mm
low power mode	YES	YES	YES	YES
Number of external interrupt devices	6	6	6	6
Number of I/O lines	32	32	32	32
Number of terminals	44	44	44	44
Number of timers	2	2	2	2
On-chip data RAM width	8	8	8	8
On-chip program ROM width	8	8	8	8
Maximum operating temperature	105 °C	105 °C	70 °C	70 °C
PWM channel	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCN	QCCN	QCCN	QCCN
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225	225	225	225
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	236	236	236	236
rom(word)	4096	4096	4096	4096
ROM programmability	MROM	MROM	MROM	MROM
speed	12 MHz	12 MHz	12 MHz	12 MHz
Maximum slew rate	20 mA	20 mA	20 mA	20 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	TIN	TIN	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	30	30	30	30
width	7 mm	7 mm	7 mm	7 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
