Z86C6116FSC datasheet, PDF - EEWORLD Datasheet

Z86C6116FSC: DescriptionMicrocontroller, 8-Bit, MROM, 16MHz, CMOS, PQFP44, PLASTIC, QFP-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，46 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

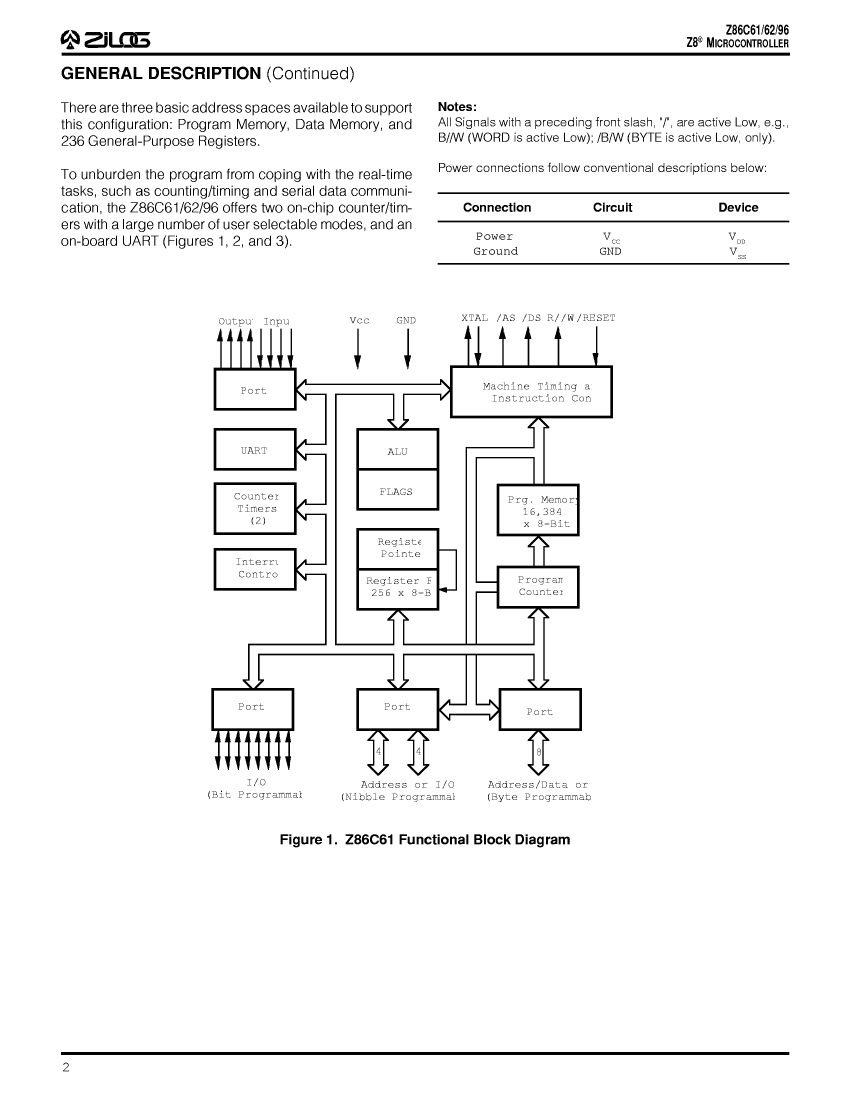

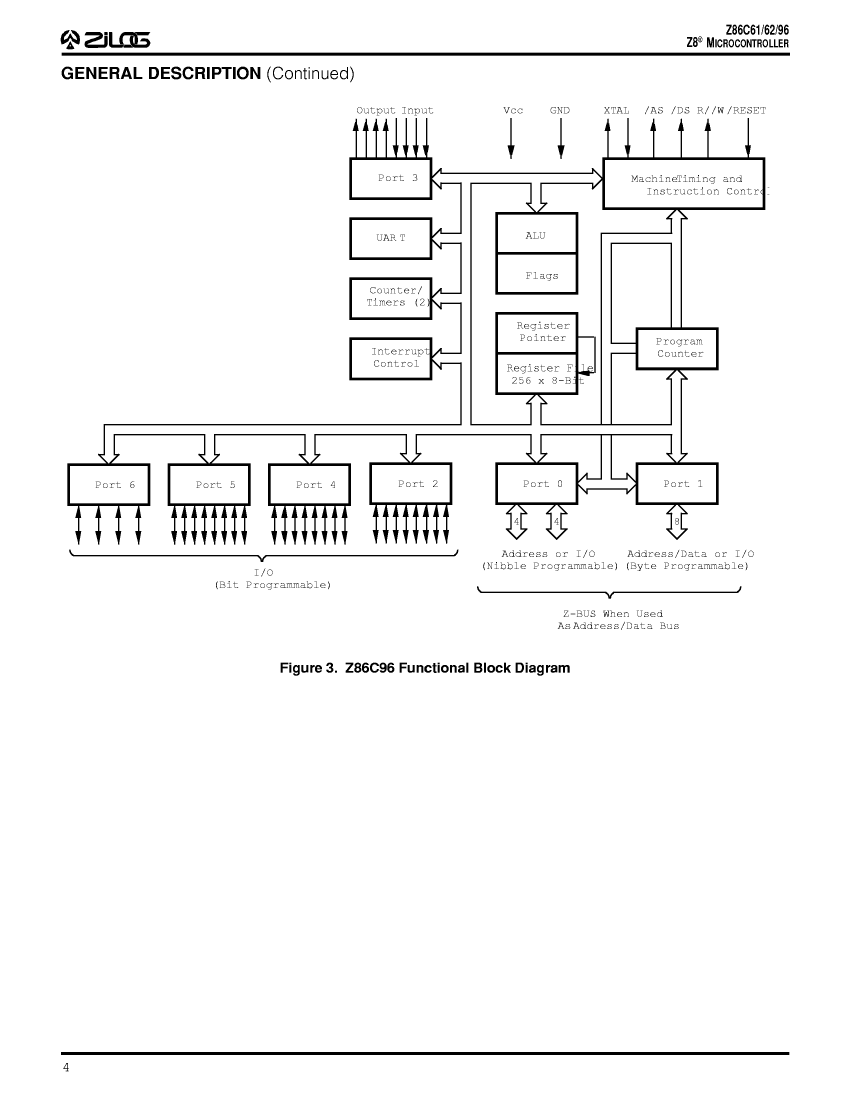

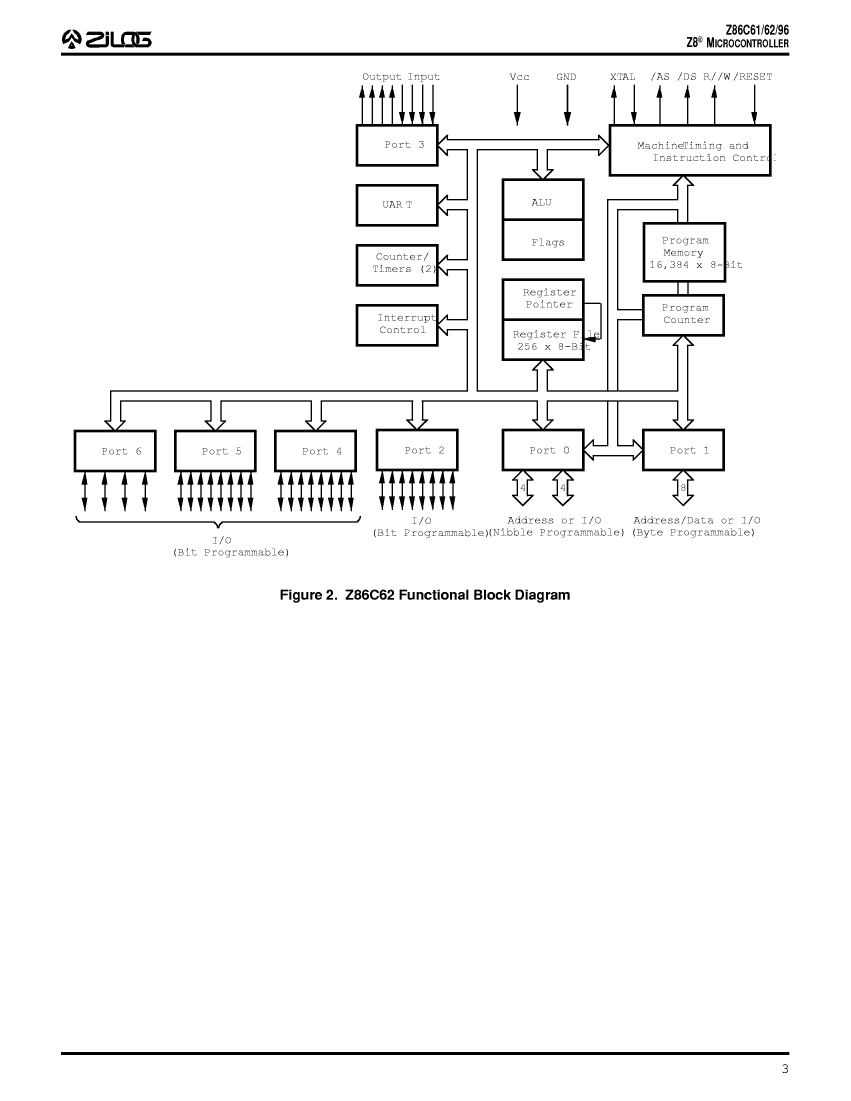

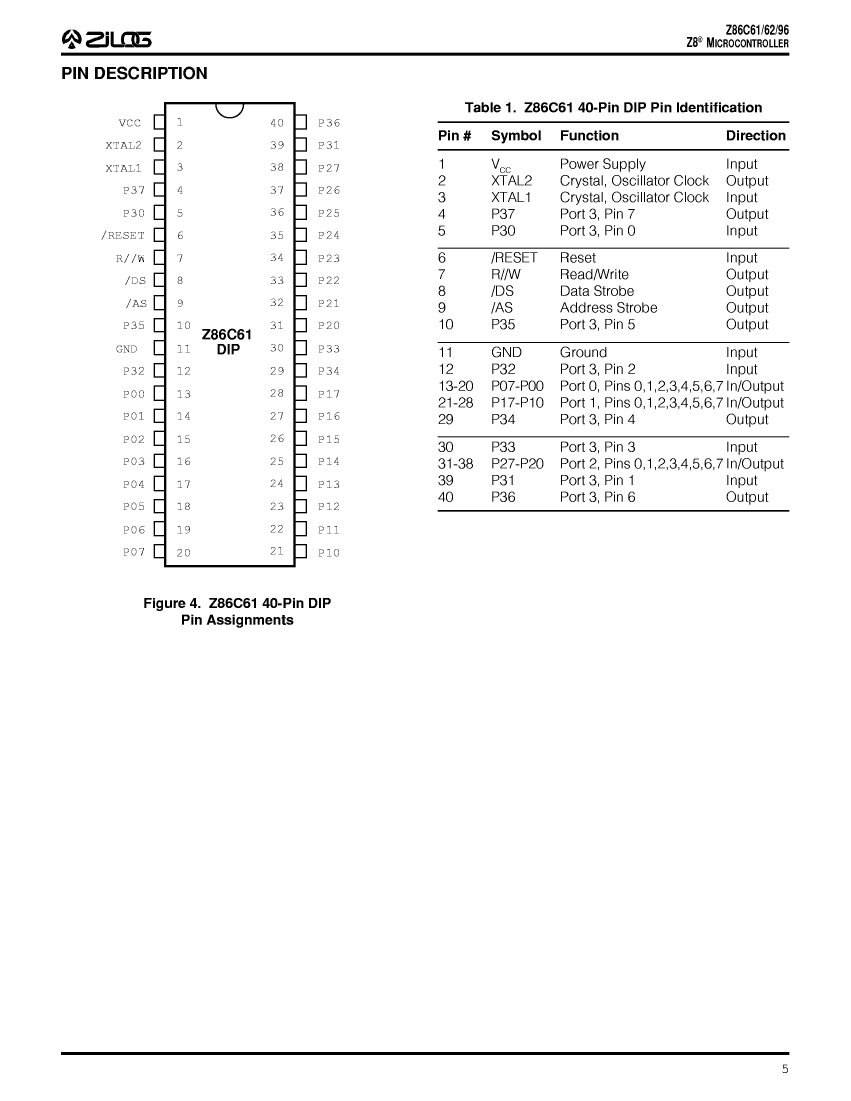

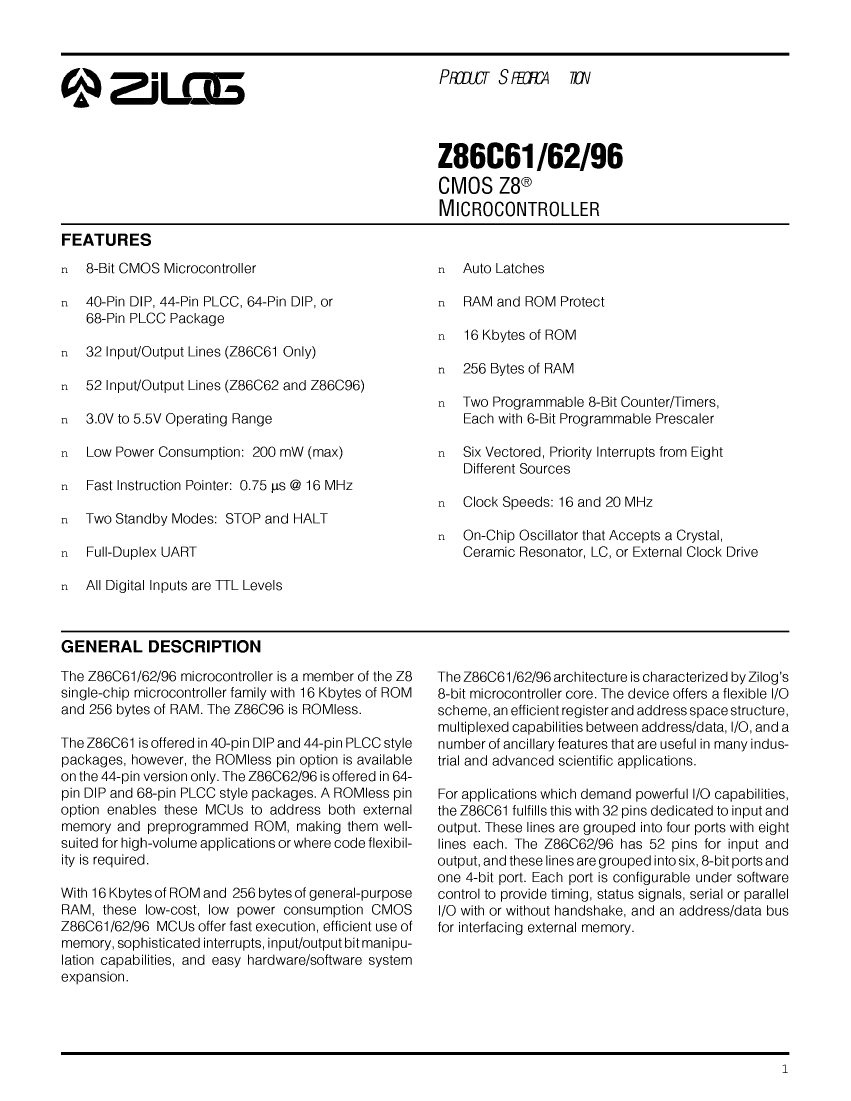

Z86C6116FSC Overview

Microcontroller, 8-Bit, MROM, 16MHz, CMOS, PQFP44, PLASTIC, QFP-44

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IXYS
Parts packaging code	QFP
package instruction	PLASTIC, QFP-44
Contacts	44
Reach Compliance Code	_compli
Has ADC	NO
Address bus width	16
bit size	8
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-PQFP-G44
JESD-609 code	e0
length	10 mm
Number of I/O lines	32
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	2.5 mm
speed	16 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

	Z86C6116FSC	Z86C6116FSG
Description	Microcontroller, 8-Bit, MROM, 16MHz, CMOS, PQFP44, PLASTIC, QFP-44	Microcontroller, 8-Bit, MROM, 16MHz, CMOS, PQFP44, PLASTIC, QFP-44
Is it lead-free?	Contains lead	Lead free
Is it Rohs certified?	incompatible	conform to
Maker	IXYS	IXYS
Parts packaging code	QFP	QFP
package instruction	PLASTIC, QFP-44	PLASTIC, QFP-44
Contacts	44	44
Reach Compliance Code	_compli	compli
Has ADC	NO	NO
Address bus width	16	16
bit size	8	8
maximum clock frequency	16 MHz	16 MHz
DAC channel	NO	NO
DMA channel	NO	NO
External data bus width	8	8
JESD-30 code	S-PQFP-G44	S-PQFP-G44
JESD-609 code	e0	e3
length	10 mm	10 mm
Number of I/O lines	32	32
Number of terminals	44	44
Maximum operating temperature	70 °C	70 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP
Package shape	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK
Peak Reflow Temperature (Celsius)	225	260
Certification status	Not Qualified	Not Qualified
ROM programmability	MROM	MROM
Maximum seat height	2.5 mm	2.5 mm
speed	16 MHz	16 MHz
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	30	40
width	10 mm	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
