Z86C9325VSC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z86C9325VSC

Z86C9325VSC: DescriptionMicrocontroller, 8-Bit, Z8 CPU, 25MHz, CMOS, PQCC44, PLASTIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size302KB，13 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

Z86C9325VSC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Z86C9325VSC	-	-	View	Buy Now

Z86C9325VSC Overview

Microcontroller, 8-Bit, Z8 CPU, 25MHz, CMOS, PQCC44, PLASTIC, LCC-44

Z86C9325VSC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IXYS
Parts packaging code	LCC
package instruction	PLASTIC, LCC-44
Contacts	44
Reach Compliance Code	unknow
Has ADC	NO
Other features	16 X 16 MULTIPLIER; 32 X 16 DIVIDER; TWO STANDBY MODES
Address bus width	16
bit size	8
boundary scan	NO
CPU series	Z8
maximum clock frequency	25 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
length	16.5862 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	4
Number of I/O lines	24
Number of serial I/Os	1
Number of terminals	44
Number of timers	3
On-chip data RAM width	8
On-chip program ROM width
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225
power supply	3.3/5 V
Certification status	Not Qualified
RAM (bytes)	256
RAM (number of words)	256
rom(word)	0
Maximum seat height	4.57 mm
speed	25 MHz
Maximum slew rate	40 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	2.97 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

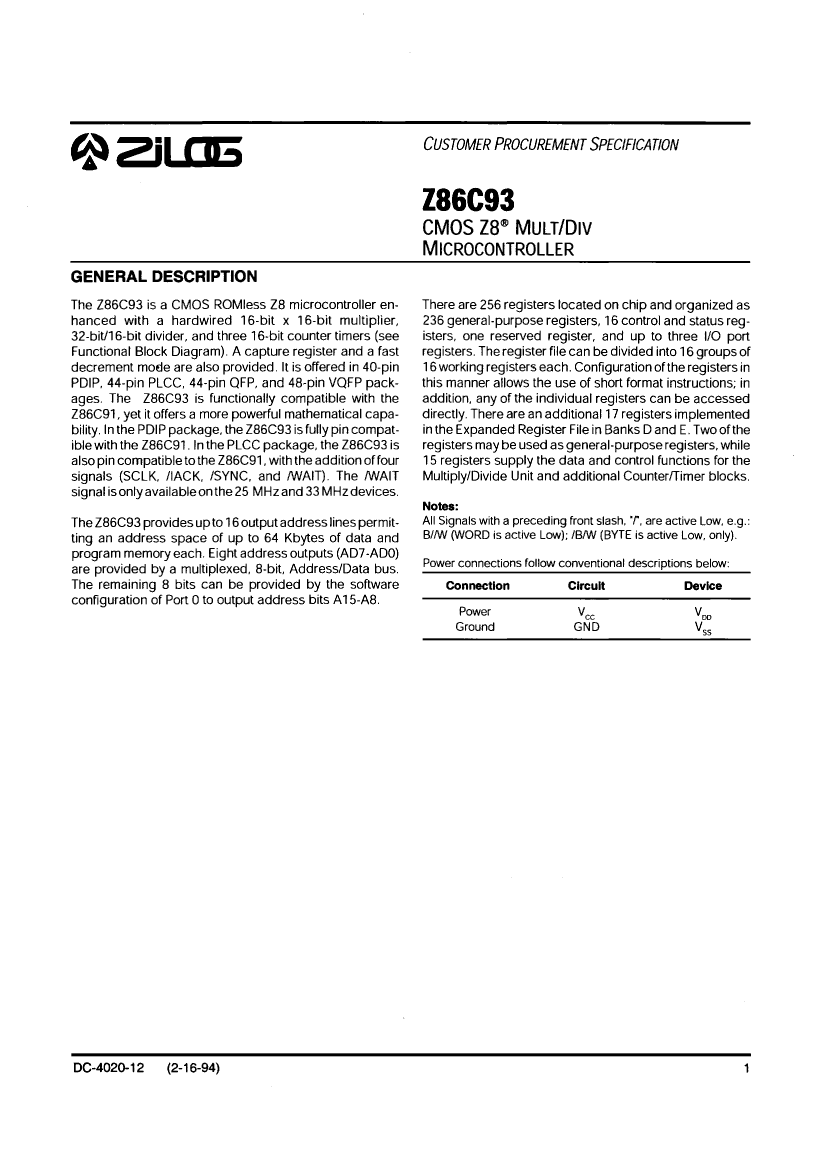

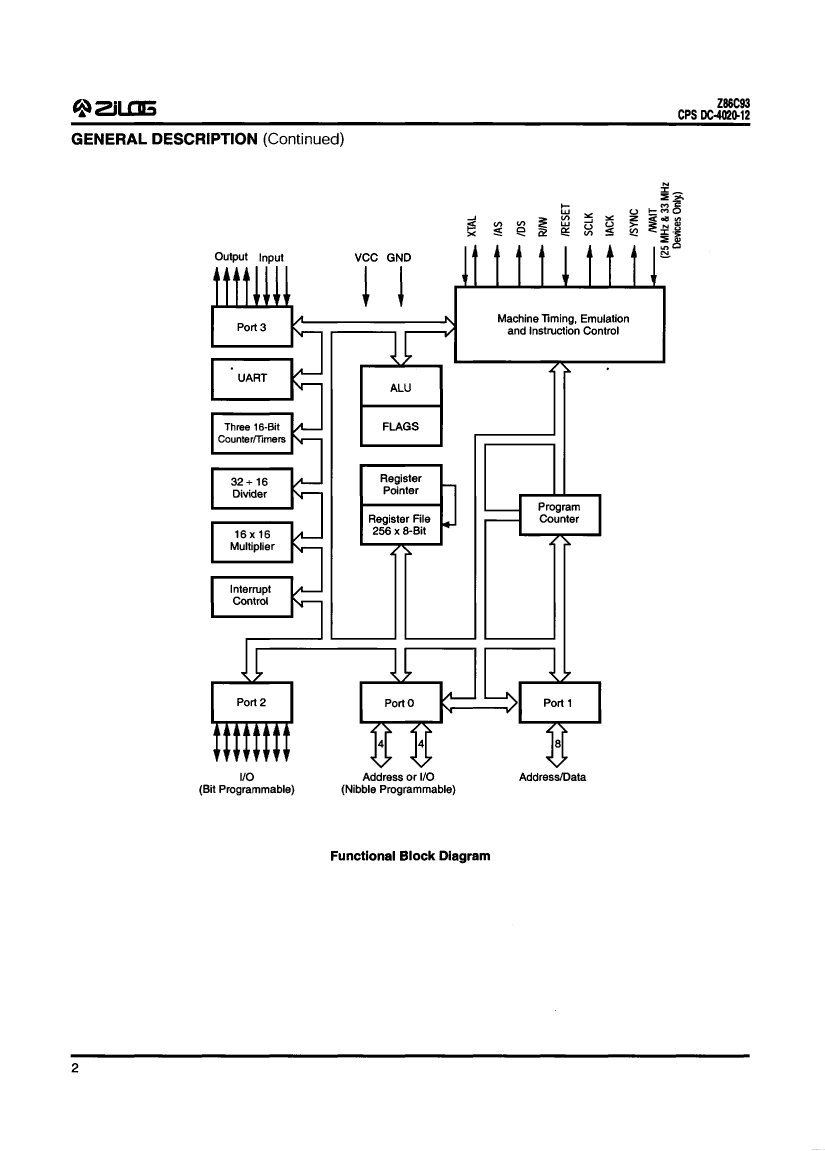

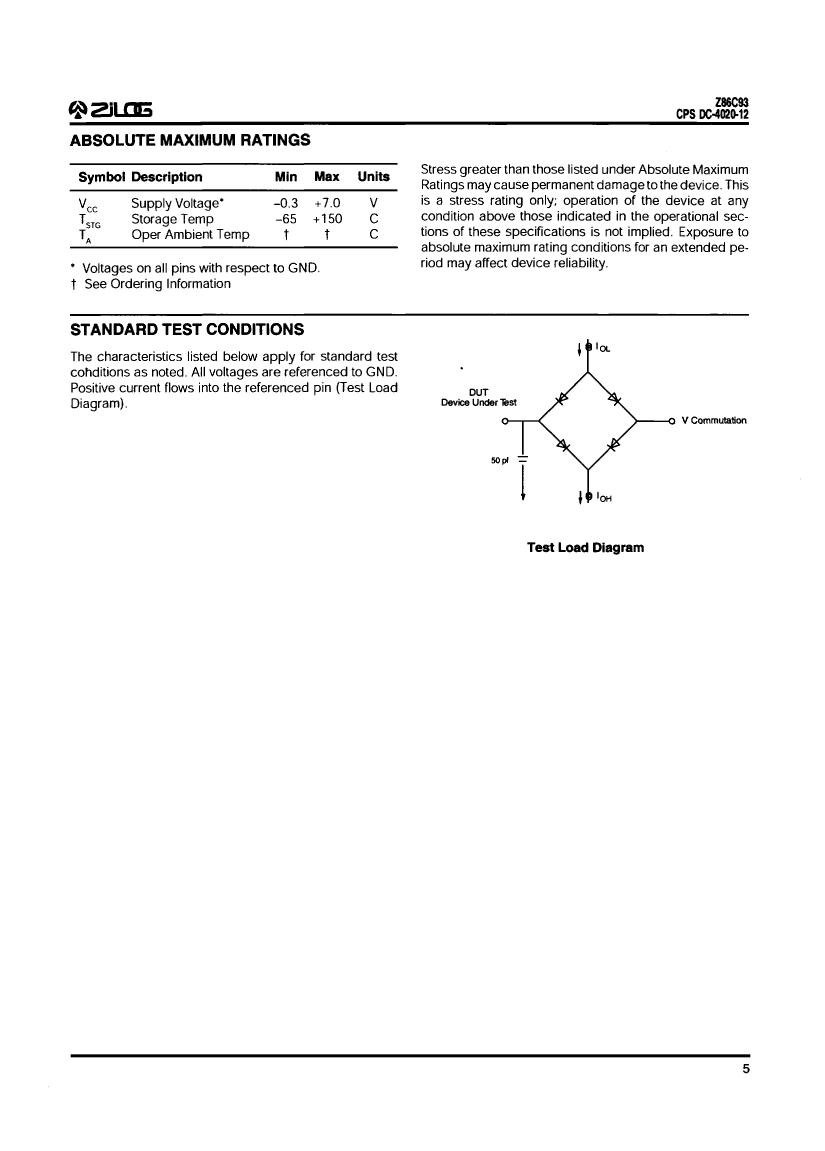

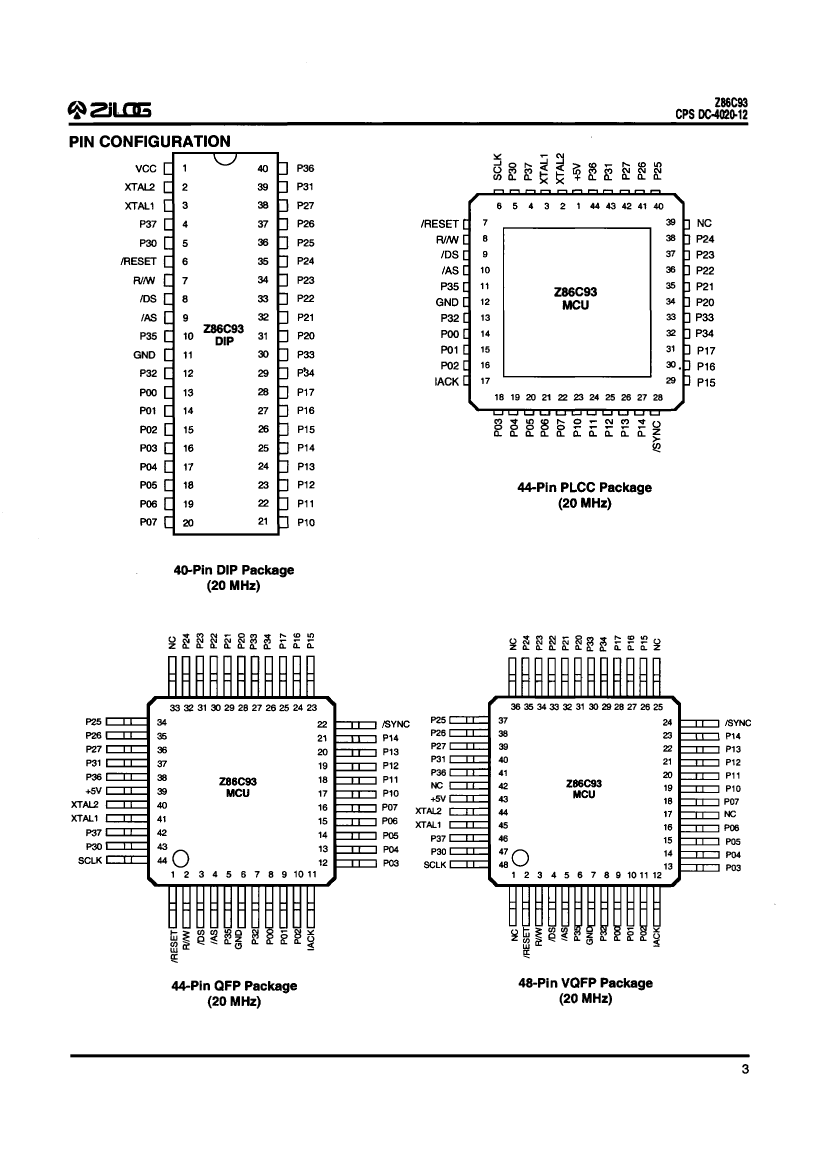

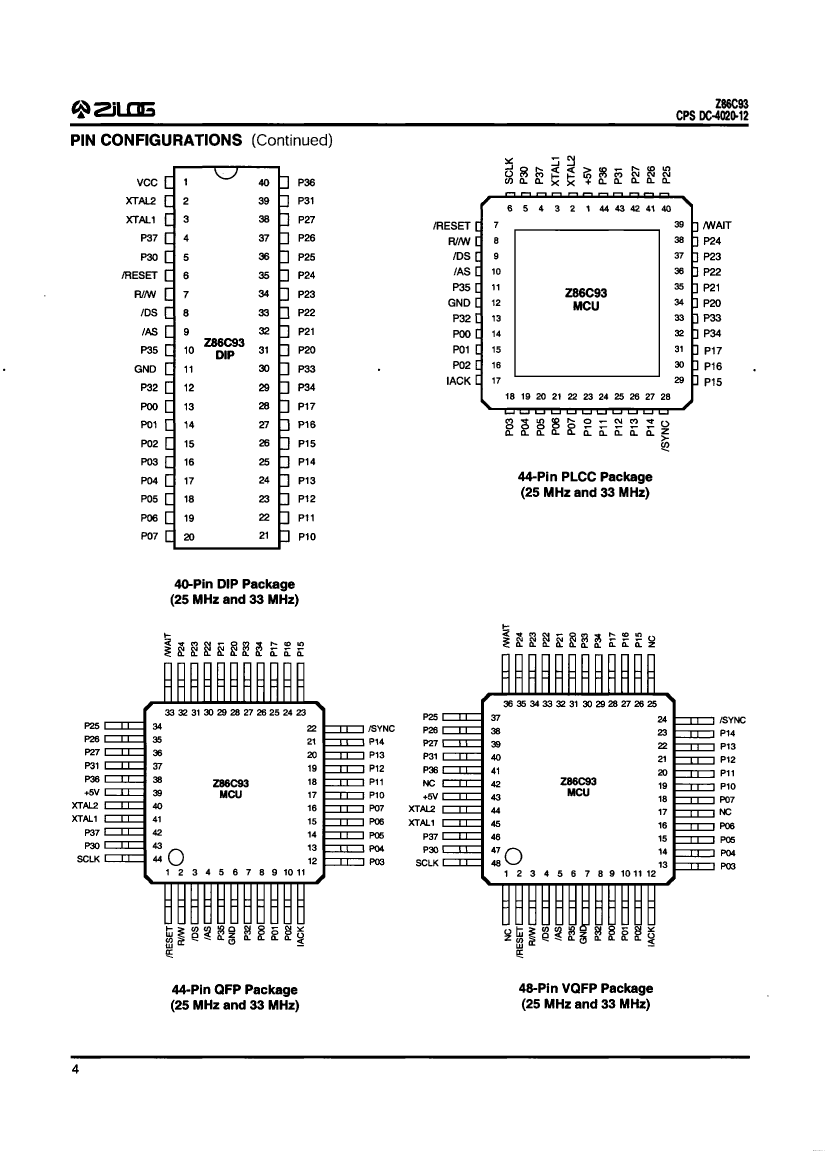

Z86C9325VSC Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Z86C9325VSC Related Products

	Z86C9325VSC	Z86C9325PSG	Z86C9325PSC	Z86C9325VSG	Z86C9333VSG	Z86C9333VSC	Z86C9320PSG	Z86C9320PSC	Z86C9320VSG
Description	Microcontroller, 8-Bit, Z8 CPU, 25MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, 25MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, Z8 CPU, 25MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, 25MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, 33MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, Z8 CPU, 33MHz, CMOS, PQCC44, LCC-44	Microcontroller, 8-Bit, 20MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, Z8 CPU, 20MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, 20MHz, CMOS, PQCC44, PLASTIC, LCC-44
Is it lead-free?	Contains lead	Lead free	Contains lead	Lead free	Lead free	Contains lead	Lead free	Contains lead	Lead free
Is it Rohs certified?	incompatible	conform to	incompatible	conform to	conform to	incompatible	conform to	incompatible	conform to
Parts packaging code	LCC	DIP	DIP	LCC	LCC	LCC	DIP	DIP	LCC
package instruction	PLASTIC, LCC-44	PLASTIC, DIP-40	PLASTIC, DIP-40	PLASTIC, LCC-44	PLASTIC, LCC-44	LCC-44	PLASTIC, DIP-40	PLASTIC, DIP-40	PLASTIC, LCC-44
Contacts	44	40	40	44	44	44	40	40	44
Reach Compliance Code	unknow	compliant	unknown	compliant	compliant	unknown	compli	unknow	compliant
Has ADC	NO	NO	NO	NO	NO	NO	NO	NO	NO
Other features	16 X 16 MULTIPLIER; 32 X 16 DIVIDER; TWO STANDBY MODES	16 X 16 MULTIPLIER; 32 X 16 DIVIDER; TWO STANDBY MODES	16 X 16 MULTIPLIER; 32 X 16 DIVIDER; TWO STANDBY MODES	16 X 16 MULTIPLIER; 32 X 16 DIVIDER; TWO STANDBY MODES	16 X 16 MULTIPLIER; 32 X 16 DIVIDER; TWO STANDBY MODES	16 X 16 MULTIPLIER; 32 X 16 DIVIDER; TWO STANDBY MODES	16 X 16 MULTIPLIER; 32 X 16 DIVIDER; TWO STANDBY MODES	16 X 16 MULTIPLIER; 32 X 16 DIVIDER; TWO STANDBY MODES	16 X 16 MULTIPLIER; 32 X 16 DIVIDER; TWO STANDBY MODES
Address bus width	16	16	16	16	16	16	16	16	16
bit size	8	8	8	8	8	8	8	8	8
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	25 MHz	25 MHz	25 MHz	25 MHz	33 MHz	33 MHz	20 MHz	20 MHz	20 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	S-PQCC-J44	R-PDIP-T40	R-PDIP-T40	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	R-PDIP-T40	R-PDIP-T40	S-PQCC-J44
JESD-609 code	e0	e3	e0	e3	e3	e0	e3	e0	e3
length	16.5862 mm	52.325 mm	52.325 mm	16.5862 mm	16.5862 mm	16.5862 mm	52.325 mm	52.325 mm	16.5862 mm
low power mode	YES	YES	YES	YES	YES	YES	YES	YES	YES
Number of external interrupt devices	4	4	4	4	4	4	4	4	4
Number of I/O lines	24	24	24	24	24	24	24	24	24
Number of serial I/Os	1	1	1	1	1	1	1	1	1
Number of terminals	44	40	40	44	44	44	40	40	44
Number of timers	3	3	3	3	3	3	3	3	3
On-chip data RAM width	8	8	8	8	8	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
PWM channel	NO	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP	DIP	QCCJ	QCCJ	QCCJ	DIP	DIP	QCCJ
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225	225	NOT SPECIFIED	225	225	225	225	NOT SPECIFIED	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	256	256	256	256	256	256	256	256	256
Maximum seat height	4.57 mm	4.24 mm	4.24 mm	4.57 mm	4.57 mm	4.57 mm	4.24 mm	4.24 mm	4.57 mm
speed	25 MHz	25 MHz	25 MHz	25 MHz	33 MHz	33 MHz	20 MHz	20 MHz	20 MHz
Maximum slew rate	40 mA	40 mA	40 mA	40 mA	55 mA	55 mA	30 mA	30 mA	30 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	2.97 V	2.97 V	2.97 V	2.97 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	YES	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	TIN	Tin/Lead (Sn/Pb)	TIN	TIN	Tin/Lead (Sn/Pb)	TIN	Tin/Lead (Sn/Pb)	MATTE TIN
Terminal form	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	QUAD	QUAD	QUAD	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	30	30	NOT SPECIFIED	30	30	30	30	NOT SPECIFIED	40
width	16.5862 mm	15.24 mm	15.24 mm	16.5862 mm	16.5862 mm	16.5862 mm	15.24 mm	15.24 mm	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	IXYS	IXYS	IXYS	IXYS	IXYS	IXYS	IXYS	IXYS	-
