15KPA SERIES
Transient Voltage Suppressors (TVS) Data Sheet
Features
■
■
■
■
■
■
■
■
■
■
Glass passivated junction
Low incremental surge resistance
Excellent clamping capability
15000W peak pulse power capability at 10/1000μs waveform,
repetition rate (duty cycle): 0.05%
Fast response time
Typical I
R
less than 2μA above 30V.
High Temperature soldering guaranteed: 265℃/10 seconds/.375″,
(9.5mm) lead length, 5lbs (2.3kg) tension
Plastic package has underwriters laboratory flammability 94V-0
Meets MSL level 1, per J-STD-020.
Safety certification: UL: E244458
Mechanical Data
■
■
■
■
■
Case: Moulded plastic over glass passivated junction
Terminal: Plated Axial leads, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode except bi-directional models
Mounting Position: Any
Weight: 2.30g
Applications
■
I/O interface
■
AC/DC power supply
■
Low frequency signal transmission line (RS232, RS485, etc.)
Maximum Ratings and Characteristics
Ratings at 25℃ ambient temperature unless otherwise specified.
Rating
Peak pulse power dissipation at 10/1000μs waveform
(Note1, Fig.1)
Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3)
Steady state power dissipation at T
L
=75℃ (Fig.5)
Peak forward surge current, 8.3ms single half sine-wave
superimposed on rated load, (JEDEC Method) (Note2, Fig.6)
Operating junction and Storage Temperature Range.
Typical thermal resistance junction to lead
Typical thermal resistance junction to ambient
Symbol
P
PPM
I
PPM
P
M(AV)
I
FSM
T
J
,T
STG
R
θJL
R
θJA
Value
Minimum 15000
See Table
8.0
400
-55 to +150
8
40
Units
Watts
Amps
Watts
Amps
℃
℃/W
℃/W
Notes: 1. Non-repetitive current pulse, per Fig.3 and derated above T
A
=25℃ per Fig.2.
2. 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minutes maximum.
Revision：TVS-15KPA
SERIES-001(A1)
1/6
http://brightking.pulseelectronics.com

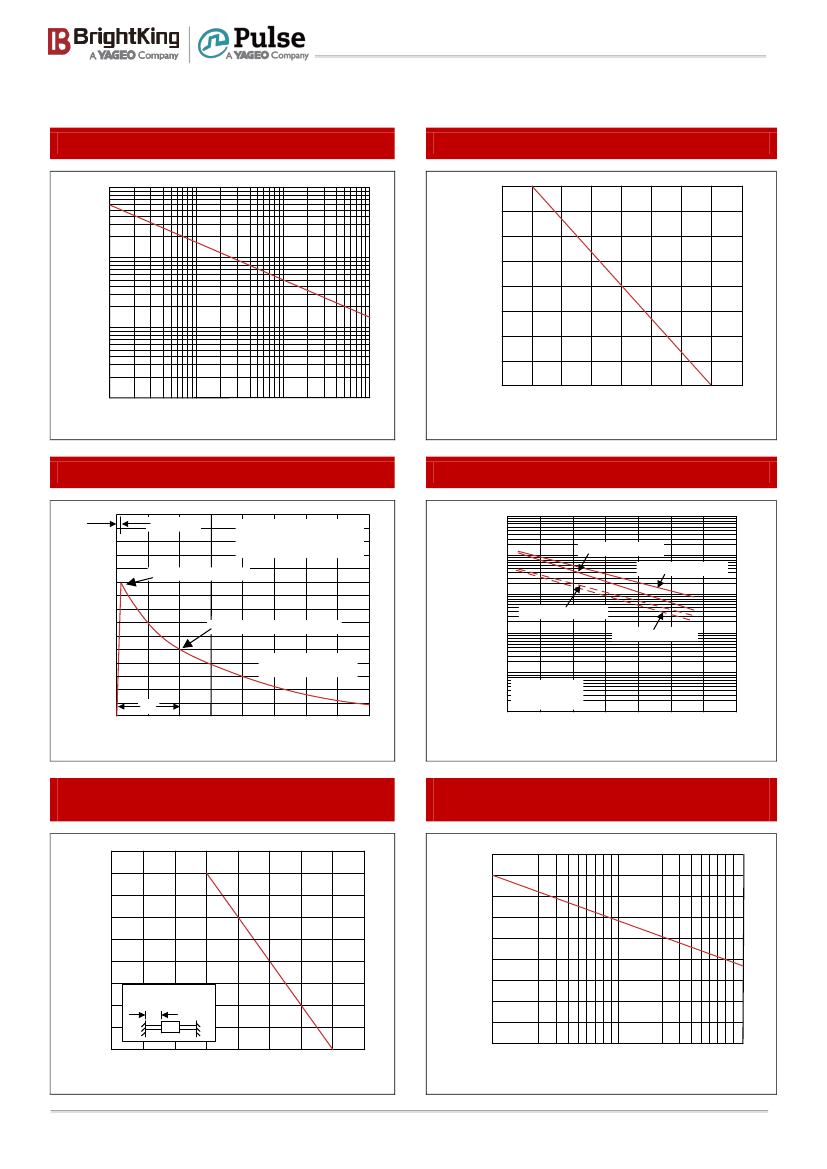

15KPA SERIES
Ratings and Characteristic Curves (T
A
=25℃ unless otherwise noted)
Figure 1. Peak Pulse Power Rating Curve
1000
Figure 2. Pulse Derating Curve
100
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage %
P
PPM
- Peak Pulse Power (kW)
75
100
50
10
25
1
0
0
25
50
75
100 125
150 175
200
T
A
-Ambient Temperature (℃)
1
10
100
t
d
-Pulse Width (µs)
1000
Figure 3. Pulse Waveform
150
Figure 4. Typical Junction Capacitance
100000
Bi-directional V=0V
I
PPM
- Peak Pulse Current, %I
RSM
t
r
=10µs
T
J
=25℃
Pulse Width(t
d
) is defined as
the point where the peak
current decays to 50% of I
PPM
10000
100
Peak Value I
PPM
Uni-directional V=0V
Cj (pF)
1000
Uni-directional @V
R
Half Value I
PPM
(I
PPM
/2)
50
10/1000µs Waveform
as defined by R.E.A
100
Bi-directional @V
R
10
T
J
=25℃
f=1.0MHz
Vsig=50mVp-p
0
0
t
d
1.0
2.0
t-Time (ms)
3.0
4.0
1
0
50
100
150
200
250
300
350
V
BR
-Reverse Breakdown Voltage (V)
Figure 5. Steady State Power Dissipation Derating
Curve
P
M(AV)
, Steady State Power Dissipation (W)
Figure 6. Maximum Non-Repetitive Forward
Surge Current Uni-Directional Only
450
400
350
300
250
200
150
100
50
0
1
10
Number of Cycles at 60Hz
100
8
7
6
5
4
3
2
1
0
0
25
50
75 100 125 150
T
L
-Lead Temperature (℃)
175
200
L= 0.375″(9.5mm)
Lead Lengths
Revision：TVS-15KPA
SERIES-001(A1)
4/6
I
FSM
- Peak Forward Surve Current (A)
9
http://brightking.pulseelectronics.com
