ZMA00A080S07PC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> ZMA00A080S07PC

ZMA00A080S07PC: DescriptionSNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1A, 30VDC, 4.8mm, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size451KB，4 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric Compare View All

ZMA00A080S07PC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZMA00A080S07PC	-	-	View	Buy Now

ZMA00A080S07PC Overview

SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1A, 30VDC, 4.8mm, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT

ZMA00A080S07PC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	C&K
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	10 weeks
Actuator stroke	4.8 mm
Actuator type	SIMULATED ROLLER
body width	5.8 mm
body height	6.6 mm
Body length or diameter	12.8 mm
Contact (AC) maximum rated R load	0.1A@125VAC
Maximum contact current (AC)	0.1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@30VDC
contact time	SNAP ACTION
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	500VRMS V
Electrical life	300000 Cycle(s)
Shell material	POLYBUTYLENE TEREPHTHALATE
Insulation resistance	100000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
Manufacturer's serial number	ZMA
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating force	0.64 N
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum pre-travel	4.3 mm
seal	EPOXY
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.138 inch
Terminal material	BRASS
Termination type	SOLDER

Preview

Download Datasheet

View All

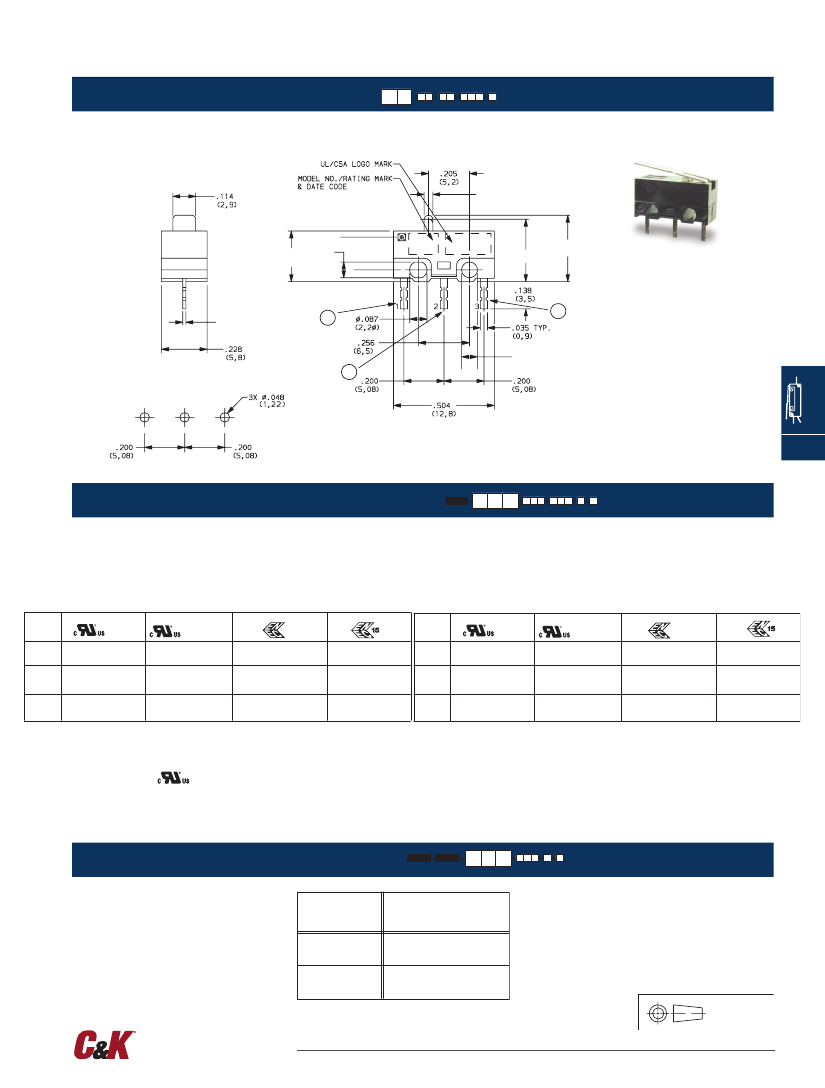

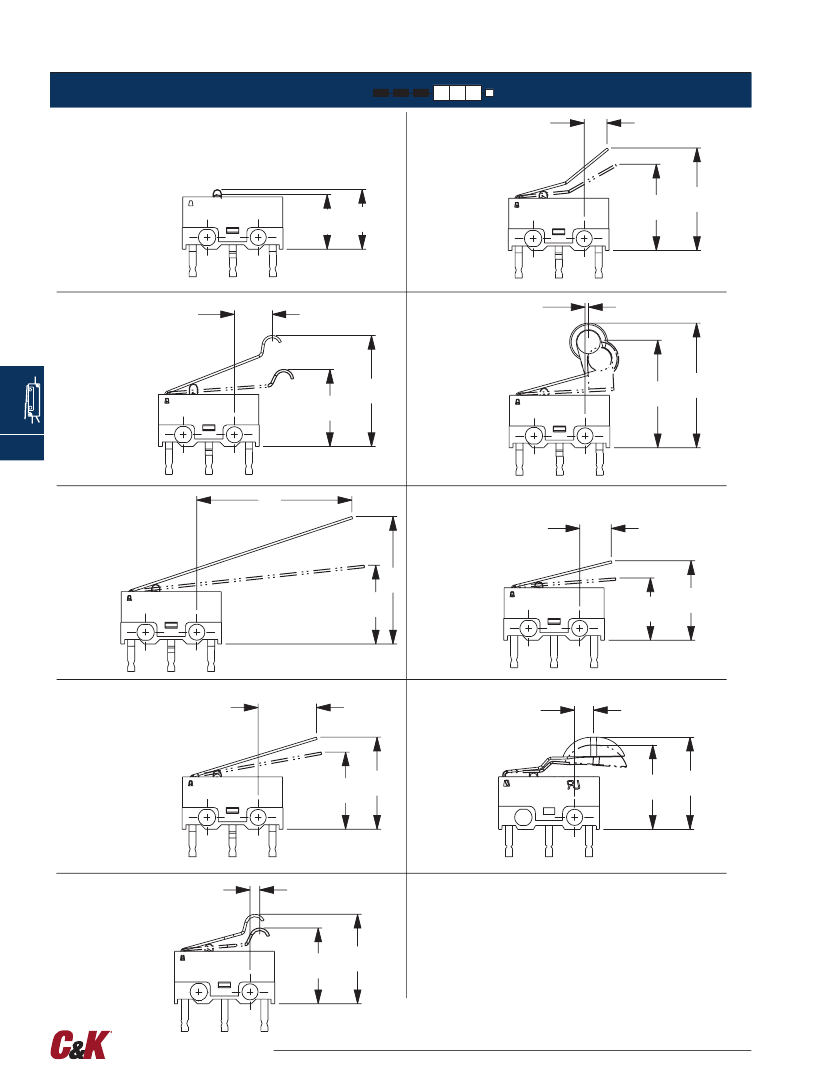

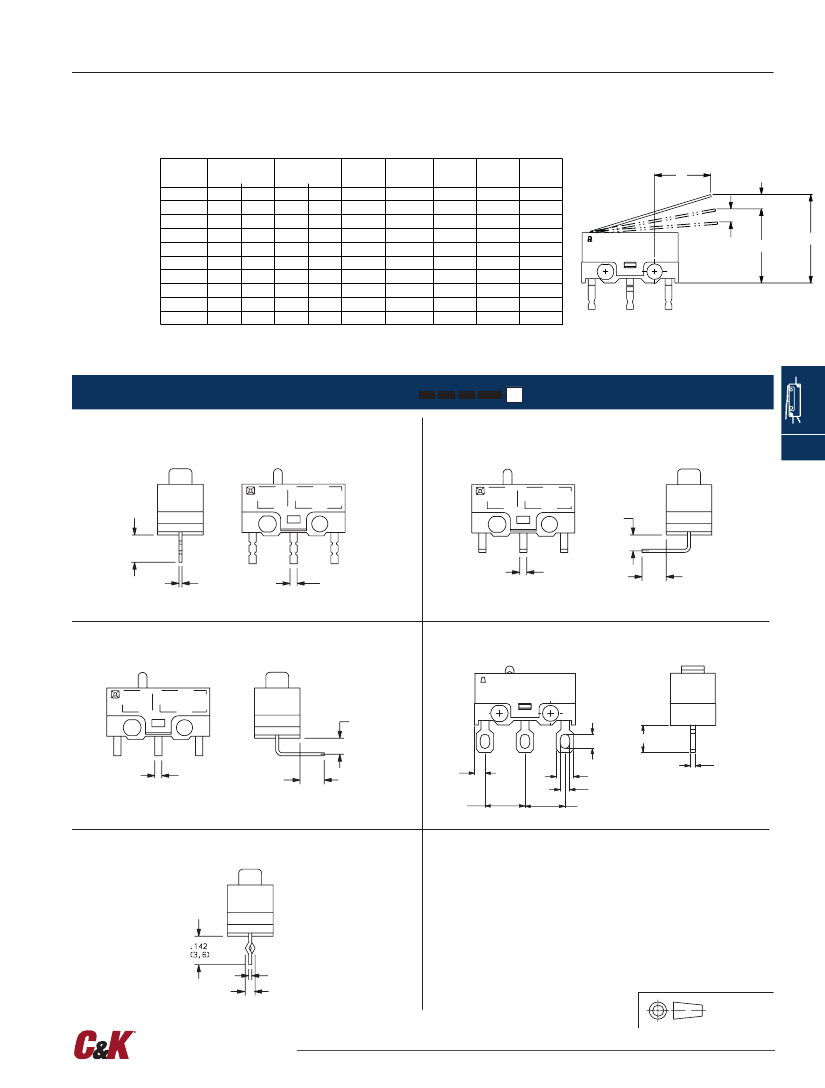

ZMA Series

Subminiature Snap-acting Switches

Features/Benefits

•

Reliable snap-acting mechanism

•

Long electrical and mechanical life

•

Compact size - ideal when space

is limited

•

Various PCB terminals & actuators

•

RoHS compatible & compliant

UL61058-1

Typical Applications

•

PCB detection switch

•

Communication devices

•

Testing equipment

•

Security/Alarm systems

•

Consumer electronics

•

Automotive: door latch, seat

position detection, EV charging

Specifications

CONTACT RATING: 3A @ 125 V AC 24 V DC

1 A @125 / 250 V AC 24 V DC

0.1A @ 125 V AC 60 V DC

ELECTRICAL LIFE: 300,000 cycles @ 0.1A / 10,000 cycles @ 3A.

MECHANICAL LIFE: 1,000,000 cycles.

INSULATION RESISTANCE: 100 M ohm min.

DIELECTRIC STRENGTH: 500 Vrms.

OPERATING TEMPERATURE: –40ºC to 85ºC

OPERATING FORCE: 80 or 150 grams.

* Low Level=conditions where no arcing occurs during switching, i.e., 0.4 VA max.

@ 20 V AC or DC max.

Materials

CASE/COVER: PBT

ACTUATOR: Button nylon 6/6

MOVABLE CONTACTS: Silver alloy or gold plated

STATIONARY CONTACTS: Silver alloy or gold plated

TERMINALS: Brass, silver plated.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Snap-acting

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages J-51 and J-53. For additional options not shown in catalog, consult Customer Service Center.

Z M A

Series

ZMA

SP, Mom.

Electrical Rating

See charts below

Operating Force

150

5.29 oz. / 150 grams

080

2.82 oz. / 80 grams

Actuator

P00

Pin plunger

S03

Simulated roller 5.8mm

L30

Lever 20.5mm

L11

Lever 7.2mm

L21

Lever 14mm

L08

Lever 3.95mm

A03

Roller 1.3mm

L04

Lever 3.9mm

S06

Simulated roller 2.03mm

S07

Simulated roller 0.75mm

Silver Contacts

Option

Code

00A

03A

01A

1054

0.1A 60 V DC

0.1A 125 V AC

3 A 125 V AC

61058-1

0.1A 60 V DC

0.1A 125 V AC

3 A 125 V AC

3 A 24 V DC

1 A 24 V DC

1 A 125 / 250 V AC

Terminations

PC Thru-hole

Left-footed, PC Thru-hole

Right-footed, PC Thru-hole

Solder

PC Thru-hole with rentention feature

SPDT

Gold Plated Contacts

Option

Code

G00

G03

1 A 24 V DC

1 A 125 / 250 V AC

G01

1054

0.1A 60 V DC

0.1A 125 V AC

3 A 125 V AC

61058-1

0.1A 60 V DC

0.1A 125 V AC

3 A 125 V AC

3 A 24 V DC

1 A 24 V DC

1 A 125 / 250 V AC

0.1A 125 V AC

3A 125 V AC

0.1A 125 V AC

3A 125 V AC

1 A 24 V DC

1 A 125 / 250 V AC

Dimensions are shown: Inch (mm)

Specifications and dimensions subject to change

10 Aug 20

J–58

www.ckswitches.com

ZMA00A080S07PC Related Products

	ZMA00A080S07PC	ZMA00A080A03RC	ZMA00A150L08EC	ZMA00A150S07PC	ZMA00A150A03PC	ZMA00A080L04EC	ZMA00A080L08PC	ZMA00A150L04EC	ZMA00A150S07RC	ZMA03A150L11PC
Description	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1A, 30VDC, 4.8mm, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1A, 30VDC, 4.4mm, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1A, 30VDC, 3.8mm, PANEL MOUNT, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1A, 30VDC, 4.8mm, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1A, 30VDC, 4.4mm, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1A, 30VDC, 3.6mm, PANEL MOUNT, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1A, 30VDC, 3.8mm, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1A, 30VDC, 3.6mm, PANEL MOUNT, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1A, 30VDC, 4.8mm, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 5mm, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator stroke	4.8 mm	4.4 mm	3.8 mm	4.8 mm	4.4 mm	3.6 mm	3.8 mm	3.6 mm	4.8 mm	5 mm
Actuator type	SIMULATED ROLLER	ROLLER TYPE	LEVER	SIMULATED ROLLER	ROLLER TYPE	LEVER	LEVER	LEVER	SIMULATED ROLLER	LEVER
body width	5.8 mm	6.6 mm	5.8 mm	5.8 mm	5.8 mm	5.8 mm	5.8 mm	5.8 mm	6.6 mm	5.8 mm
body height	6.6 mm	5.8 mm	6.6 mm	6.6 mm	6.6 mm	6.6 mm	6.6 mm	6.6 mm	5.8 mm	6.6 mm
Body length or diameter	12.8 mm	12.8 mm	12.8 mm	12.8 mm	12.8 mm	12.8 mm	12.8 mm	12.8 mm	12.8 mm	12.8 mm
Contact (AC) maximum rated R load	0.1A@125VAC	0.1A@125VAC	0.1A@125VAC	0.1A@125VAC	0.1A@125VAC	0.1A@125VAC	0.1A@125VAC	0.1A@125VAC	0.1A@125VAC	3A@125VAC
Maximum contact current (AC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	3 A
contact time	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V	125 V	125 V	125 V	125 V	125 V	125 V
Dielectric withstand voltage	500VRMS V	500VRMS V	500VRMS V	500VRMS V	500VRMS V	500VRMS V	500VRMS V	500VRMS V	500VRMS V	500VRMS V
Electrical life	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)	10000 Cycle(s)
Shell material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
Manufacturer's serial number	ZMA	ZMA	ZMA	ZMA	ZMA	ZMA	ZMA	ZMA	ZMA	ZMA
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-RIGHT ANGLE	PANEL MOUNT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	PANEL MOUNT	THROUGH HOLE-STRAIGHT	PANEL MOUNT	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-STRAIGHT
Maximum operating force	0.64 N	0.64 N	0.47 N	0.64 N	0.64 N	0.49 N	0.47 N	0.49 N	0.64 N	0.38 N
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum pre-travel	4.3 mm	3.9 mm	3.5 mm	4.3 mm	3.9 mm	3 mm	3.5 mm	3 mm	4.3 mm	4.4 mm
seal	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH
Terminal surface	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)
Terminal length	0.138 inch	0.122 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.122 inch	0.138 inch
Terminal material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Maker	C&K	-	C&K	C&K	C&K	C&K	C&K	C&K	C&K	C&K
Factory Lead Time	10 weeks	-	10 weeks	10 weeks	10 weeks	10 weeks	10 weeks	10 weeks	10 weeks	10 weeks
Maximum contact current (DC)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	-
Contact (DC) maximum rated R load	1A@30VDC	1A@30VDC	1A@30VDC	1A@30VDC	1A@30VDC	1A@30VDC	1A@30VDC	1A@30VDC	1A@30VDC	-
Maximum contact voltage (DC)	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V	-
