Q24T30020-NBC0 Overview

DC-DC Regulated Power Supply Module, 1 Output, Hybrid,

Q24T30020-NBC0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Bel Fuse
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	18 V
Nominal input voltage	24 V
JESD-30 code	R-XDMA-P8
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	8
Maximum output voltage	2.2 V
Minimum output voltage	1.6 V
Nominal output voltage	2 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT APPLICABLE
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Terminal surface	TIN LEAD OVER NICKEL
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT APPLICABLE
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

Q24T30020 DC-DC Converter Data Sheet

18-36 VDC Input; 2.0 VDC @ 30A Output

The

Q24T30020

through-hole mounted DC-DC converter

offers unprecedented performance in the industry-standard

quarter-brick format. This is accomplished through the use of

patent pending circuit and packaging techniques to achieve

ultra-high efficiency, excellent thermal performance and a

very low body profile.

In telecommunications applications the

Family

30 A con-

verters provide thermal performance that far exceeds all

quarter bricks and is comparable even to existing half-bricks.

Low body profile and the preclusion of heat sinks minimize

airflow shadowing, thus enhancing cooling for downstream

devices. The use of 100% surface-mount technologies for

assembly, coupled with Power-One’s advanced electric and

thermal circuitry and packaging, results in a product with ex-

tremely high quality and reliability.

Q24T30020 Converter

Features

•

RoHS lead-free solder and lead-solder-exempted

products are available

Delivers up to 30 A

Higher current capability at 70ºC than existing

quarter-brick and 30 A half-brick converters

High efficiency: 84.5% @ 30 A, 86.5% @ 15 A

Start-up into pre-biased output

No minimum load required

No heat sink required

Low profile: 0.28” [7.2 mm]

Low weight: 1 oz [28 g] typical

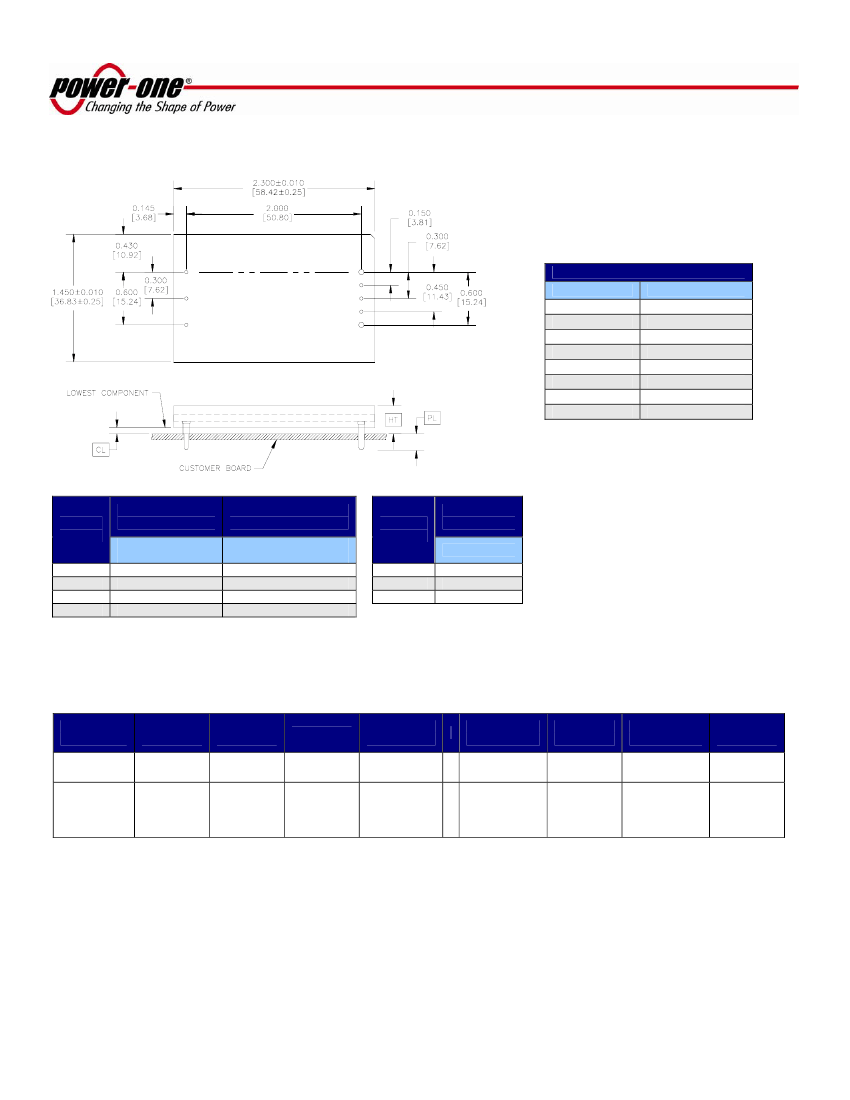

Industry-standard footprint: 1.45” x 2.30”

Industry-standard pinout

Meets Basic Insulation Requirements of EN60950

On-board LC input filter

Fixed-frequency operation

Fully protected

Remote output sense

Output voltage trim range: +10%/-20%

Trim resistor via industry-standard equations

High reliability: MTBF 2.6 million hours, calculated per

Telcordia TR-332, Method I Case 1

Positive or negative logic ON/OFF option

UL 60950 recognized in U.S. & Canada, and DEMKO

certified per IEC/EN 60950

Meets conducted emissions requirements of FCC

Class B and EN55022 Class B with external filter

All materials meet UL94, V-0 flammability rating

Load Current [Adc]

500 LFM (2.5 m/s)

400 LFM (2.0 m/s)

300 LFM (1.5 m/s)

200 LFM (1.0 m/s)

100 LFM (0.5 m/s)

30 LFM (0.15 m/s)

Ambient Temperature [°C]

Fig. 1:

Available load current vs. ambient air temperature and air-

flow rates for Q24T30020 converter mounted vertically with air flow-

ing from pin 3 to pin 1, MOSFET temperature

≤

120°C, Vin = 27 V.

Applications

•

Telecommunications

Data communications

Wireless

Servers

JUN 01, 2003 revised to NOV 22, 2006

Page 1 of 14

www.power-one.com
