DM-SM5-00P-250S datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> DM-SM5-00P-250S

Preview

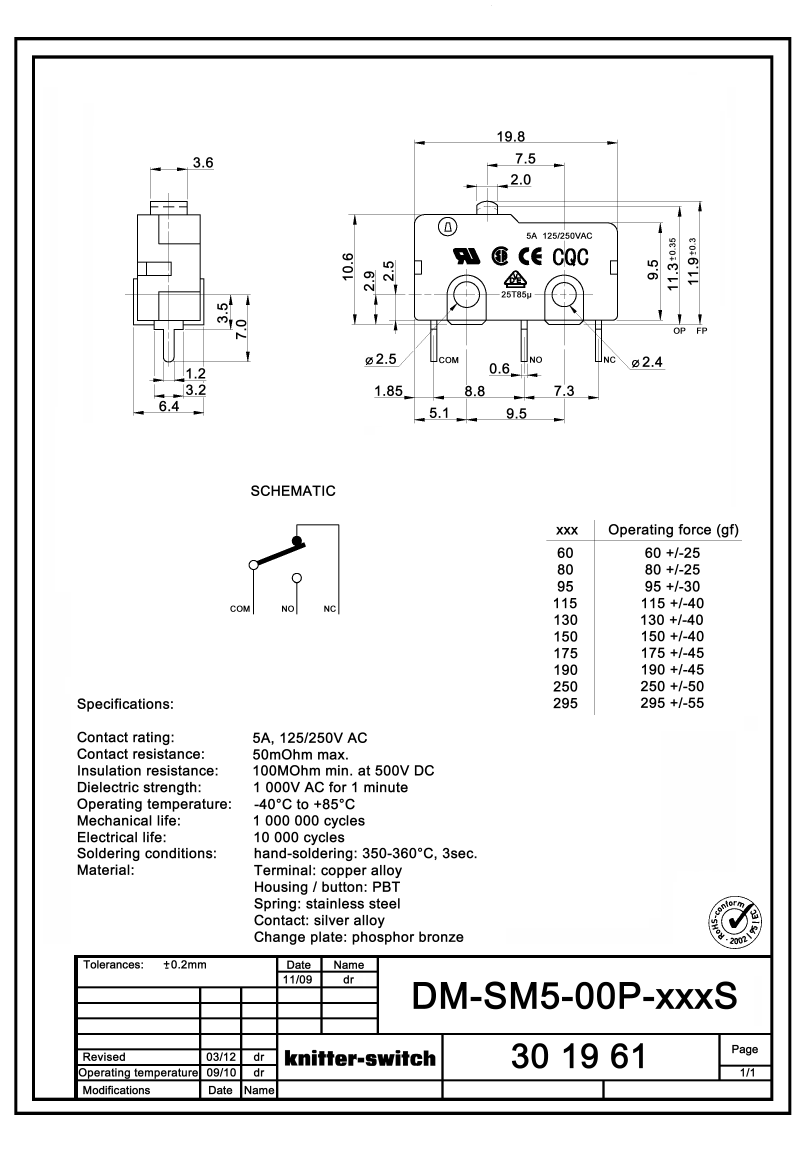

DM-SM5-00P-250S: DescriptionSnap Acting/Limit Switch, SPDT, Vertical, 0.6096mm, Solder Terminal, Plunger Actuator, Through Hole-straight; CategoryMechanical and electronic products switch; File Size162KB，1 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/

Download Datasheet Parametric Compare View All

DM-SM5-00P-250S Overview

Snap Acting/Limit Switch, SPDT, Vertical, 0.6096mm, Solder Terminal, Plunger Actuator, Through Hole-straight

DM-SM5-00P-250S Parametric

Parameter Name	Attribute value
Maker	Knitter-switch
Reach Compliance Code	compli
Actuator angle
Actuator length	0.051 inch
Actuator material	POLYBUTYLENE TEREPHTHALATE
Actuator stroke	0.6096 mm
Actuator type	PLUNGER
body width	6.4008 mm
body height	10.5918 mm
Body length or diameter	19.812 mm
center contact material	SILVER ALLOY
Contact (AC) maximum rated R load	5A@250VAC
Maximum contact current (AC)	5 A
Contact resistance	0.05 mΩ
contact time	SNAP ACTION
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1000VAC V
Electrical life	10000 Cycle(s)
End contact material	SILVER ALLOY
Shell material	POLYBUTYLENE TEREPHTHALATE
Insulation resistance	100000000 Ω
Manufacturer's serial number	DM-SM5
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating force	2.452 N
work location	0.445 inch
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Solderability	HAND
surface mount	NO
Switch action	VERTICAL
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal length	0.138 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER

Preview

Download Datasheet

View All

DM-SM5-00P-250S Related Products

	DM-SM5-00P-250S	DM-SM5-00P-115S	DM-SM5-00P-175S	DM-SM5-00P-150S
Description	Snap Acting/Limit Switch, SPDT, Vertical, 0.6096mm, Solder Terminal, Plunger Actuator, Through Hole-straight	Snap Acting/Limit Switch, SPDT, Vertical, 0.6096mm, Solder Terminal, Plunger Actuator, Through Hole-straight	Snap Acting/Limit Switch, SPDT, Vertical, 0.6096mm, Solder Terminal, Plunger Actuator, Through Hole-straight	Snap Acting/Limit Switch, SPDT, Vertical, 0.6096mm, Solder Terminal, Plunger Actuator, Through Hole-straight
Reach Compliance Code	compli	compli	compli	compliant
Actuator length	0.051 inch	0.051 inch	0.051 inch	0.051 inch
Actuator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Actuator stroke	0.6096 mm	0.6096 mm	0.6096 mm	0.6096 mm
Actuator type	PLUNGER	PLUNGER	PLUNGER	PLUNGER
body width	6.4008 mm	6.4008 mm	6.4008 mm	6.4008 mm
body height	10.5918 mm	10.5918 mm	10.5918 mm	10.5918 mm
Body length or diameter	19.812 mm	19.812 mm	19.812 mm	19.812 mm
center contact material	SILVER ALLOY	SILVER ALLOY	SILVER ALLOY	SILVER ALLOY
Contact (AC) maximum rated R load	5A@250VAC	5A@250VAC	5A@250VAC	5A@250VAC
Maximum contact current (AC)	5 A	5 A	5 A	5 A
Contact resistance	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ
contact time	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Electrical life	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)
End contact material	SILVER ALLOY	SILVER ALLOY	SILVER ALLOY	SILVER ALLOY
Shell material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Manufacturer's serial number	DM-SM5	DM-SM5	DM-SM5	DM-SM5
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Maximum operating force	2.452 N	1.1259 N	1.7153 N	1.4706 N
work location	0.445 inch	0.445 inch	0.445 inch	0.445 inch
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Solderability	HAND	HAND	HAND	HAND
surface mount	NO	NO	NO	NO
Switch action	VERTICAL	VERTICAL	VERTICAL	VERTICAL
switch function	SPDT	SPDT	SPDT	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH
Terminal length	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Terminal material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Maker	Knitter-switch	Knitter-switch	Knitter-switch	-
