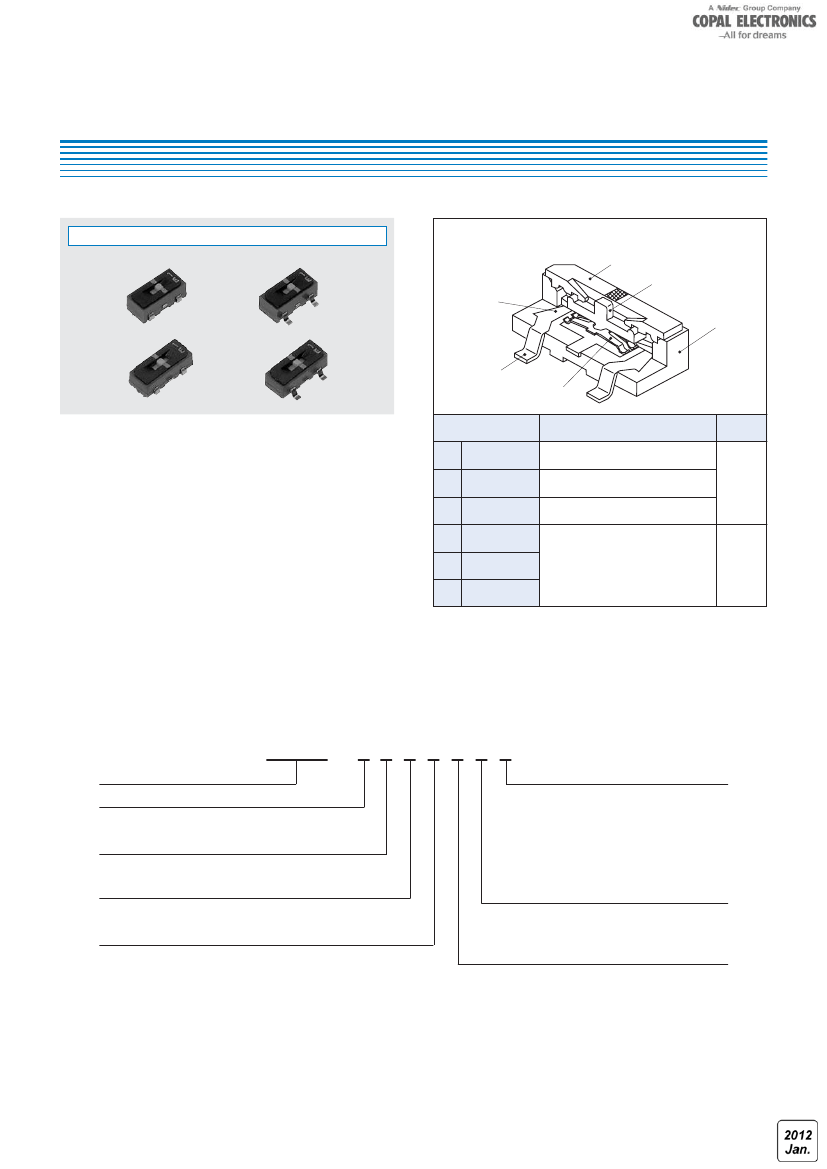

With neutral detent type lined up to 1 pole 2contacts
switch
●
Compatible with most automatic pick & place machinery
●
Compact and space saving SMD type
①
②
③
④
⑤
⑥
Cover
Slider
Housing
Slider contact
Fixed contact
Terminal pin
Copper alloy, Gold-plated
—
■
PART NUMBER DESIGNATION
C J S - 1 2 0 1 T B 1
Series name
No. of poles
1
：
1 pole
(
SPDT
)
Structure
1：
Non-washable type (Without seal tape)
Standard type
2：
Non-washable type (With seal tape)
Blank : Washable type (With seal tape)
No. of contacts
2
：
2 contacts
Setting position
0
：
Top setting
Shape of terminal
A
：
J-hook
B
：
Gull wing
Neutral detent
0
：
Without neutral detent
1
：
With neutral detent
Form of packaging
T
：
Taping (Reel)
Blank
：
Bulk in plastic bag
SPDT : Single Pole Double Throw
※Please
refer to the LIST OF PART NUMBERS when placing orders.
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
COPAL ELECTRONICS
SLIDE SWITCHES (SMD)
CJS
■
LIST OF PART NUMBERS
No. of
poles
No. of
contacts
Setting
position
Neutral
detent
Form of
packaging
Non-washable type (Without seal tape)
Non-washable type (With seal tape)
Pieces in
package
A
(
J-hook)
CJS-1200TA1
CJS-1200A1
CJS-1201TA1
CJS-1201A1
B
(Gull wing)
CJS-1200TB1
CJS-1200B1
CJS-1201TB1
CJS-1201B1
A
(
J-hook)
CJS-1200TA2
CJS-1200A2
CJS-1201TA2
CJS-1201A2
B
(Gull wing)
CJS-1200TB2
CJS-1200B2
CJS-1201TB2
CJS-1201B2
Without
neutral
detent
Taping
Plastic bag
Taping
Plastic bag
1000pcs./reel
100pcs./pack
1000pcs./reel
100pcs./pack
1
2
Top setting
With
neutral
detent
No. of
poles
No. of
contacts
Setting
position
Neutral
detent
Form of
packaging
Washable type (With seal tape)
A
(
J-hook)
CJS-1200TA
CJS-1200A
CJS-1201TA
CJS-1201A
B
(Gull wing)
CJS-1200TB
CJS-1200B
CJS-1201TB
CJS-1201B
Pieces in
package
Without
neutral
detent
Taping
Plastic bag
Taping
Plastic bag
1000pcs./reel
100pcs./pack
1000pcs./reel
100pcs./pack
1
2
Top setting
With
neutral
detent
※
Verify the above part numbers when placing orders.
Taping version can be supplied only in reel unit.
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
COPAL ELECTRONICS
SLIDE SWITCHES (SMD)
CJS
■
STANDARD SPECIFICATIONS
Operating temp. range
−
40 ~ 85 °C
Storage temp. range
Sealing
Net weight
Washable type available with seal tape
Approx. 0.05g (CJS-1200)
Approx. 0.06g (CJS-1201)
■
ELECTRICAL CHARACTERISTICS
Contact rating
Non-switching
Switching
Minimum
Contact resistance
Insulation resistance
Dielectric strength
DC50 V 100 mA
DC6 V, 100 mA DC24 V, 25 mA
DC20 mV 1
μA
100 mΩ maximum
100 MΩ (DC100 V) minimum
AC250 V, 60 s
■
MECHANICAL CHARACTERISTICS
Operating force
Stop strength
Solderability
5.9 N {0.6 kgf} maximum
10 N {1.02 kgf}, 60 s
245
±
3 °C, 2 ~ 3 s
Reflow：255 °C (Peak temperature)
（Please
refer to the profile below）
■
ENVIRONMENTAL CHARACTERISTICS
Vibration
Shock
Load life
Humidity
High temp. exposure
Low temp. exposure
Thermal shock
Amplitude 1.5mm or Acceleration 98m/s
2
,
10-500 Hz, 3 directions for 10 cycles each
490 m/s
2
, 11 ms
6 directions for 3 times each
Continuous load 200 cycles,
DC6
±
0.5 V, 100
±
10 mA
−10
~ 65 °C, Relative humidity 0 ~ 96 %,
24 h for 10 cycles
85 °C, 96 h
−
40 °C, 96 h
−
40 (0.5 h) ~ 85 °C (0.5 h), 5 cycles
Soldering heat
Manual soldering：350
±
10 °C, 3 ~ 4 s
Shear (Adhesion)
Substrate bending
Pull-off strength
5 N {0.51 kgf} 10 s
Width 90 mm, bend 3 mm, 5 s, 1 time
5 N {0.51 kgf} 10 s
{ } : Reference only
〈
Reflow profile for soldering heat evaluation
〉
(°C)
250
Temperature
200
150
100
50
Peak : 250
+5
0
°C
Over 230
°C
180
°C
150
°C
Pre Heating Zone
90
±
30 s
30
±
10 s
Heating time
Soldering Zone
Reflow : two times maximum
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
COPAL ELECTRONICS
SLIDE SWITCHES (SMD)
CJS
■

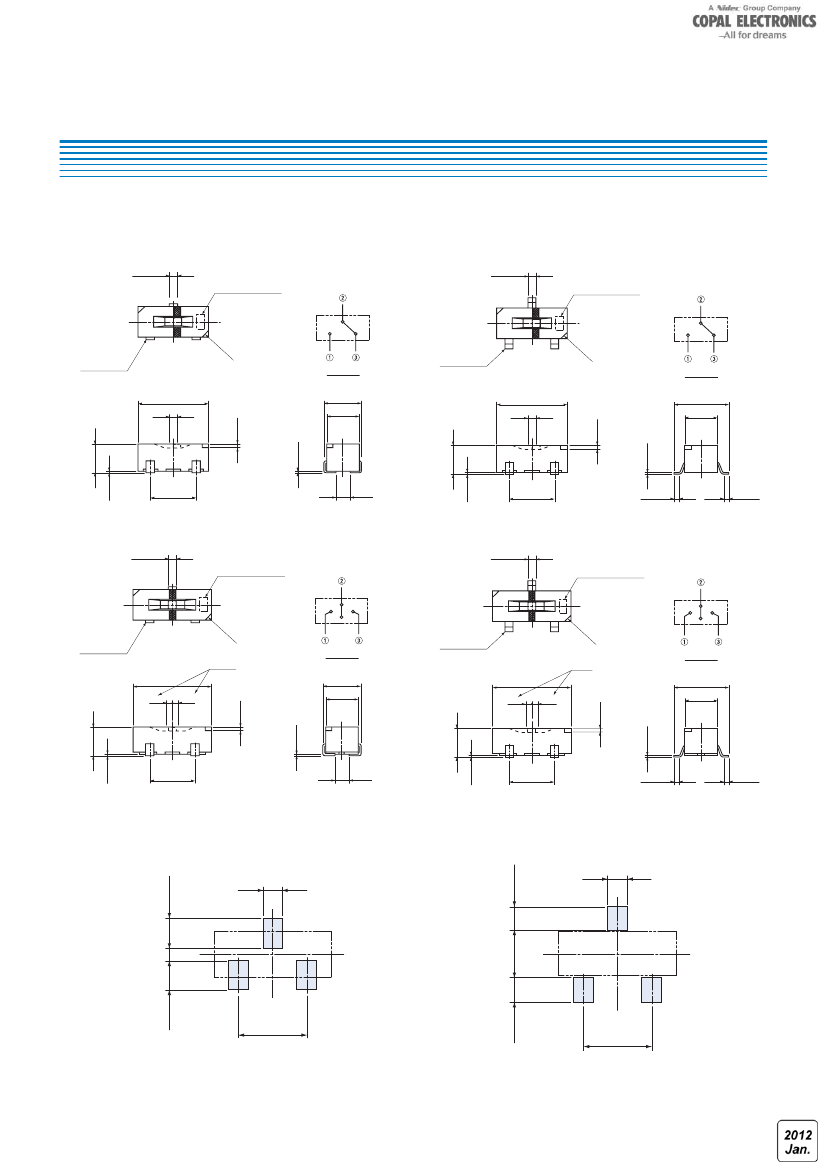

OUTLINE DIMENSIONS
●
CJS-1200A1
3 – 0.6
+0.1
–0.05
Unless otherwise specified, tolerance :
±
0.3 (Unit : mm)
●
CJS-1200B1
3 – 0.6
Production date code
C
+0.1
–0.05
Production date code
C
2
–
C
2
0.
5
–
C
Terminal No.1
Terminal No.1
Schematic
2.8
+0.3
0
2.5
0.3
0.
5
Schematic
5.4
Stroke 0.6
5.4
Stroke 0.6
0.3
4.2
2.5
0.15
+0.1
–0.05
2.5 max.
0
0.1
–0.1
2.5 max.
●
CJS-1201A1
3 – 0.6
+0.1
–0.05
●
CJS-1201B1
3 – 0.6
Production date code
C
+0.1
–0.05
0.1
3.5
1.1
0
–0.1
3.5
0.15
+0.1
–0.05
0.4 min.
0.4 min.
Production date code
C
2
–
C
2
0.
5
–
C
Terminal No.1
Stroke
6
0.3
0.6
0.6
Terminal No.1
Schematic
0.
5
Schematic
Stroke
2.8
+0.3
0
2.5
0.6
6
0.3
0.6
4.2
2.5
0.15
+0.1
–0.05
2.5 max.
0
–0.1
2.5 max.
0.1
3.5
1.1
0
0.1
–0.1
3.5
0.15
+0.1
–0.05
0.4 min.
0.4 min.
■
RECOMMENDED P.C.B. PAD OUTLINE DIMENSIONS
1.3
A type
1.6
3-1
B type
3-1
(Unit : mm)
0.7
0
2.6
0
1.6
1.3
3.5
3.5
Note) The zero point is the center of mounting.
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
COPAL ELECTRONICS
SLIDE SWITCHES (SMD)
CJS
■

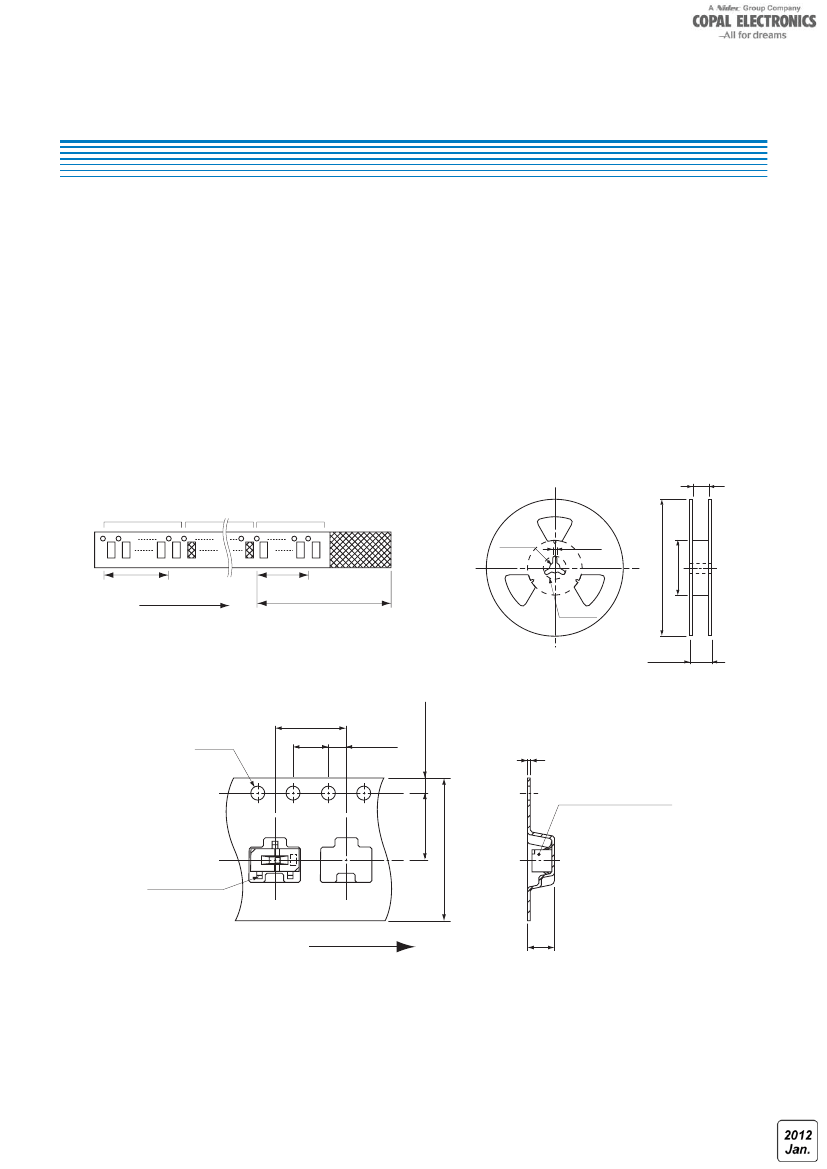

PACKAGING SPECIFICATIONS
<Taping packaging specifications>
●
Taping version is packaged in 1000 pcs. per reel.
Orders will be accepted for units of 1000 pcs., i.e., 1000, 2000, 3000 pcs., etc.
●
Taping version is boxed with two reels (2000 pcs.).
Maximum number of consecutive missing pieces=2
Leader length and reel dimension are shown in the diagrams below:
●
Embossed tape dimensions
●
Reel dimensions
(Unit: mm)
(Conforms to JIS C 0806)
17.4
±
1
Empty
Filled
Empty
φ
13±0.2
40 mm min.
Direction of feed
20 pitches min.
Leader
400 mm min.
φ
21±0.8
21.4
±
1
●
CJS-1200TA□, 1200TB□, 1201TA□, 1201TB□
8
±
0.1
4
±
0.1
1.75
±
0.1
(Unit: mm)
(Conforms to JIS C 0806)
φ
1.5
+0.1
0
2
±
0.1
0.3
±
0.1
7.5
±
0.1
Installation example
(CJS-1200B1)
16
Terminal No.1
Direction of feed
3
<Bulk pack specifications>
●
Boxing of bulk pack in a plastic bag is performed with 100 pcs. (standard 500 pcs.) per box.
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
