CIF
090917
Réf. AA15, AAC16, AAC20, AB15, ABC16, ABC20, ABD16, ABD20, AEB16, AEB20
Epoxy base 16/10th - 35 µ
• Positive resin, blue coloured bleue, without marbling
• Micro definition
• Resin thickness: 2,5 µ.
• Adhesive anti UV protection.
• Guarantee 5 years.
• Individual plastic packaging
• Excellent quality
• Resists to every acids
• Long life storage
Size in mm
1 side
2 sides
150 x 200
AA 15
AB 15
Epoxy base 4/10th - 35 µ
Size in mm
100 x 160
200 x 300
1 side
AAC 16
AAC 20
2 sides
ABC 16
ABC 20
Epoxy base 8/10th - 35 µ
-
high qualified stratified
- 8 glass tissue layers
- Standard MIL 13949 F for FR4
- UL 94 Vo
Exists in 2 and 4/10th, upon request.
size in mm
100 x 160
200 x 300
1 side
ADB 16
ADB 20
2 sides
AEB 16
AEB 20
Edité le 13/11/2008
Page N°1/6
CIF
090917
Réf. AG 611, AG621 , AG631, AJP20
Tinned copper clad pads
Drilled at 2,54 mm pitch.
Ø -> drilling 1 mm
Square pads 2 mm each side. Gap of 0,54 mm on the whole surface. Connector DIN
41612.
Size in mm
100 x 160
Item Code
AG 611
Double sided epoxy, thickness 16/10
th
Tinned copper clad pads
Drilled at 2,54 mm pitch.
Ø -> drilling 1 mm
Square pads 2 mm on sides. Gap of 0.54 mm on the whole surface. 2.54 mm pitch plug-in
connector.
Size in mm
Item Code
100 x 160
AG 621
Tinned copper clad pads
Drilled at 2,54 mm pitch.
Ø -> drilling 1 mm
Square pads 2 mm on sides. Gap of 0.54 mm on the whole surface. Connector DIN
41612.
Size in mm
100 x 160
Item Code
AG 631
Single sided bakelite 35 µ, thickness 15/10th tinned copper clad strips or pads
Drilled at 2,54 mm pitch.
Ø -> drilling 1 mm.
Gap of 0,54 mm on the whole surface. Width of tracks 2 mm over the whole surface.
Size in mm
Item code
Item code
Strips
Pads
100 x 200
AJB 20
AJP 20
Edité le 13/11/2008
Page N°2/6
CIF
090917
Réf. DU80, DU85
Carbide drill bits
•
Monopiece. Queue reinforced 3,17
•
In stock from 0,4 mm to 3,17 mm
•
Minimum drilling speed 20 000 tr/min
•
Most little is the diameter, higher wil be the speed
•
Descent speed from 1,6 to 4 m/min
Ø (mm)
0,6
1,1
Item Code
DU 66
DU 71
Ø (mm)
2,0
2,5
Item Code
DU 80
DU 85
Réf. DUFD1
Carbide milling bit
•
Monopiece carbide tool
•
Queue 3,17 mm - front face
Ø (mm)
Cote C in mm
Item Code
2,0
8,0
DUFD 1
Réf. EP116
Drilling plywood
Basic configuration
Drilling boards, by 10
Process
Drilling
Item Code
Qty
1
EP116
Edité le 13/11/2008
Page N°3/6
CIF
090917
Réf. CIF859
Desoldering station - HANDY 859
Key features for HANDY 859:
• Ergonomic desoldering gun
• Build-in vacuum pump, with strong suction
• Entirely ESD
New auto desoldering station. The HANDY 859 station has a very light and easy handle
ergonomic desoldering gun for easy work.
A closed circuit temperature sensor ensures a regular and accurate heating. The station is
entirely ESD. It is also autonomous thanks to built-in vacuum pump.
The station is delivered complete with iron stand and cleaning kit.
Many nozzles are available:
Description
HANDY 859
Item Code
CIF859
Technical characteristics
Desoldering temperature
Outlet tension
Desoldering gun power
Depressure power
Desoldering extraction air flow
Power totale
Net weight
Dimensions L x w x H
Electrical supply
HANDY 859
280°C to 450°C
27 V AC
60 W
680 mmHg
15 l/min
130 W
6,7 Kg
162 x 250 x 160 mm
230 V – 50/60Hz

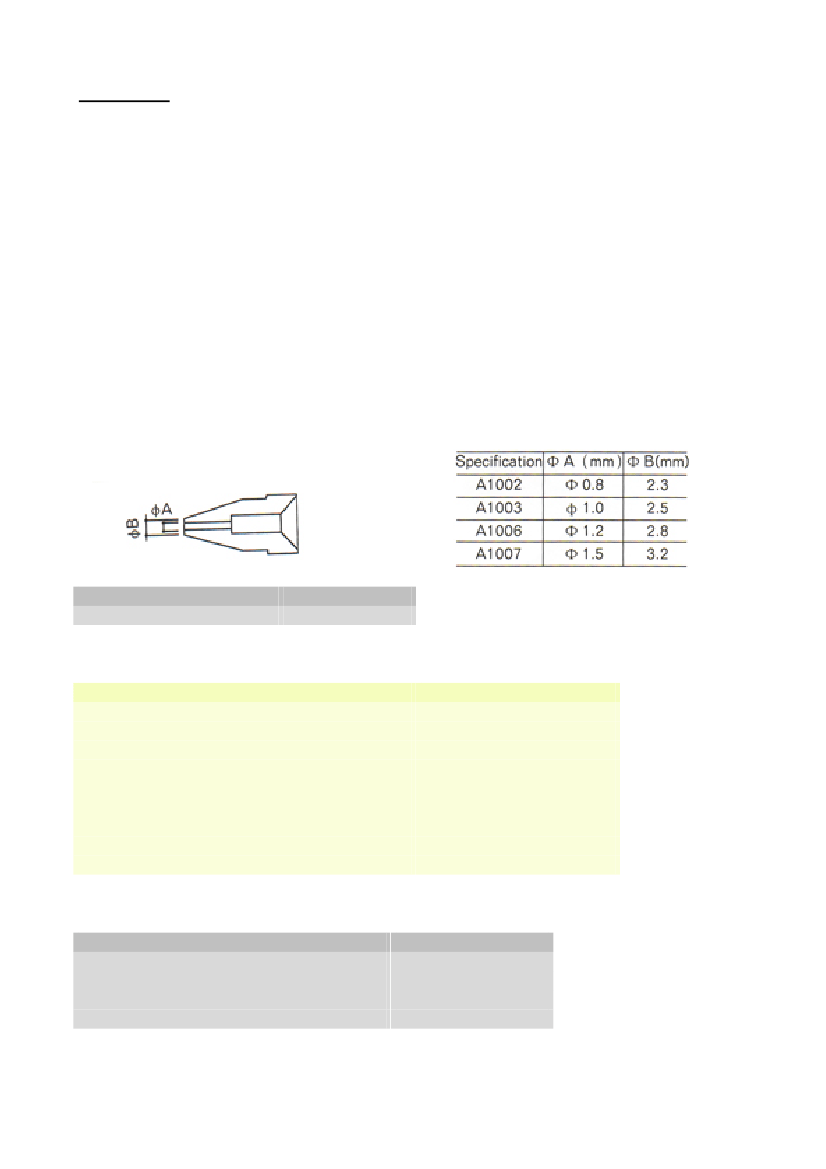

Accessories for HANDY 859
Nozzle Ø 0.8 mm
Nozzle Ø 1.0 mm
Nozzle Ø 1.2 mm
Nozzle Ø 1.5 mm
Item Code
A1002
A1003
A1006
A1007
Edité le 13/11/2008
Page N°4/6
CIF
090917
Réf. V700043, V700044
Rien
Réf. F42202
Solder flux for repair
Packaging adapted to repair operations.
Frost flux is packaged in a syringe to have a very accurate deposit on the surface.
Each syringe is delivered with a manual plunger; it can be connected to a dispenser or due
to the standard syringe shape.
Description
Item Code
No clean frost flux with plunger, syringe 10 cc
F42 202
Réf. F42240
Lead free alloys
Description
Alloys Sn96.5Ag3Cu0.5, 12% of flux
Packaging
syringe 10 ml
Item Code
F42 240
Réf. I43410, I43411, I43412
THE NOZZLES FOR FILTRATEC® UNITS
Nozzles for FILTRATEC® units
Aluminium nozzle Ø 50 mm, bevelled end 45°
Black plastic nozzle Ø 32 mm
Black plastic nozzle Ø 50 mm
Item Code
I43 410
I43 411
I43 412
Edité le 13/11/2008
Page N°5/6
