DMP2047UCB4_15

Description
P-CHANNEL ENHANCEMENT MODE MOSFET
File Size404KB,6 Pages
ManufacturerDiodes
Websitehttp://www.diodes.com/
Download Datasheet View All

DMP2047UCB4_15 Overview

P-CHANNEL ENHANCEMENT MODE MOSFET

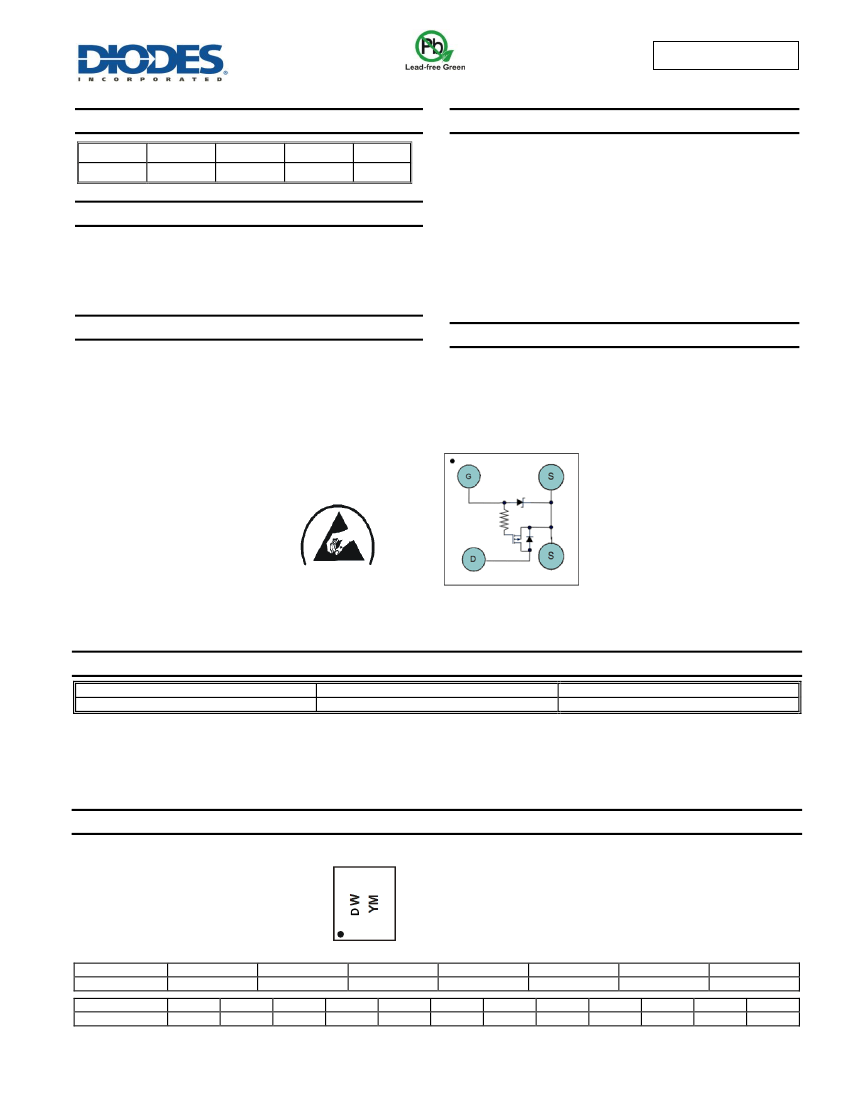

DMP2047UCB4
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
(Typ. @ V
GS
= -4.5V, T
A
V
DSS
-20V
R
DS(on)
40mΩ
Q
g
2.3nC
Q
gd
0.4nC
= +25°C)
I
D
-4.1A
Features
LD-MOS Technology with the Lowest Figure of Merit:
R
DS(on)
= 40mΩ to Minimize On-State Losses
Q
g
= 2.3nC for Ultra-Fast Switching
V
gs(th)
= -0.8V typ. for a Low Turn-On Potential
CSP with Footprint 1.0mm × 1.0mm
Height = 0.62mm for Low Profile
ESD = 3kV HBM Protection of Gate
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Description
This new generation MOSFET is designed to minimize the on-state
resistance (R
DS(ON)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Applications
Battery Management
Load Switch
Battery Protection
Mechanical Data
Case: U-WLB1010-4
Terminal Connections: See Diagram Below
Weight: 0.0018 grams (Approximate)
U-WLB1010-4
ESD PROTECTED TO 3kV
Top View
Equivalent Circuit
Ordering Information
(Note 4)
Part Number
DMP2047UCB4-7
Notes:
Case
U-WLB1010-4
Packaging
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
U-WLB1010-4
DW = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Z = 2012)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
2012
Z
Jan
1
Feb
2
2013
A
Mar
3
Apr
4
2014
B
May
5
Jun
6
2015
C
Jul
7
2016
D
Aug
8
Sep
9
2017
E
Oct
O
Nov
N
2018
F
Dec
D
DMP2047UCB4
Document number: DS36154 Rev. 6 - 2
1 of 6
www.diodes.com
May 2015
© Diodes Incorporated
