Features
■
■
■
■
■
NT
RoHS compliant*
2/4 isolated resistors in an 0404/0804 size
package
E24 series from 10 ohms to 1 megohm
Convex termination style
Resistance tolerance ±5 %
S
CO
■
■
*R
oH
Suitable for all types of soldering processes
Paper tape on reel for automatic placement
M

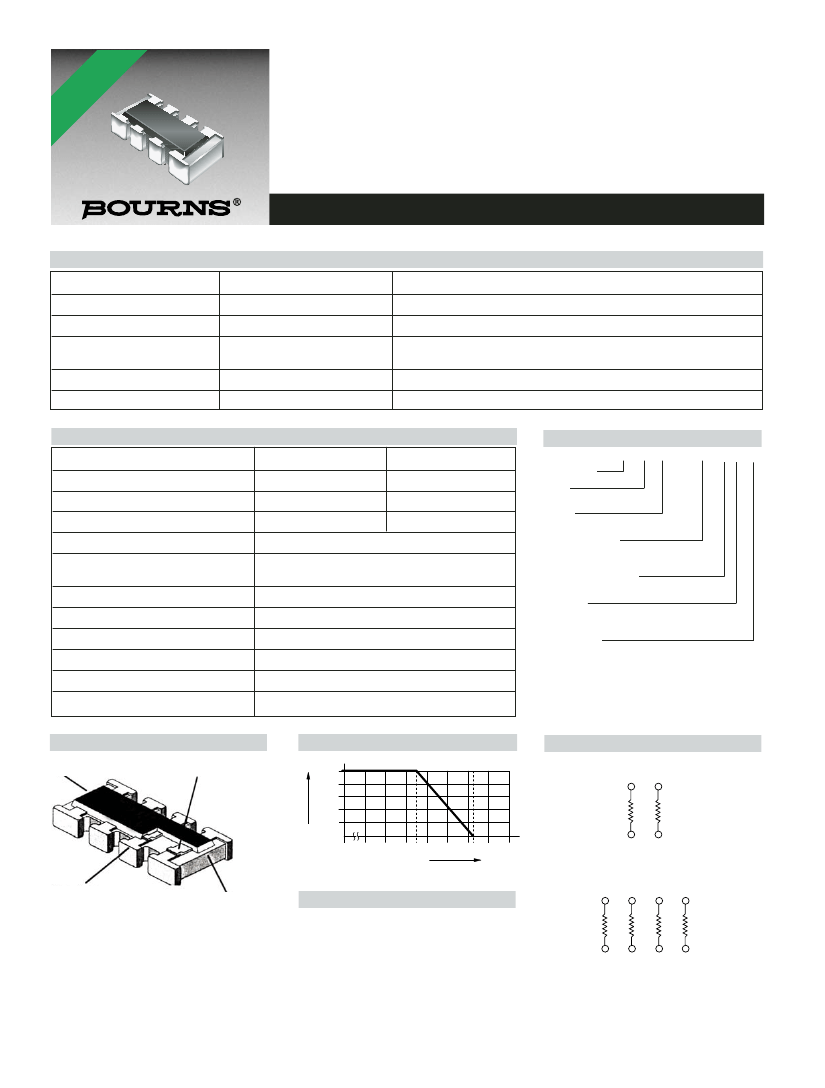

Model CAY10 - Chip Resistor Array
Specifications
Requirement
Short Time Overload
Soldering Heat
Temperature Cycling (5)
Moisture Load Life
Load Life
Characteristics
Characteristics
Number of Elements (Isolated)
Power Rating @ 70 °C per Resistor
Package Power Rating @ 70 °C
Resistance Tolerance
Resistance Range (E24)
plus Zero-ohm Jumper
T.C.R.
Max. Overload Voltage
Max. Working Voltage
Operating Temp. Range
Rating Temperature
Packaging
Construction
Protective Glass Overcoat
Thick Film
Resistive Element
Rated Load (%)
Characteristics
±2 %
±1 %
±1 %
±3 %
±3 %
Test Method
Rated Voltage X 2.5, 5 seconds
260 °C ±5 °C, 10 seconds ±1 second
125 °C (30 minutes) - normal (15 minutes)
-30 °C (30 minutes) - normal (15 minutes)
1000 hours
1000 hours
How To Order
CAY10-xxxJ2
2
31 mW
63 mW
±5 %
CAY10-xxxJ4
4
63 mW
125 mW
Chip Arrays
Type
• Y = Convex
CA Y 10 - 103 J 4 LF
Model
• 10 = 04 Package Width
Resistance Code
• 103 = 10 K ohms
• 000 = Zero-ohm Jumper
Resistance Tolerance
• J = ±5 %
Resistors
• 2 = 2 Resistors
• 4 = 4 Resistors
Terminations
• LF = Tin-plated (RoHS compliant)
10 ohms - 1 megohm
±250 ppm/°C
50V
25V
-55 °C to +125 °C
+70 °C
10,000 pieces per reel
Derating Curve
100
80
60
40
20
0
-55
40 60 80
Ambient Temp. (˚C)
100 120 140 160
70
°C
125
°C
For Standard Values Used in Capacitors,
Inductors, and Resistors,
click here.
Isolated Circuit
CAY10-xxxJ2
4
3
R
R
1
2
CAY10-xxxJ4
Termination
High Purity Alumina
Substrate
Typical Part Marking
None on part. Label on reel will include
part number.
8
7
6
5
R
R
R
R
1
2
3
4
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
Model CAY10 - Chip Resistor Array
Soldering Profile for RoHS Compliant Chip Resistors and Arrays
275
<1>
Maximum of 20 seconds between
260 °C peak
<1>
255 °C
+255 °C and +260 °C
225
220 °C
Temperature (°C)
190 °C
175
150 °C
60 - 90
seconds
Ramp Down
6 °C/second
125
60 - 120 seconds
10 seconds minimum
75
Ramp Up
3 °C/second maximum
25
0
50
100
150
Time (seconds)
200
250
300
Product Dimensions
CAY10-xxxJ4
0.40
±
0.15
(.016
±
.006)
CAY10-xxxJ2
0.33
±
0.10
(.013
±
.004)
0.15
±
0.10
(.006
±
.004)
1.0
±
0.10
(.040
±.004)
0.25
±
0.10
(.010
±
.004)
0.15
±
0.10
(.006
±
.004)
1.0
±
0.10
(.040
±.004)
0.25
±
0.10
(.010
±
.004)
0.5
±
0.05
(.020
±
.002)
2.0
±
0.10
(.079
±
.004)
0.30
±
0.15
(.012
±
.006)
0.35
±
0.10
(.014
±
.004)
0.67
±
0.10
(.026
±
.004)
1.0
±
0.10
(.040
±
.004)
0.35
±
0.10
(.014
±
.004)
Land Pattern
CAY10-xxxJ4
0.50
(.020)
0.50
(.020)
1.50
(.059)
0.50
(.020)
CAY10-xxxJ2
0.65
(.026)
0.50
(.020)
DIMENSIONS:
MM
(INCHES)
1.50
(.059)
0.40
(.016)
0.30
(.012)
0.35
(.014)
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
Model CAY10 - Chip Resistor Array
Packaging Dimensions
DIA.
1.50
±
.010
(.059 + .004)
1.75
±
0.10
(.069
±
.004)
2.0
±
0.5
(.079
±
.020)
0.45
±
.010
MAX.
(.018
±
.004)
4.00
±
0.10
(.157
±
.004)
13.0
±
0.2
(.511
±
.008)
CAY10-xxxJ2: 1.20
±
0.10
(.047
±
.004)
3.50
±
0.05
(.138
±
.002)
8.00
±
0.20
(.315
±
.008)
2.00
±
0.10
(.079
±
.004)
180
(7.087)
21.0
±
0.8
(.827
±
.031)
60
(2.362)
CAY10-xxxJ4: 2.20
±
0.10
(.087
±
.004)
1.0
1.20
±
0.10
MAX.
(.040)
(.047
±
.004)
9.0
±
0.3
(.354
±
.012)
11.4
±
1.0
(.449
±
.040)
REV. 02/08
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
