Schnitt A-A
M 12x1
A
12,9
10
7
für O-Ring 14x1
A
M14x1
9,55
R9
,5
SW17
394863
Ident.-Nr.:
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
galv. Ni
Oberfläche
Scale
All Dimensions
in mm
mit Dichtringfläche, für Abstand 13mm
/distance 13mm
, M14x1 lang
Bemerkung
2:1
CuZn
Information:
Tolerances
All rights reserved.
Only for Information.
To ensure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
b
Index
22.12.2010
Date
Designation
Subject to modification without
prior notice.
Drawing will not be updated.

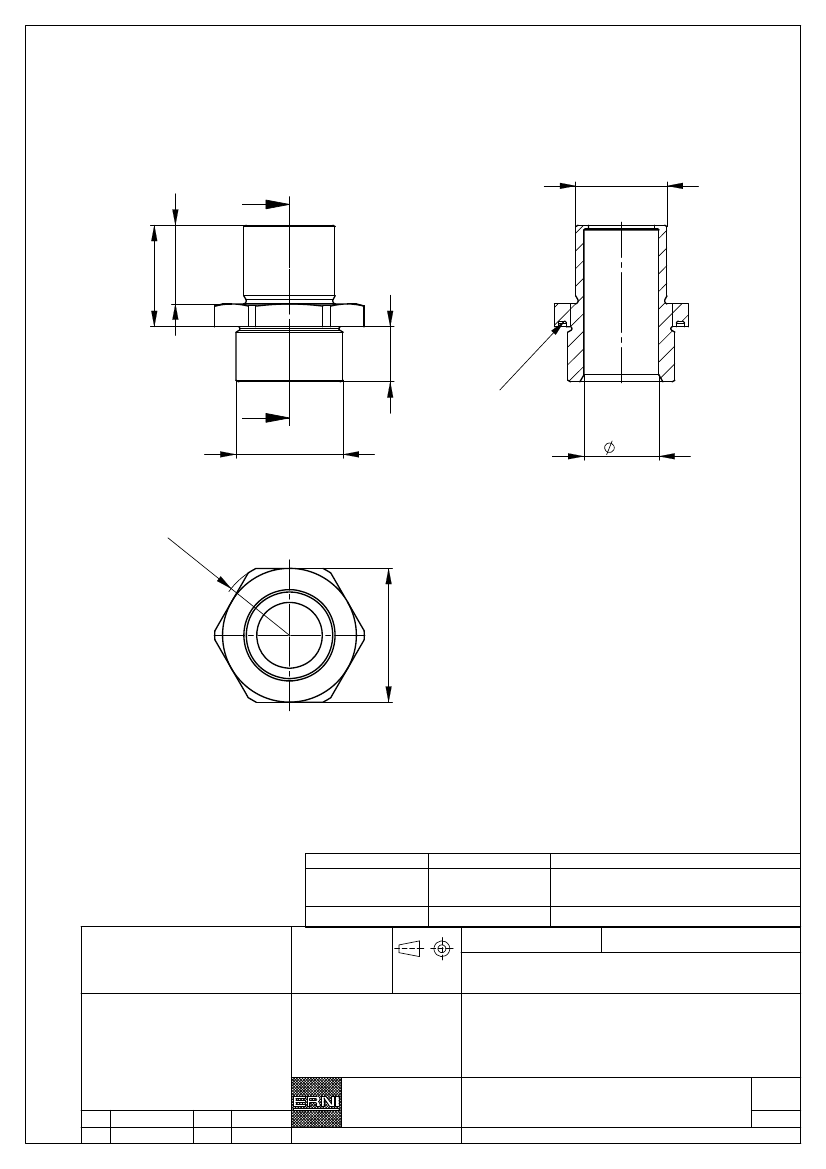

M12 Gehäuseteil für Messerl.
m.D. 13 mm Abstand M14 lang
www.ERNI.com
Class
394862
MRDEZT
I
A4
