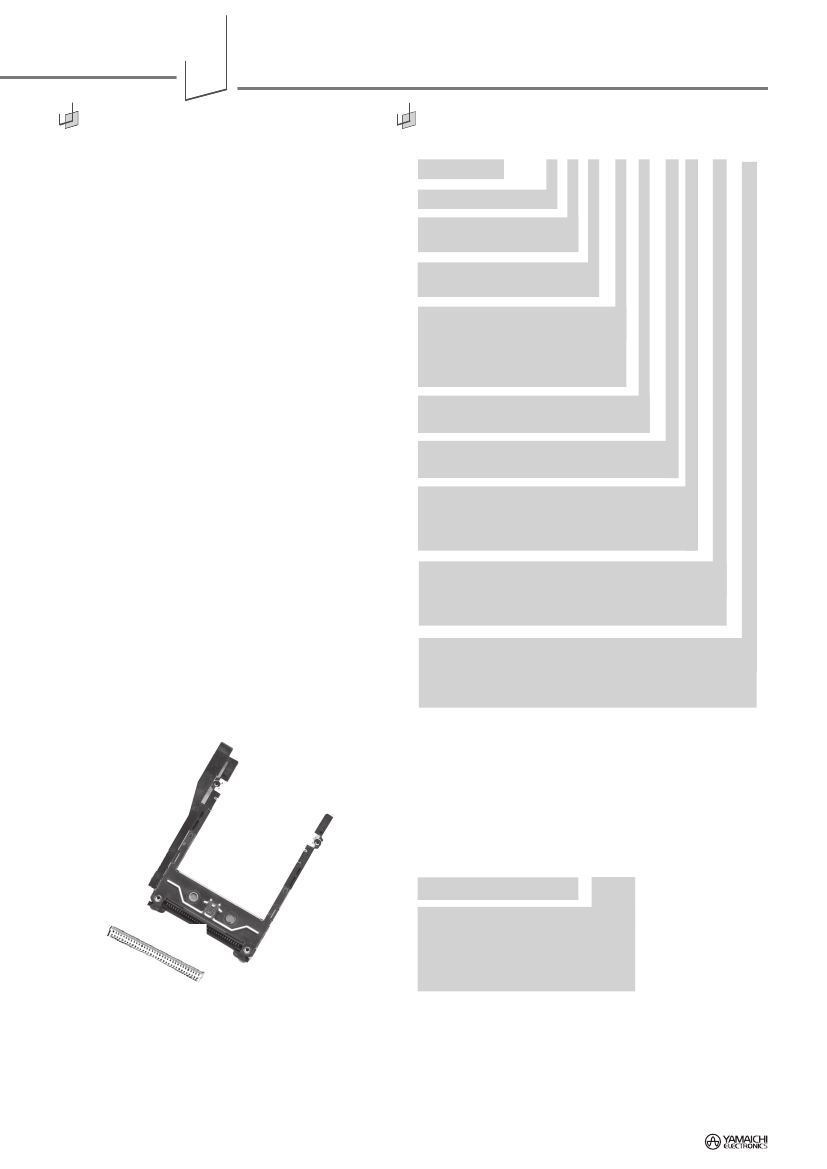

Card
Connectors
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Current Rating:
Soldering Temp.:
Series CNS
PCMCIA II Slot - Single Deck (SMT Type)
Part Number
(Details)
1,000MΩ min.
500V ACrms for 1 minute
40mΩ max.
0.5A per contact
Rear socket: 220°C /40 sec.,
240°C peak
CNS
Series
S = Single Deck
-
S T P -A R -8 3 -A- 1
PCB Mounting Style:
T = Top
B = Bottom
Materials and Finish
Insulator:
Contact:
Plating:-
PBT, glass filled (UL94V-0)
Phosphor Bronze
Header:
Card side - Au 0.3µm over Ni 2.0µm
Rear side - Au flash over Ni 2.0µm
Rear Socket:
Mating side - Au 0.2µm over Ni 1.0µm
Solder side - Au flash over Ni 1.0µm
Stainless Steel
Phosphor Bronze
Au over Ni
Voltage Style:
P = 3.3V / 5V Card
A = Plastic Lever
B = Metal Lever
C = Foldable Lever
D = 2 Step Lever
E = Without Ejector
Eject Lever:
R = Right
Plate:
Side Contact:
Plating:
L = Left
*Height of Stand-off:
1 = 0mm
4 = 2.2mm
Nut Insert:
8 = 5.0mm
Features
SMT connector makes assembly and rework easier
Small, light and low profile connector meets
all kinds of PC card system requirements
Various product combinations single
or double deck, right or left eject lever,
polarization styles, various stand-off heights,
fully supports the customer’s design needs
Convenience of PC card removal with
push type eject lever
0 = None (on request)
1 = Header (on request)
2 = Guide (on request)
3 = Header / Guide (standard)
A = None
B = Top
C = Bottom
D = Top / Bottom
no mark = None
1 = Top
2 = Bottom
3 = Top and Bottom
Shield Plate:
Kapton Film:
*Stand-off products 0.0 and 2.2mm are subject to a
minimum order quantity of 1,120 pcs.
Part Number
(Details)
for Rear Socket
PCMCIA - 1260
Packing Number
-
*
Available Types
0 = Without Kapton Film (Tray)
1 = With Kapton Film (Tray)
9 = With Kapton Film
(Tape & Reel,1,500 pcs. per reel)
A-46
Connectors
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
Trading Division
Series CNS
PCMCIA II Slot - Single Deck (SMT Type)

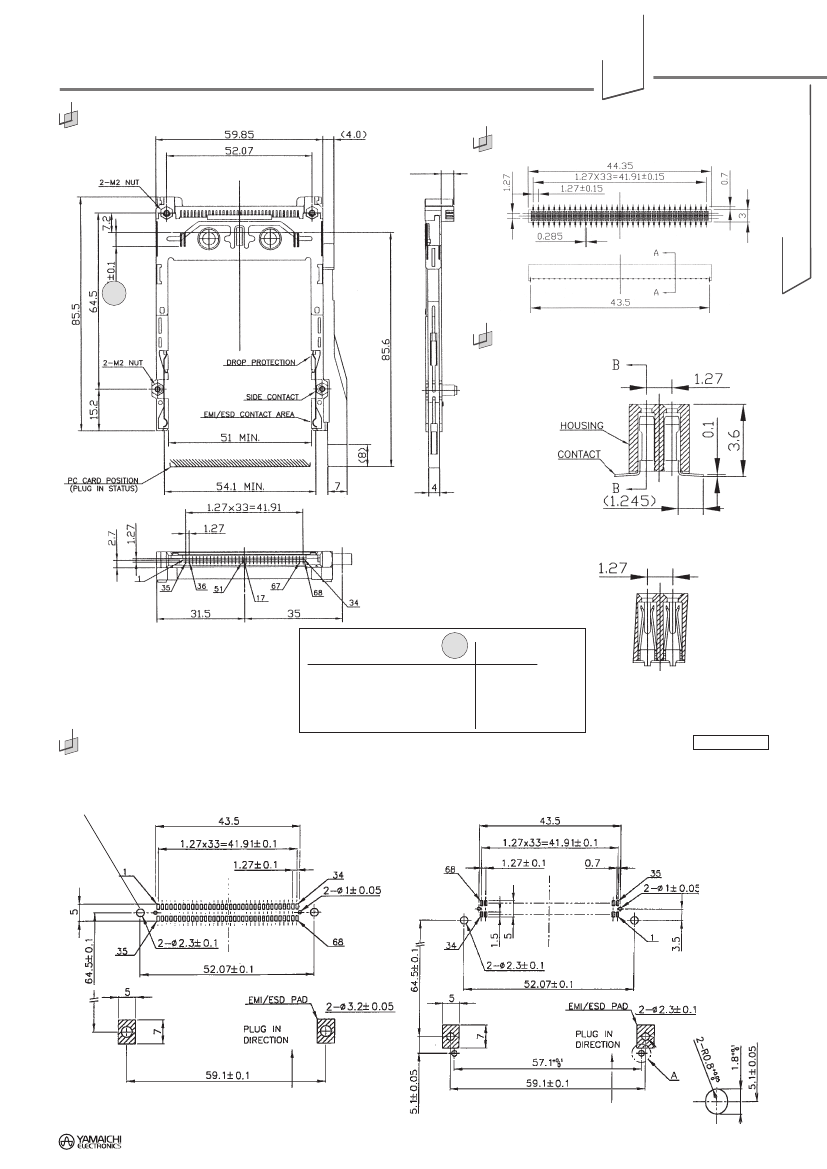

Example: Single Deck SMT Fixing with 5.0mm Stand-off
Rear Socket
5.0
Card
Connectors
A
Rear Socket Section Details
Section A - A
Contact Dimensions at
A
Length
5.00 ±0.1
3.50 ±0.1
4.25 ±0.1
Section B - B
Contacts A1, A17, A34, A35,
A51 and A68
Contacts A36 and A67
All other contacts
Example PCB Layout
With Stand-off
Please Note: this hole for stand-off 2.2mm
and 5.0mm lies on the center line with the SMD pad
Without Stand-off
Top View
Detail A
Trading Division
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
Connectors
A-47
PCMCIA II Slot
