BA3529AFP: DescriptionPre / power amplifier and motor governor for 3V headphone stereos; CategoryAnalog mixed-signal IC Consumption circuit; File Size242KB，14 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA3529AFP Overview

Pre / power amplifier and motor governor for 3V headphone stereos

BA3529AFP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	HSOP-28
Contacts	28
Reach Compliance Code	compliant
ECCN code	EAR99
Commercial integrated circuit types	AUDIO AMPLIFIER
Gain	39 dB
harmonic distortion	10%
JESD-30 code	R-PDSO-G30
JESD-609 code	e3/e2
length	18.5 mm
Number of channels	2
Number of functions	1
Number of terminals	30
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Nominal output power	0.034 W
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Encapsulate equivalent code	SOP42,.4,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	3 V
Certification status	Not Qualified
Maximum seat height	2.41 mm
Maximum slew rate	18 mA
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	1.8 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	7.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Audio ICs

Pre / power amplifier and motor

governor for 3V headphone stereos

BA3528AFP / BA3529AFP

The BA3528AFP and AB3529AFP have been developed for headphone stereos. They run off a 3V power supply, and

include dual pre- and power amplifiers, and a motor governor.

The preamplifiers are direct-coupled, and the power amplifiers use a fixed-gain NF circuit. An on-chip V

REF

amplifier

makes output coupling capacitors unnecessary, and the motor governor uses a bridge ratio system to minimize the exter-

nal parts count and make reliable and compact designs possible.

FApplications

3V portable stereo equipment

FFeatures

1) All the functions required for headphone stereo units

on a single chip.

2) Preamplifier includes a mute amplifier.

3) Direct-coupled preamplifier.

4) No output coupling capacitors required for the power

amplifiers.

5) Power amplifiers do not require oscillation prevention

measures.

6) Power amplifier gain allows use of noise reduction

(BA3529AFP).

FAbsolute

maximum ratings (Ta = 25_C)

FRecommended

operating conditions (Ta = 25_C)

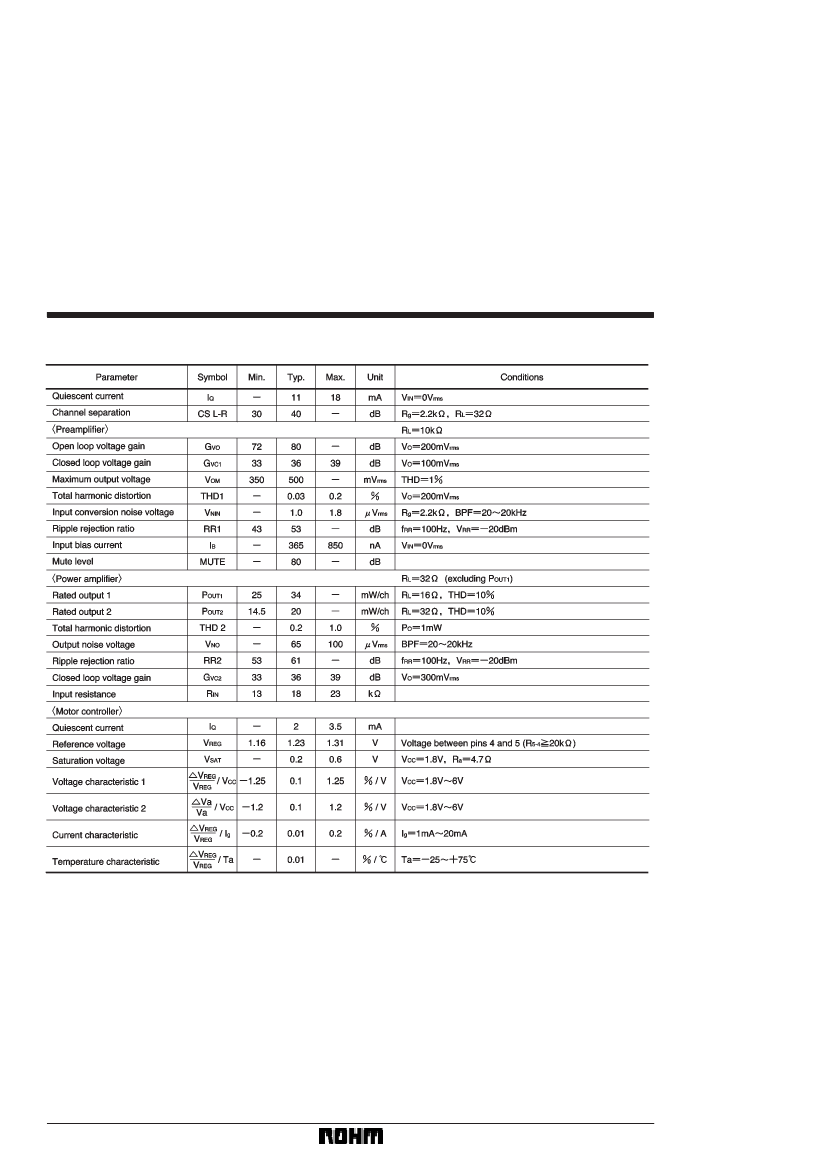

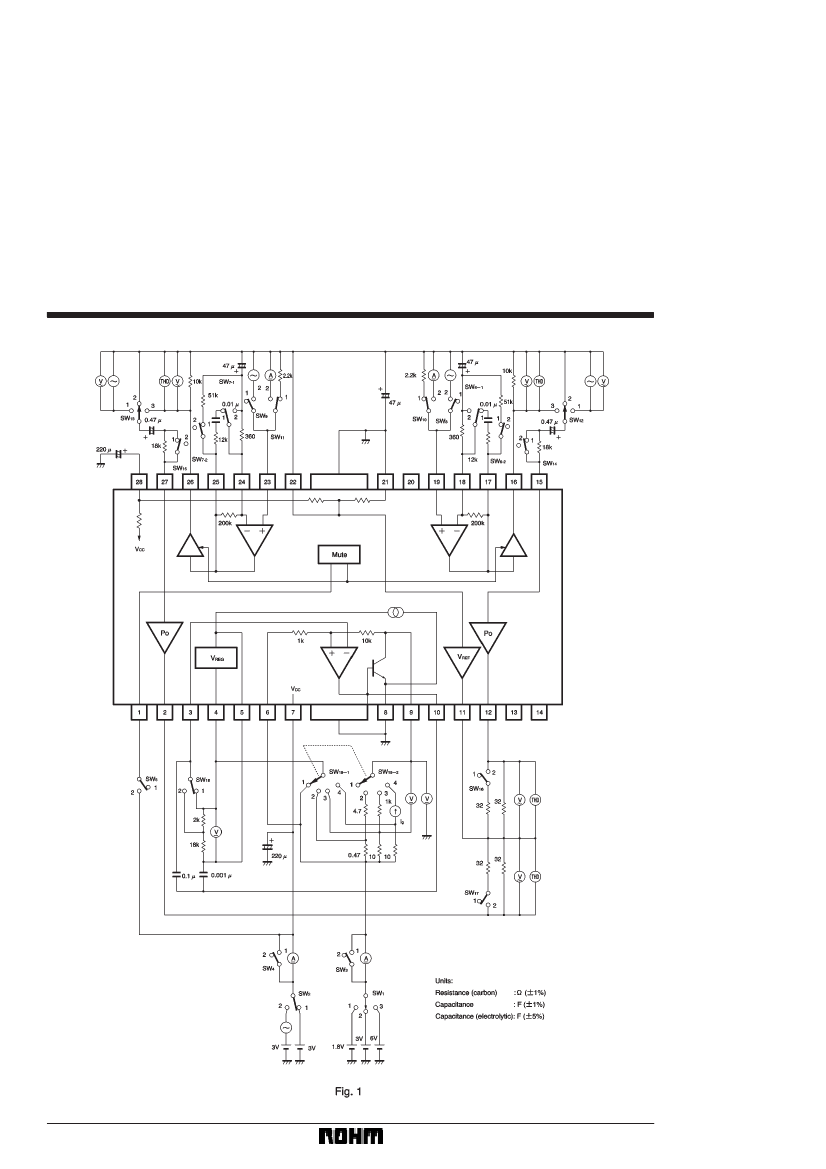

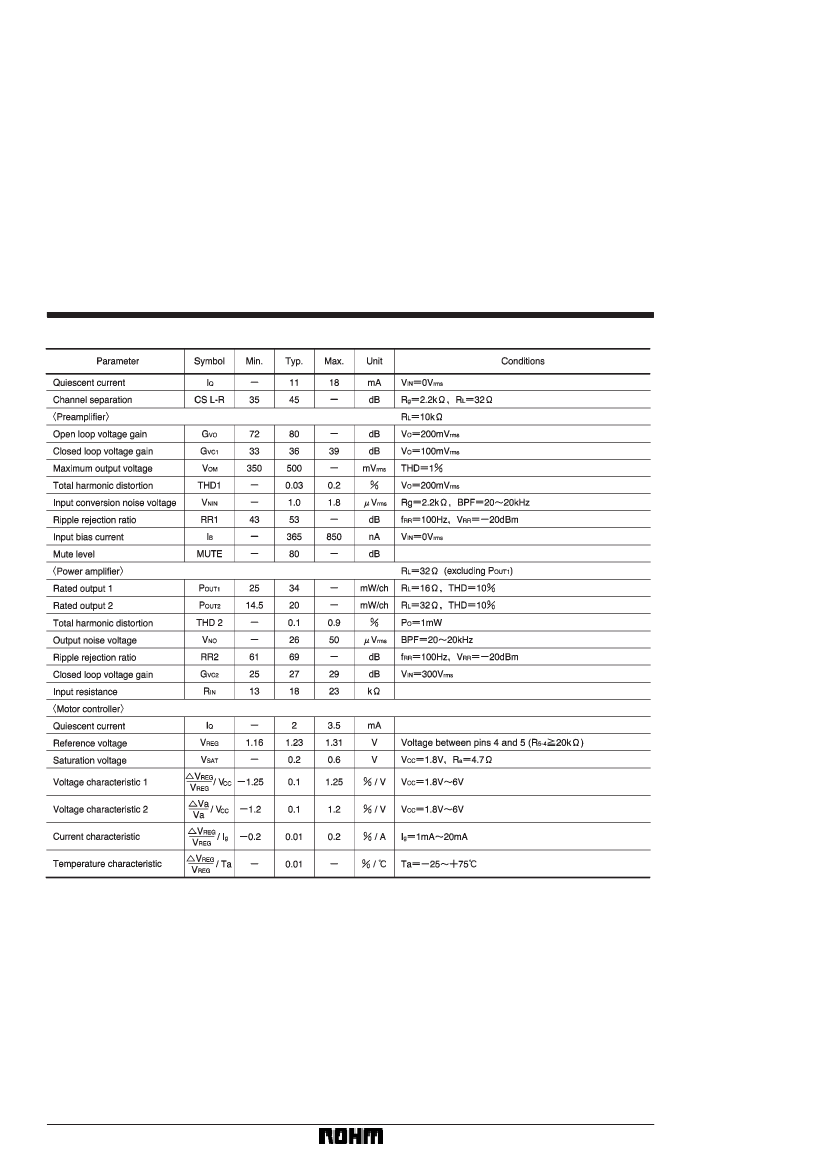

385

BA3529AFP Related Products

	BA3529AFP	BA3528AFP	BA3528
Description	Pre / power amplifier and motor governor for 3V headphone stereos	Pre / power amplifier and motor governor for 3V headphone stereos	Pre / power amplifier and motor governor for 3V headphone stereos
Is it lead-free?	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	-
Maker	ROHM Semiconductor	ROHM Semiconductor	-
Parts packaging code	SOIC	SOIC	-
package instruction	HSOP-28	HSOP-28	-
Contacts	28	28	-
Reach Compliance Code	compliant	compli	-
ECCN code	EAR99	EAR99	-
Commercial integrated circuit types	AUDIO AMPLIFIER	AUDIO AMPLIFIER	-
Gain	39 dB	39 dB	-
harmonic distortion	10%	10%	-
JESD-30 code	R-PDSO-G30	R-PDSO-G30	-
JESD-609 code	e3/e2	e3/e2	-
length	18.5 mm	18.5 mm	-
Number of channels	2	2	-
Number of functions	1	1	-
Number of terminals	30	30	-
Maximum operating temperature	75 °C	75 °C	-
Minimum operating temperature	-25 °C	-25 °C	-
Nominal output power	0.034 W	0.034 W	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	HSSOP	HSSOP	-
Encapsulate equivalent code	SOP42,.4,32	SOP42,.4,32	-
Package shape	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	-
Peak Reflow Temperature (Celsius)	260	260	-
power supply	3 V	3 V	-
Certification status	Not Qualified	Not Qualified	-
Maximum seat height	2.41 mm	2.41 mm	-
Maximum slew rate	18 mA	18 mA	-
Maximum supply voltage (Vsup)	6 V	6 V	-
Minimum supply voltage (Vsup)	1.8 V	1.8 V	-
surface mount	YES	YES	-
technology	BIPOLAR	BIPOLAR	-
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	-
Terminal surface	TIN/TIN COPPER	TIN/TIN COPPER	-
Terminal form	GULL WING	GULL WING	-
Terminal pitch	0.8 mm	0.8 mm	-
Terminal location	DUAL	DUAL	-
Maximum time at peak reflow temperature	10	10	-
width	7.5 mm	7.5 mm	-
