ZVE144S1210R0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> ZVE144S1210R0

ZVE144S1210R0: DescriptionRESISTOR, VOLTAGE DEPENDENT, 18V, 0.1J, SURFACE MOUNT, CHIP, 1210; CategoryPassive components The resistor; File Size174KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/

Download Datasheet Parametric Compare View All

ZVE144S1210R0 Overview

RESISTOR, VOLTAGE DEPENDENT, 18V, 0.1J, SURFACE MOUNT, CHIP, 1210

ZVE144S1210R0 Parametric

Parameter Name	Attribute value
Maker	SEI(Stackpole Electronics Inc.)
package instruction	CHIP, 1210
Reach Compliance Code	compli
ECCN code	EAR99
Circuit maximum DC voltage	18 V
Circuit RMS maximum voltage	14 V
Maximum energy absorption capacity	0.1 J
JESD-609 code	e4
Manufacturer's serial number	ZVE
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, PLASTIC, 7 INCH
Rated power dissipation(P)	0.004 W
Resistor type	VARISTOR
surface mount	YES
Terminal surface	SILVER PALLADIUM
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

ZVE Series — ESD Suppression SMD Varistors

Description

ZVE surface mounted varistors are designed to suppress ESD events, including those

specified in IEC1000-4-2 of other standards used for Electromagnetic Compliance testing.

The ZVE Series is typically applied to protect integrated circuits and other components at the

circuit board level operating at 18V

or less.

Fabrication method, design and materials of these devices result in low capacitance

characteristics suitable for high-frequency attenuation/low-pass filter circuit functions,

providing suppression and filtering in a single device

Features

• AC operating voltage (Vrms) from 0V to 14V

• DC operating voltage (Vdc) from 0V to 18V

• Rated for ESD (IEC-1000-4-2)

• Fast response time

• Bi-directional, low clamping voltages

• 4 model sizes available 0603, 0805, 1206, 1210

• Characterized for low inductance and capacitance

• +125°C continuous operating temperature

• Dimensional and weight savings on PC board

• AgPd end terminations

• No plastic coating guarantees better flammability rating

• Available in tape and reel of automatic pick and place

Applications

• Used for port and I/O interface protection in mobile,

communication, computer/EDP products, medical products,

hand held /portable devices and industrial equipment

• Suppression of ESD events such as specified in IEC1000-4-2,

or, MIL-STD 883C, Method 3015.7 for Electromagnetic,

Compliance

• Protection of components and circuits sensitive to ESD,

transients occurring on power, control and signaling lines

•

General Technical Data

Operating Temperature

Storage Temperature Range

Threshold Voltage Temperature Coefficient

Response Time

-55°C to +125°C

-55°C to +150°C

<-0.05%/°C

< 1 ns

In accordance with CECC 42 000

Standard Packaging Options/ Quantities

Series

Voltage Range (Vrms)

1206

ZVE

180mm

1,000

180mm

4,000

330mm

13"

15,000

180mm

1,000

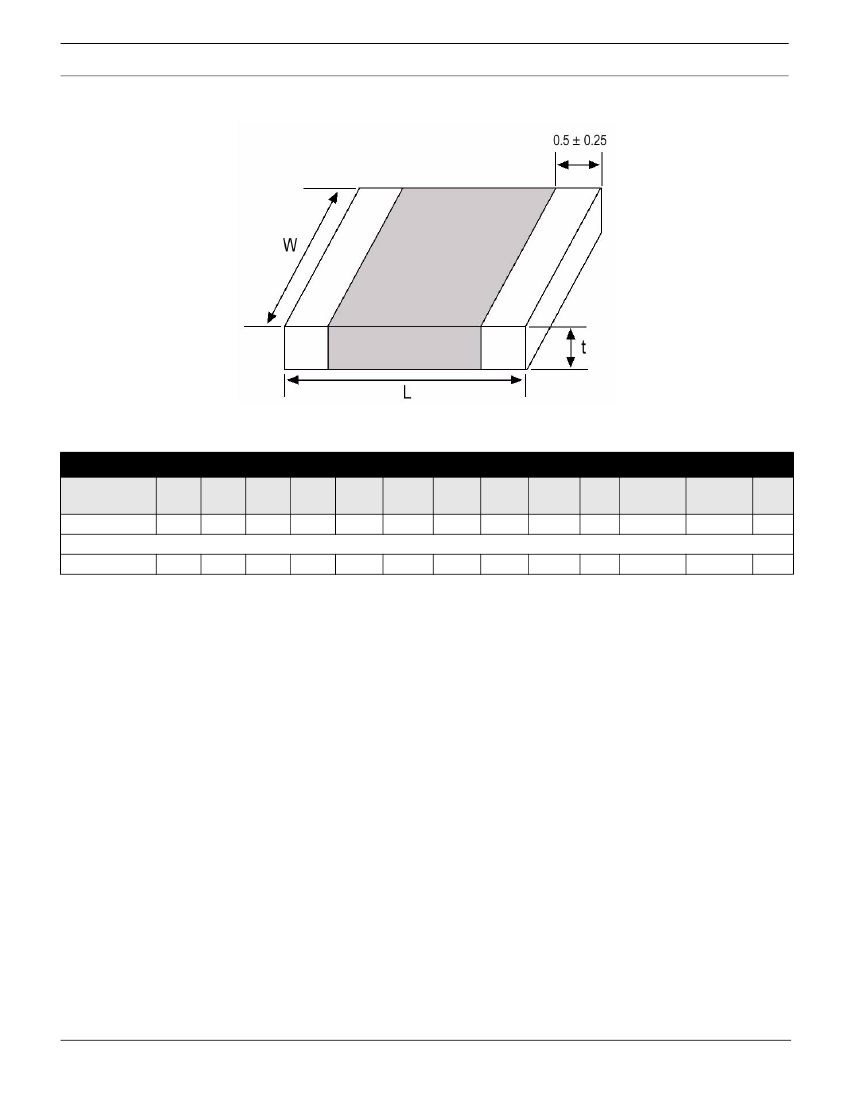

Chip Size

1210

180mm

1,500

330mm

13"

6,000

How to Order

ZVE

SEI Type

Vrms

Tolerance

1206

Chip Size

Packaging

Code

Tolerance

Special

Size

1206

1210

Code

R0, R1

Description

180 mm (7") Plastic Reel

330 mm (13") Plastic Reel

Toll Free: (888) SEI-SEIS

(888) 734-7347

www.seielect.com

email: marketing@seielect.com

Rev 01/07
