LRGSCK711-R-S-B-0/125N datasheet, PDF

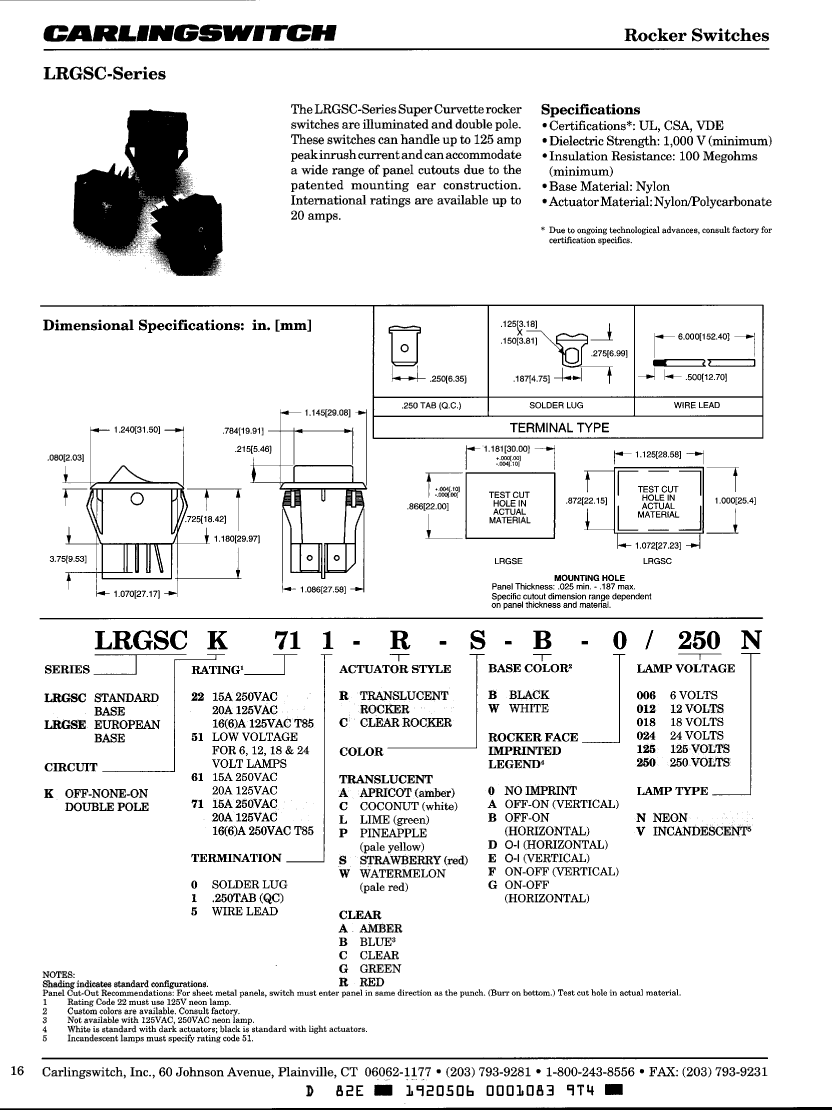

LRGSCK711-R-S-B-0/125N: DescriptionRocker Switch, DPDT, On-off, Horizontal, Quick Connect Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size105KB，1 Pages; ManufacturerCarling Technologies

Download Datasheet Parametric View All

LRGSCK711-R-S-B-0/125N Overview

Rocker Switch, DPDT, On-off, Horizontal, Quick Connect Terminal, Rocker Actuator, Panel Mount

Parameter Name	Attribute value
Maker	Carling Technologies
Reach Compliance Code	compli
ECCN code	EAR99
Actuator color	RED
Actuator length	0.215 inch
Actuator material	NYLON
Actuator type	ROCKER
Other features	TRANSLUCENT ACTUATOR
body width	27.5844 mm
Body color	BLACK
body height	37.465 mm
Body length or diameter	27.178 mm
Contact (AC) maximum rated load M	6A@250VAC
Contact (AC) maximum rated R load	15A@250VAC
Maximum contact current (AC)	15 A
Contact function	ON-OFF
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1000VDC V
Electrical life	10000 Cycle(s)
illumination	LAMP
Insulation resistance	100000000 Ω
insulator material	NYLON
Manufacturer's serial number	LRGSC
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
surface mount	NO
Switch action	HORIZONTAL
switch function	DPDT
Switch type	ROCKER SWITCH
Terminal length	0.375 inch
Termination type	QUICK CONNECT
