226TXK350M: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 350V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount,; CategoryPassive components capacitor; File Size275KB，2 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

226TXK350M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	226TXK350M	-	-	View	Buy Now

226TXK350M Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 350V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount,

226TXK350M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	unknow
capacitance	22 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	12.5 mm
dielectric materials	ALUMINUM
ESR	15071.5 mΩ
leakage current	0.179 mA
length	20 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	350 V
ripple current	240 mA
surface mount	NO
Delta tangent	.2
Terminal pitch	5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

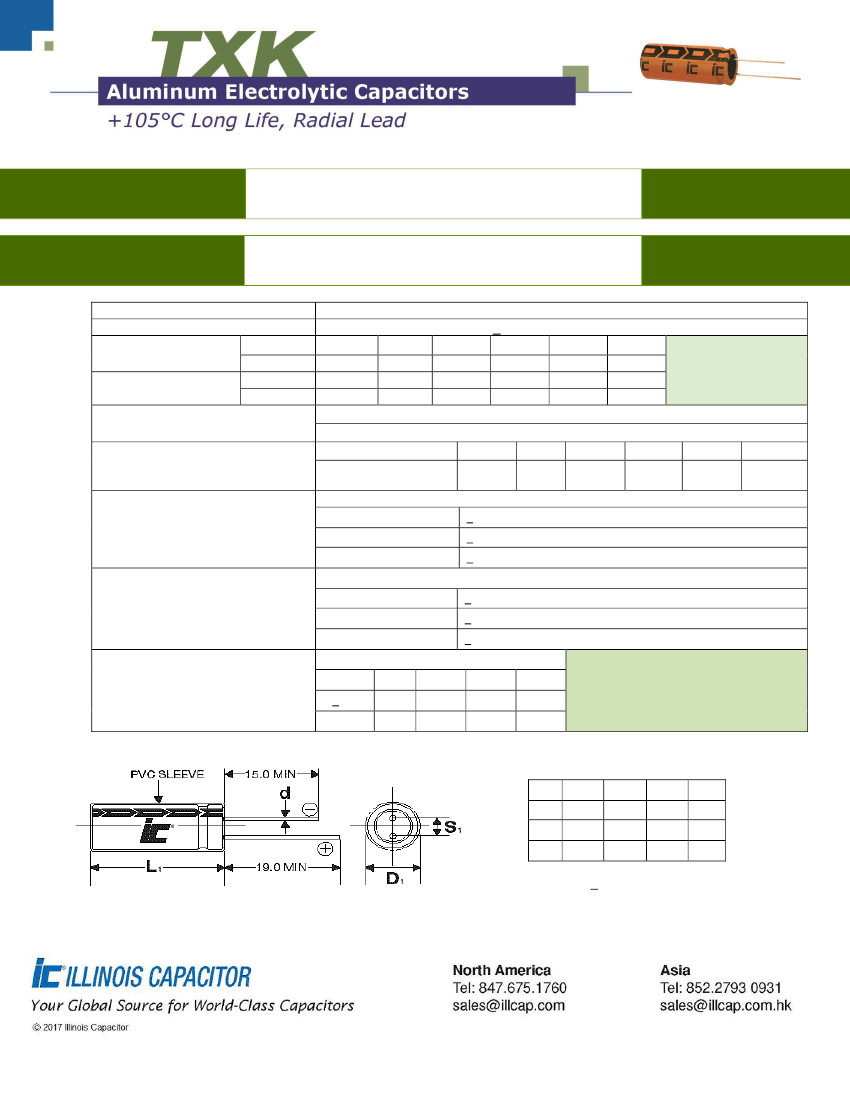

FEATURES

APPLICATIONS

High Temperature

-

High Voltage

–

Long Life

Switching Power Supplies

–

Electronic Ballasts

Operating Temperature Range

Capacitance Tolerance

WVDC

Surge voltage

SVDC

WVDC

Dissipation Factor

tan δ

Leakage current

Low temperature stability

Impedance ratio

(120 Hz)

Load Life

160

200

160

.15

200

250

200

.15

Rated WVDC

-25°C to +20°C

Capacitance change

Dissipation factor

Leakage current

-25°C to +105°C

+20% at 120 Hz, 20°C

250

350

400

450

300

400

450

500

250

350

400

450

.15

.2

.02CV+25uA

2 Minutes

160

200

250

350

3

4

6

400

6

450

7

5000 hours with rated voltage applied at 105°C

<20% of initial measured value

<200% of maximum specified value

>100% of maximum specified value

1000 hours at 105°C with no voltage applied

Shelf Life

Capacitance change

Dissipation factor

Leakage current

<20% of initial measured value

<200% of maximum specified value

>100% of maximum specified value

Frequency (Hz)

Ripple Current Multipliers

WVDC

<100

>100

120

1

1k

1.75

1.67

10k

2.25

2.05

100k

2.5

2.25

Lead spacing VS. Case diameter

D

S

d

B

10

5.0

0.6

1.5

12.5

5.0

0.6

1.5

16

7.5

0.8

1.5

18

7.5

0.8

1.5

L

1

= L+1.5 (L<20)

L

1

= L+ 2 (L>20)

D

1

= D+0.5

mm

Feb-17
