301471U050LV0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 301471U050LV0

301471U050LV0: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 75% +Tol, 10% -Tol, 470uF, Through Hole Mount, CAN, RADIAL LEADED; CategoryPassive components capacitor; File Size477KB，11 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

301471U050LV0 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 75% +Tol, 10% -Tol, 470uF, Through Hole Mount, CAN, RADIAL LEADED

301471U050LV0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	470 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	18 mm
dielectric materials	ALUMINUM (WET)
ESR	250 mΩ
JESD-609 code	e3
leakage current	4 mA
length	40 mm
Manufacturer's serial number	301
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
polarity	POLARIZED
positive tolerance	75%
Rated (DC) voltage (URdc)	50 V
ripple current	0.52 mA
series	301
surface mount	NO
Terminal surface	Tin (Sn)
Terminal pitch	7.5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

Type 300/301

–55

ºC to 105 ºC Long-Life, Switching Power Grade Radial

High Capacitance and

Ultra-Low ESR

The Types 300 and 301 are the wide-temperature, low-ESR capaci-

tors for power-supply outputs and UPS battery stiffening. The ex-

ceptionally low ESRs enable high ripple-current capability. With

series inductance of 12 to 16 n Hand ripple currents to 16 amps one

of these capacitors can save by replacing three or four of the 12.5

mm diameter capacitors routinely at the output of switching power

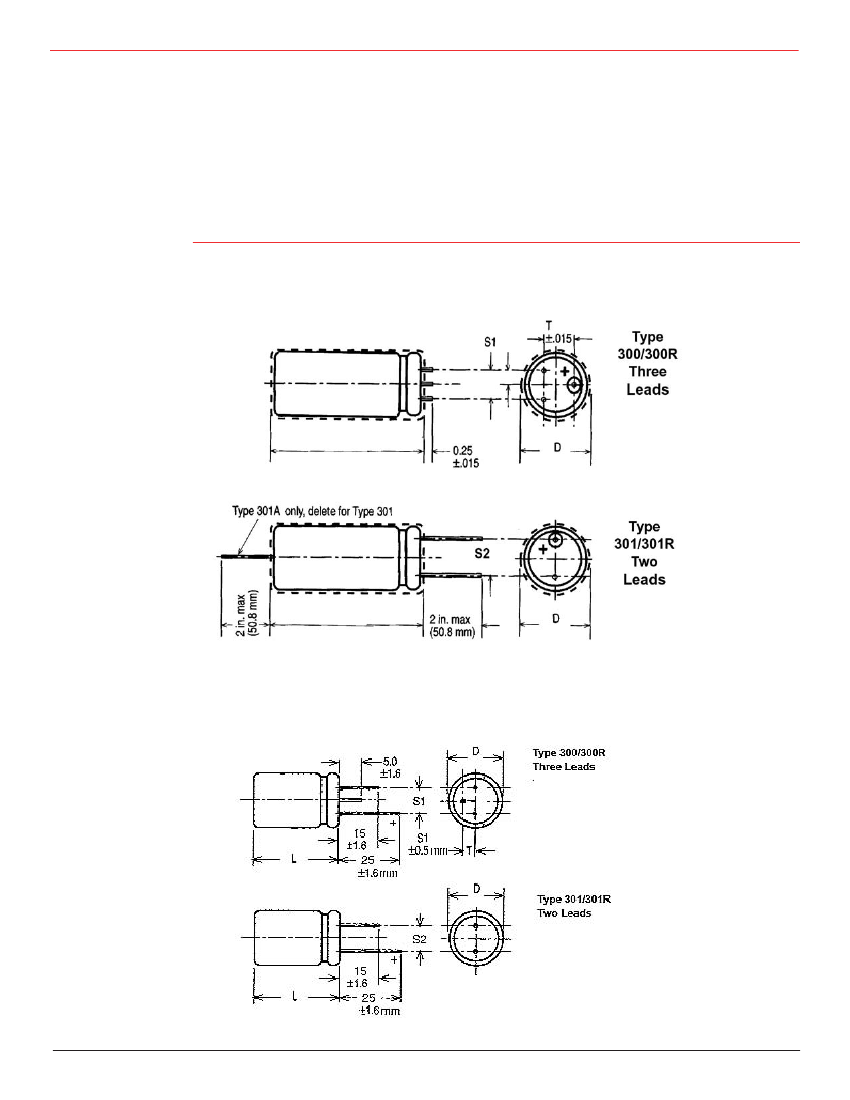

supplies. Type 300 has three leads for rugged, reverse-proof mount-

ing, and Type 301 has two leads. Types 300R and 301R deliver even

lower ESR and higher ripple.

Highlights

•

4000 hour load life

Ripple Current to 16 amps

ESRs to 6 m

Ω

> 90% capacitance at –40 °C

Replaces multiple capacitors

Speciﬁcations

Operating Temperature:

Rated Voltage:

Capacitance:

Capacitance Tolerance:

Leakage Current:

Cold Impedance:

Ripple Current Multipliers:

–55 °C to +105 °C

6.3 to 250 Vdc

8.2 µF to 33,000 µF

6.3 to 100 Vdc; –10 + 75%, 160 to 250 Vdc; –10 +50%

≤0.5 √CV µA, 4 mA max, 5 minutes

–55 °C multiple of 25 °C Z ≤4 for 6.3 & 7.5 V,

3 for 10 to 50 V, 2 for > 50 V

Ambient Temperature

45ºC

1.66

55ºC

1.52

65ºC

1.37

50 Hz

Less than .77” Diameter

6.3 & 7.5 V

10 to 40 V

50V

63 & 75 V

100 to 250 V

.77” Diameter

6.3 & 7.5 V

10 to 40 V

50V

63 & 75 V

100 to 250 V

.895” Diameter

6.3 & 7.5 V

10 to 40 V

50V

63 & 75 V

100 to 250 V

1.02” Diameter

6.3 & 7.5 V

10 to 40 V

50V

63 & 75 V

100 to 250 V

0.84

0.81

0.76

0.77

0.76

0.88

0.86

0.81

1.00

1.12

1.15

1.23

1.24

1.17

1.22

1.35

1.37

1.19

1.25

1.42

1.44

1.20

1.26

1.44

1.46

0.82

0.80

0.75

0.76

0.86

0.84

0.80

0.81

1.00

1.14

1.17

1.27

1.26

1.25

1.20

1.25

1.42

1.40

1.38

1.23

1.29

1.50

1.48

1.46

1.24

1.30

1.52

1.50

1.48

0.82

0.78

0.76

0.74

0.76

0.86

0.83

0.81

0.80

0.81

1.00

1.15

1.20

1.25

1.28

1.24

1.21

1.30

1.38

1.43

1.37

1.24

1.35

1.45

1.52

1.44

1.25

1.36

1.47

1.54

1.46

0.76

0.74

0.72

0.71

0.68

0.81

0.79

0.78

0.76

0.74

1.00

1.23

1.29

1.33

1.38

1.51

1.35

1.46

1.54

1.64

2.00

1.41

1.55

1.67

1.82

2.51

1.43

1.57

1.69

1.86

2.67

75ºC

1.20

85ºC

1.00

95ºC

0.75

105ºC

0.36

5 kHz 10 kHz & up

Frequency

60 Hz 120 Hz 360 Hz 1 kHz

CDM Cornell Dubilier

•

140 Technology Place

•

Liberty, SC 29657

•

Phone: (864)843-2277

•

Fax: (864)843-3800

•

www.cde.com
