FW400

Description
Bridge Rectifier Diode, 1 Phase, 2A, 400V V(RRM), Silicon
CategoryDiscrete semiconductor    diode
File Size66KB,1 Pages
ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

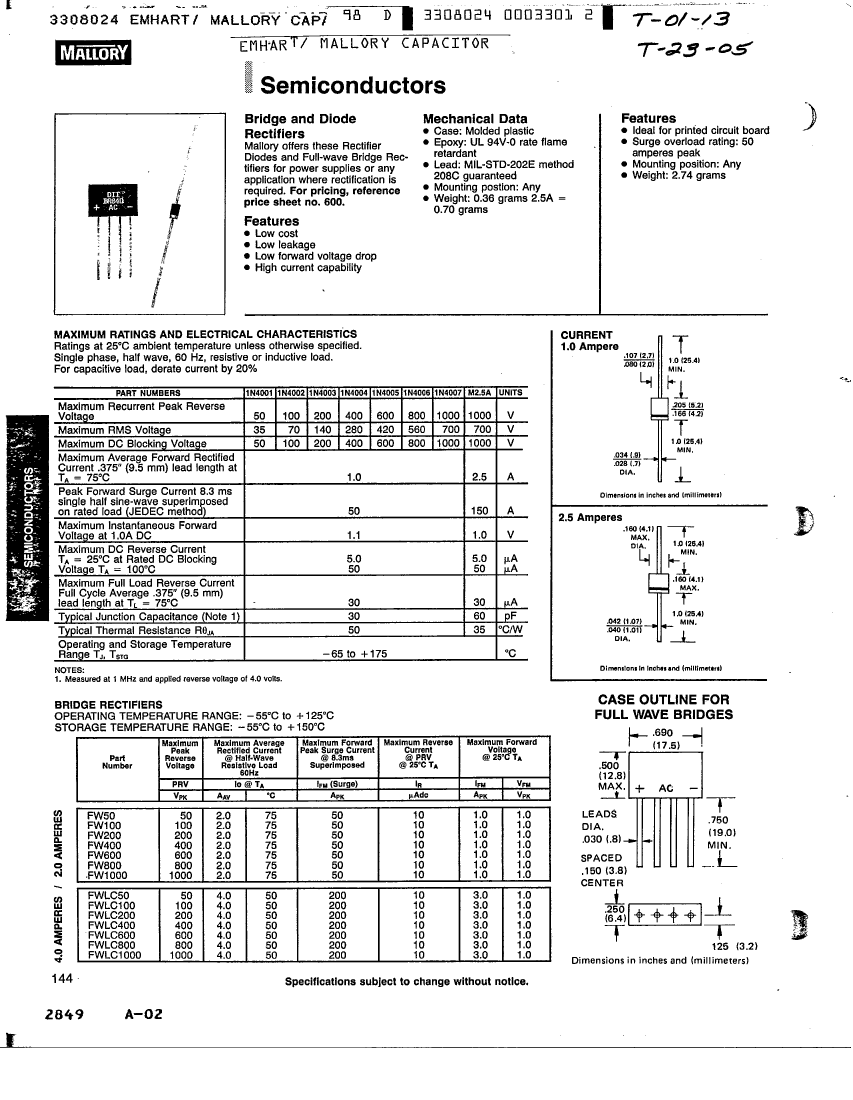

Download Datasheet Parametric Compare View All

FW400 Overview

Bridge Rectifier Diode, 1 Phase, 2A, 400V V(RRM), Silicon

FW400 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerCDE [ CORNELL DUBILIER ELECTRONICS ]
package instructionR-PSIP-W4
Reach Compliance Codeunknow
Minimum breakdown voltage400 V
ConfigurationBRIDGE, 4 ELEMENTS
Diode component materialsSILICON
Diode typeBRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)1 V
JESD-30 codeR-PSIP-W4
JESD-609 codee0
Maximum non-repetitive peak forward current50 A
Number of components4
Phase1
Number of terminals4
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Maximum output current2 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum repetitive peak reverse voltage400 V
Maximum reverse current0.00001 µA
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formWIRE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
This Material Copyrighted By Its Respective Manufacturer

FW400 Related Products

FW400 FWLC400 FW50 FWLC1000
Description Bridge Rectifier Diode, 1 Phase, 2A, 400V V(RRM), Silicon Bridge Rectifier Diode, 1 Phase, 4A, 400V V(RRM), Silicon Bridge Rectifier Diode, 1 Phase, 2A, 50V V(RRM), Silicon Bridge Rectifier Diode, 1 Phase, 4A, 1000V V(RRM), Silicon
Is it Rohs certified? incompatible incompatible incompatible incompatible
package instruction R-PSIP-W4 R-PSIP-W4 R-PSIP-W4 R-PSIP-W4
Reach Compliance Code unknow unknown unknown unknown
Minimum breakdown voltage 400 V 400 V 50 V 1000 V
Configuration BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS
Diode component materials SILICON SILICON SILICON SILICON
Diode type BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF) 1 V 1 V 1 V 1 V
JESD-30 code R-PSIP-W4 R-PSIP-W4 R-PSIP-W4 R-PSIP-W4
JESD-609 code e0 e0 e0 e0
Maximum non-repetitive peak forward current 50 A 200 A 50 A 200 A
Number of components 4 4 4 4
Phase 1 1 1 1
Number of terminals 4 4 4 4
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C
Maximum output current 2 A 4 A 2 A 4 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE IN-LINE IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 400 V 400 V 50 V 1000 V
Maximum reverse current 0.00001 µA 0.00001 µA 0.00001 µA 0.00001 µA
surface mount NO NO NO NO
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form WIRE WIRE WIRE WIRE
Terminal location SINGLE SINGLE SINGLE SINGLE
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maker CDE [ CORNELL DUBILIER ELECTRONICS ] - CDE [ CORNELL DUBILIER ELECTRONICS ] CDE [ CORNELL DUBILIER ELECTRONICS ]
