SPECIFICATIONS
Current Rating:
Contact Material:
Contact Resistance:
Housing Material:
Insulation Resistance:
Leg Material:
Withstanding:
Operating Temp:
0.5 AMP
Phosphor Bronze
30mΩ max. at DC 100mA
High Temp. Plastic UL94V-0
500MΩ min at DC 500V
Brass
AC 250V for 1 minute
-55ºC ~ +105ºC
B
C
C
D
D
E
E
Series
CCFC
FFC/FPC Non Zif
F
Pitch
100
100=1.00mm
Type
2432
Type 2432
Positions
XX
03-32
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
Style
X
R=Right Angle
V=Vertical
SS=Side Entry
Surface Mount
Plating
TN
TN=Tin
Packing
XX
Blank=Bulk
TR=Tape & Reel
TB=Tube
F
Date
11/11/07
11/11/07
11/11/07 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
CCFC-100-2432-XX-SS-TN
G
7
8
9
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

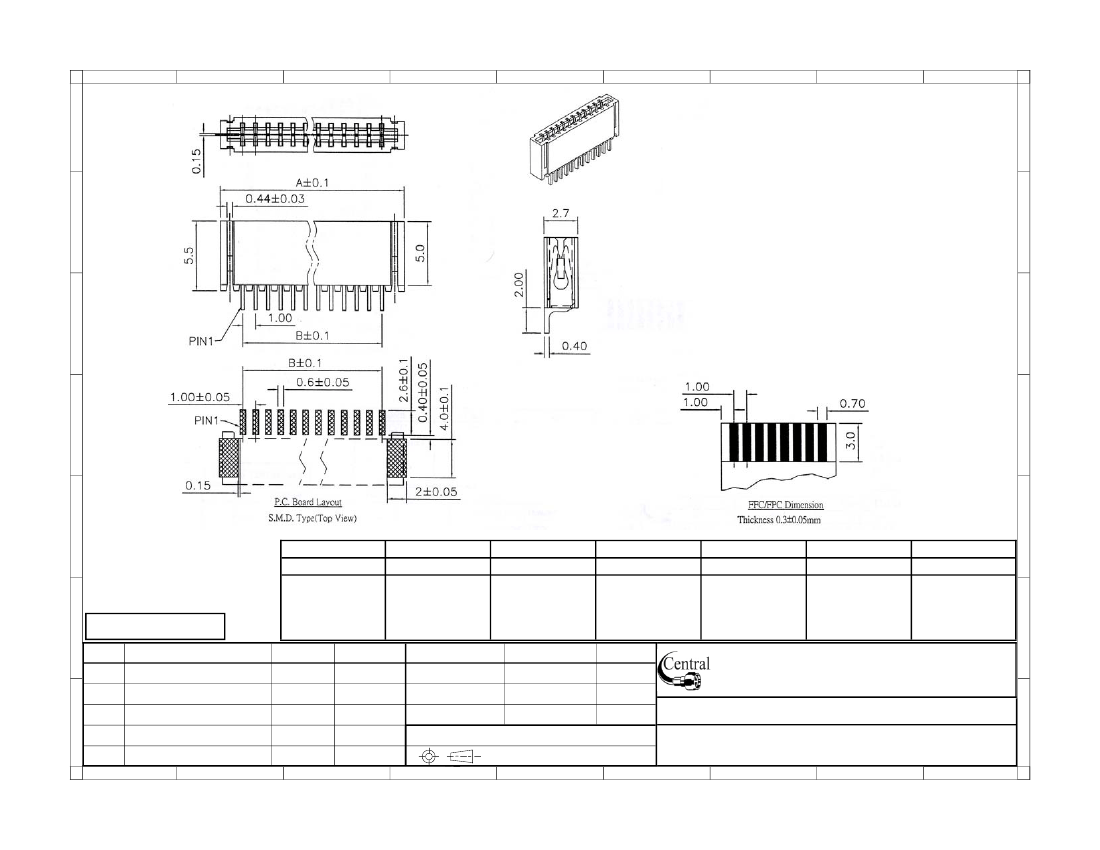

Description: FFC/FPC Connector 1.0mm Non ZIF
