SMC-160808F-27NK datasheet, PDF

Datasheet> All Categories > Passive components> inductor> SMC-160808F-27NK

SMC-160808F-27NK: DescriptionGeneral Purpose Inductor, 0.027uH, 10%, 1 Element, Ceramic-Core, SMD, CHIP, 0603; CategoryPassive components inductor; File Size327KB，7 Pages; Manufacturer3L Electronic Corporation

Download Datasheet Parametric View All

SMC-160808F-27NK Overview

General Purpose Inductor, 0.027uH, 10%, 1 Element, Ceramic-Core, SMD, CHIP, 0603

SMC-160808F-27NK Parametric

Parameter Name	Attribute value
Maker	3L Electronic Corporation
Reach Compliance Code	compli
ECCN code	EAR99
core material	CERAMIC
DC Resistance	0.8 Ω
Nominal inductance(L)	0.027 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SMC
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	8
Maximum rated current	0.3 A
self resonant frequency	1400 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	10%

Preview

Download Datasheet

View All

SMC CHIPS

MULTILAYER CERAMIC CHIP INDUCTORS

◆

FEATURES

SMC chip inductors are 3L line of high

frequency ceramic chip inductors.

We have developed highly reliable and

versatile chip inductors that will meet your

high frequency design requirements.

High Frequency Range

SMC chip inductors have a ceramic

material construction that extends the

effective frequency range to 6 GHz.

Multiple Size Availability

SMC chip inductors are available in three

compact sizes: 100505, 160808 and

201209.

◆

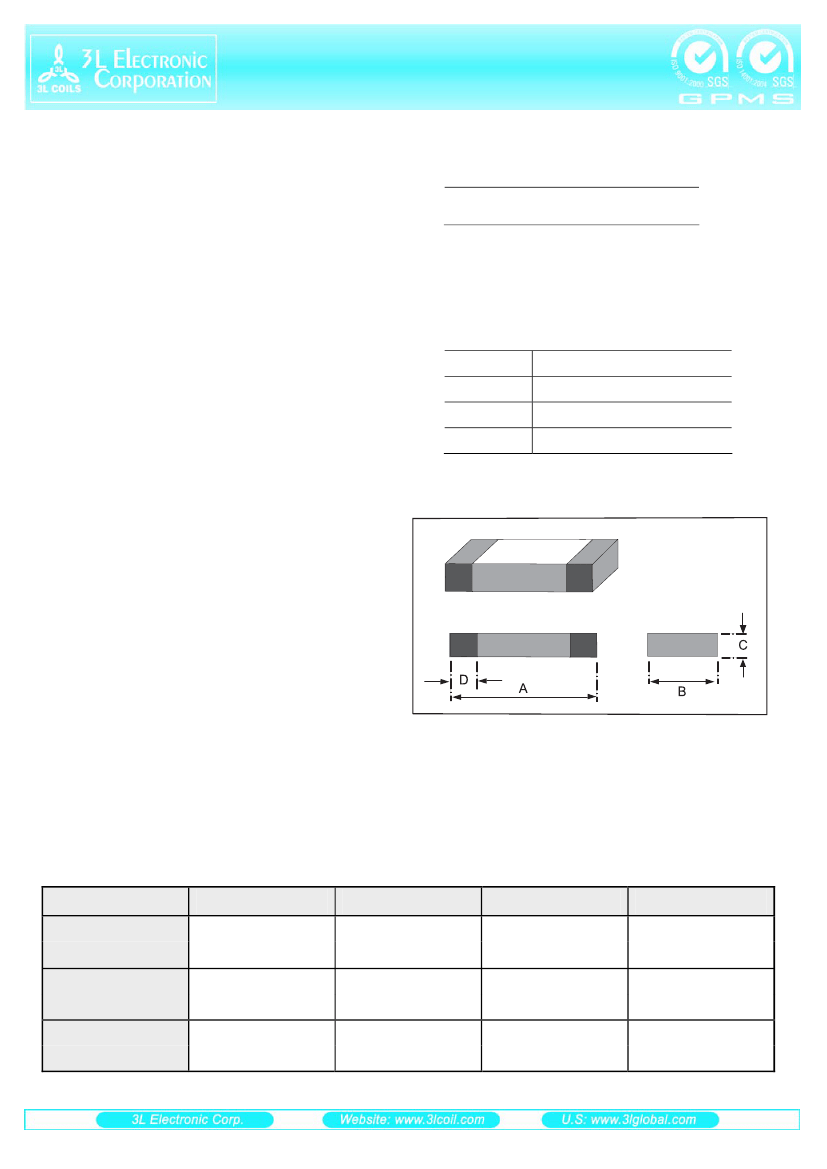

PRODUCT DIMENSIONS

SMC – 160808

①Product

Code

②Dimensions(

in mm)

③Material

④Inductance

Code

⑤Tolerance

Code

Tolerance

10%

0.3nH

– 1N2

◆

PRODUCT INDENTIFICATION

①

②

③

④

⑤

◆

APPLICATIONS

SMC chip inductors can be used in a

variety of electronics including:

Cellular Phones

Pag

High-Speed Communication Dev

◆

OPERATING TEMPERATURE:

-40 ~ 85℃

◆

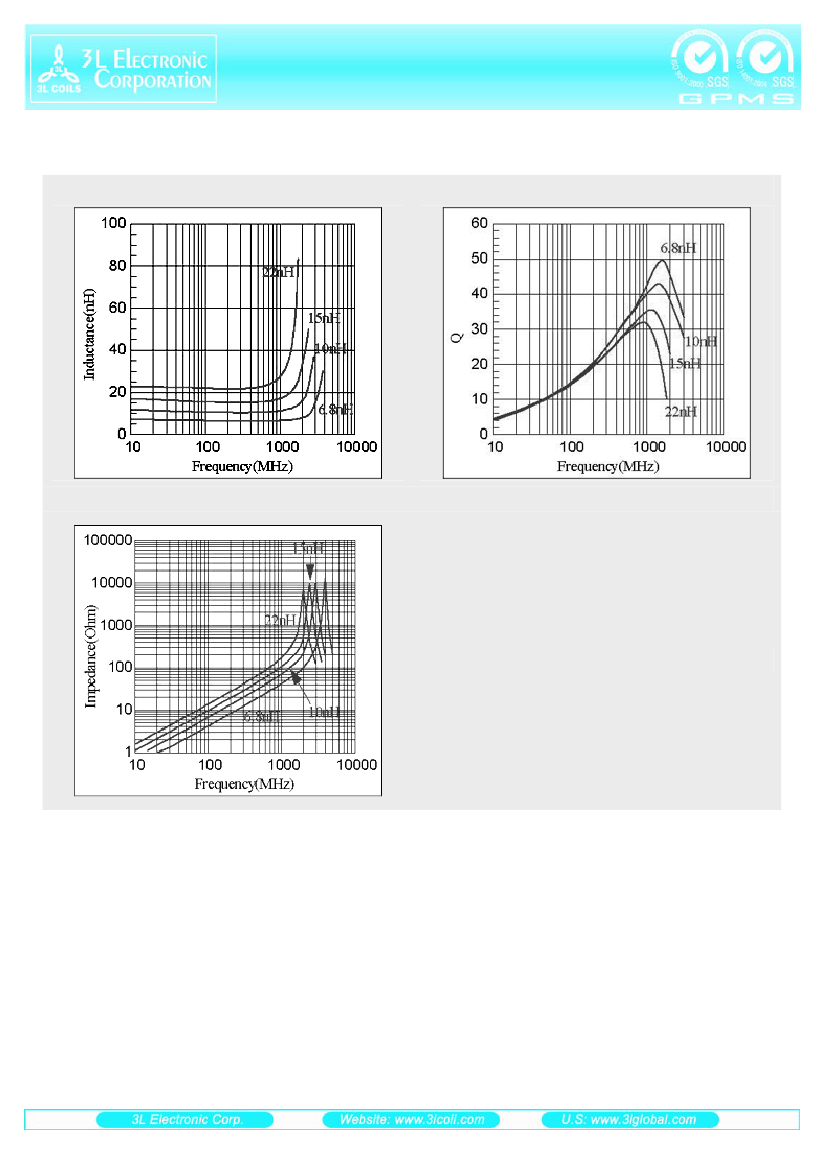

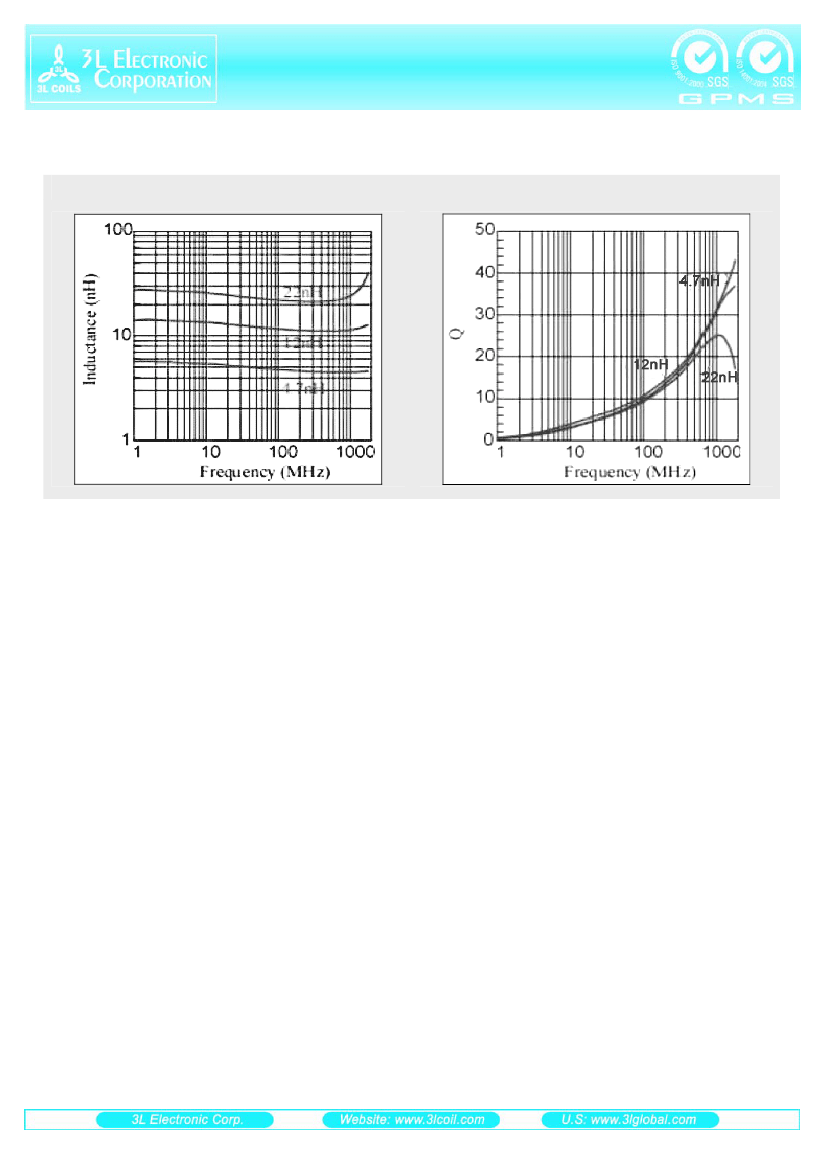

TEST EQUIPMENTS AND TEST SETUP

L&Q&SRF

by Agilent E4991A RF Impedance

Analyzer with HP16197A Test Fixture.

DCR

PRODUCT NO.

by milli-ohm meter.

0.50±0.15

(0.020±0.004)

0.8±0.20

(0.031±0.006)

0.9±0.20

(0.035±0.008)

0.25±0.10

(0.010±0.004)

0.3±0.20

(0.012±0.008

0.5±0.30

(0.020±0.012)

1.0±0.15

(0.039±0.004)

1.6±0.20

(0.063±0.006)

2.0±0.20

(0.079±0.008)

0.50±0.15

(0.020±0.004)

0.8±0.20

(0.031±0.006)

1.2±0.20

(0.047±0.008)

SMC-100505

(0402)

SMC-160808

(0603)

SMC-201209

(0805)

NOTE:Dimensions in mm(inch)

Page 72
