construction combined with new, high performance materials. This
combination of advanced technologies allows Cooper Bussmann to offer a
wide variety of capacitor solutions tailored to specific applications that range
from a few micro-amps for several days to several amps for milliseconds.
HF
Pb
FREE
HALOGEN

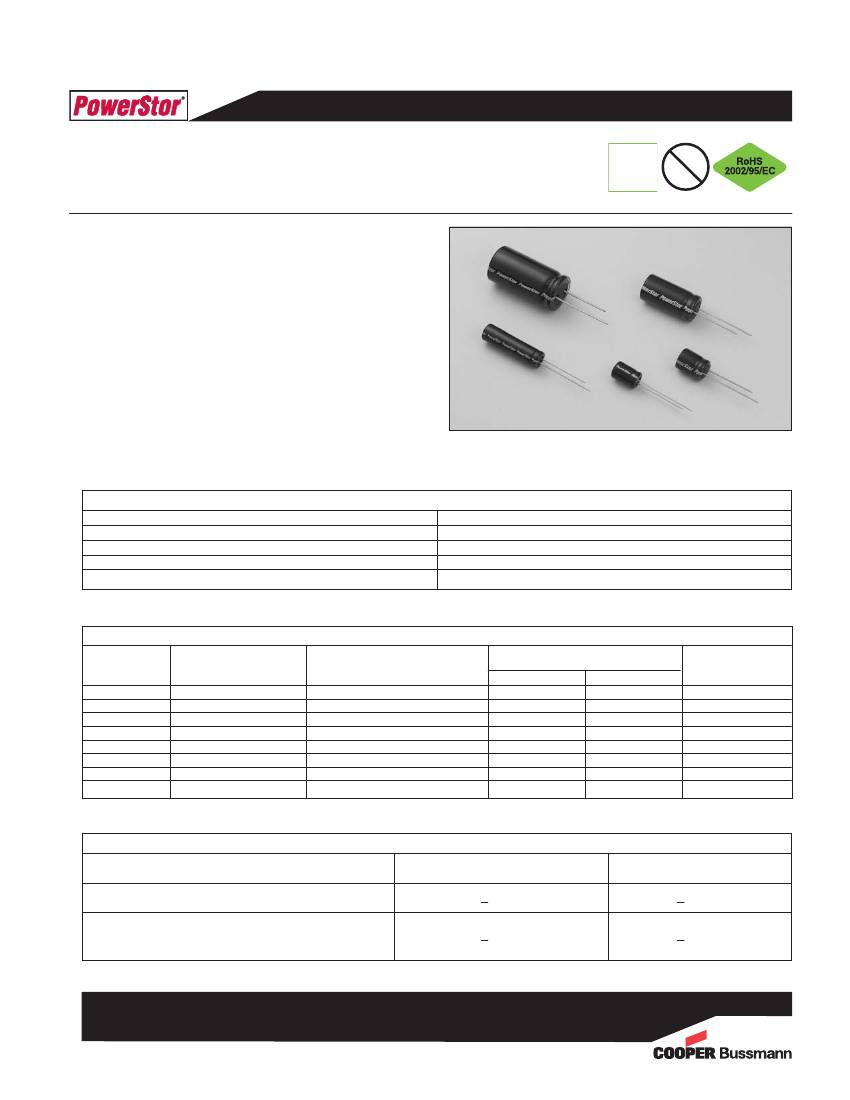

Features & Benefits
• High specific capacitance
• Very low ESR
• Low leakage currents
• Long cycle life
Applications
• Main power
• Hybrid battery packs
• Hold-up power
• Pulse power
Cylindrical Device
Specifications
Working Voltage
Surge Voltage
Capacitance
Capacitance Tolerance
Operating Temperature Range
2.5V
3.0V
3.3F to 100F
-20% to +80% (20°C)
3.3-22F = -25°C to 70°C, 33-100F = -25°C to 60°C
Nominal
Capacitance
(F)
3.3
4.7
6.8
10
22
33
50
100
Part Number
B1020-2R5335-R
B0830-2R5475-R
B1030-2R5685-R
B1325-2R5106-R
B1635-2R5226-R
B1835-2R5336-R
B1840-2R5506-R
B1860-2R5107-R
Parameter
Life
(3.3F - 22F = 1000 hrs @ 70°C @ 2.5Vdc)
(33F - 100F = 1000 hrs @ 60°C @ 2.5Vdc)
Storage Low and High Temperature
(3.3F - 22F = 1000 hrs @ -25°C and 70°C)
(33F - 100F = 1000 hrs @ -25°C and 60°C)
ee
S
ns 375
ig
es t # 4
D
w hee
Ne a S
or at
tF sD
No rie
Se
B
H
Standard Product
Nominal ESR (Ω)
(Equivalent Series Resistance)
Measured @ 1kHz
0.150
0.150
0.100
0.060
0.040
0.030
0.025
0.020
Nominal Dimensions (mm)
Diameter
Length
10
20.5
8
30
10
30
13
26
16
35
18
35
18
40
18
60
Typical Mass
(grams/piece)
2.8
2.6
3.9
5.6
11.0
13.5
14.7
22.0
Performance
Capacitance Change
(% of initial measured value)
<
30 %
<
30 %
ESR
(% of initial specified value)
<
300 %
<
300 %
1010
BU-SB101088
Page 1 of 2
Data Sheet: 4391

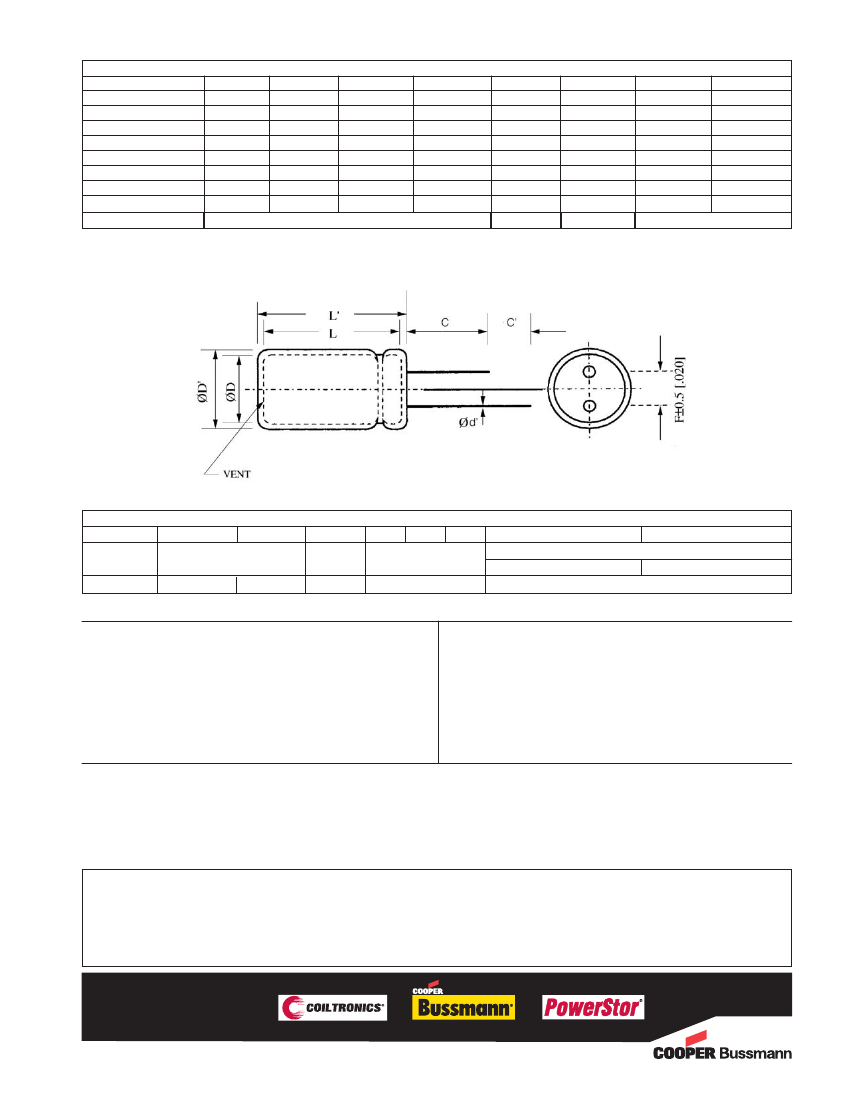

Dimensions (mm)
Part Number
D
D’
L
L’
F
d’
C
C’
B1020-2R5335-R
B0830-2R5475-R
B1030-2R5685-R
B1325-2R5106-R
B1635-2R5226-R
B1835-2R5336-R
B1840-2R5506-R
B1860-2R5107-R
Tolerances
Note:
Longer lead is positive.
10.0
8.0
10.0
13.0
16.0
18.0
18.0
18.0
10.5
8.5
10.5
13.5
16.5
18.5
18.5
18.5
21.8
30.5
31.0
27.9
37.5
37.5
41.5
59.5
Maximum
22.3
31.0
31.5
28.4
38.0
38.0
42.0
60.5
5.0
3.5
5.0
5.0
7.5
7.5
7.5
7.5
± 0.5
0.60
0.50
0.60
0.60
0.80
0.80
0.80
0.80
± 0.02
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
Minimum
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
B
Series
Code
B Series
Dimensions (mm)
Diameter
Packaging Information
Packaging:
• Standard packaging: Bulk, 100 units per bag.
• Larger bulk packages available on request.
North America
Cooper Bussmann
1225 Broken Sound Parkway NW
Suite F
Boca Raton, FL 33487-3533
Tel: 1-561-998-4100
Fax: 1-561-241-6640
Toll Free: 1-888-414-2645
ee
S
Cooper Bussmann
P.O. Box 14460
St. Louis, MO 63178-4460
Tel: 1-636-394-2877
Fax: 1-636-527-1607
ns 375
ig
es t # 4
D
ew Shee
N a
or at
tF sD
No rie
Se
HB
Part Numbering System
2
R
5
Voltage (V)
R is Decimal
2R5 = 2.5V
−
Capacitance (μF)
Length
Value
Multiplier
5
Example: 475 = 47 x 10 µF or 4.7F
