Low-Peak™ Class CC
LP-CC — 600Vac/300Vdc,
1
⁄
2
-30A Time-Delay Fuses
Dimensions - in (mm)
1.5" (± 0.031)
(38.1mm)
0.41" (± 0.005)
(10.3mm)
Description:
Ultimate protection Class CC current-limiting,
time-delay fuses. Time-delay – 12 seconds (minimum) at
200% of rated current.
Catalog Symbol:
LP-CC-(amp)
Ratings:
Volts — 600Vac,
— 300Vdc (
1
⁄
2
-2
8
⁄
10
A, 20-30A)
— 150Vdc (3-15A)
Amps —
1
⁄
2
-30A
IR — 200kA Vac RMS Sym.
— 20kA Vdc
Agency Information:
CE, Std. 248-4, Class CC, UL Listed, Guide JDDZ, File E4273
CSA Certified; Class 1422-02, File 53787
Catalog Numbers (amps)
LP-CC-
1
⁄
2
LP-CC-
6
⁄
10
LP-CC-
8
⁄
10
LP-CC-1
LP-CC-1
1
⁄
8
LP-CC-1
1
⁄
4
LP-CC-1
4
⁄
10
Amp Rating
0-30
LP-CC-1
1
⁄
2
LP-CC-1
6
⁄
10
LP-CC-1
8
⁄
10
LP-CC-2
LP-CC-2
1
⁄
4
LP-CC-2
1
⁄
2
LP-CC-2
8
⁄
10
LP-CC-3
LP-CC-3
2
⁄
10
LP-CC-3
1
⁄
2
LP-CC-4
LP-CC-4
1
⁄
2
LP-CC-5
LP-CC-5
6
⁄
10
Carton Qty.
10
LP-CC-6
LP-CC-6
1
⁄
4
LP-CC-7
LP-CC-7
1
⁄
2
LP-CC-8
LP-CC-9
LP-CC-10
LP-CC-12
LP-CC-15
LP-CC-20
LP-CC-25
LP-CC-30
Features:
• 200kA interrupting rating complies with NEC
®
Section 110.9
for today's large capacity systems.
• Fast short-circuit protection and dual-element, time-delay
performance provide ultimate protection.
• Reduces existing fuse inventory by up to 33% when
upgrading to Low-Peak fuses.
• Consistent 2:1 ampacity ratios for all Low-Peak fuses make
selective coordination easy.
• Time-delay characteristic avoids unwanted fuse openings
from surge currents while fast response speed under short-
circuit conditions provides a high degree of current
limitation.
• Current-limitation protects downstream components against
damaging thermal and magnetic effects of short-circuit
currents.
• A superior, all-purpose, space-saving branch circuit fuse
that meets most protection requirements up to 30A.
• Very compact, with a physical size only
13
⁄
32
" x 1
1
⁄
2
"
(10.3 x 38.1mm) with rejction tip.
• Proper sizing can provide "no damage" Type 2 coordinated
protection for NEMA and IEC motor controllers.
• Can be used where either a time-delay or a fast-acting fuse
is needed, making selection easier and reducing spare fuse
inventories for substantial cost reduction.
• Superior protection for small horsepower motor circuits.
Recommended Fuse Blocks and Holders
Fuse Amps
0-30
1-Pole
2-Pole
Open Blocks
BC6031_
BC6032_
DIN-Rail Holders
CHCC1D_
CHCC2D_
—
—
—
—
—
—
Panel Mount Holders
HPS
—
HPF
—
In-Line Holders
—
HEX
HEZ
—
3-Pole
BC6033_
CHCC3D_
OPM-NG-_
OPM-1038_
OPM-1038_SW
—
—
—
—
Carton Quantity:
0-30
0-30
0-30
For additional information on the Class CC fuse blocks and
holders, see data sheets:
• Open Blocks # 1105 (BC Series)
• DIN-Rail Holders # 3185 (CHCC), # 1109 (OPM),
# 1102 (OPM-1038), 1103 (OPM-1038_SW),
• Panel Mount Holders # 2113 (HPS), # 2114 (HPF)
• In-Line Holders # 2126 (HEX), # 2130 (HEZ)
0813
BU-SB13XXX
Page 1 of 3
Data Sheet # 1023
Low-Peak™ Class CC
LP-CC — 600Vac/300Vdc,
1
⁄
2
-30A Time-Delay Fuses

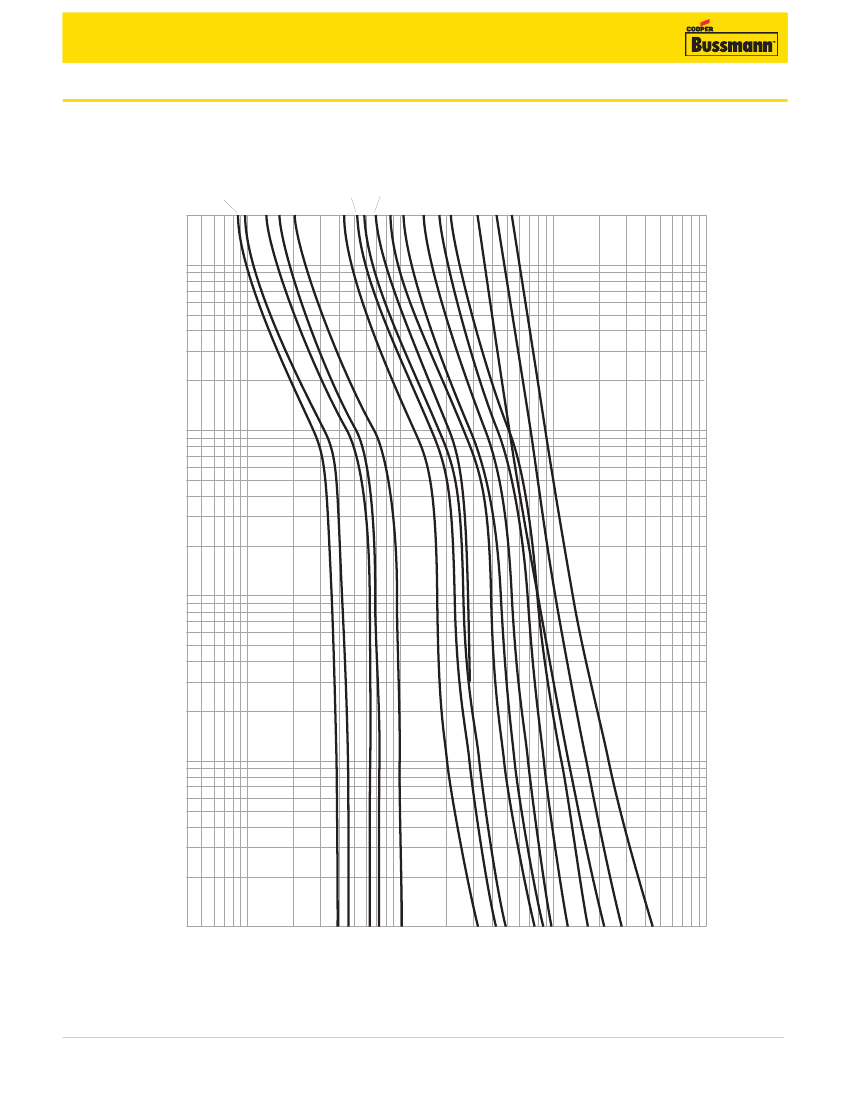

Current-Limitation Curves
INSTANTANEOUS PEAK-LET-THROUGH CURRENT IN AMPS
B
30
25
20
15
2-8/10
1-1/4
Amp Rating
A
RMS SYMMETRICAL CURRENT IN AMPS
A-B = ASYMMETRICAL AVAILABLE PEAK (2.3 X SYM RMS AMPS)
Current-Limiting Effects
Prosp.
Let-Through Current
S.C.C.
(Apparent RMS Symmetrical Vs. Fuse Rating)
—
1
1
⁄
4
A
2
8
⁄
10
A
15A
20A
25A
1000
100
135
240
305
380
3000
140
210
350
440
575
5000
165
255
420
570
690
10,000
210
340
540
700
870
20,000
260
435
680
870
1090
30,000
290
525
800
1030
1300
40,000
315
610
870
1150
1390
50,000
340
650
915
1215
1520
60,000
350
735
1050
1300
1650
80,000
390
785
1130
1500
1780
100,000
420
830
1210
1600
2000
200,000
525
1100
1600
2000
2520
NOTE:
To calculate Ip (Ipeak) multiply I
RMS
value by 2.3.
30A
435
580
710
1000
1305
1520
1700
1820
1980
2180
2400
3050
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is intended
to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction
of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product
has been selected, it should be tested by the user in all possible applications.
0813
BU-SB13XXX
Page 3 of 3
Data Sheet # 1023
