B024-3220-105-Z datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> B024-3220-105-Z

Preview

B024-3220-105-Z: DescriptionIC Socket, PLCC32, 32 Contact(s), Surface Mount; CategoryThe connector socket; File Size809KB，2 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

B024-3220-105-Z Overview

IC Socket, PLCC32, 32 Contact(s), Surface Mount

B024-3220-105-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknow
Other features	ROHS COMPLIANT
body width	0.717 inch
subject depth	0.183 inch
body length	0.817 inch
Contact structure	7X9
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact material	P-CUSN
Contact style	BELLOWED TYPE
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PLCC32
Dielectric withstand voltage	500VAC V
Shell material	POLYPHENYLENE SULPHIDE
Insulation resistance	1000000000 Ω
Manufacturer's serial number	B024
Installation method	STRAIGHT
Number of contacts	32
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Termination type	SURFACE MOUNT

B024-3220-105-Z Preview

DIMENSION(mm)

CONTACTS

20

28

32

44

52

68

84

A

15.66

18.20

23.28

25.82

30.90

35.98

B

15.66

18.20

20.74

23.28

25.82

30.90

35.98

C

5.08

7.62

12.70

15.24

20.32

25.40

D

5.08

7.62

10.16

12.70

15.24

20.32

25.40

E

17.28

20.87

22.76

28.05

31.65

38.83

46.00

HOW TO ORDER:

B

0

2

4

-

3

2

X

-

1

0

X

-

Z

ELECTRICAL:

CURRENT: 1A

CONTACT RESISTANCE: < 30m

Ω

INSULATOR RESISTANCE: > 1000M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN

OPERATING TEMPERATURE: -55° C TO +105° C

NUMBER OF CONTACTS:

20 thru 84

PLASTIC STYLE:

2 - RECTANGLE

PACKAGING:

1 - TAPE & REEL

LOCATOR:

0 - W/OUT LOCATOR

1 - W/ LOCATOR

Drawn

B.S.

Checked

S.M.

Approved

S.M.

Date

02/26/08

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au FLASH

3 - 10u" Au

4 - 15u" Au

ROHS COMPLIANT

5 - 30u" Au

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

MATERIAL:

CONTACT: PHOSPHOR BRONZE

INSULATOR: POLYPHENYLENE SULFIDE (P.P.S.)

Rev

0

Issued

SMP TECHNOLOGY, INC.

SCALE: N/A

DRAWING No. B024-1

TOL. DEC.

.X +/- 0.35

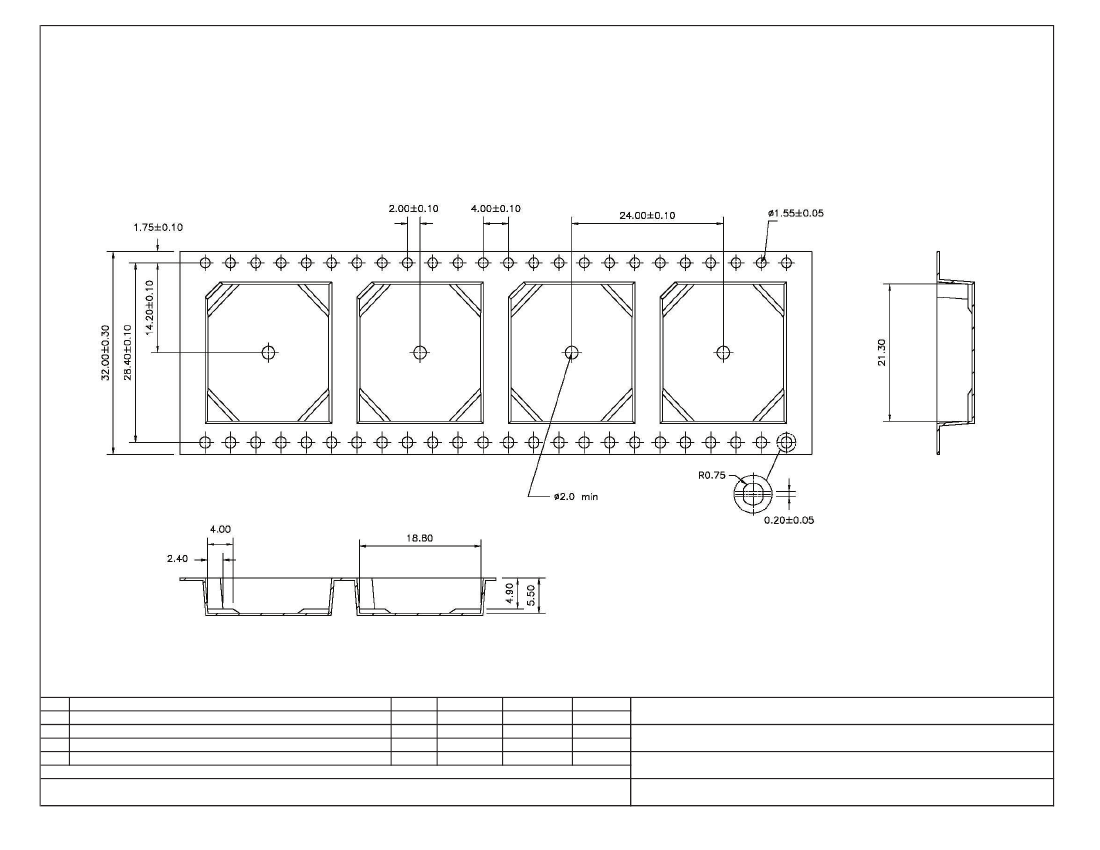

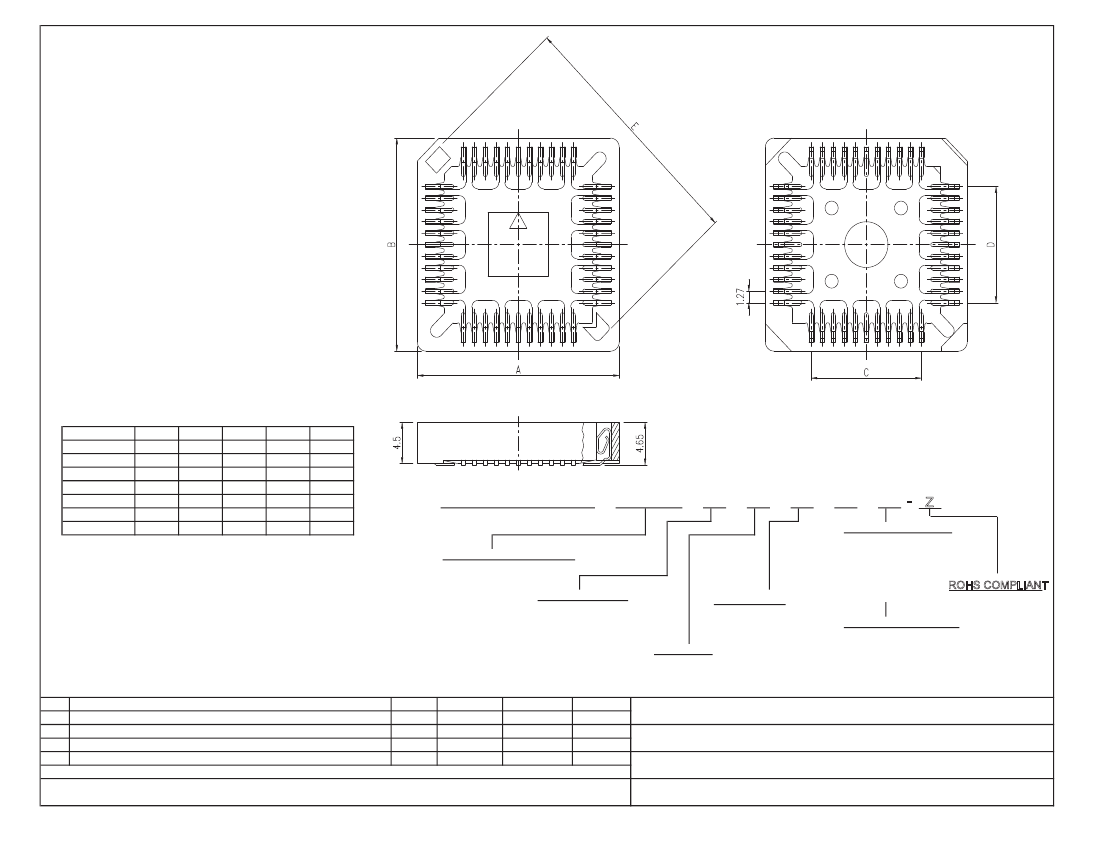

PLCC Socket, Surface Mount, Tape & Reel

.XX +/- 0.25

.XXX +/-

ANGLE +/-

UNIT: mm

SERIES: B 0 2 4

-3 2 2 X- 1 0 X- Z

Pg: 1

Rev

0

Issued

Drawn

B.S.

Checked

S.M.

Approved

S.M.

Date

02/26/08

SMP TECHNOLOGY, INC.

SCALE: N/A

DRAWING No. B024-1

TOL. DEC.

.X +/- 0.35

PLCC Socket, Surface Mount, Tape & Reel

.XX +/- 0.25

.XXX +/-

ANGLE +/-

UNIT: mm

SERIES: B 0 2 4 - 3 2 2 X - 1 0 X- Z

Pg: 2

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
