B122-1410-018-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B122-1410-018-Z

B122-1410-018-Z: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size237KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B122-1410-018-Z Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

B122-1410-018-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknow
Other features	ROHS COMPLIANT
body width	0.217 inch
subject depth	0.22 inch
body length	0.835 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	B122
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	14

Preview

Download Datasheet

View All

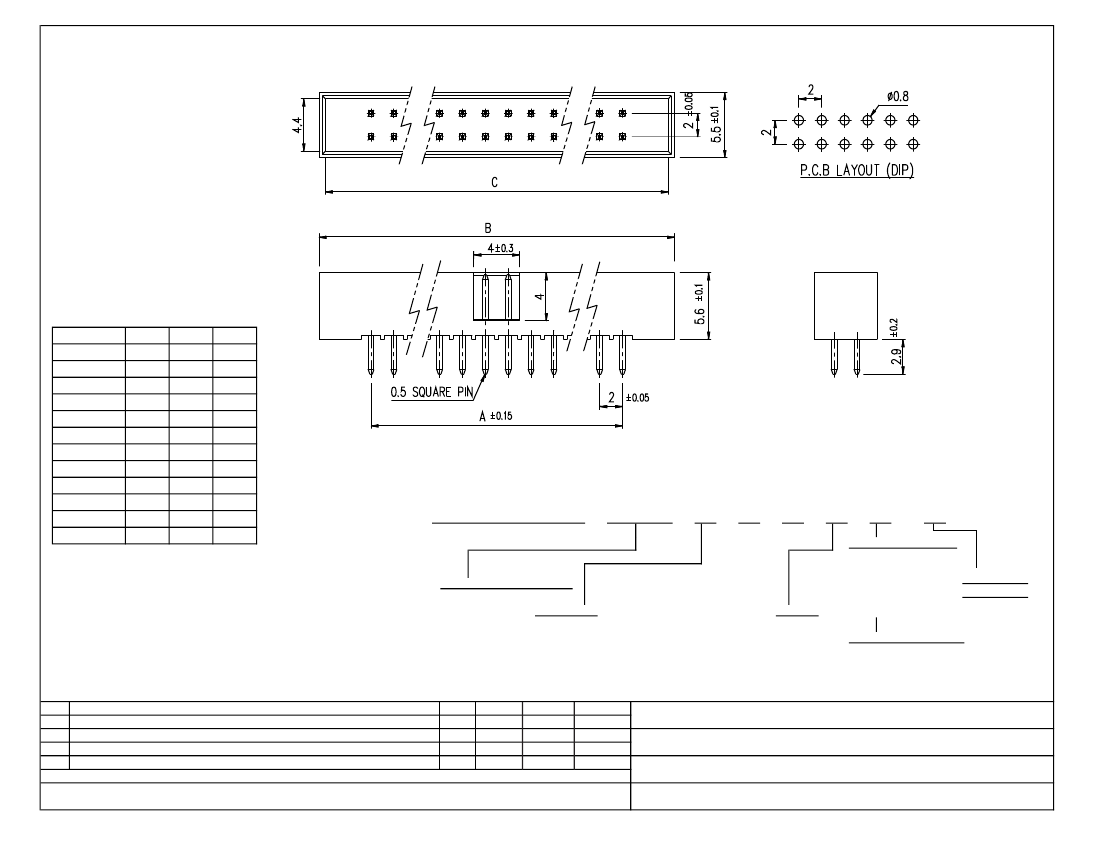

DIMENSION(mm)

CONTACTS

8.00

12.00

14.00

18.00

22.00

24.00

28.00

32.00

38.00

42.00

48.00

66.00

17.20

21.20

23.20

27.20

31.20

33.20

37.20

41.20

47.20

51.20

57.20

75.20

16.10

20.10

22.10

26.10

30.10

32.10

36.10

40.10

46.10

50.10

56.10

74.10

HOW TO ORDER:

ELECTRICAL:

CURRENT: 1A

CONTACT RESISTANCE: 20mΩ Max.

INSULATOR RESISTANCE: 1000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

NUMBER OF CONTACTS:

10 thru 68

DEFINITION:

1 - STRAIGHT

COLOR:

1 - BLACK

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au

RoHS

3 - 10u" Au

COMPLIANT

4 - 15u" Au

5 - 30u" Au

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

MATERIAL:

INSULATOR: PBT & 30% GLASS FIBER (UL94V-0)

CONTACT: COPPER ALLOY

Rev

Issued

A Revised for RoHS Compliance

SCALE: N/A

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

ANGLE +/- 5°

UNIT: mm

Date

Drawn Checked Approved

07/22/03

A.M.

S.M.

WHS

08/07/06

S.M.

SMP TECHNOLOGY, INC.

Box Header, 2.00mm Pitch, Straight, Thru Hole

SERIES: B 1 2 2 - X X 1 0 - 0 1 X - Z

Pg: 1
