UT54ACTS244UQCH datasheet, PDF

UT54ACTS244UQCH: DescriptionACT SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, CDFP20, FP-20; Categorylogic logic; File Size91KB，5 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric View All

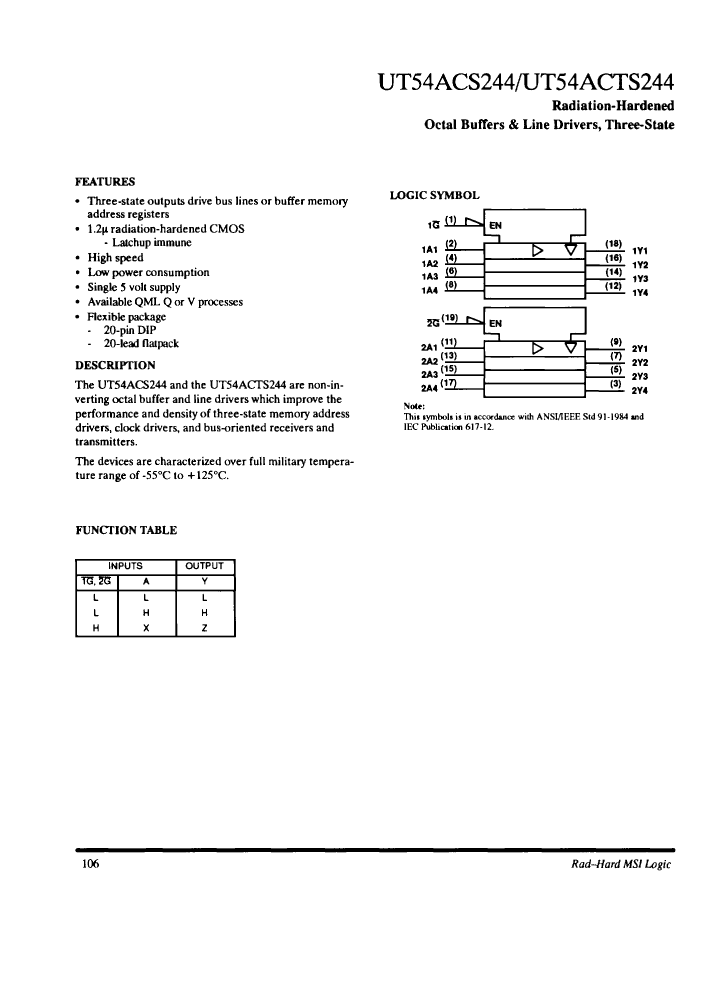

UT54ACTS244UQCH Overview

ACT SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, CDFP20, FP-20

Parameter Name	Attribute value
Maker	Cobham Semiconductor Solutions
Parts packaging code	DFP
package instruction	DFP,

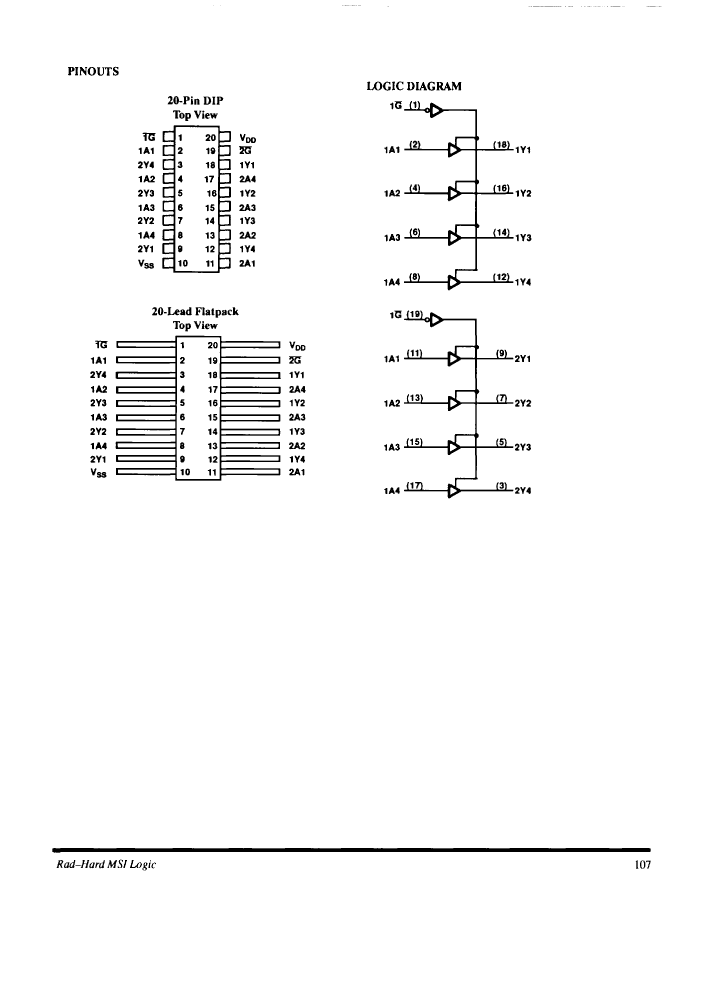

Contacts	20
Reach Compliance Code	unknow
series	ACT
JESD-30 code	R-CDFP-F20
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20

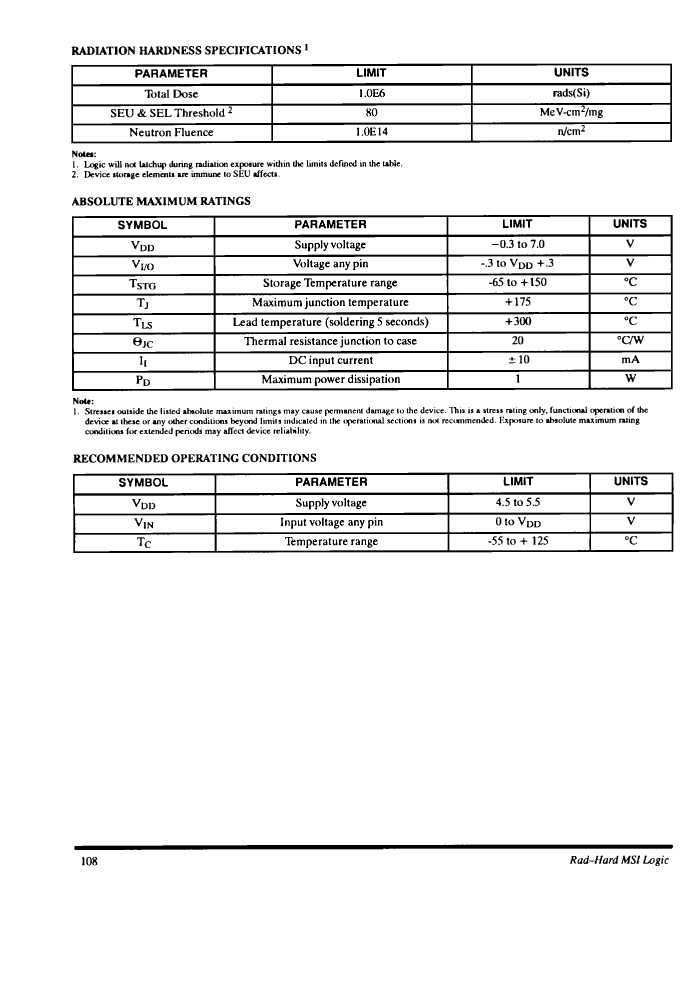

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK

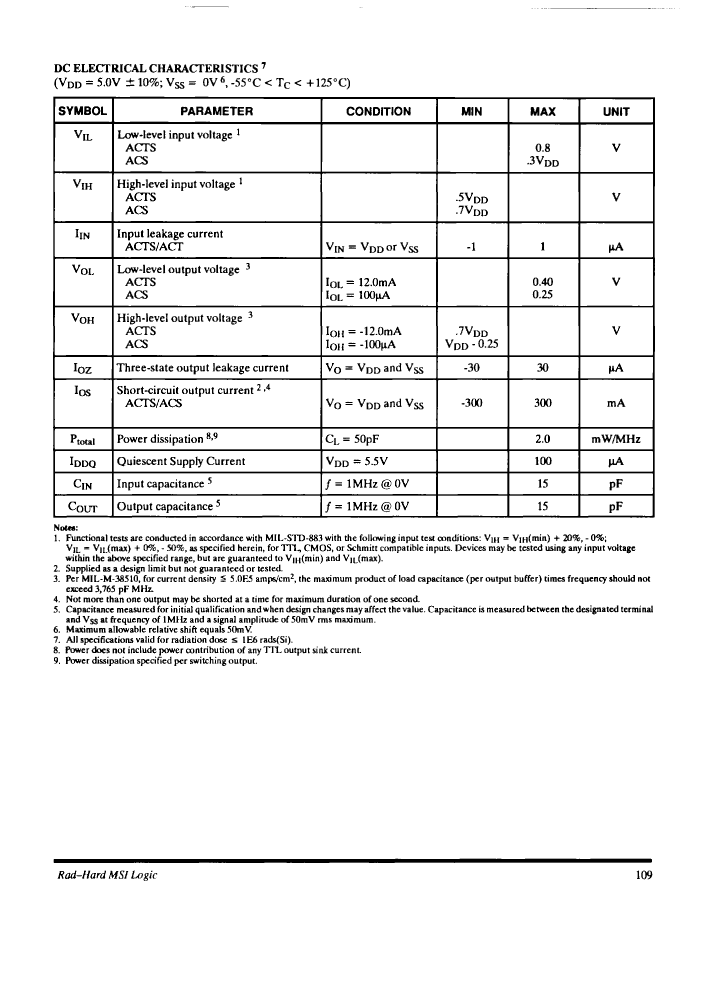

propagation delay (tpd)	11 ns
Certification status	Not Qualified
Maximum seat height	2.921 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	6.9215 mm
