TC9319F datasheet, PDF - EEWORLD Datasheet

TC9319F: DescriptionSINGLE CHIP DTS MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，54 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

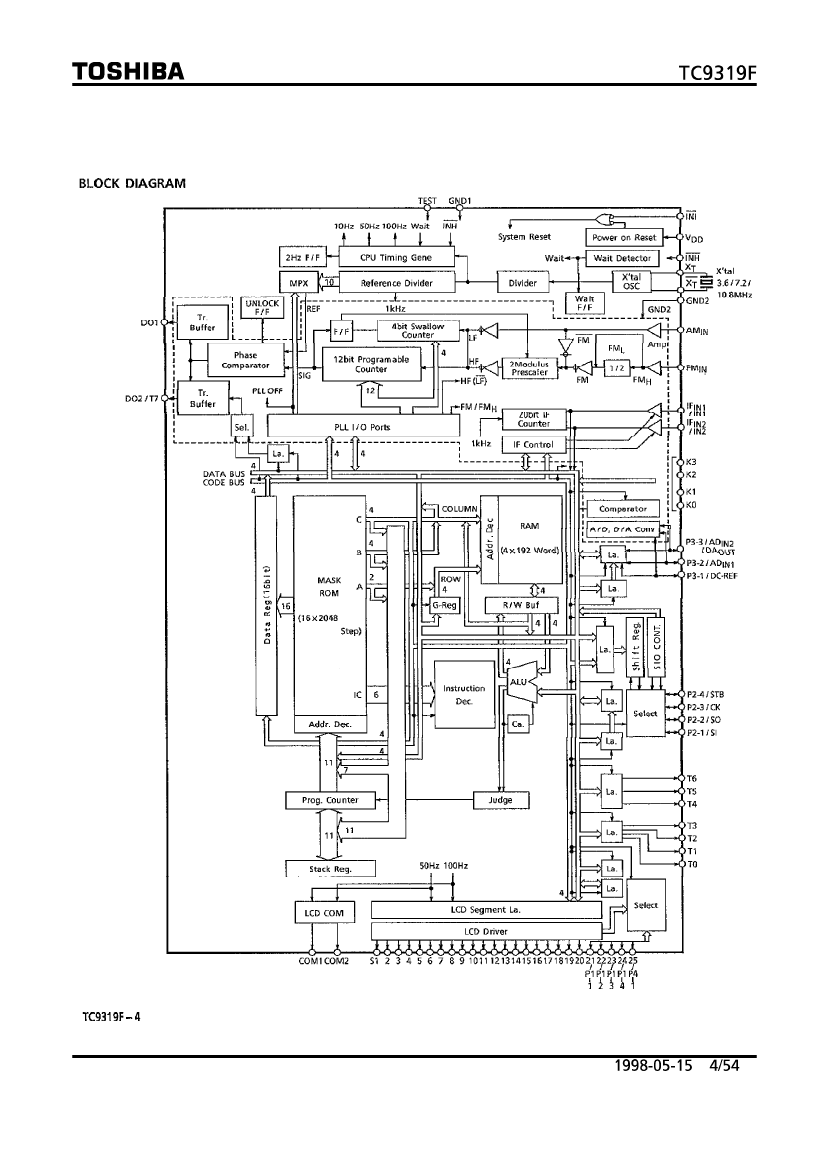

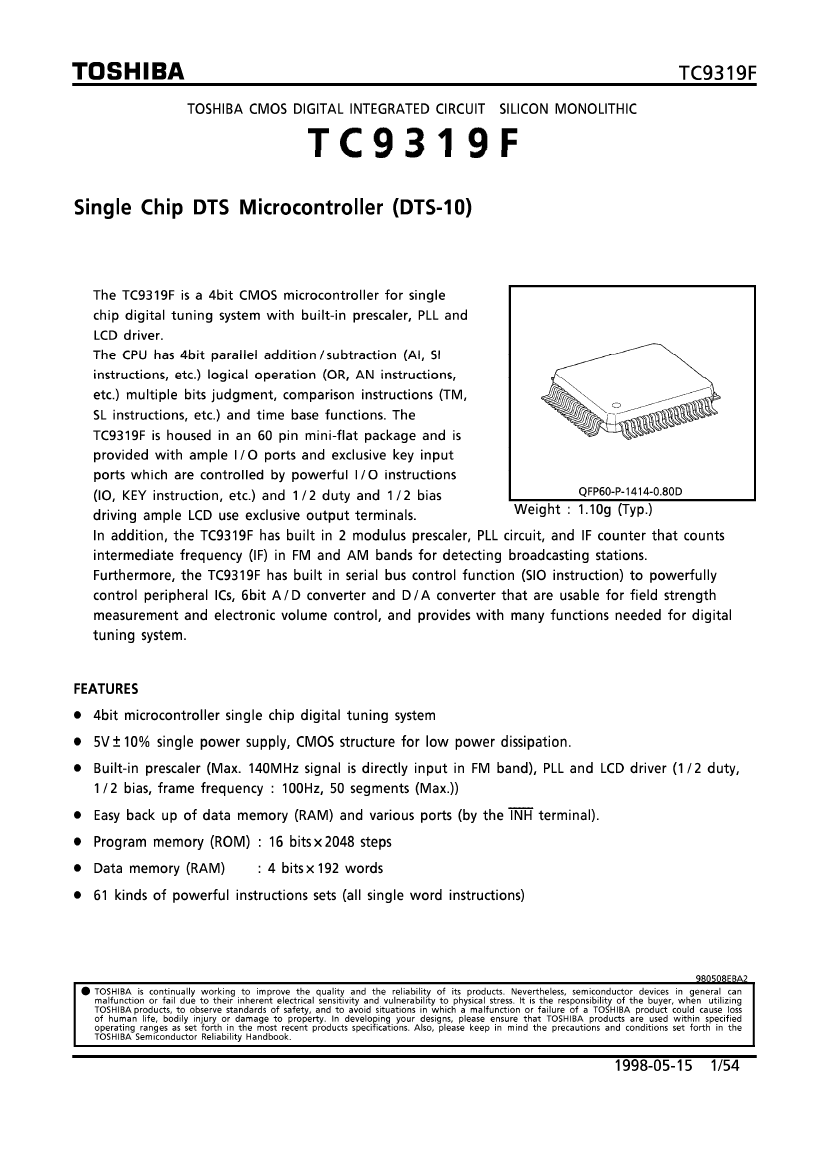

TC9319F Overview

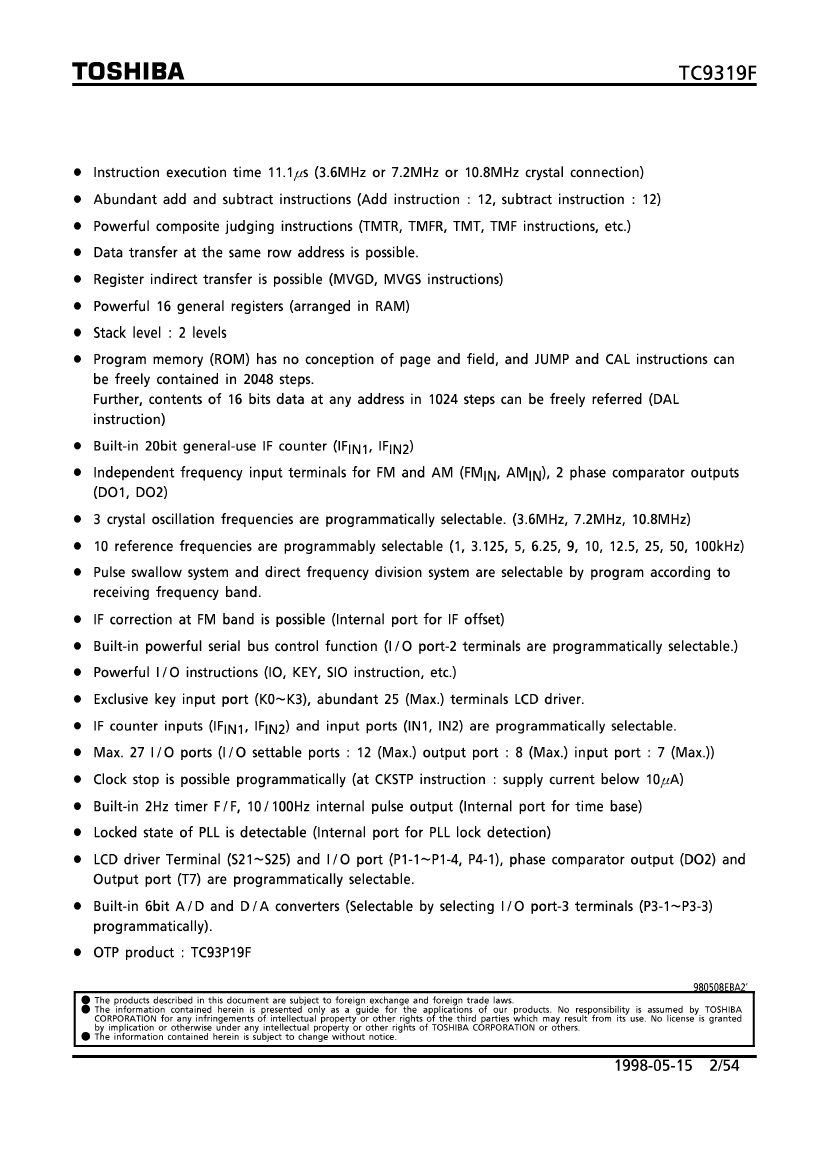

SINGLE CHIP DTS MICROCONTROLLER

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	QFP
package instruction	QFP, QFP60,.7SQ,32

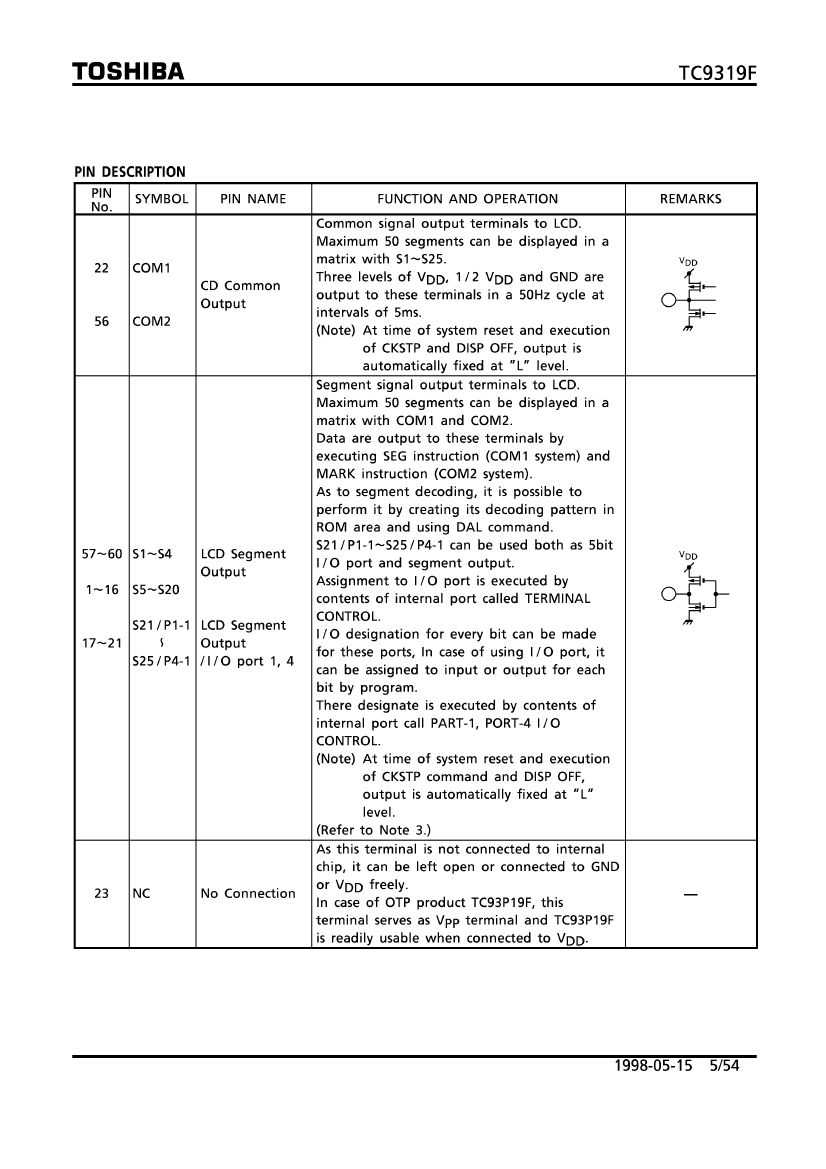

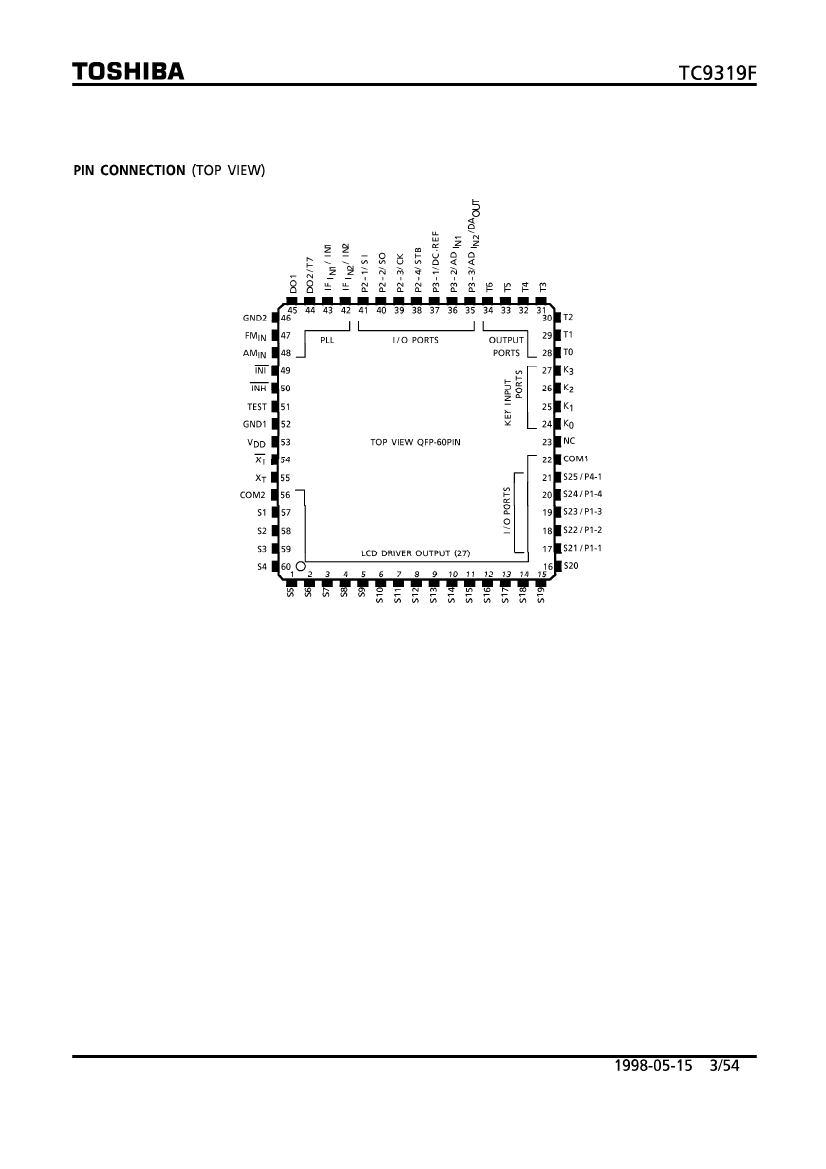

Contacts	60
Reach Compliance Code	unknow
Has ADC	YES
Address bus width
bit size	4
maximum clock frequency	10.8 MHz
DAC channel	YES
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G60
JESD-609 code	e0
length	14 mm
Number of I/O lines	12
Number of terminals	60
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP60,.7SQ,32
Package shape	SQUARE
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	96
rom(word)	8192
ROM programmability	MROM
Maximum seat height	3.05 mm
Maximum slew rate	25 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
