TC9317F datasheet, PDF - EEWORLD Datasheet

TC9317F: DescriptionDTS MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size4MB，77 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

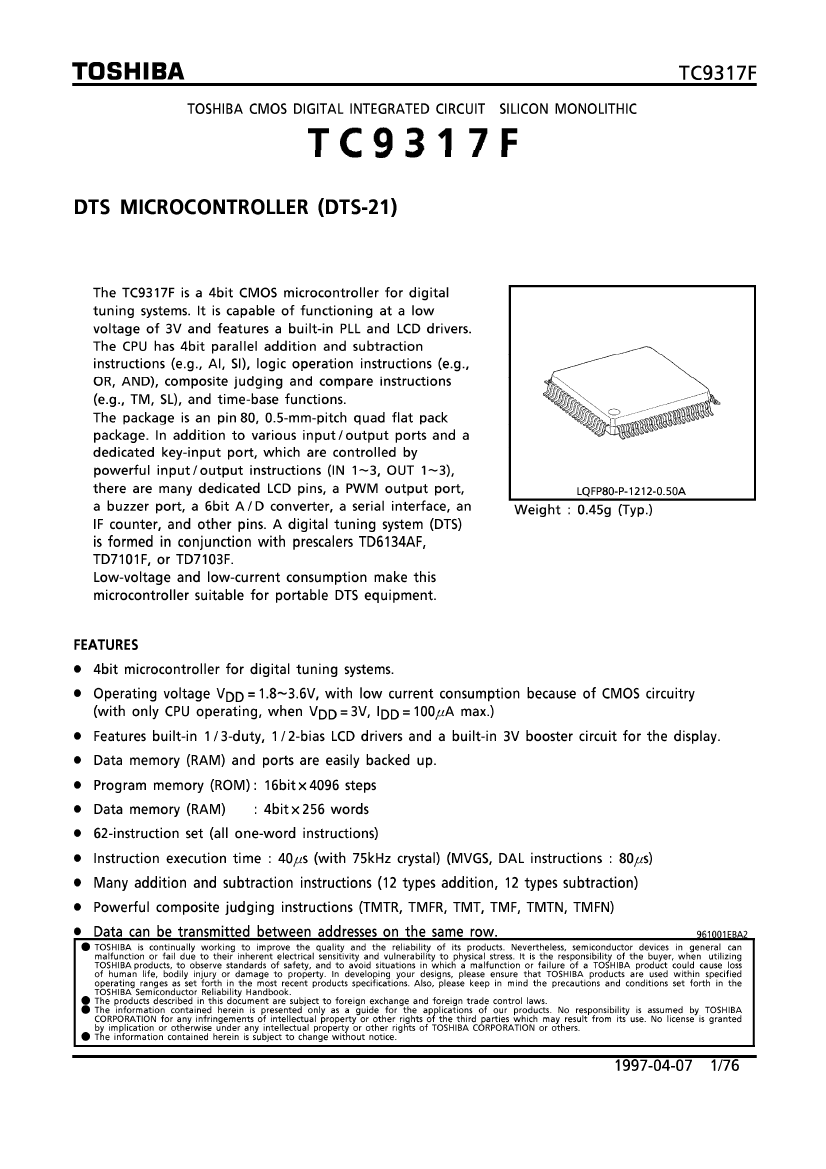

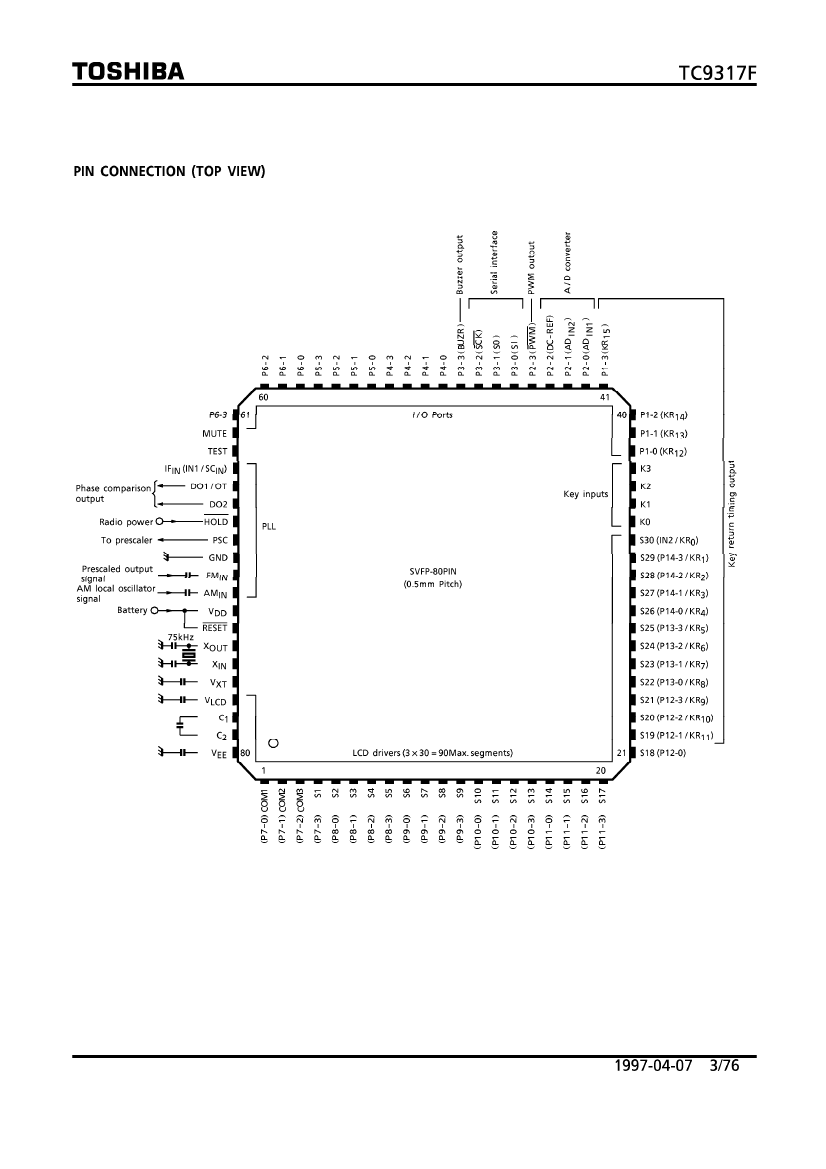

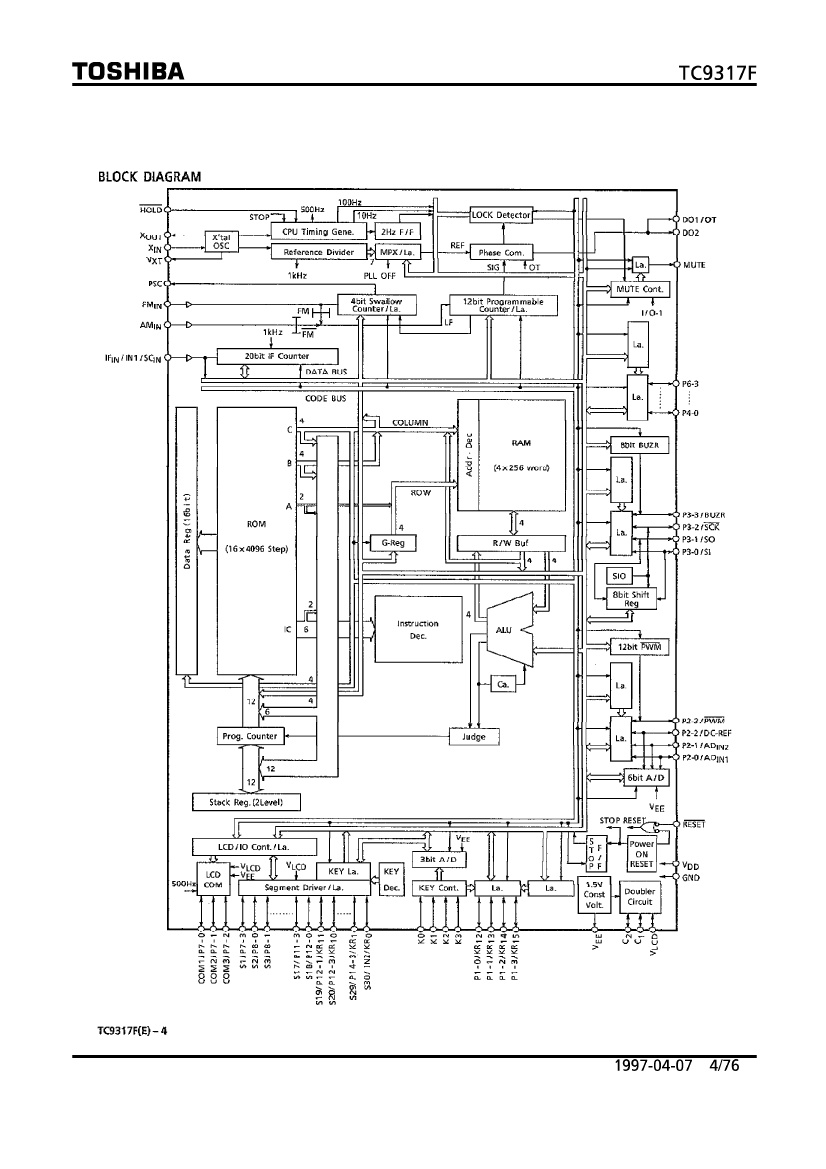

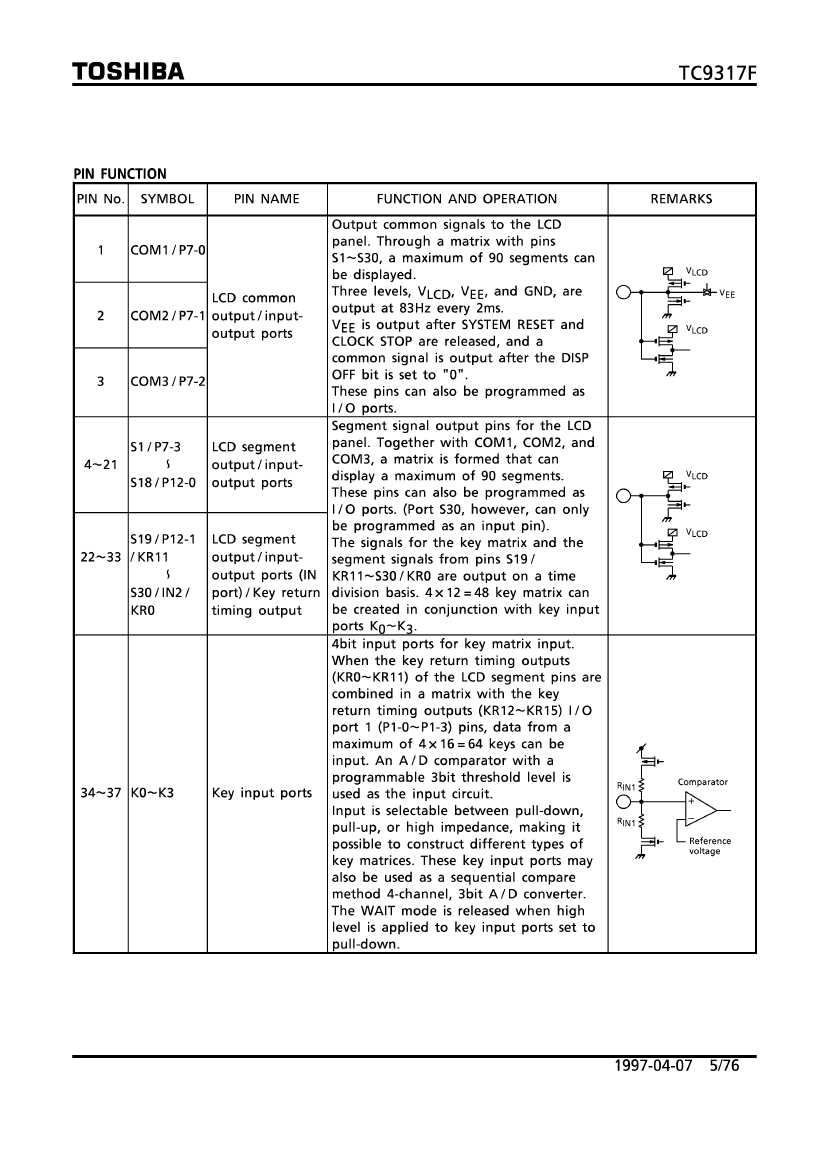

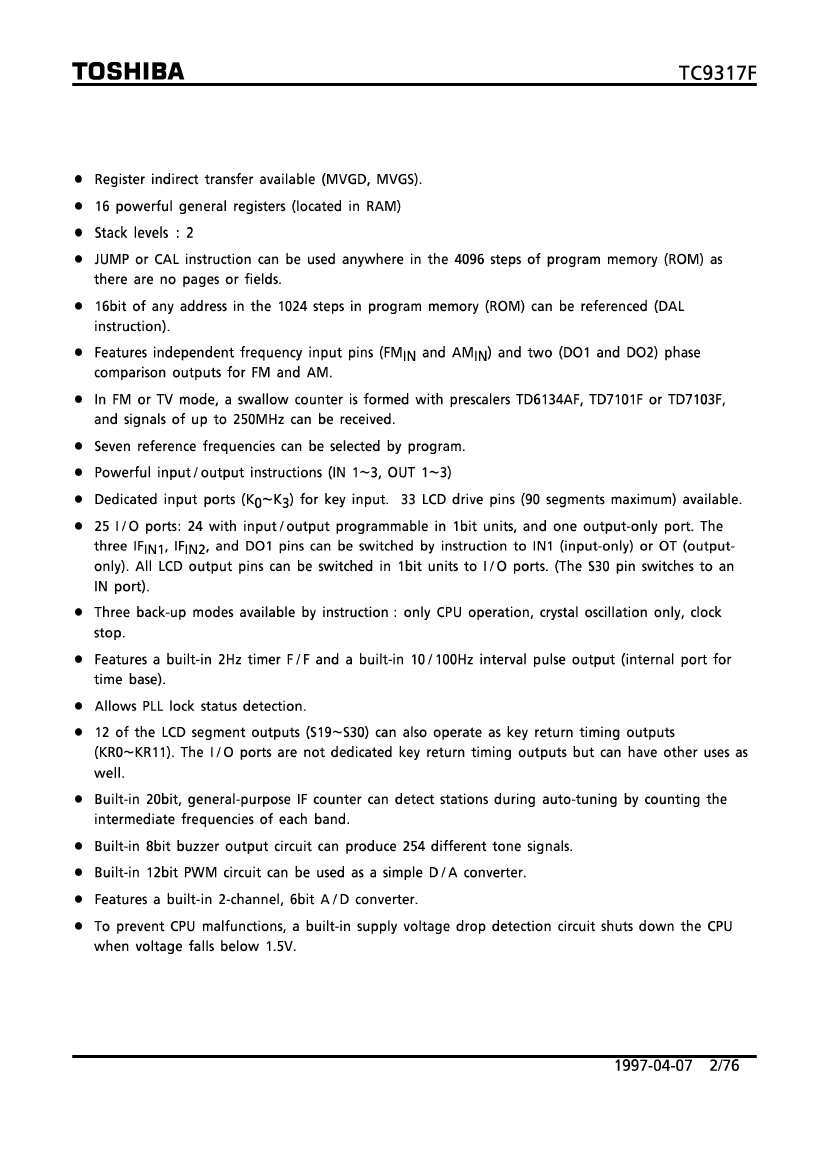

TC9317F Overview

DTS MICROCONTROLLER

Parameter Name	Attribute value
Parts packaging code	QFP
package instruction	FQFP, QFP80,.55SQ,20
Contacts	80
Reach Compliance Code	unknow
Has ADC	YES
Address bus width
bit size	4
maximum clock frequency	0.075 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G80
JESD-609 code	e0
length	12 mm
Number of I/O lines	56
Number of terminals	80
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	FQFP
Encapsulate equivalent code	QFP80,.55SQ,20
Package shape	SQUARE
Package form	FLATPACK, FINE PITCH
power supply	3 V
Certification status	Not Qualified
RAM (bytes)	128
rom(word)	4096
ROM programmability	MROM
Maximum seat height	1.85 mm
speed	0.025 MHz
Maximum slew rate	1.5 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	1.8 V
Nominal supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
width	12 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

	TC9317F	TC9317
Description	DTS MICROCONTROLLER	DTS MICROCONTROLLER
