P6SMB8.2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> P6SMB8.2

P6SMB8.2: DescriptionTrans Voltage Suppressor Diode, 600W, Unidirectional, 1 Element, Silicon, PLASTIC, SMB, 2 PIN; CategoryDiscrete semiconductor diode; File Size199KB，6 Pages; ManufacturerFagor Electrónica

Download Datasheet Parametric Compare View All

P6SMB8.2 Overview

Trans Voltage Suppressor Diode, 600W, Unidirectional, 1 Element, Silicon, PLASTIC, SMB, 2 PIN

P6SMB8.2 Parametric

Parameter Name	Attribute value
Maker	Fagor Electrónica
package instruction	PLASTIC, SMB, 2 PIN
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum breakdown voltage	9.02 V
Minimum breakdown voltage	7.38 V
Breakdown voltage nominal value	8.2 V
Maximum clamping voltage	12.5 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
polarity	UNIDIRECTIONAL
Maximum power dissipation	2 W
Certification status	Not Qualified
Maximum reverse current	200 µA
surface mount	YES
technology	AVALANCHE
Terminal form	C BEND
Terminal location	DUAL

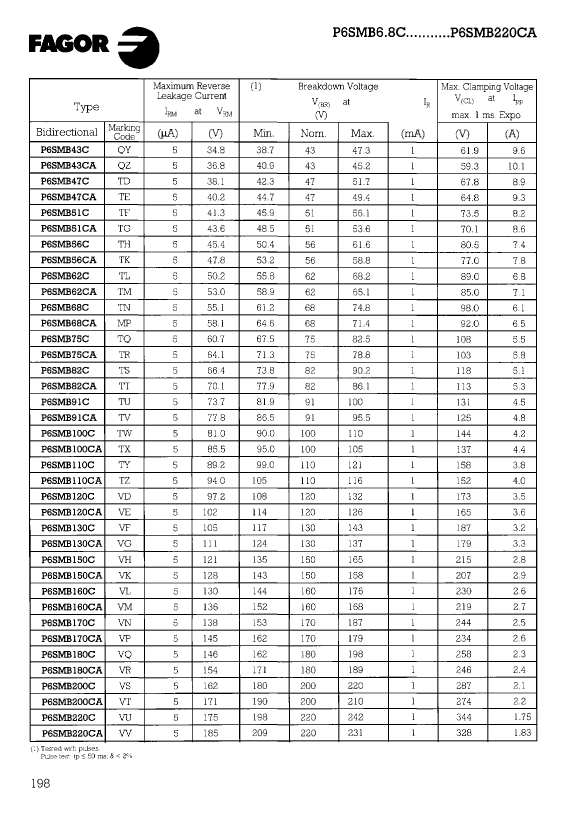

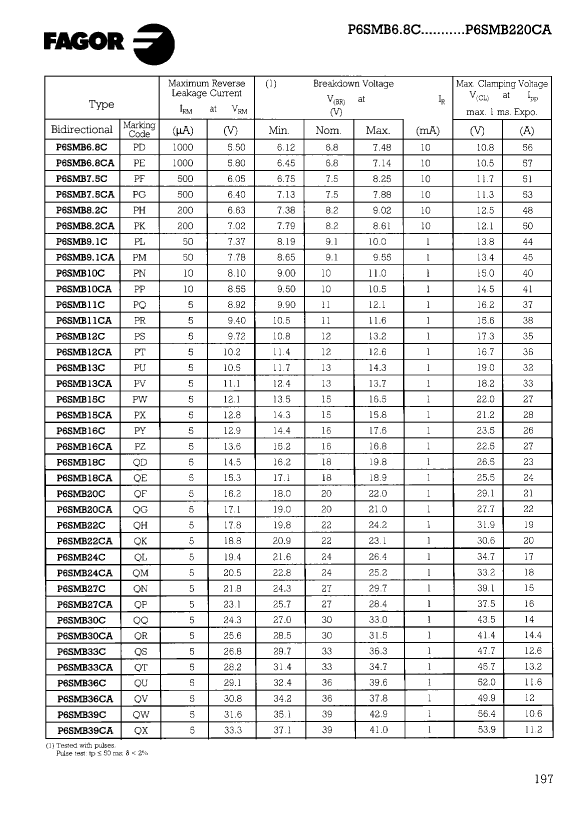

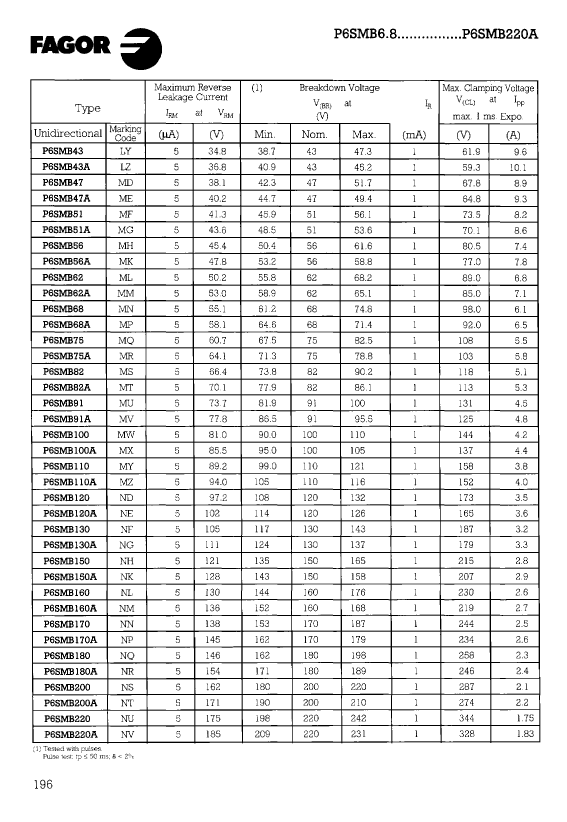

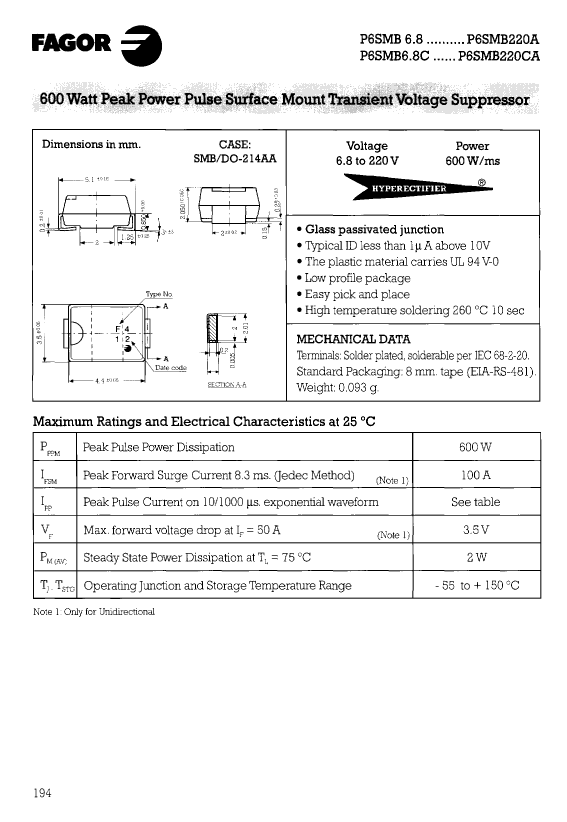

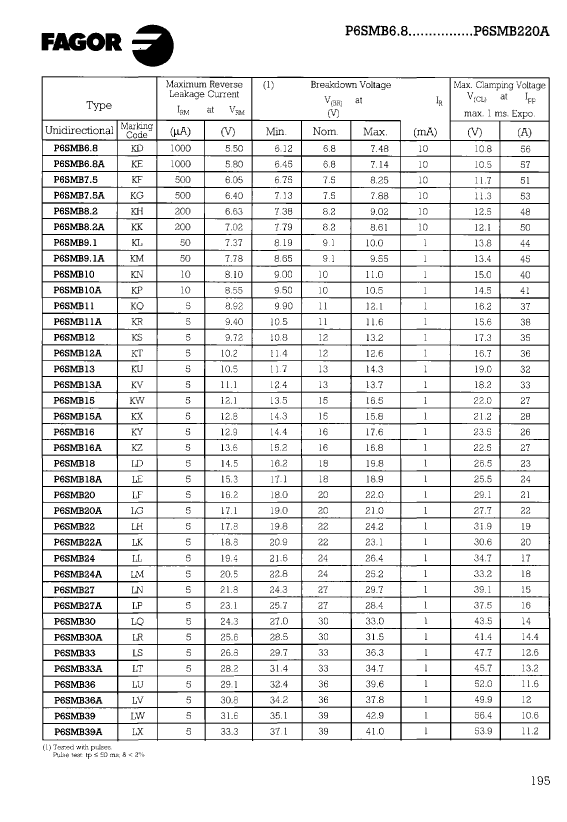

Preview

Download Datasheet

View All

P6SMB8.2 Related Products

	P6SMB8.2	P6SMB6.8A	P6SMB6.8	P6SMB6.8C	P6SMB7.5	P6SMB7.5A	P6SMB7.5C	P6SMB9.1	P6SMB9.1C	P6SMB8.2C
Description	Trans Voltage Suppressor Diode, 600W, Unidirectional, 1 Element, Silicon, PLASTIC, SMB, 2 PIN	Trans Voltage Suppressor Diode, 600W, Unidirectional, 1 Element, Silicon, PLASTIC, SMB, 2 PIN	Trans Voltage Suppressor Diode, 600W, Unidirectional, 1 Element, Silicon, PLASTIC, SMB, 2 PIN	Trans Voltage Suppressor Diode, 600W, Bidirectional, 1 Element, Silicon, PLASTIC, SMB, 2 PIN	Trans Voltage Suppressor Diode, 600W, Unidirectional, 1 Element, Silicon, PLASTIC, SMB, 2 PIN	Trans Voltage Suppressor Diode, 600W, Unidirectional, 1 Element, Silicon, PLASTIC, SMB, 2 PIN	Trans Voltage Suppressor Diode, 600W, Bidirectional, 1 Element, Silicon, PLASTIC, SMB, 2 PIN	Trans Voltage Suppressor Diode, 600W, Unidirectional, 1 Element, Silicon, PLASTIC, SMB, 2 PIN	Trans Voltage Suppressor Diode, 600W, Bidirectional, 1 Element, Silicon, PLASTIC, SMB, 2 PIN	Trans Voltage Suppressor Diode, 600W, Bidirectional, 1 Element, Silicon, PLASTIC, SMB, 2 PIN
package instruction	PLASTIC, SMB, 2 PIN	R-PDSO-C2	R-PDSO-C2	PLASTIC, SMB, 2 PIN	PLASTIC, SMB, 2 PIN	PLASTIC, SMB, 2 PIN	R-PDSO-C2	R-PDSO-C2	PLASTIC, SMB, 2 PIN	PLASTIC, SMB, 2 PIN
Contacts	2	2	2	2	2	2	2	2	2	2
Reach Compliance Code	unknow	not_compliant	unknow	unknow	unknow	_compli	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum breakdown voltage	9.02 V	7.14 V	7.48 V	7.48 V	8.25 V	7.88 V	8.25 V	10 V	10 V	9.02 V
Minimum breakdown voltage	7.38 V	6.45 V	6.12 V	6.12 V	6.75 V	7.13 V	6.75 V	8.19 V	8.19 V	7.38 V
Breakdown voltage nominal value	8.2 V	6.8 V	6.8 V	6.8 V	7.5 V	7.5 V	7.5 V	9.1 V	9.1 V	8.2 V
Maximum clamping voltage	12.5 V	10.5 V	10.8 V	10.8 V	11.7 V	11.3 V	11.7 V	13.8 V	13.8 V	12.5 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Maximum non-repetitive peak reverse power dissipation	600 W	600 W	600 W	600 W	600 W	600 W	600 W	600 W	600 W	600 W
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	BIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	BIDIRECTIONAL	UNIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
Maximum power dissipation	2 W	2 W	2 W	2 W	2 W	2 W	2 W	2 W	2 W	2 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	200 µA	1000 µA	1000 µA	1000 µA	500 µA	500 µA	500 µA	50 µA	50 µA	200 µA
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Fagor Electrónica	-	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica
