BA3933: DescriptionReference voltage power supply; CategoryAnalog mixed-signal IC The signal circuit; File Size126KB，7 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BA3933 Overview

Reference voltage power supply

BA3933 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SIP
package instruction	SIP-12
Contacts	12
Reach Compliance Code	compli
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-PSIP-T12
JESD-609 code	e3/e2
length	29.8 mm
Number of functions	1
Number of terminals	12
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	SIP12,.1
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
power supply	16 V
Certification status	Not Qualified
Maximum seat height	15.3 mm
Maximum supply voltage (Vsup)	22 V
Minimum supply voltage (Vsup)	6.5 V
Nominal supply voltage (Vsup)	16 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN/TIN COPPER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	10
width	4.7 mm

Preview

Download Datasheet

View All

Regulator ICs

Reference voltage power supply

BA3933

The BA3933 is a monolithic reference voltage power supply IC for use in CD radio cassette players.

FApplications

CD radio cassette players, mini-component stereo audio systems

FFeatures

1) With 7.5V output for audio power supply, 5V output

for microcontrollers, 5V output for radio 5 and 7.5V

outputs for CD players, 9V output for motor drivers,

the IC is best suited for CD radio cassette players.

2) Precise power supply (5V

0.1V) can be obtained by

using external reference voltage input (only AUDIO

output has an internal reference voltage system).

3) Zero standby current. (Typ.)

4) Output current limit circuit protects the IC against

short-circuiting damage.

5) Compact SIP-M12 package allows a large power dis-

sipation (3W: no heat sink).

6) Thermal protection circuit prevents heat damage to

the IC.

FAbsolute

maximum ratings (Ta = 25_C)

FRecommended

operating conditions (Topr = 25_C)

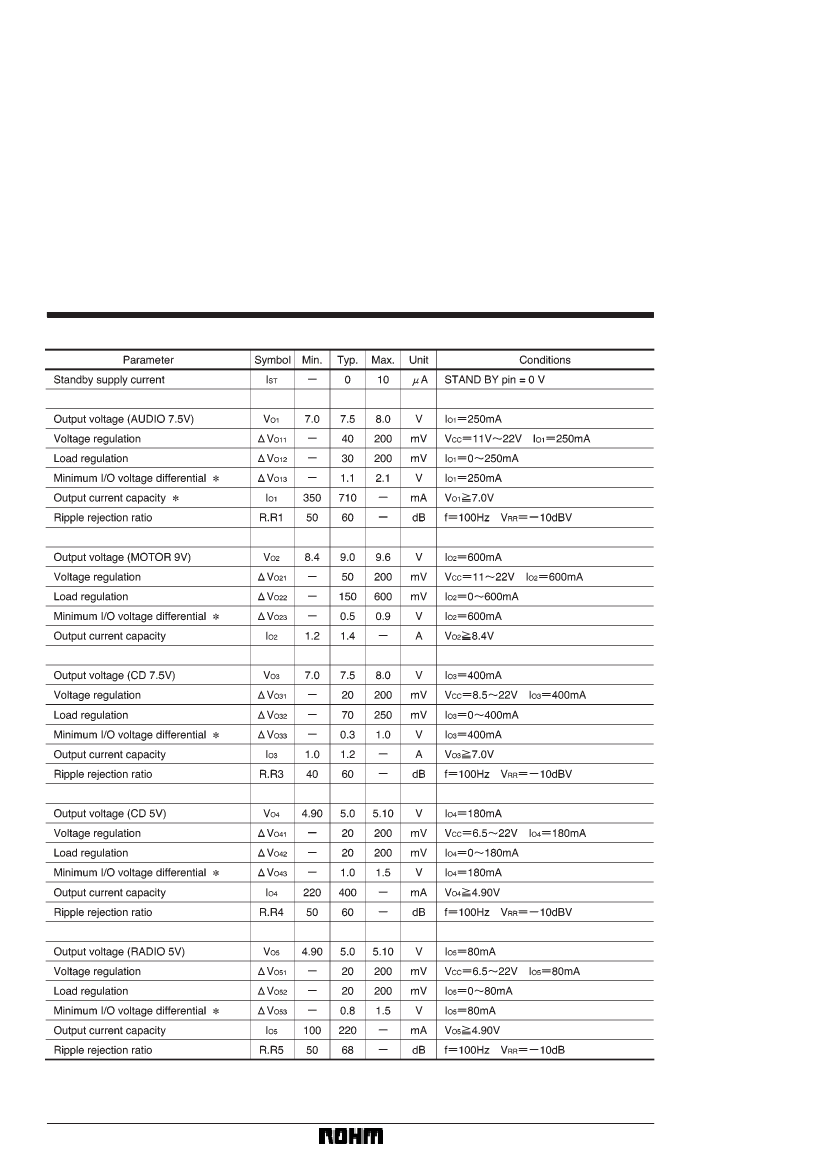

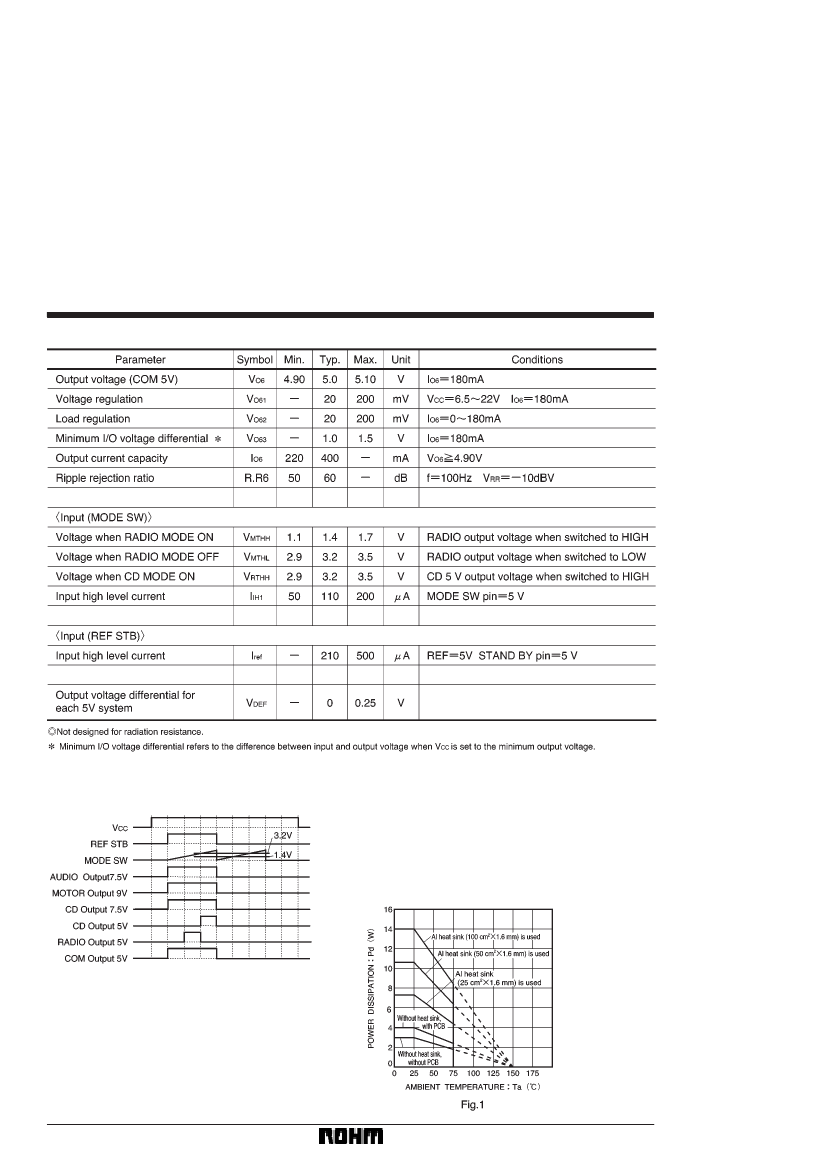

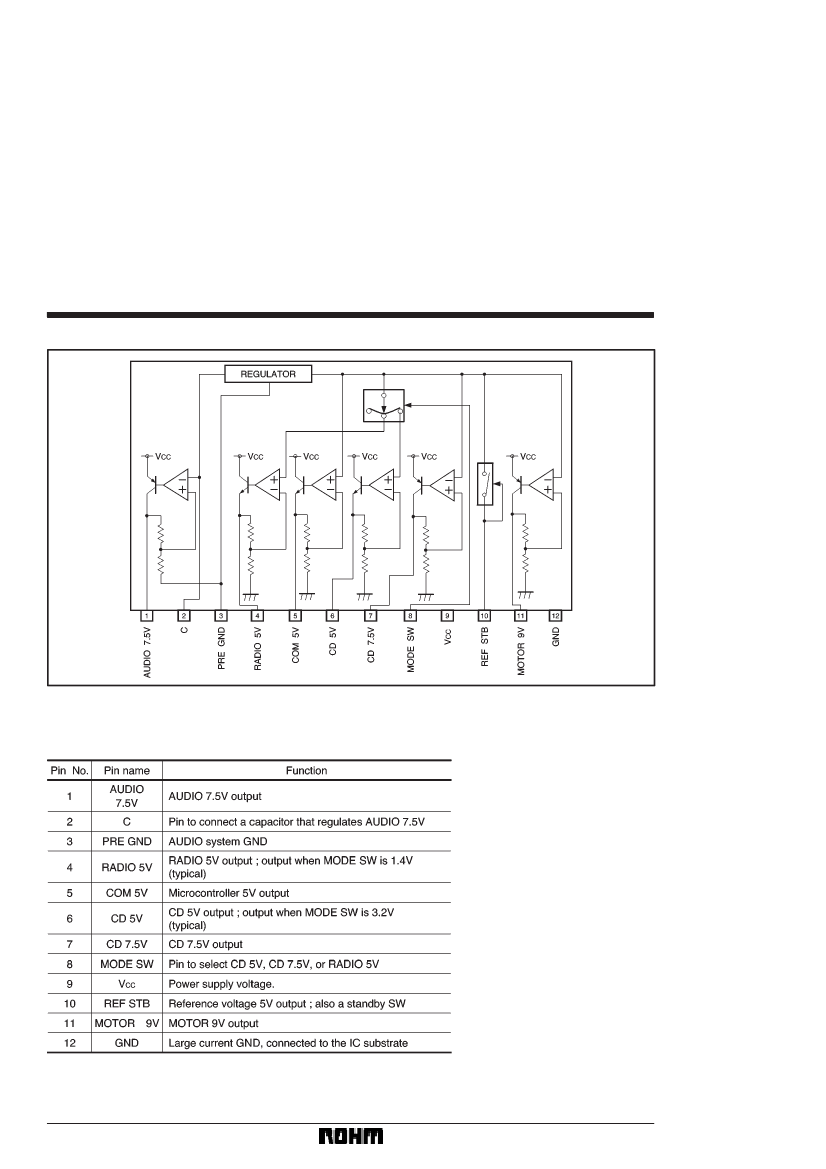

160
