TC9309AF datasheet, PDF - EEWORLD Datasheet

TC9309AF: DescriptionSINGLE CHIP DTS MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，53 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

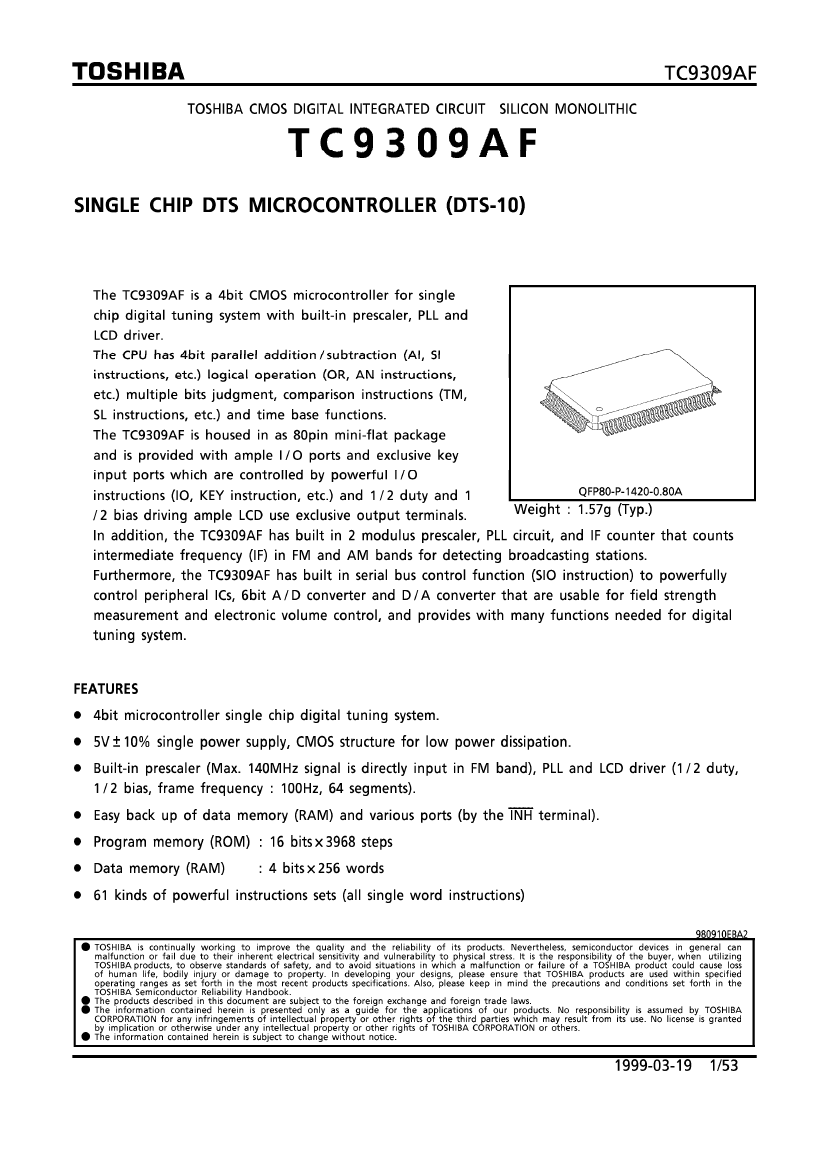

TC9309AF Overview

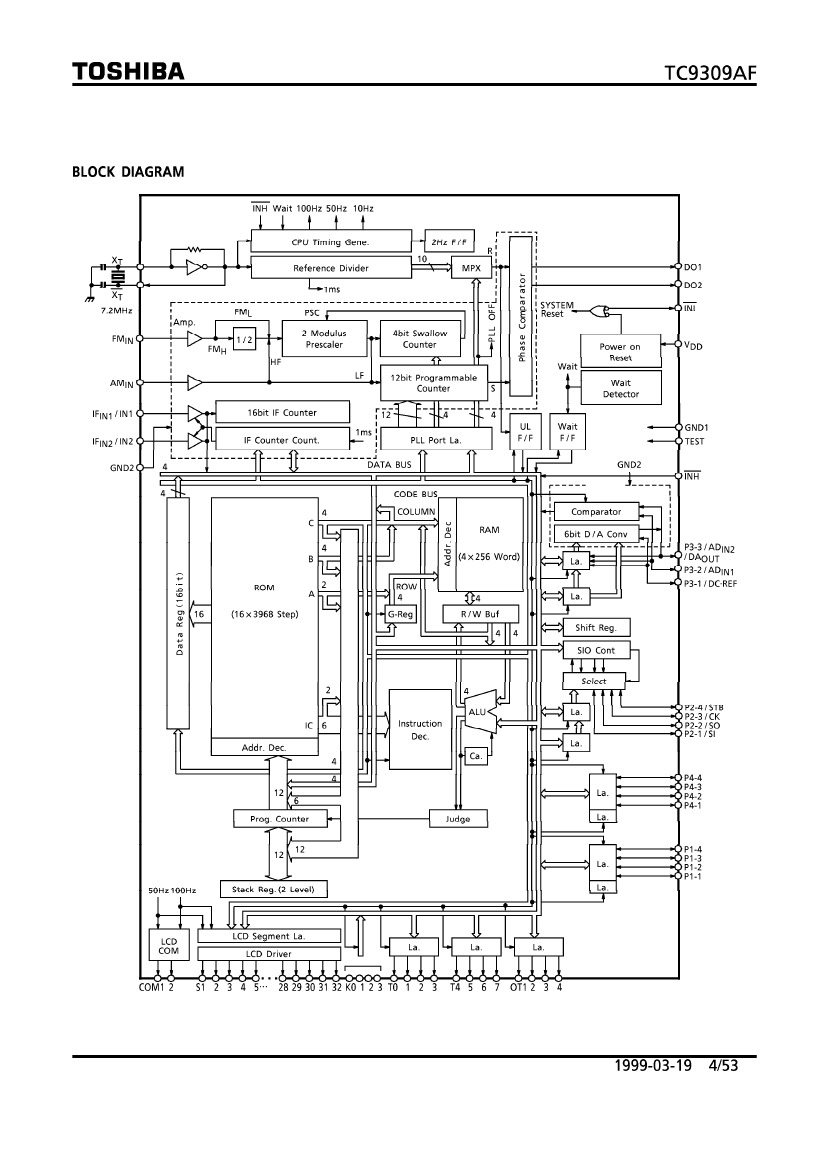

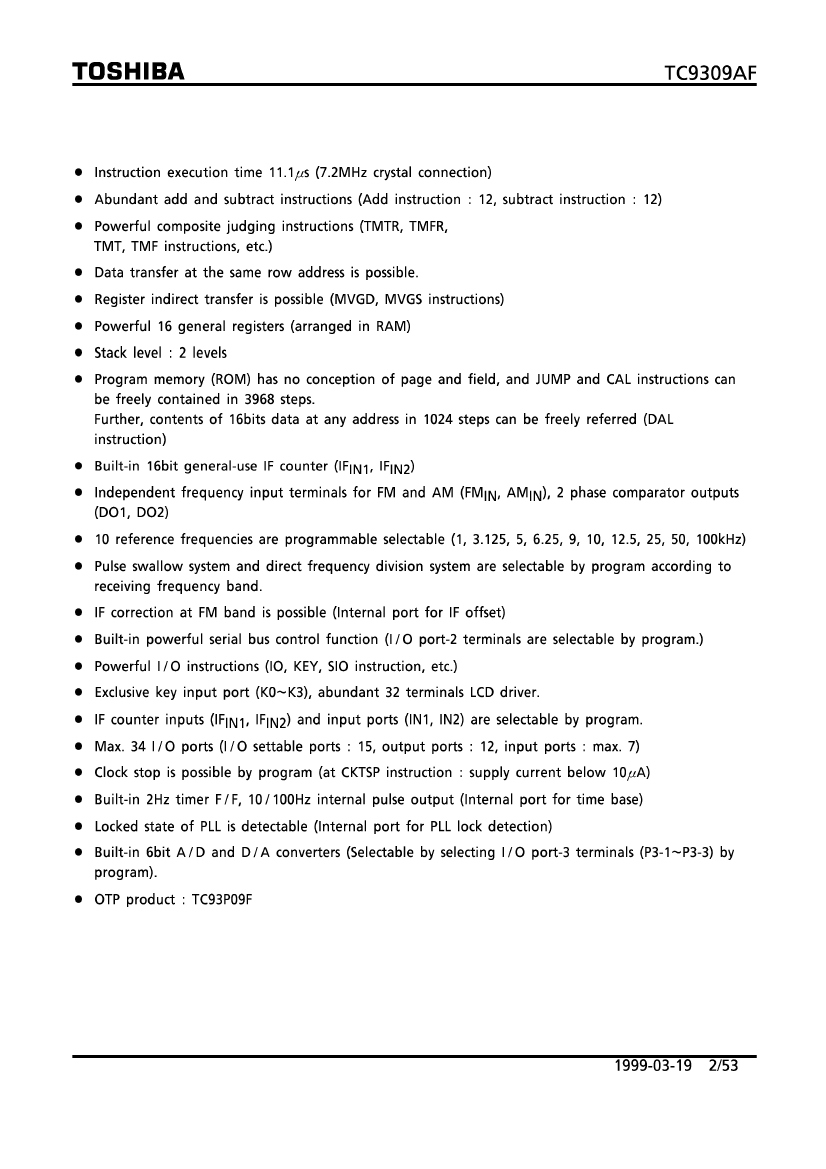

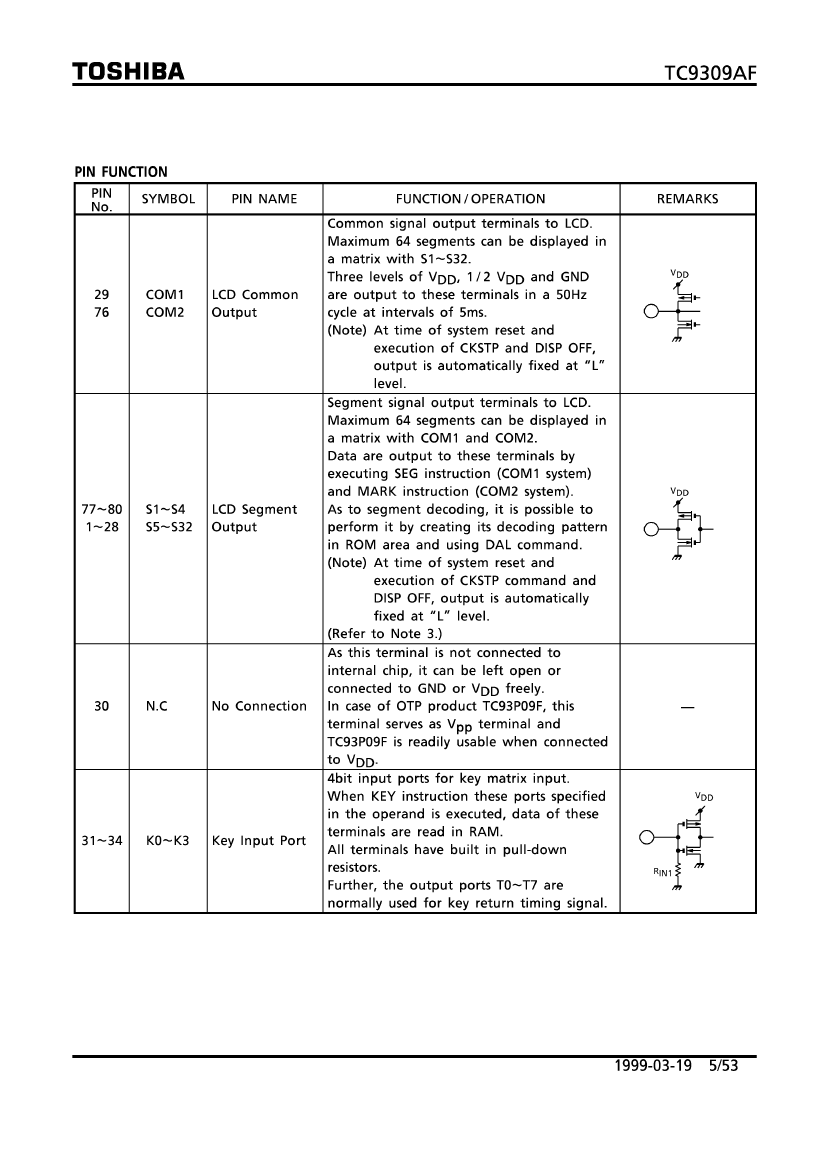

SINGLE CHIP DTS MICROCONTROLLER

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	QFP

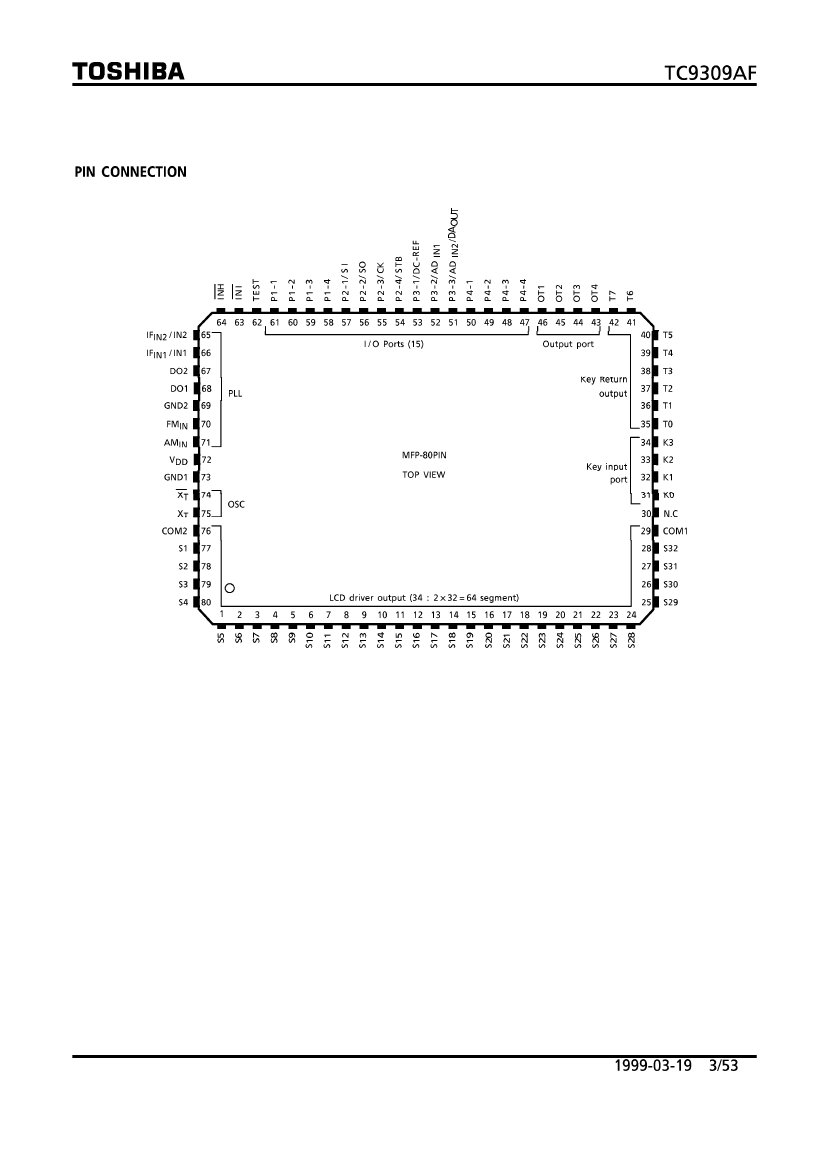

package instruction	QFP, QFP80,.75X1,32
Contacts	80
Reach Compliance Code	unknow
Has ADC	YES
Address bus width
bit size	4
maximum clock frequency	7.2 MHz
DAC channel	YES
DMA channel	NO
External data bus width
JESD-30 code	R-PQFP-G80
JESD-609 code	e0
length	20 mm
Number of I/O lines	19
Number of terminals	80
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP80,.75X1,32
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	128
rom(word)	3968
ROM programmability	MROM
Maximum seat height	3.05 mm
speed	185 MHz
Maximum slew rate	25 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
