TC9309F-011 datasheet, PDF - EEWORLD Datasheet

TC9309F-011: DescriptionSINGLE CHIP DTS MICRO CONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size148KB，3 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

TC9309F-011 Overview

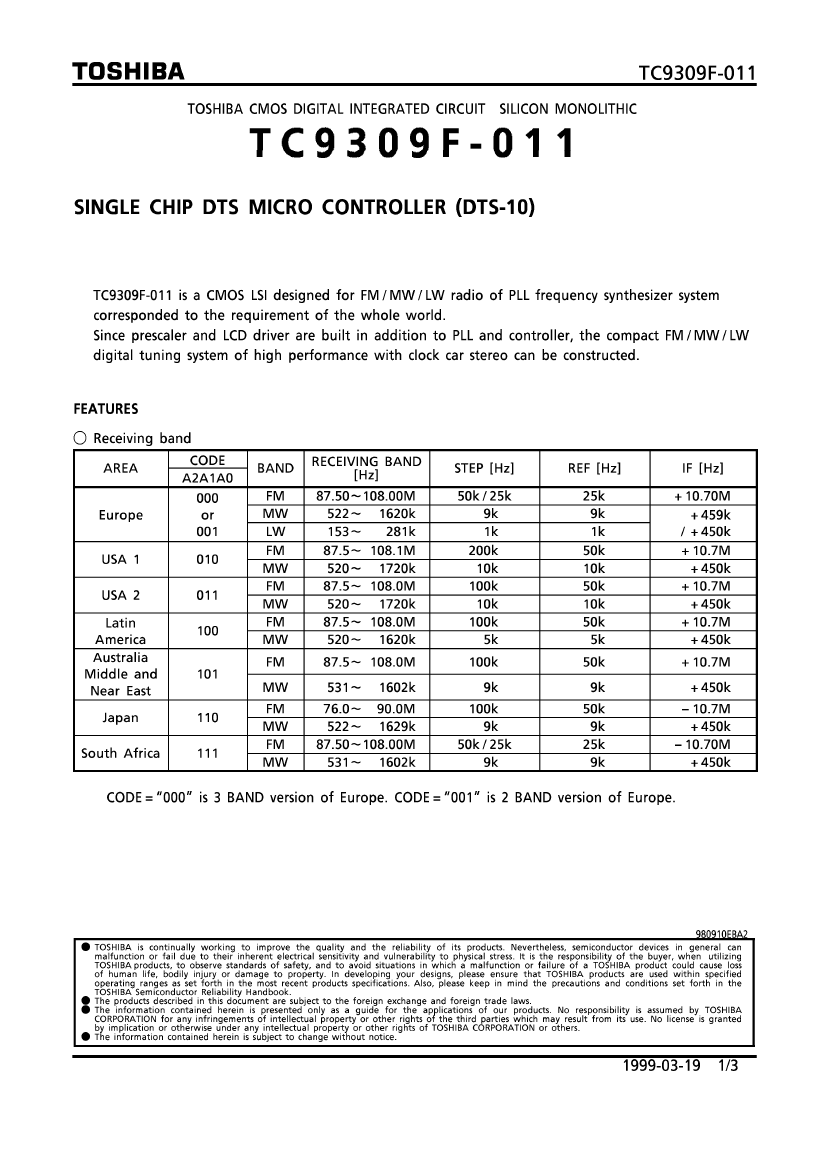

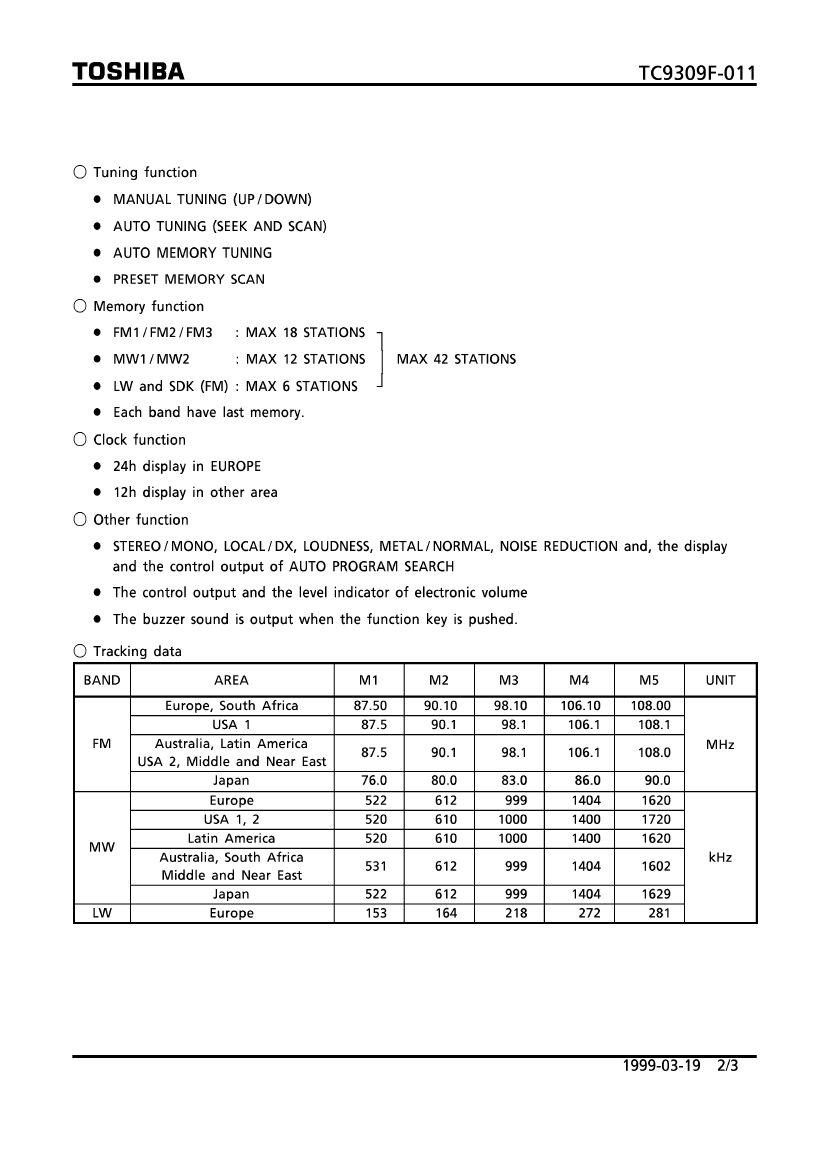

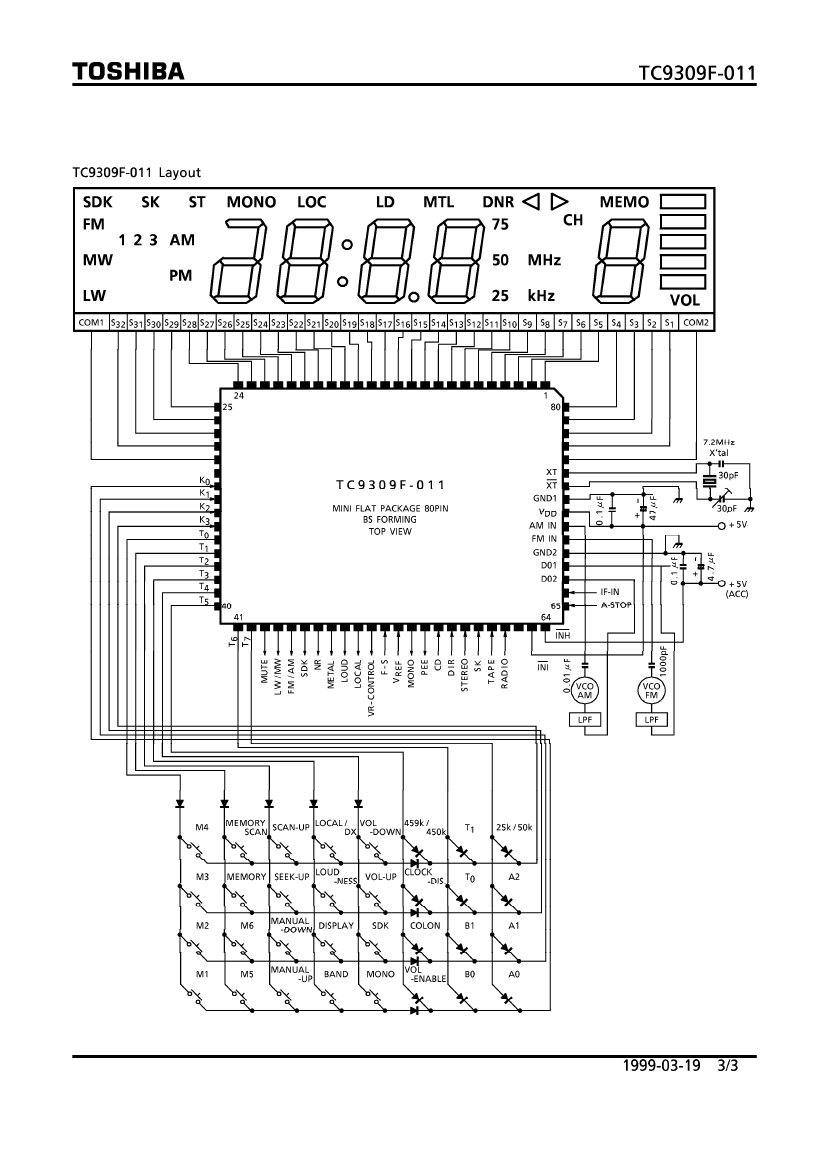

SINGLE CHIP DTS MICRO CONTROLLER

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	QFP
package instruction	MINI, FP-80
Contacts	80
Reach Compliance Code	unknow
Has ADC	YES
Address bus width
bit size	4
maximum clock frequency	0.0072 MHz
DAC channel	YES
DMA channel	NO
External data bus width
JESD-30 code	R-PQFP-G80
JESD-609 code	e0
length	20 mm
Number of I/O lines	15
Number of terminals	80
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
surface mount	YES
technology	CMOS
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
