BA3963 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BA3963

BA3963: DescriptionSystem power supply for CD player equipped audio systems; CategoryPower/power management The power supply circuit; File Size89KB，9 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BA3963 Overview

System power supply for CD player equipped audio systems

BA3963 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SIP
package instruction	SIP-12
Contacts	12
Reach Compliance Code	compli
ECCN code	EAR99
Maximum input voltage	22 V
Minimum input voltage	5.6 V
JESD-30 code	R-PSFM-T12
JESD-609 code	e3/e2
length	29.8 mm
Number of functions	1
Output times	2
Number of terminals	12
Maximum output voltage 1	5.25 V
Minimum output voltage 1	4.75 V
Nominal output voltage 1	5 V
Maximum output voltage 2	7.35 V
Minimum output voltage 2	6.65 V
Nominal output voltage 2	7 V
Package body material	PLASTIC/EPOXY
encapsulated code	SIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Regulator type	FIXED POSITIVE MULTIPLE OUTPUT STANDARD REGULATOR
Maximum seat height	15.4 mm
surface mount	NO
Terminal surface	TIN/TIN COPPER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	10
width	4.7 mm

Preview

Download Datasheet

View All

Regulator ICs

System power supply for CD player-

equipped audio systems

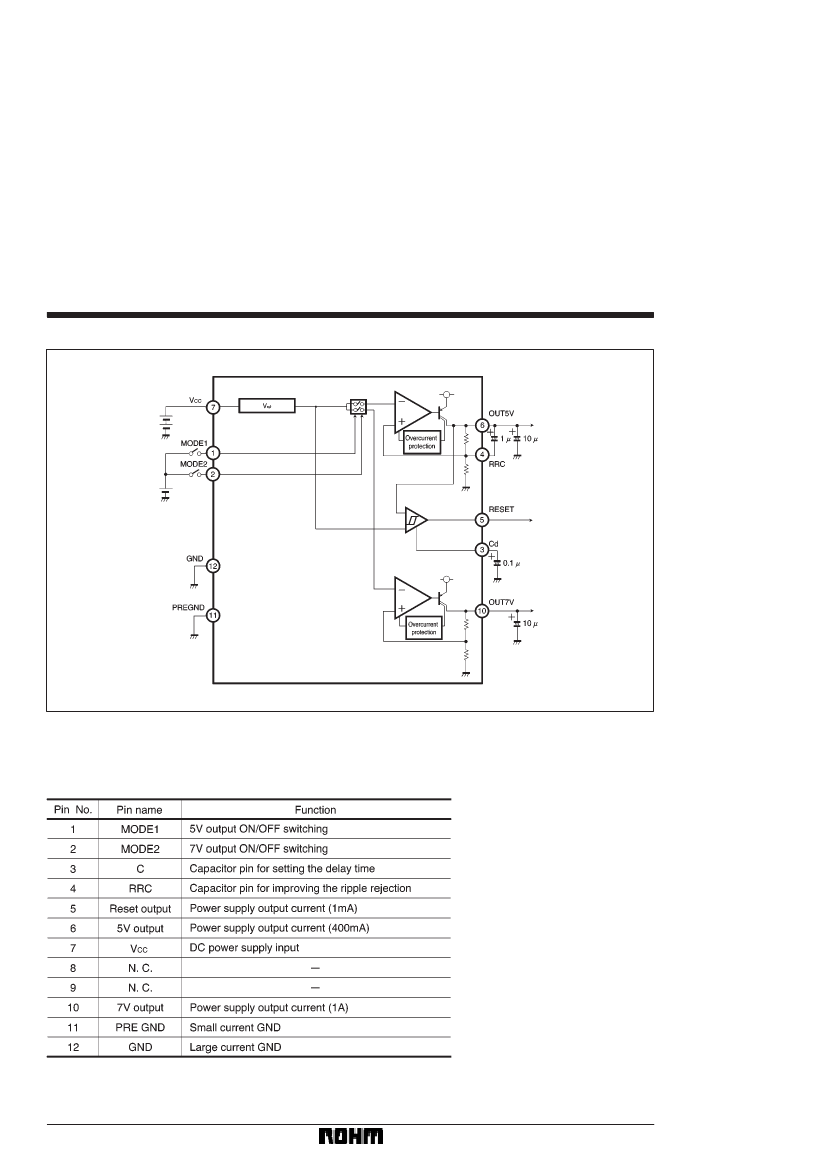

BA3963

With 5V and 7V outputs and a reset output that detects the 5V output, the BA3963 power supply IC is best suited for

CD player-equipped audio systems.

FApplications

CD player-equipped audio systems

FFeatures

1) A 5V output, a 7V output, and a reset output are built

in.

2) All output circuits use a PNP transistor with a low sat-

uration voltage.

3) Current limit circuit protects the IC against short-cir-

cuiting damage.

4) Thermal protection circuit prevents heat damage to

the IC.

5) Compact SIP-M12 package allows a large power dis-

sipation.

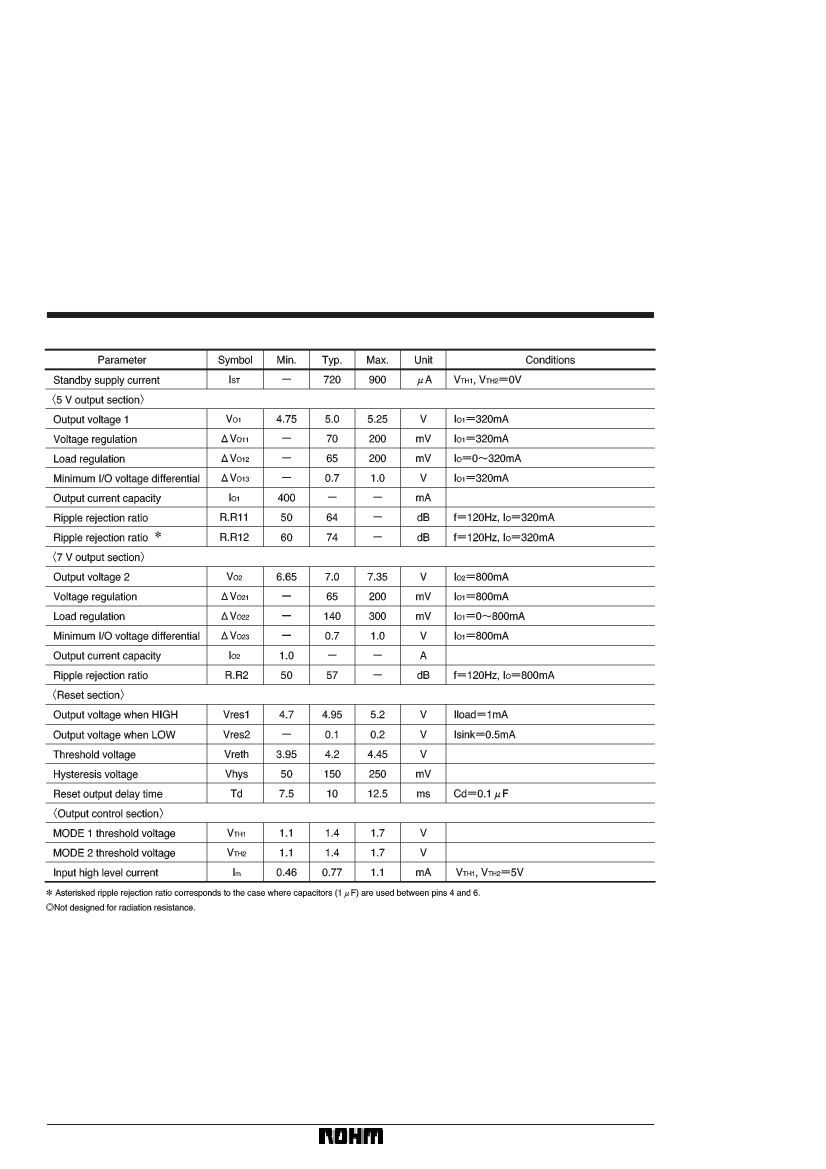

FAbsolute

maximum ratings (Ta = 25_C)

FRecommended

operating conditions (Ta = 25_C)

207
