TC9304F-051 datasheet, PDF - EEWORLD Datasheet

TC9304F-051: DescriptionSINGLE CHIP DTS MICRO CONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size120KB，3 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

TC9304F-051 Overview

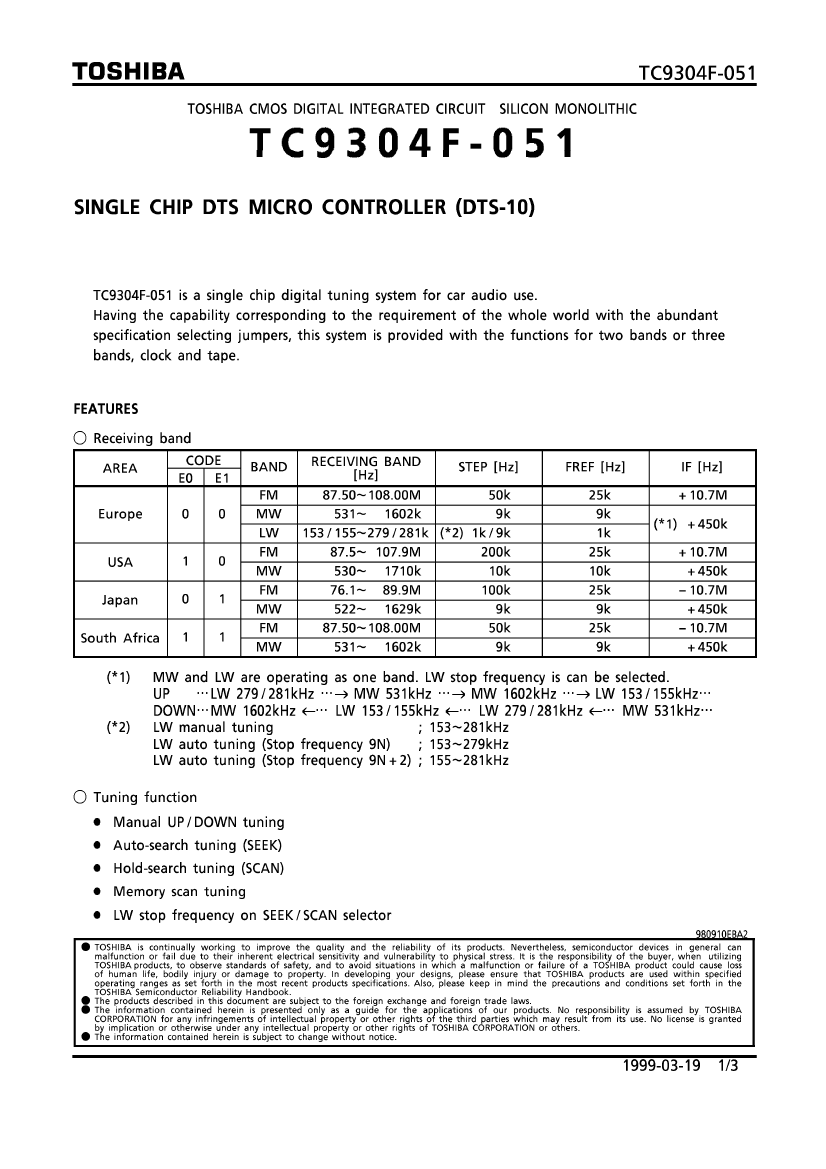

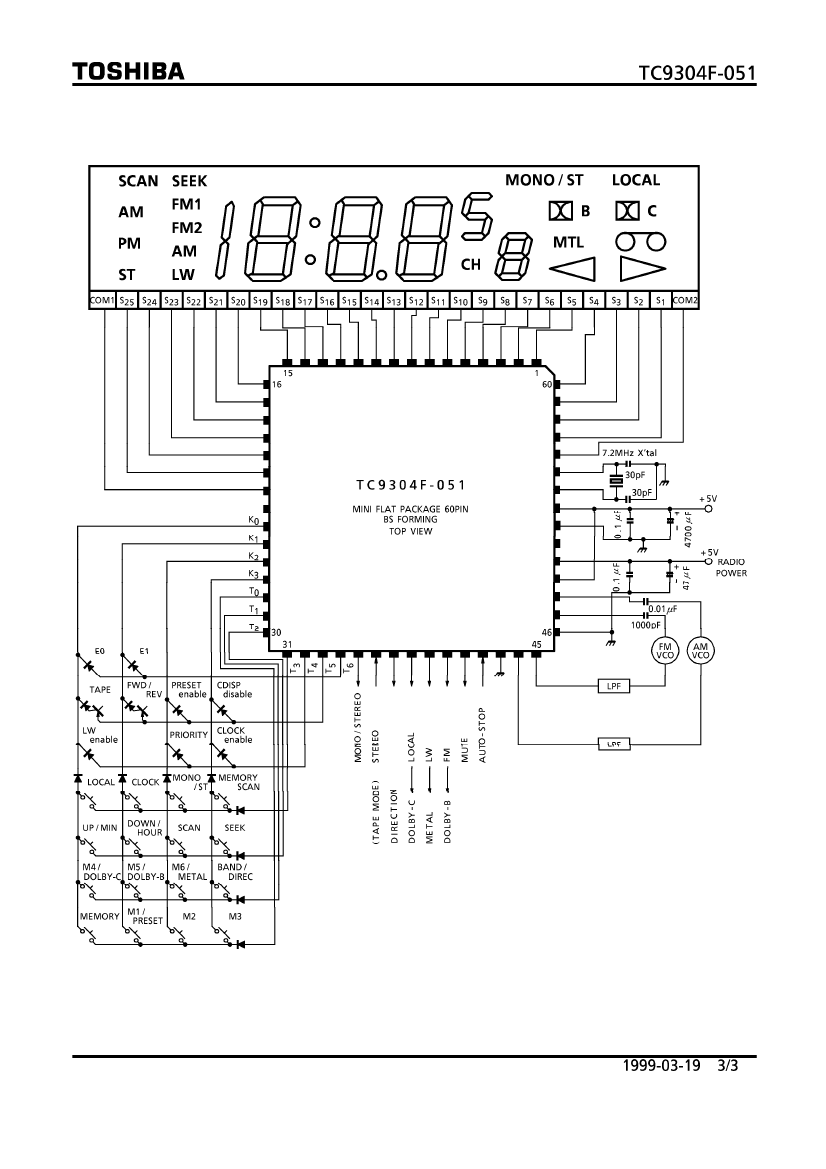

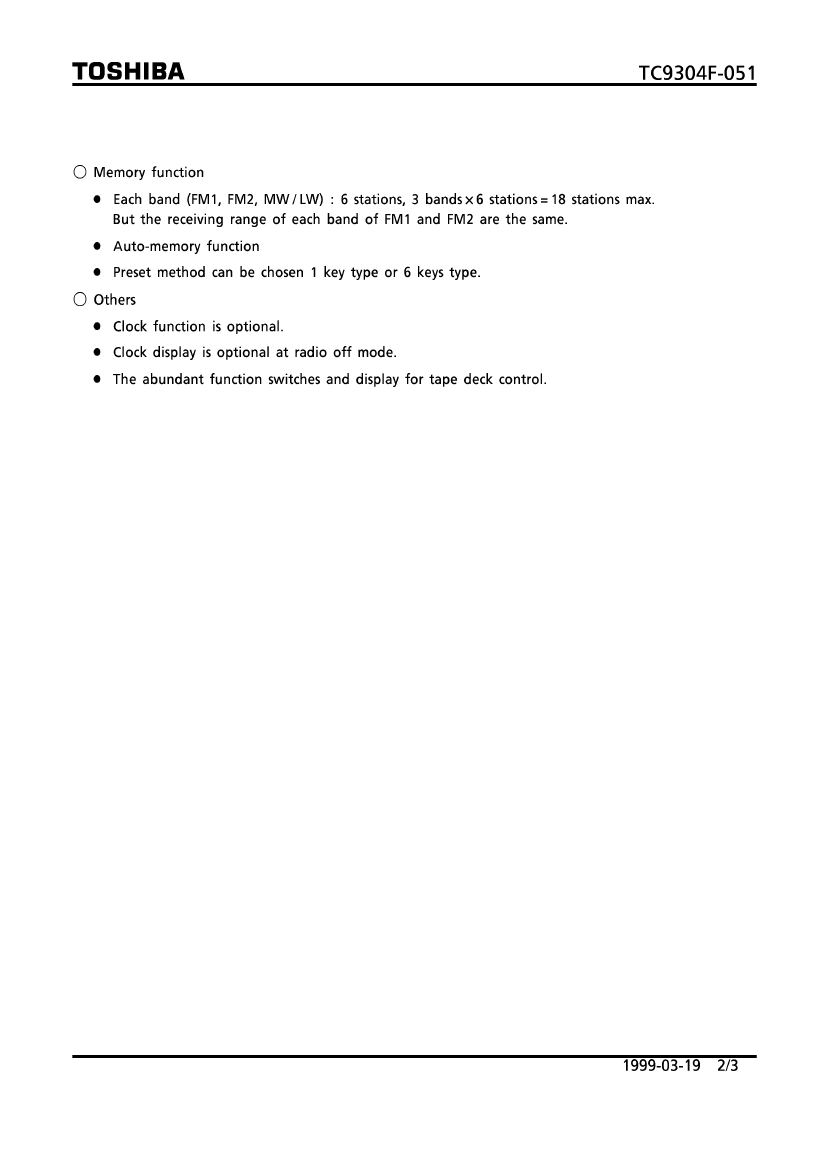

SINGLE CHIP DTS MICRO CONTROLLER

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	QFP
package instruction	MINI, FP-60
Contacts	60
Reach Compliance Code	unknow
Has ADC	YES
Address bus width
bit size	4
maximum clock frequency	7.2 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G60
JESD-609 code	e0
length	14 mm
Number of I/O lines	6
Number of terminals	60
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	3.05 mm
speed	140 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
