TC9298F datasheet, PDF - EEWORLD Datasheet

TC9298F: DescriptionLCD DRIVER WITH ON-CHIP KEY INPUT; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size725KB，20 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

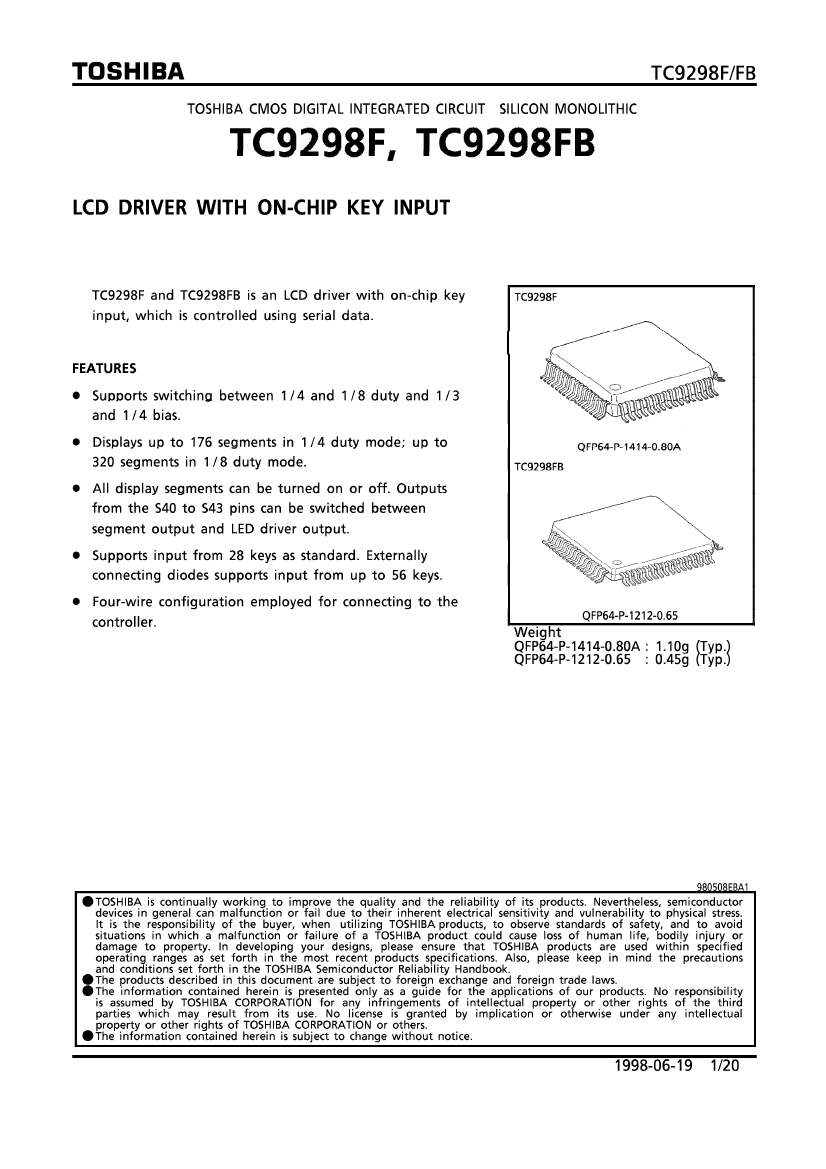

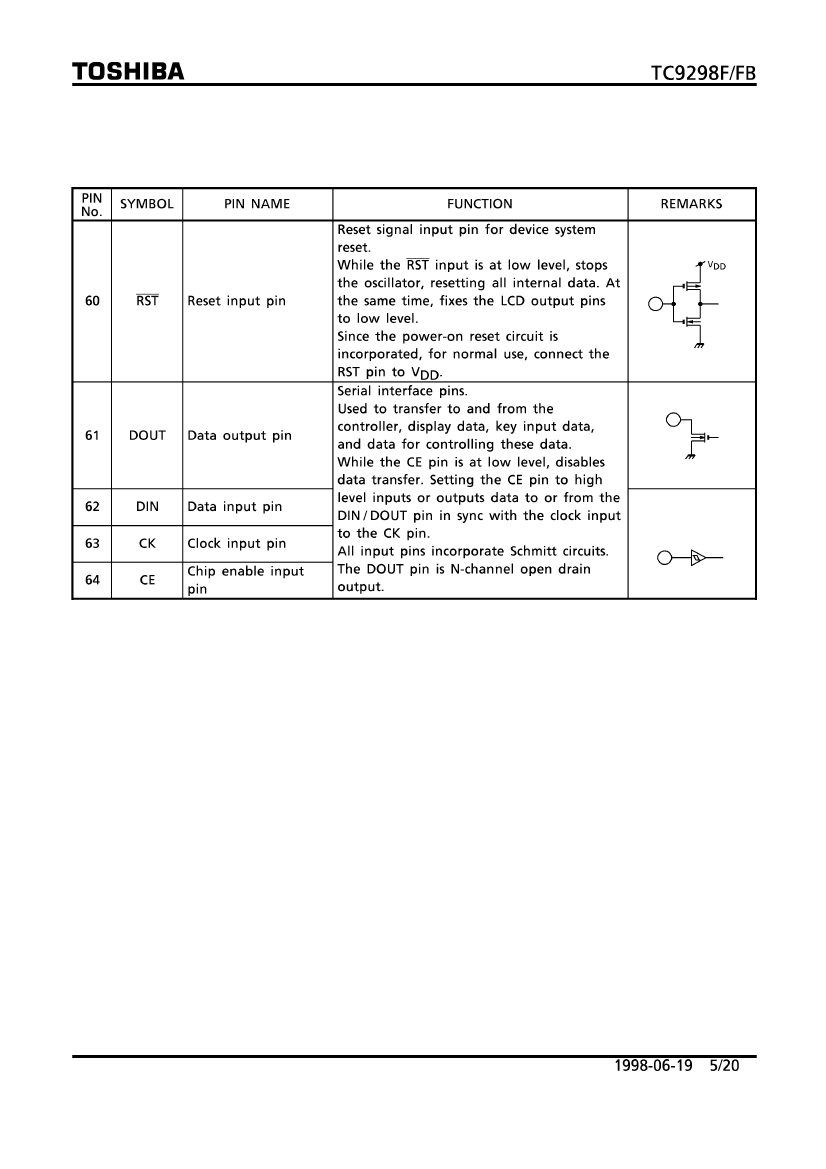

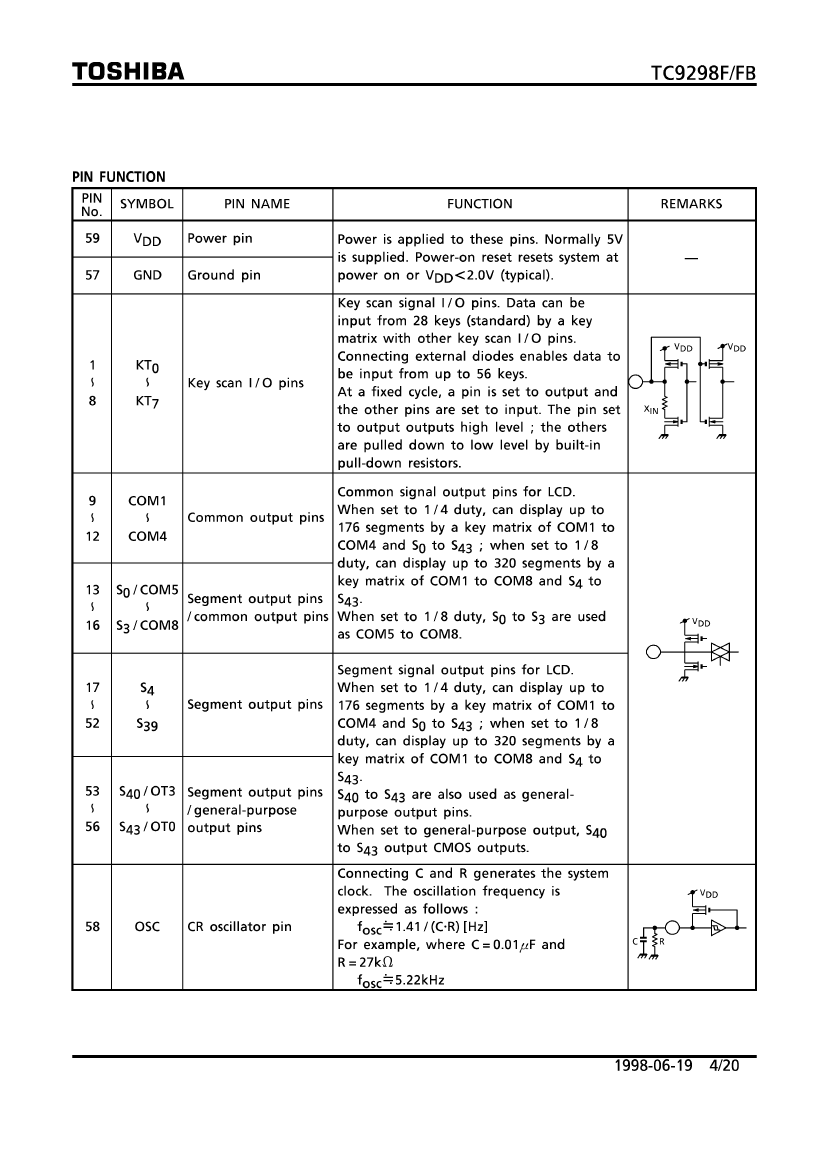

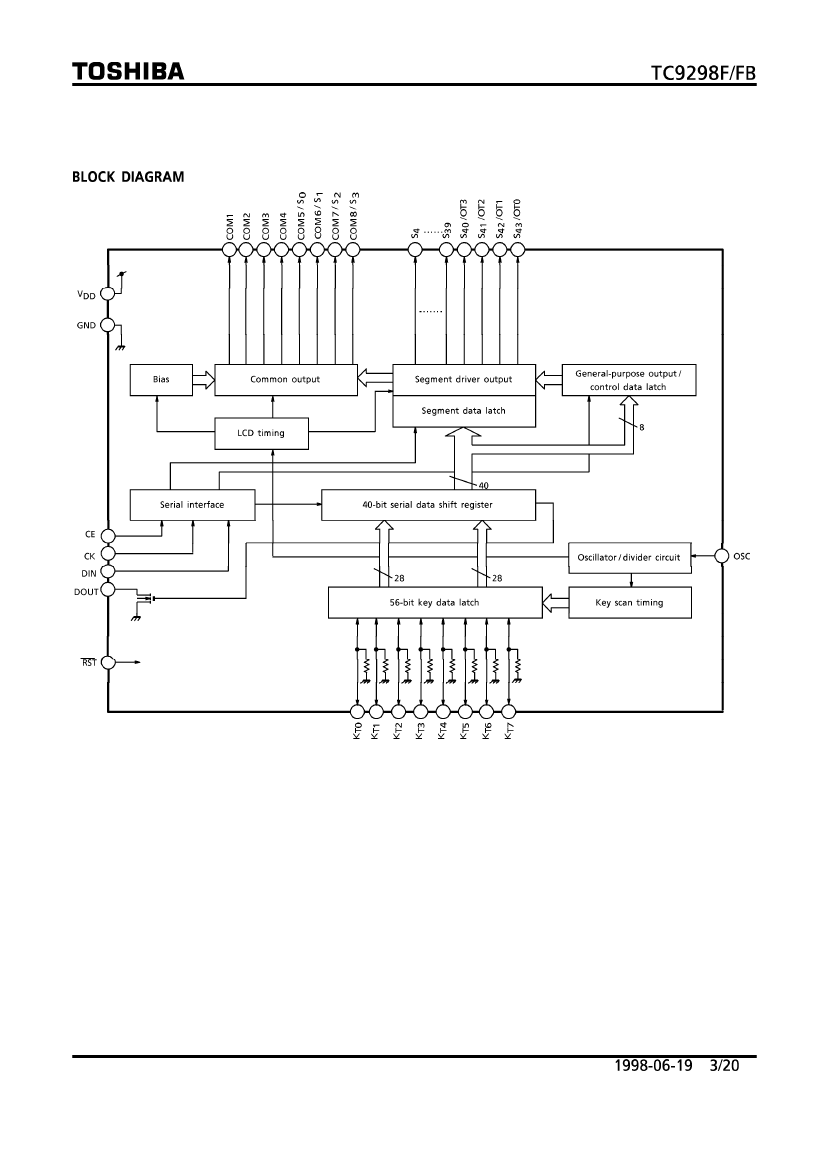

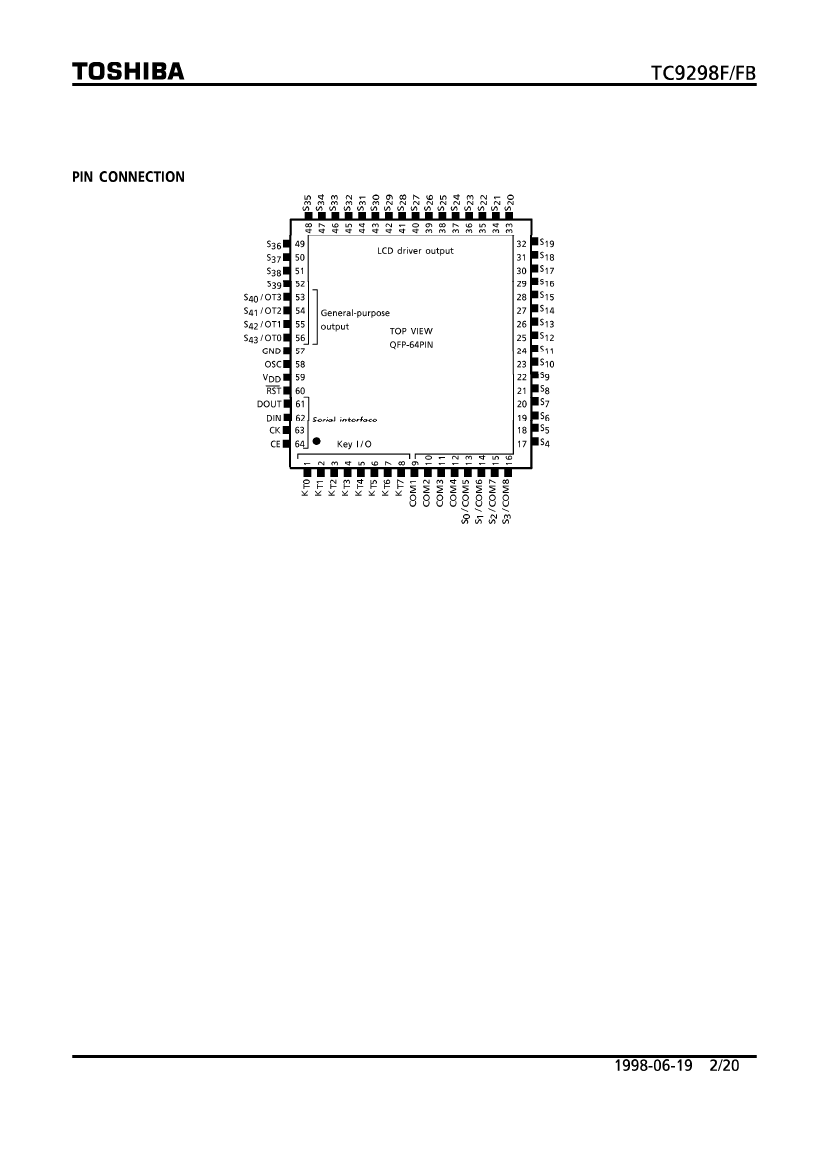

TC9298F Overview

LCD DRIVER WITH ON-CHIP KEY INPUT

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	QFP
package instruction	QFP, QFP64,.66SQ,32
Contacts	64
Reach Compliance Code	unknow
ECCN code	EAR99
data entry mode	SERIAL
display mode	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	S-PQFP-G64
JESD-609 code	e0
length	14 mm
Multiplex display function	YES
Number of base plates	4/8-BP
Number of functions	1
Number of segments	48
Number of terminals	64
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP64,.66SQ,32
Package shape	SQUARE
Package form	FLATPACK
power supply	3/5 V
Certification status	Not Qualified
Maximum seat height	3.15 mm
Maximum slew rate	2.5 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	2.7 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
minfmax	0.02 MHz

	TC9298F	TC9298FB
Description	LCD DRIVER WITH ON-CHIP KEY INPUT	LCD DRIVER WITH ON-CHIP KEY INPUT
Maker	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	QFP	QFP
package instruction	QFP, QFP64,.66SQ,32	QFP, QFP64,.6SQ
Contacts	64	64
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
data entry mode	SERIAL	SERIAL
display mode	DOT MATRIX	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	S-PQFP-G64	S-PQFP-G64
JESD-609 code	e0	e0
length	14 mm	12 mm
Multiplex display function	YES	YES
Number of base plates	4/8-BP	4/8-BP
Number of functions	1	1
Number of segments	48	48
Number of terminals	64	64
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP
Encapsulate equivalent code	QFP64,.66SQ,32	QFP64,.6SQ
Package shape	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK
power supply	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	3.15 mm	1.85 mm
Maximum slew rate	2.5 mA	2.5 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	2.7 V	2.7 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.65 mm
Terminal location	QUAD	QUAD
width	14 mm	12 mm
minfmax	0.02 MHz	0.02 MHz
