TC9297FB datasheet, PDF - EEWORLD Datasheet

TC9297FB: DescriptionLCD DRIVER WITH ON-CHIP KEY INPUT; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size690KB，17 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

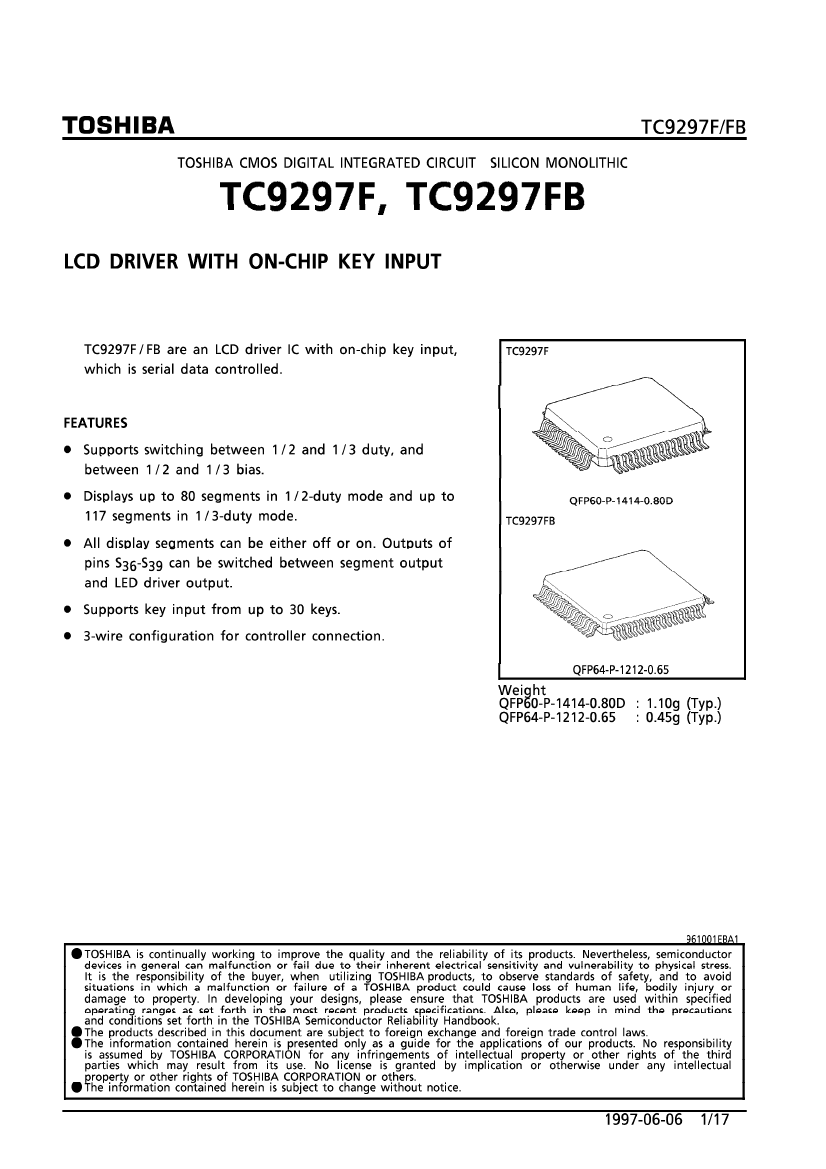

TC9297FB Overview

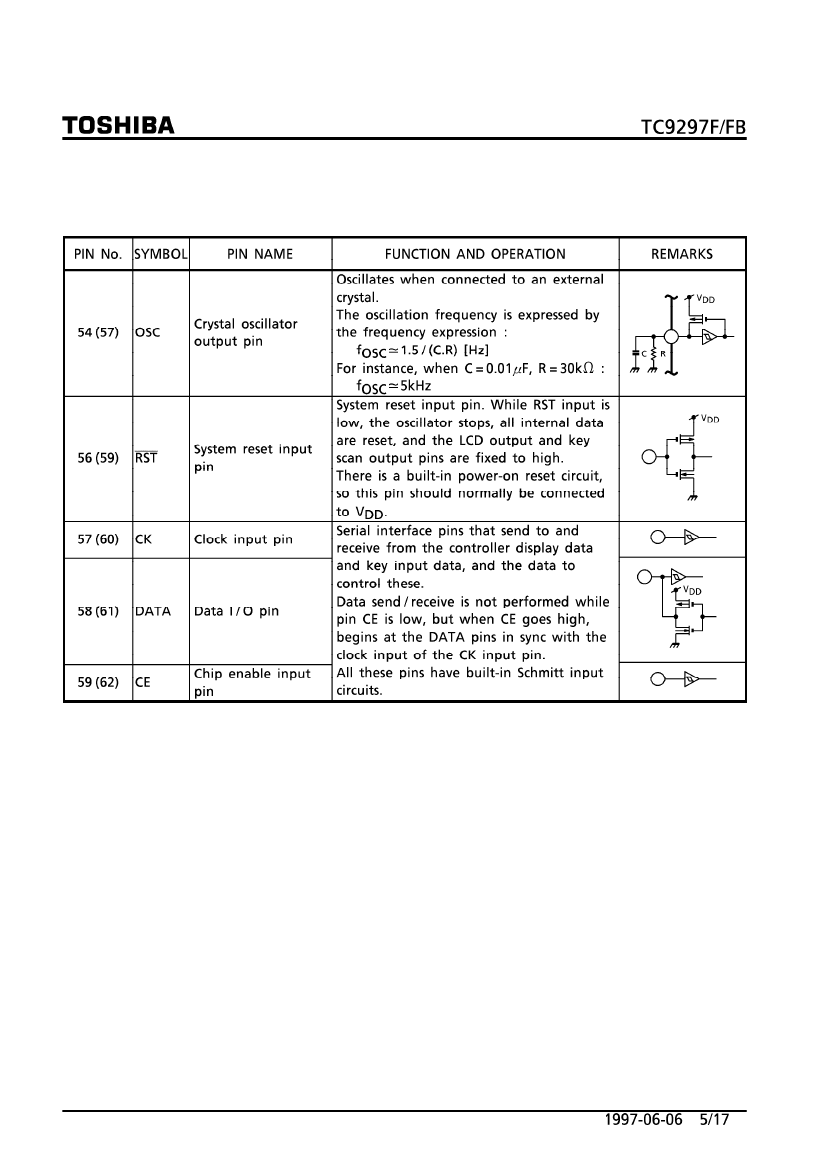

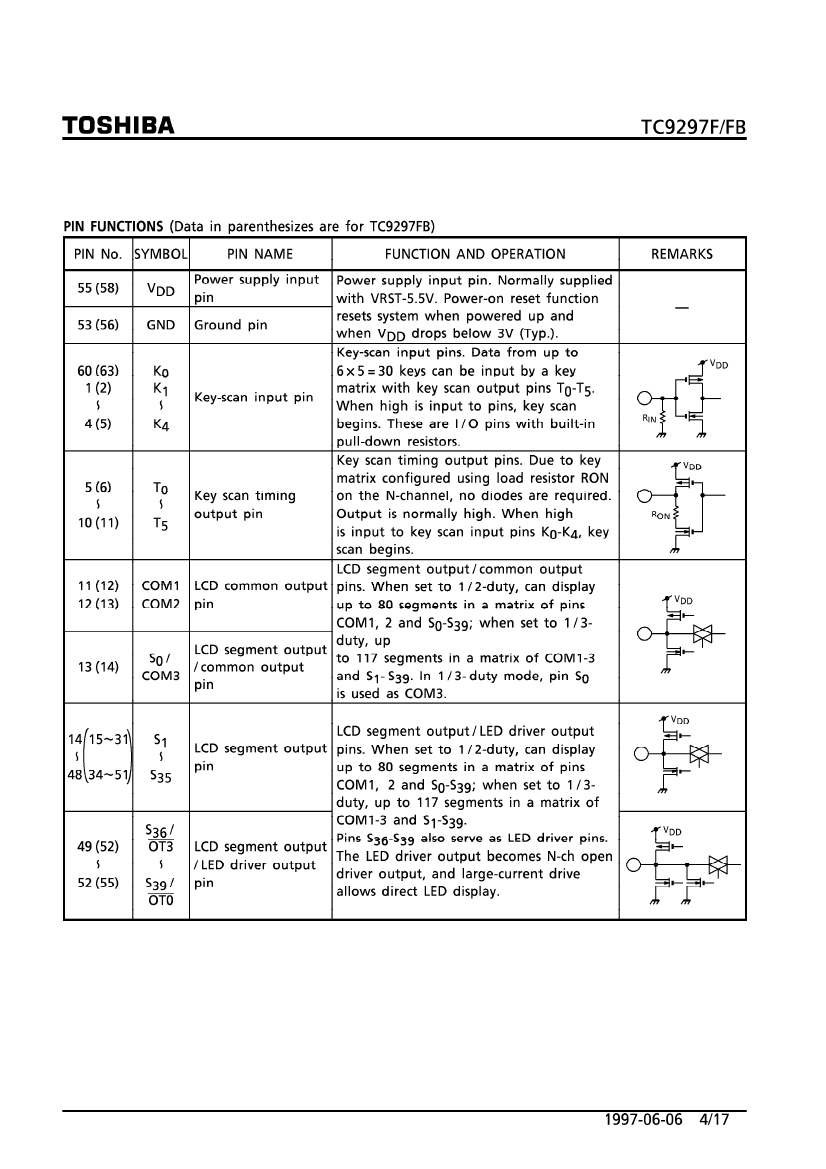

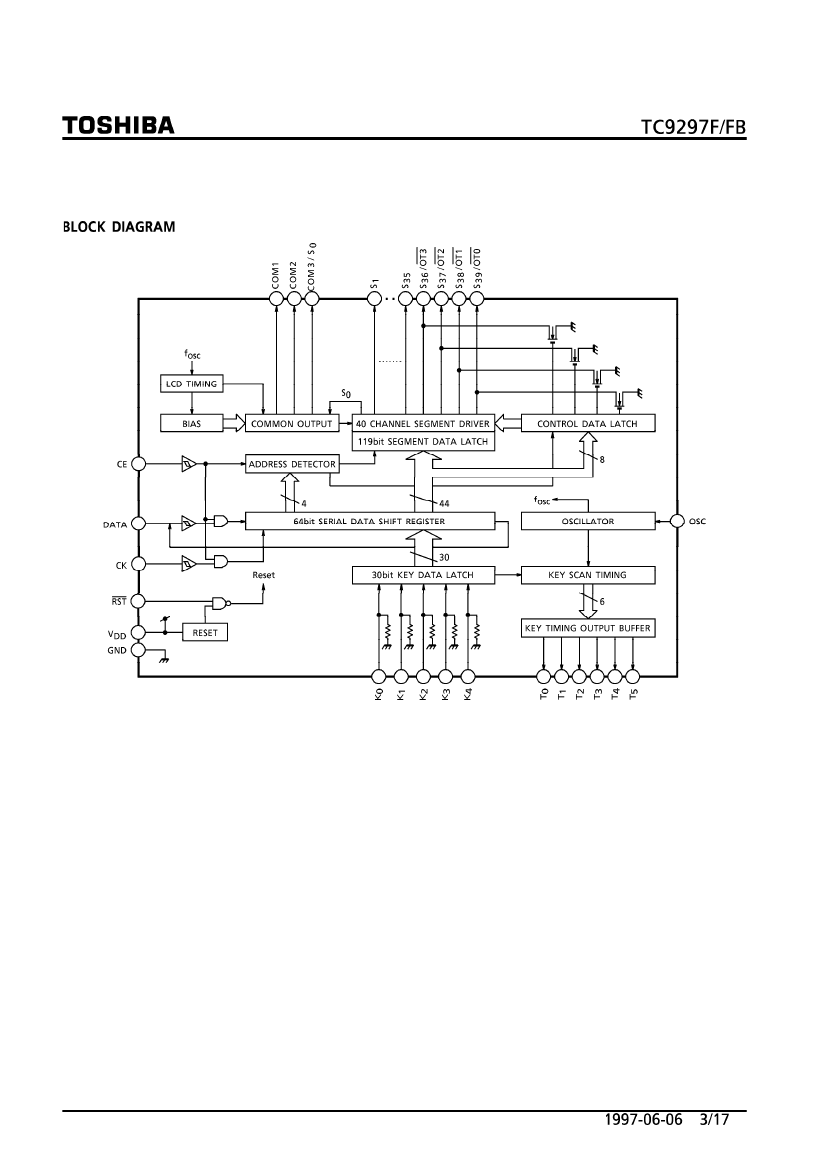

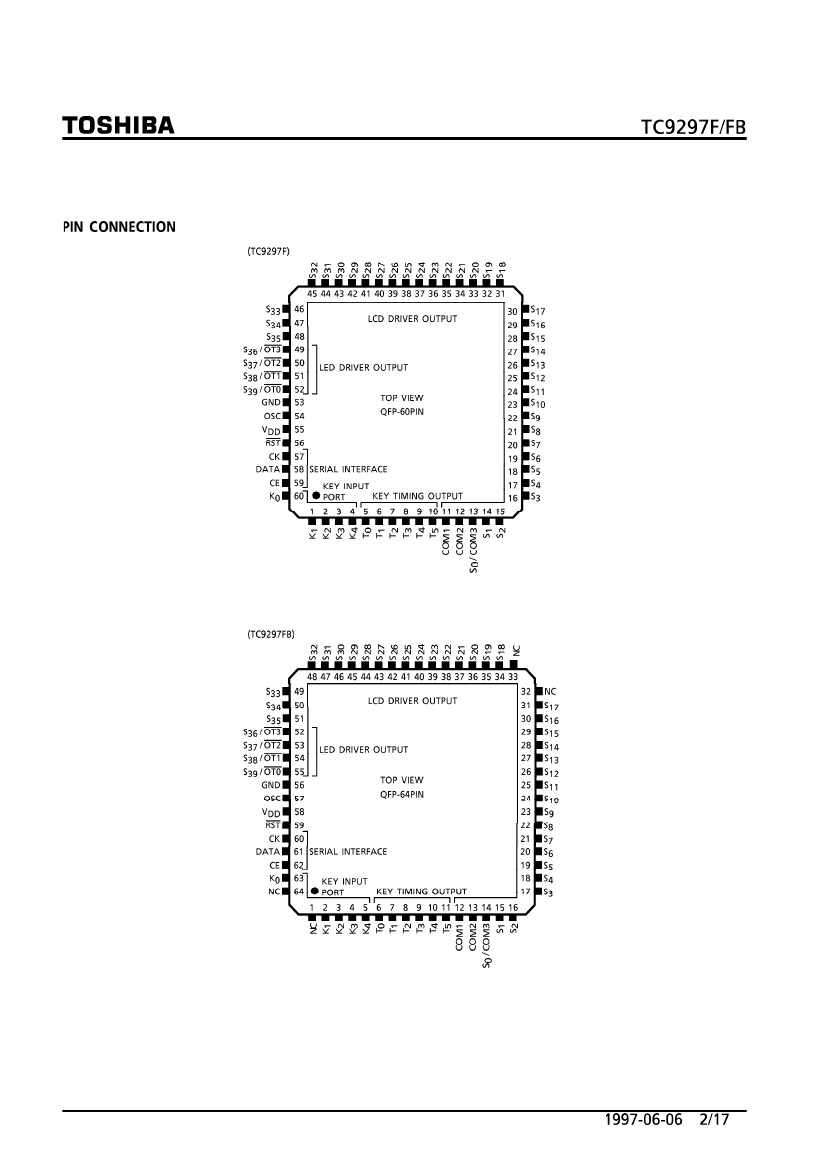

LCD DRIVER WITH ON-CHIP KEY INPUT

Parameter Name	Attribute value
Parts packaging code	QFP
package instruction	QFP, QFP64,.6SQ
Contacts	64
Reach Compliance Code	unknow
ECCN code	EAR99
data entry mode	SERIAL
display mode	DOT MATRIX
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	S-PQFP-G64
JESD-609 code	e0
length	12 mm
Multiplex display function	YES
Number of base plates	3/2-BP
Number of functions	1
Number of segments	42
Number of terminals	64
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-DRAIN
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP64,.6SQ
Package shape	SQUARE
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.85 mm
Maximum slew rate	1 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	2.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	12 mm
minfmax	2 MHz
Base Number Matches	1

	TC9297FB	TC9297	TC9297F
Description	LCD DRIVER WITH ON-CHIP KEY INPUT	LCD DRIVER WITH ON-CHIP KEY INPUT	LCD DRIVER WITH ON-CHIP KEY INPUT
Parts packaging code	QFP	-	QFP
package instruction	QFP, QFP64,.6SQ	-	QFP, QFP60,.75SQ,32
Contacts	64	-	60
Reach Compliance Code	unknow	-	unknow
ECCN code	EAR99	-	EAR99
data entry mode	SERIAL	-	SERIAL
display mode	DOT MATRIX	-	DOT MATRIX
Input properties	SCHMITT TRIGGER	-	SCHMITT TRIGGER
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER	-	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	S-PQFP-G64	-	S-PQFP-G60
JESD-609 code	e0	-	e0
length	12 mm	-	14 mm
Multiplex display function	YES	-	YES
Number of base plates	3/2-BP	-	3/2-BP
Number of functions	1	-	1
Number of segments	42	-	42
Number of terminals	64	-	60
Maximum operating temperature	85 °C	-	85 °C
Minimum operating temperature	-40 °C	-	-40 °C
Output characteristics	OPEN-DRAIN	-	OPEN-DRAIN
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	QFP	-	QFP
Encapsulate equivalent code	QFP64,.6SQ	-	QFP60,.75SQ,32
Package shape	SQUARE	-	SQUARE
Package form	FLATPACK	-	FLATPACK
power supply	5 V	-	5 V
Certification status	Not Qualified	-	Not Qualified
Maximum seat height	1.85 mm	-	3.05 mm
Maximum slew rate	1 mA	-	1 mA
Maximum supply voltage	5.5 V	-	5.5 V
Minimum supply voltage	2.5 V	-	2.5 V
Nominal supply voltage	5 V	-	5 V
surface mount	YES	-	YES
technology	CMOS	-	CMOS
Temperature level	INDUSTRIAL	-	INDUSTRIAL
Terminal surface	TIN LEAD	-	TIN LEAD
Terminal form	GULL WING	-	GULL WING
Terminal pitch	0.65 mm	-	0.8 mm
Terminal location	QUAD	-	QUAD
width	12 mm	-	14 mm
minfmax	2 MHz	-	2 MHz
Base Number Matches	1	-	1
