TC9246F datasheet, PDF - EEWORLD Datasheet

TC9246F: DescriptionPLL IC FOR DIGITAL AUDIO; CategoryAnalog mixed-signal IC The signal circuit; File Size396KB，10 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC9246F Overview

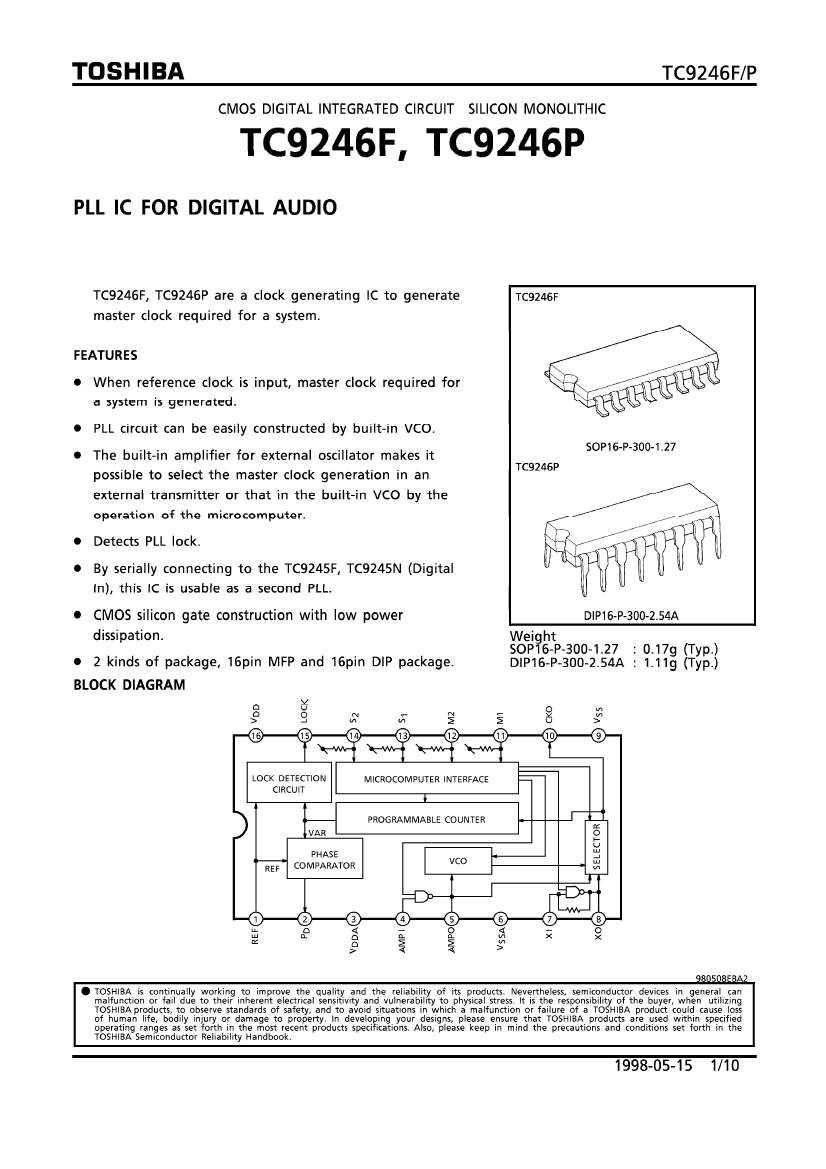

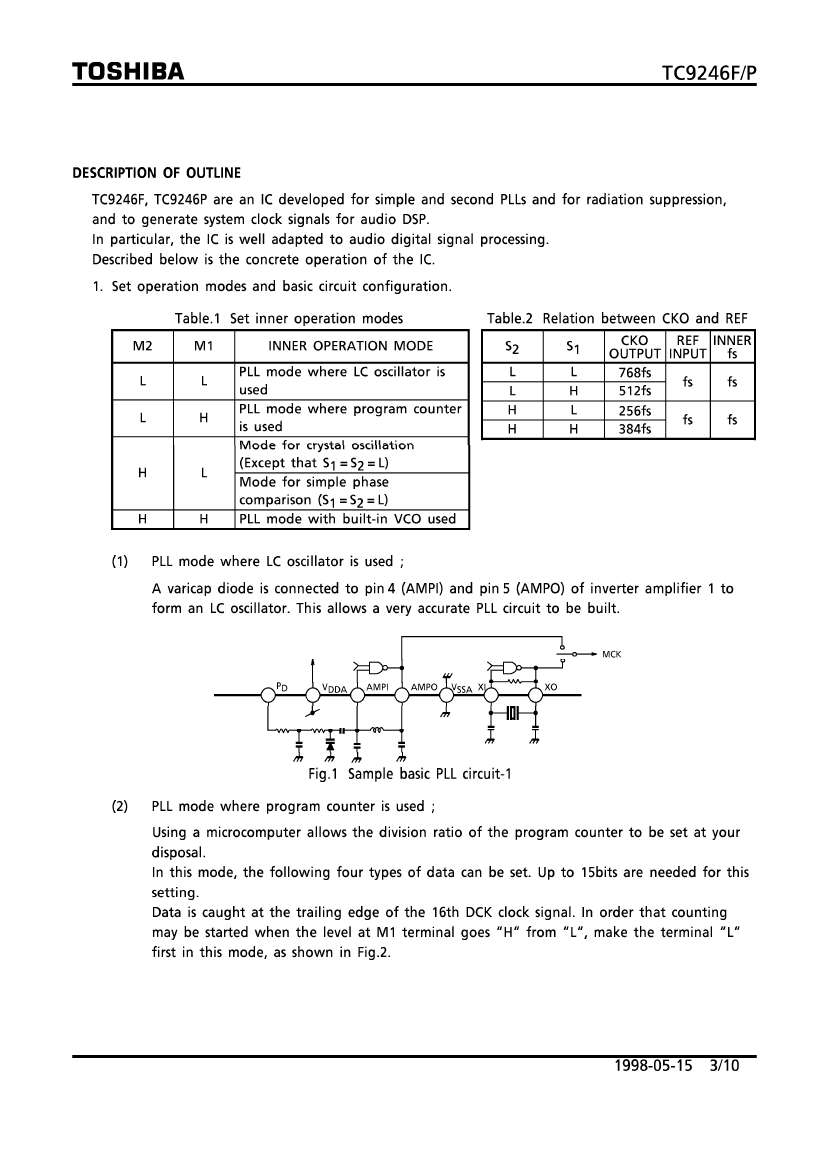

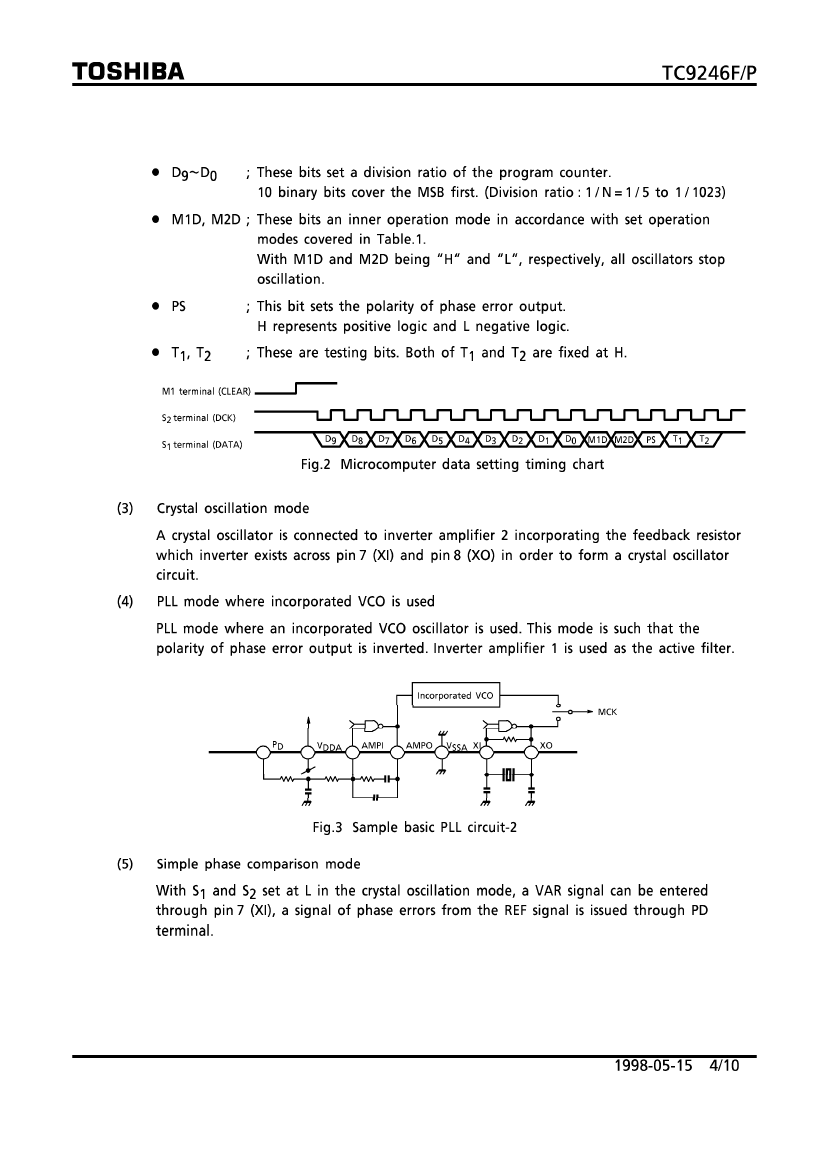

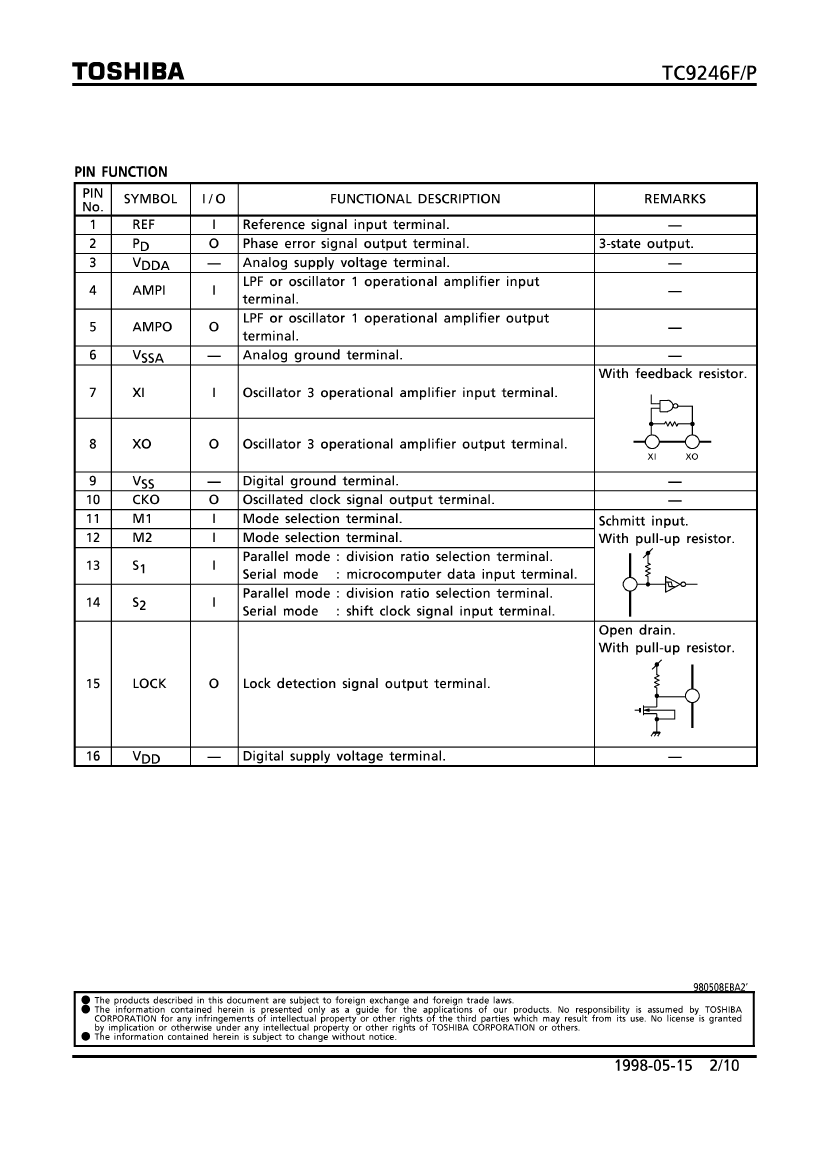

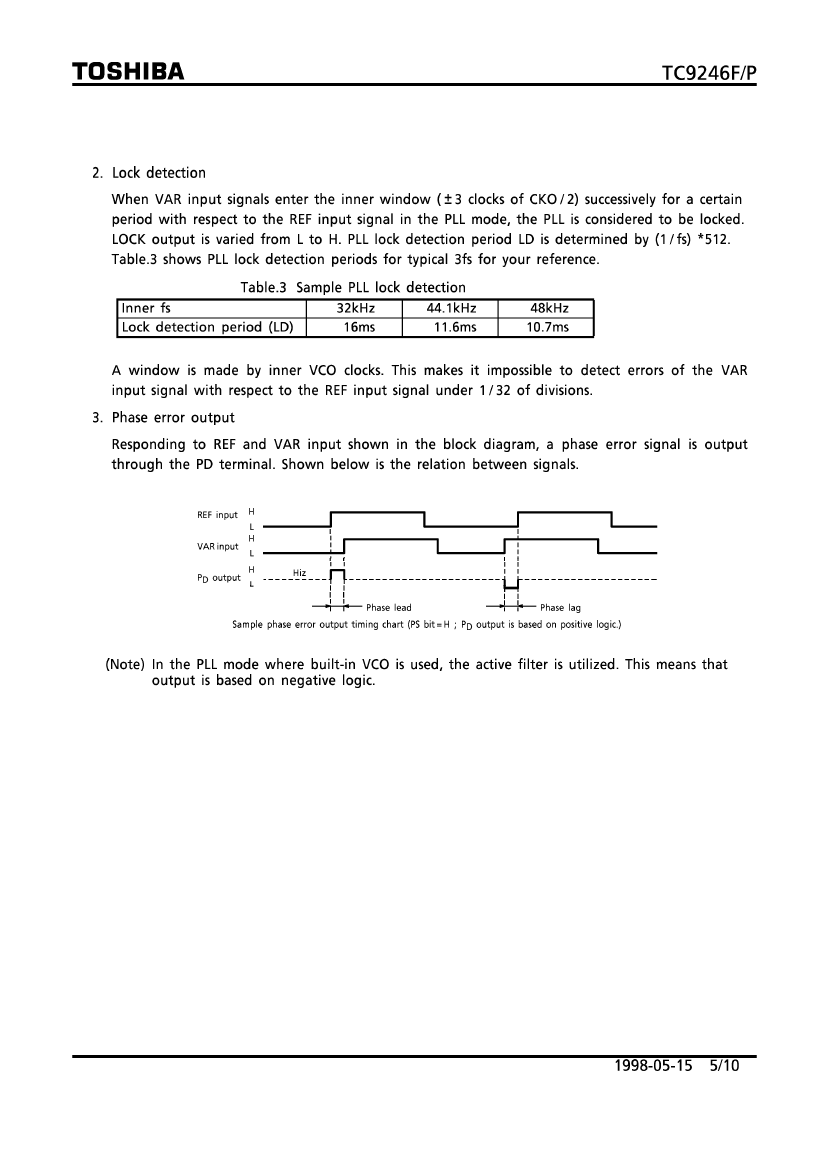

PLL IC FOR DIGITAL AUDIO

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOP, SOP16,.25
Contacts	16
Reach Compliance Code	unknow
Analog Integrated Circuits - Other Types	PHASE LOCKED LOOP
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	10.3 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply current (Isup)	25 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.3 mm
Base Number Matches	1

	TC9246F	TC9246P
Description	PLL IC FOR DIGITAL AUDIO	PLL IC FOR DIGITAL AUDIO
Parts packaging code	SOIC	DIP
package instruction	SOP, SOP16,.25	DIP, DIP16,.3
Contacts	16	16
Reach Compliance Code	unknow	unknow
Analog Integrated Circuits - Other Types	PHASE LOCKED LOOP	PHASE LOCKED LOOP
JESD-30 code	R-PDSO-G16	R-PDIP-T16
JESD-609 code	e0	e0
length	10.3 mm	19.25 mm
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-35 °C	-35 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP16,.25	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	4.45 mm
Maximum supply current (Isup)	25 mA	25 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	OTHER	OTHER
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
width	5.3 mm	7.62 mm
Base Number Matches	1	1
