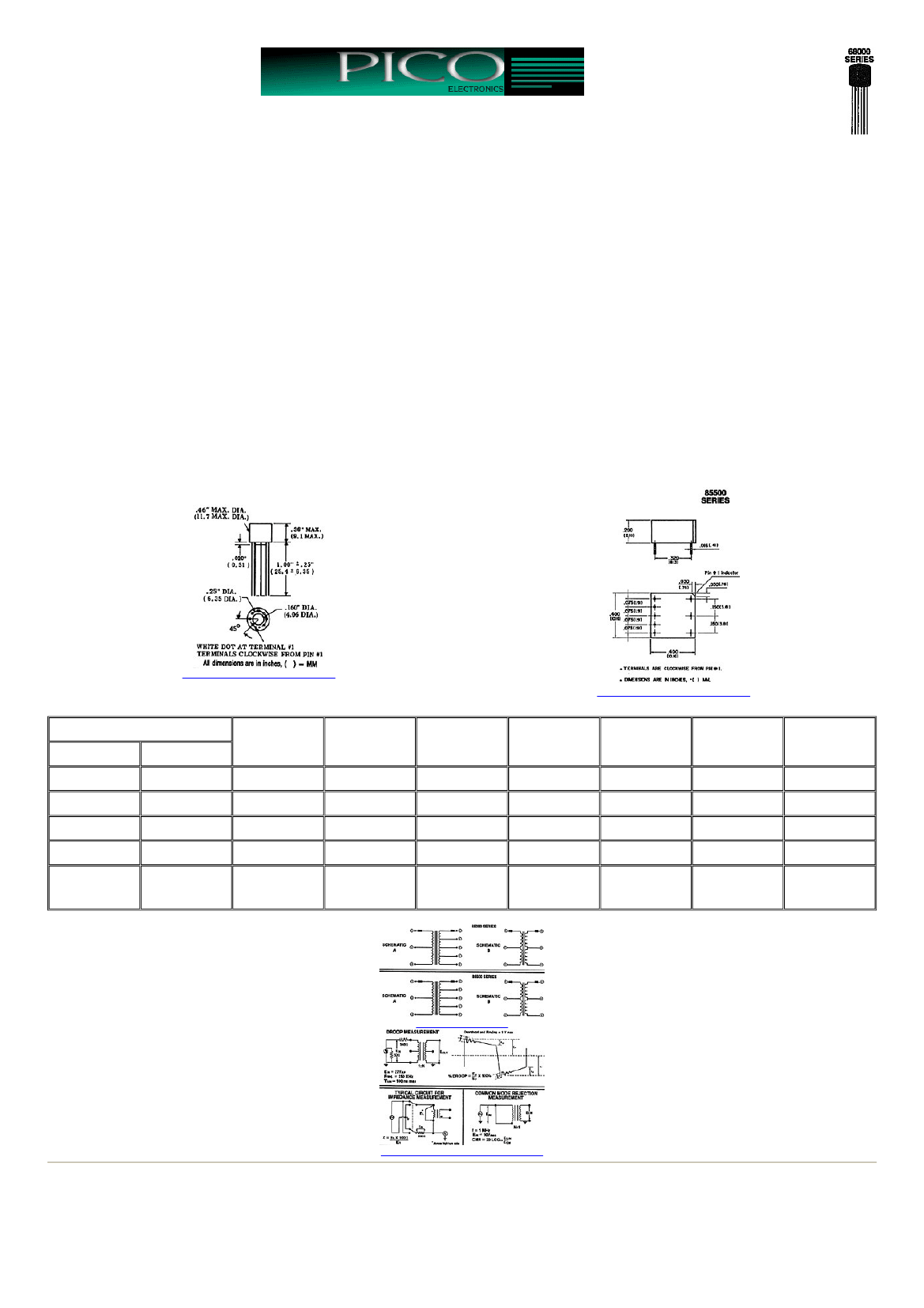

MIL-STD-1553 Interface Transformers
Multiplex Data BUS Pulse Transformers
Specifications
Units manufactured to MIL-PRF-21038 MIL STD 1553.
IMPEDANCE:
Greater than 3K ohms over the band from 75kHz to 1MHz.
DROOP:
20% max.
OVERSHOOT:
1V peak.
COMMON MODE REJECTION (CMR):
Greater than 45dB.
DIELECTRIC STRENGTH:
All units tested at 200 V RMS.
INSULATION RESISTANCE:
Greater than 10,000 Megohms at 300 V DC.
WEIGHT:
4 Grams.
OPERATING TEMPERATURE:
-55º C to +130º C.
TERMINALS:
Solid .012 Diameter Conductor. Solderability per MIL-STD-202, Method 208.
These pulse transformers manufactured to MIL-STD-1553 COMMAND/RESPONSE
MULTIPLEX DATA BUS requirements. They also are manufactured to MIL-PRF-21038
specifications and are designed to meet MAC AIR SPECIFICATIONS A3818, A5690, A5232
and A4905.
All of these transformers exhibit superior electrical performance. Common mode rejection ratio
is greater than 45dB at 1 MHz. Input impedance is greater than 3000 ohms over the band from
75 kHz to 1 MHz at 1V rms. This series possesses exceptional waveform integrity: Rise time
and fall time is less than 100 nanoseconds. Overshoot and ringing is less than ±1V peak. Droop
is less than 20%.
Larger size drawing of 68000 Series
Larger size drawing of 85500 Series
PICO
PART NUMBER
68000
Series
68010
68020
68030
68040
68050
68060
68070
68080
85500
Series
85510
85520
85530
85540
85550
85560
85570
85580
TURNS RATIO
1CT : 1CT
1CT : .707CT
1.4CT : 1CT
2CT : 1CT
1.25CT : 1CT
1.66CT : 1CT
2.3CT : 1CT
3.2CT : 1CT
1CT : 1CT
1CT : 1.41CT
1CT : 1.66CT
1CT : 2CT
PRIMARY
1-3
1-3
1-3
1-3
1-3
1-3
1-3
1-3
1-3
1-3
1-3
1-3
SECONDARY
4-8
5-7
4-8
5-7
4-8
5-7
4-8
5-7
5-7 | 4-8
5-7 | 4-8
5-7 | 4-8
5-7 | 4-8
%
DROOP
(Typical)
10
10
10
10
10
10
10
10
CMR
dB
(Typical)
50
50
50
50
50
50
50
50
SCHEMATIC
PRICE
(1-9)
50.62
50.62
50.62
50.62
41.72
41.72
41.72
41.72
A
A
A
A
B
B
B
B
Larger size schematic
Larger size schematic of measurement
For immediate engineering assistance or to place an order:
Call Toll Free: 800-431-1064
PICO Electronics, Inc.
143 Sparks Ave. Pelham, NY 10803-1837
Tel: 914-738-1400 or Fax: 914-738-8225
