PE13W Series
1300nm ELEDS for Fiber Optics

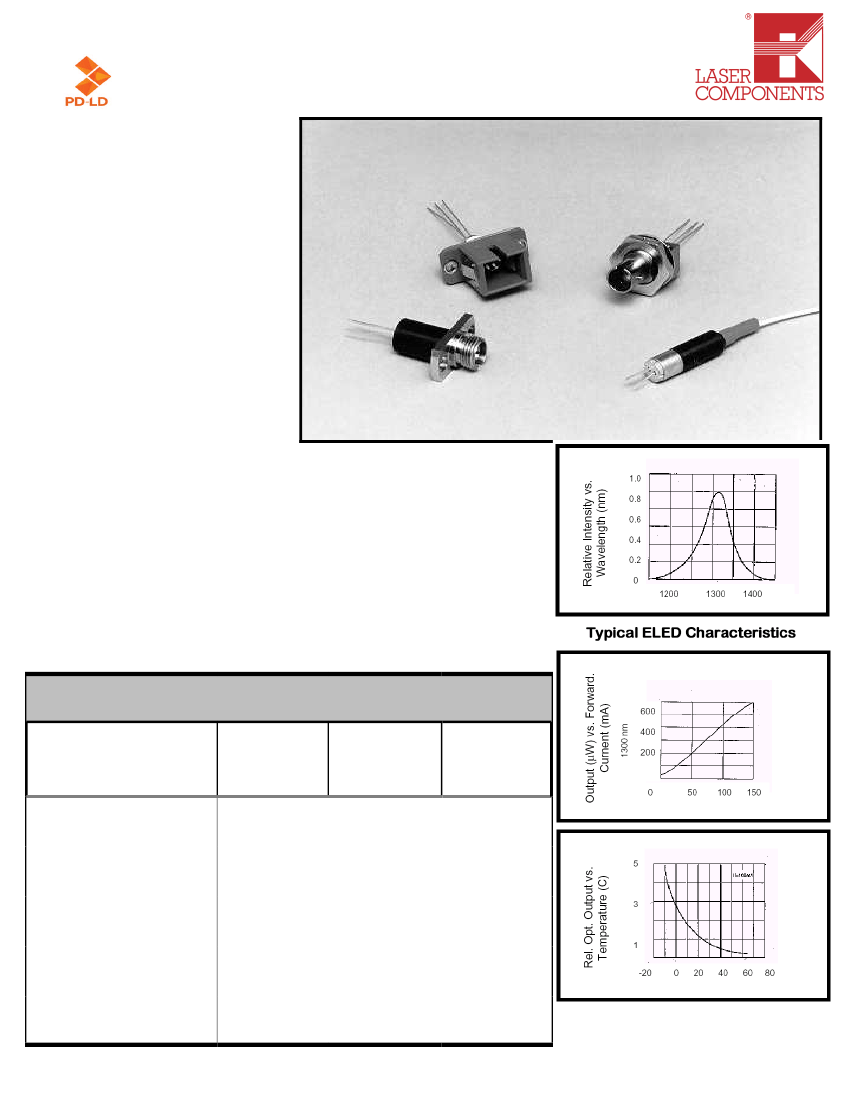

PD-LD Inc. offers 1300nm
Edge Emitting LEDs, ELEDs, in ready-
to-use fiber coupled pack ages,
including FC, ST and SC receptacles as
well as fiber-pigtailed units. These
1300nm ELED devices have been
packaged for optimal coupling into
9/125um optical fiber for use in single
mode fiber optic applications. The
semiconductors inherently fast rise and
fall time make them ideal for high
bandwidth applications.
The wide
optical spectrum, 60nm FWHM, of the
semiconductor make them ideal for
many noise sensitive applications.
The InGaAsP ELED’s offered by PD-LD
are of proven design and manufacture.
These units are backward compatible
with those applications previously using
devices offered by Agilent (HP) , OKI
and JDSUniphase. They typically
couple 8 to 10uW into SMF.
All PD-LD ELED’s incorporate a
hermetically sealed semiconductor
mounted in a TO can sub-assembly.
These subassemblies are micro-
positioned to various lens assemblies
depending upon the package style and
desired coupling efficiency. Fiber
pigtailed devices are available with
several choices of brackets to facilitate
panel or pc board mounting.
Features
High reliability InGaAsP Diode
Compact, robust receptacle &
coax fiber-coupled package
5 to 20 uW into SMF
Applications
Fiberoptic communications
systems
Analog Transmission
Ethernet Networking
Performance Specifications
InGaAsP 1300nm ELEDs@25 C, 100mA
Center Wavelength 1300+/- 30nm , Spectral Width 40nm typ. 100nm max.
PD-LD Part No.
Fiber Coupled
Power (uw)
Min. Typ.
Max.
5
8
Package Style
Mounting
Features
PE13W0051FCA-0-0-01
- Pigtailed
FC/PC Connector
- Receptacle
ST Style
-
Receptacle
FC Style
Receptacle
FC Style
- Receptacle
ST High Profile
Co-Axial
Bracket available
PC Board
Mountable
Panel Mounting
PE13W010ST71-Q-0
10
15
PE13W015FC11-Q-0
15
20
PE13W010FC21-Q-0
10
15
-
Board Mountable
PE13W100ST83-D-0
Optimized for 62.5um MMF
100
125
Board Mountable
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
France: LASER COMPONENTS S.A.S., Phone: +33 1 3959 5225, Fax: +33 1 3959 5350, info@lasercomponents.fr
PE13W Series
1300nm ELEDS for Fiber Optics

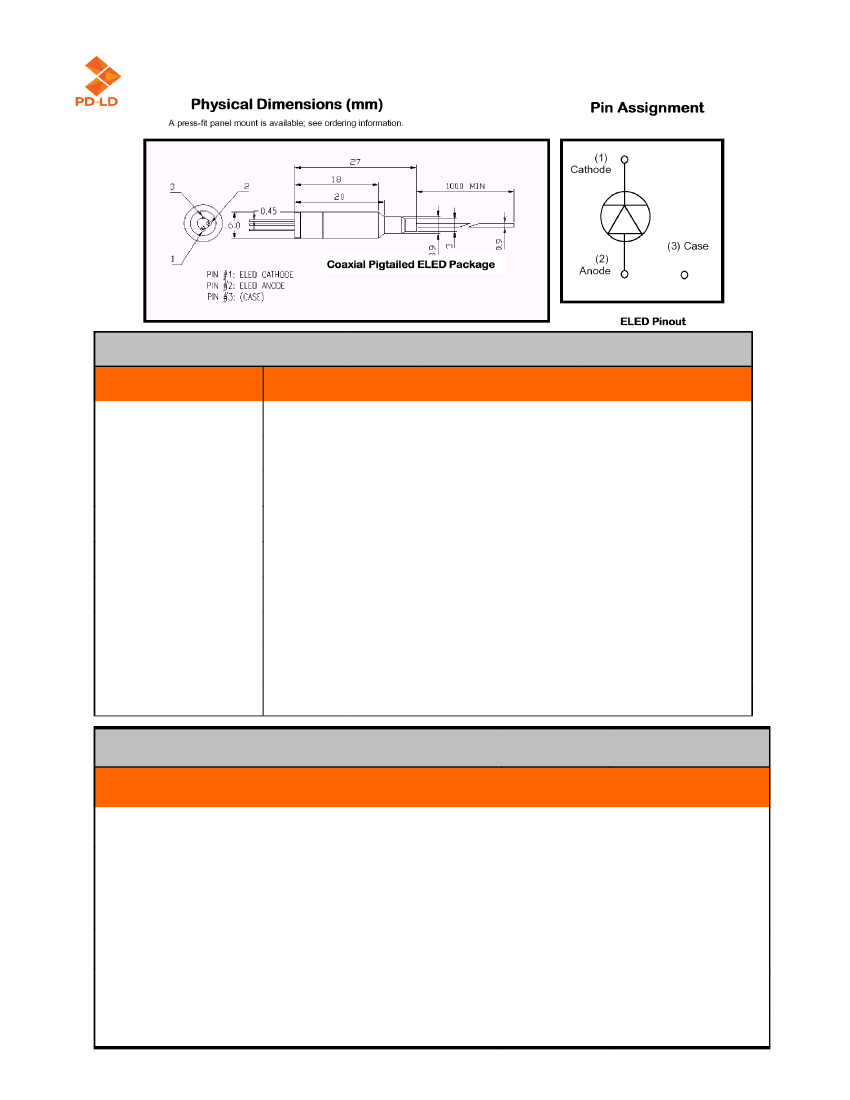

O pt ic a l a nd E le c tric a l C ha ra c te rist ic s
1 00 m A o pe ra ting c u rre nt a t 1 .3 V
P a ra m e te r
S ym bo l
M in im um
Ty p ic a l
M a xim u m
U nits
N o te
F ibe r c o uple d P o we r
Po
t
R
, t
F
fc
100
125
2 .5
150
4 .0
uW
ns
M Hz
1 3 30
60
1 .7
80
nm
nm
V
uA
pF
n m /°C
6 2 .5 /12 5 um
R ise a nd F a ll T im e (1 0 -90 % )
B a ndw idth (3 dB )
P ea k C e nte r W a v e le ng th
1 2 90
D elta
L am b d a
V
F
1 3 10
40
1 .2
S pe c tra l W idth (F W H M )
F o rw a rd V o lta g e
L e a kage C urre nt
C a pa c ita nce
1 M H z, V
F
= 0
0 .4
250
W a v e le ng th T e m pe ra tu re
C o e ffic ie nt
A b sol u te M a x i m u m s
P a r a m e te r
S tor a g e Te m p e ra tu re
O p e ra tin g T e m p e r a tu re
C on t in u o u s F o r w a rd C u r re n t
P e a k F o r w a rd C u r re n t
R e v e rse V olta g e
S o ld e rin g T e m p e r atu re ( 2 m m f r om c a se f o r 1 0 se c )
V alu e
-5 5 t o 12 5
-4 0 t o 85
10 0
15 0
2 .0
24 0
U n it
°C
°C
mA
mA
V
°C
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
France: LASER COMPONENTS S.A.S., Phone: +33 1 3959 5225, Fax: +33 1 3959 5350, info@lasercomponents.fr
PE13W Series
1300nm ELEDS for Fiber Optics
Ordering Information
Data Legend:
Pigtailed
SLEDs
PE WWW PPP F CC B-O-V-LL
E
=ELED
WWW
= Wavelength
& Device Type
13W
= 1300nm
LL
= Length
(in meters)
01
= 1m,
02
= 2m,
.5
= .5m etc.
V
= Version
0
= Standard
Unique codes for specific requirements
O
= Orientation
PPP
= Fiber-Coupled Power
005 = 5
µW
008 = 8 µW
010 = 10 µW
015 =15 µW
020 = 20 µW
100
= 100µW
0
= N/A
A
= Bracket Shipped Loose
B
= Bracket Type
A
= None
B
= Panel Mount
C
= Board Mount
CC
= Connector Type
F
= Fiber Type
1
= 9/125 SMF
2
= 50/125 MMF
3
= 62.5/125 MMF
4
= 100/140 MMF
9
= Customer Supplied
ST
= ST/PC
SC
= SC/PC
SA
= SC/APC
FC
= FC/PC
FA
= FC/APC
FU
= FC/UPC
00
= No Connector
TA
= ST/APC
D4
= D4
BC
= Bionic
Data Legend:
Receptacle
ELEDs
Ex:
PE WWW PPP RRR F-O-V
E
= ELED
WWW
= Wavelength &
Device Type
13W
= 1300nm
V
= Version
0
= Standard
Unique codes for specific
requirements
O
= Orientation
0
= N/A
A
= Bracket Shipped Loose
F
= Fiber Type
1
= 9/125 SMF
2
= 50/125 MMF
3
= 62.5/125 MMF
4
= 100/140 MMF
9
= Customer Supplied
PPP
= Fiber-Coupled
Power
005 = 5
µW
008 = 8 µW
010 = 10 µW
015 =15 µW
020 = 20 µW
100
= 100µW MMF only
RRR
= Receptacle Type
FC1
= FC Panel Mount
FC2
= FC Board Mount
SC1
= SC Panel Mount only
SC2
= SC Panel/Board Mount
ST7
= ST low profile
ST8
= ST high profile
07/11 / V6 /
SB
/
pd_ld/ pe13w.pdf
www.lasercomponents.com
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
France: LASER COMPONENTS S.A.S., Phone: +33 1 3959 5225, Fax: +33 1 3959 5350, info@lasercomponents.fr
