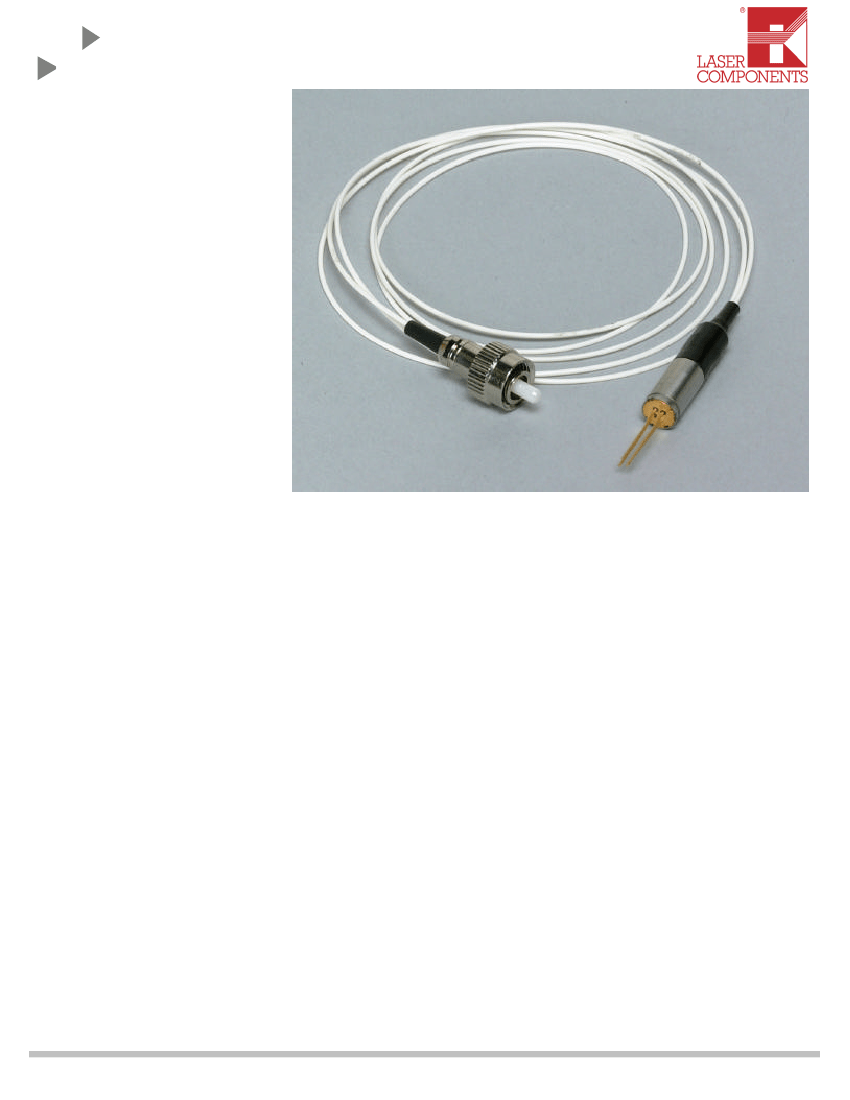

CWDM 1.3~1.6um Band Laser Diode Modules
PD-LD Inc. offers a complete
selection of CWDM DFB Lasers for
the O+E+S+C+L+B regions. These
units are available in ready-to-use,
fiber-coupled packages, including
FC, ST, and SC receptacles, as well
as fiber- pigtailed units.
The InGaAsP laser diodes
offered by PD-LD are of proven
design and manufacture; the
standard wavelengths are centered
at 1310, 1330, 1350, 1370, 1390,
1410, 1430, 1450, 1470, 1490,
1510, 1530, 1550, 1570, 1590 and
1 6 1 0 nm. Fiber-coupled CW
(continuous -wavelength) output
powers range from 0.1 - 2 mW,
depending on the fiber type and
desired performance level. Tracking
error over OTR -40 to +85C is +/-
1.0 dB maximum .
The introduction by leading
optical fiber manufacturers of new
fiber varieties suited for operations
from 1310 to 1610nm require the
use of the complete spectrum of
CWDM lasers. Using these new
fibers with PD-LD’s offering of all 16
CWDM wavelengths provides 50%
more spectrum than previously
available. The elimination of the
water peak at 1390nm now makes
possible the use of all 16
wavelengths in these new fibers for
optimum performance in local/
access metro networks. PD-LD’s
lasers are excellent sources for
cost effective coarse wave division
multiplexing, using directly
modulated lasers and relaxing
stringent DWDM filter specifications,
which reduce the overall system
cost.
PD-LD’s CWDM lasers are suitable
for both digital and analog
modulation . The intrinsically fast
rise and fall time of 150psec allow
them to be used in digital
applications require data rates of
3.125GB/s or in analog schemes
which must operate at 3GHz.
1
Examples
Features
•
Internal Monitor Photo Detector
•
Compact, reliable receptacle & coax fiber-coupled package
•
0.1 - 2.0 mW singlemode (9/125)
•
30dB minimum side mode suppression
•
0.2nsec typical rise/fall time
•
0.1nm/degree C wavelength stability
The standard lasers are specified
for a center wavelength tolerance of
+/-3nm at 25 degrees C. These
DFB lasers have a wavelength tem-
perature coefficient of 0.10nm/
degree C.
PD-LD coaxially fiber pigtailed laser
diodes are assembled using X-Y-Z ac-
tive alignment to ensure consistent opti-
cal coupling efficiency. Each module is
constructed using at least 18 laser weld
points so that mechanical stability is
precisely maintained. Using this assem-
bly approach guarantees that fiber to
chip alignment is constant despite
changes in ambient temperature from –
40 to +85 C.
Fiber pigtailed modules are available
with all industry style connectors: FC,
SC, ST, LC in both PC and APC pol-
ish. Special connectors are also avail-
able upon request
.
Optional board- or panel -mount
flanges are available for pigtailed
devices; contact PD-LD Sales.
Also, PD-LD Inc. will package
these lasers with optical isolators if
desired. Isolation is typically 45dB
at 25C, and 20dB min over –40 to
85C. PD-LD assemblies are built
using an active micro-positioning
system and laser welding process
ensuring a reliable and well con-
structed product.
PD-LD offers two popular pin-
outs for DFB lasers to address
various existing PCB layouts
.
10-05.CWDM13~16. Rev.3
only; most device/packaging combinations available.
Changes to specifications may be made without notice.
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
PD
LD
“H” Pin-Out
CWDM 1.3~1.6um Band Laser Diode Modules
Inc

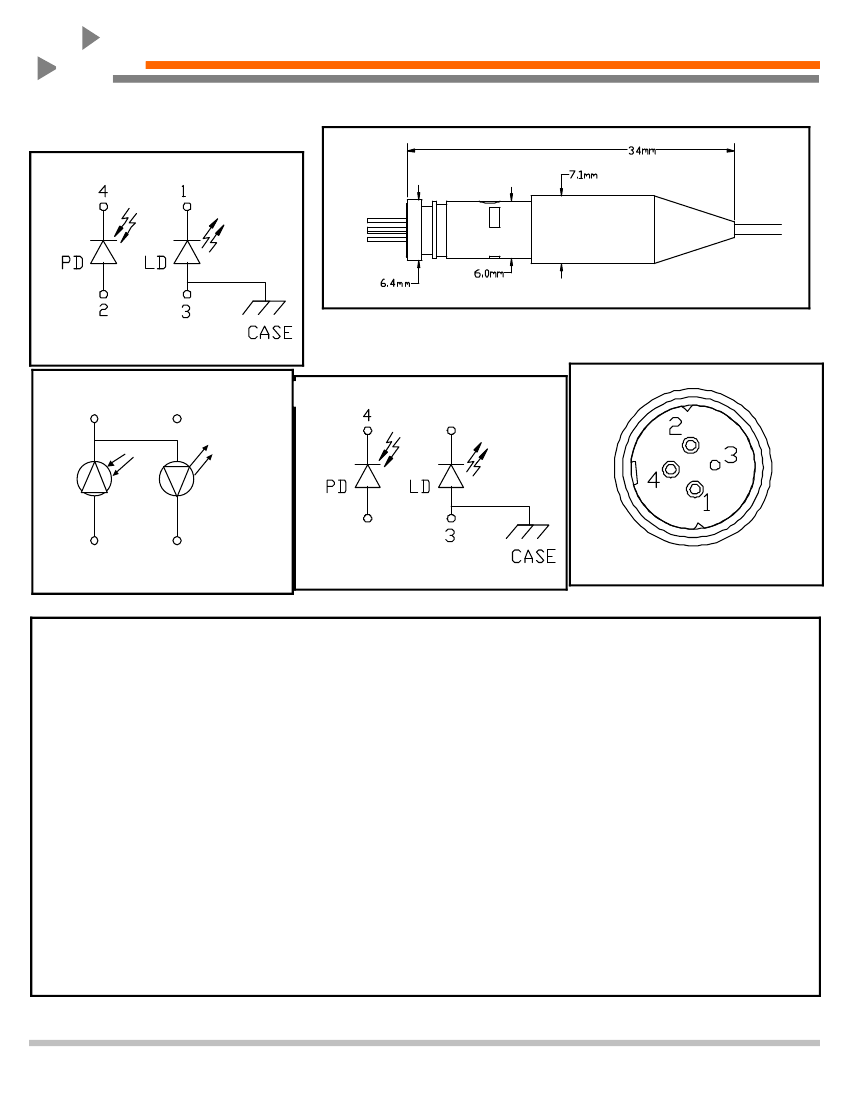

Physical Dimensions (mm) & Pin Connection
Coaxial-Pigtailed Laser Diode Package
Consult PD -LD for Available Board Mount (10181 or 10198) or Panel Mount Brackets (10219)
(2)
(3) Case
“T”
“
A” Pin-Out Option
2
PD
LD
(4)
(1)
1
Ordering Information
Lasers - Pigtailed & Receptacle
Standard Pin Out
PLWWWWPPPFCCB-0-V-LL PLWWWWPPPRRRF-O-V
L = Laser
WWWW=Wavelength and Pin-out
RRR= Receptacle Type
SC1= Scored/panel mount
V = Version
0 = Standard / No Isolator
I = With Single Stage Isolator
PPP = Fiber-Coupled Power
0.1
= 0.10 mW (100
µW)
0.8
= 0.8 mW (800
µW
)
0.2
= 0.20 mW (200
µW)
001
= 1.0 mW
0.5
= 0.5 mW (500
µW
)
002
= 2.0 mW
F=
1=
2=
3=
4=
9=
Fiber Type
9/125 SMF
50/125 MMF
62.5/125 MMF
100/140 MMF
Customer Supplied
B = Bracket Type
A
= None
B
= Panel Mount
G
= Board Mount
O=Orientation
0=None
A=Bracket Shipped Loose (pigtailed units only)
Specify orientation as required
S= Standard Receptacle orientation
LL = Length in meters
(01,02,0.5 act.) (pigtailed devices only)
CC = Connector Type
(pigtailed devices only)
ST
= ST/PC
TA
= ST/APC
SC
= SCPC
SA=SC/APC
FC
= FC/PC
FA
= FC/APC
EA
= E2000
D4
= D4
BC
= Biconic
MU
style
OO
= No Connector
FU
= FC/UPC
1
Examples
only; most device/packaging combinations available.
Changes to specifications may be made without notice.
10-05.CWDM13~16. Rev.3
www.lasercomponents.com
Issue:
11/05
/ V2 / HW / www/pdf/pd_ld/
cwdm_13-16.pdf
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
