5-1981982-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-1981982-4

5-1981982-4: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,60 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING,NATURAL; CategoryThe connector The connector; File Size411KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

5-1981982-4 Overview

HEADER CONNECTOR,PCB MNT,PLUG,60 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING,NATURAL

5-1981982-4 Parametric

Parameter Name	Attribute value
Objectid	313292682
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	8.4
Board mount options	PEG
body width	0.244 inch
subject depth	0.215 inch
body length	0.972 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Dielectric withstand voltage	200VAC V
Durability	50 Cycles
maximum insertion force	.8896 N
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	POLYETHYLENE
Plug contact pitch	0.024 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.207 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
Terminal pitch	0.6096 mm
Termination type	SURFACE MOUNT
Total number of contacts	60
Evacuation force-minimum value	.0973 N

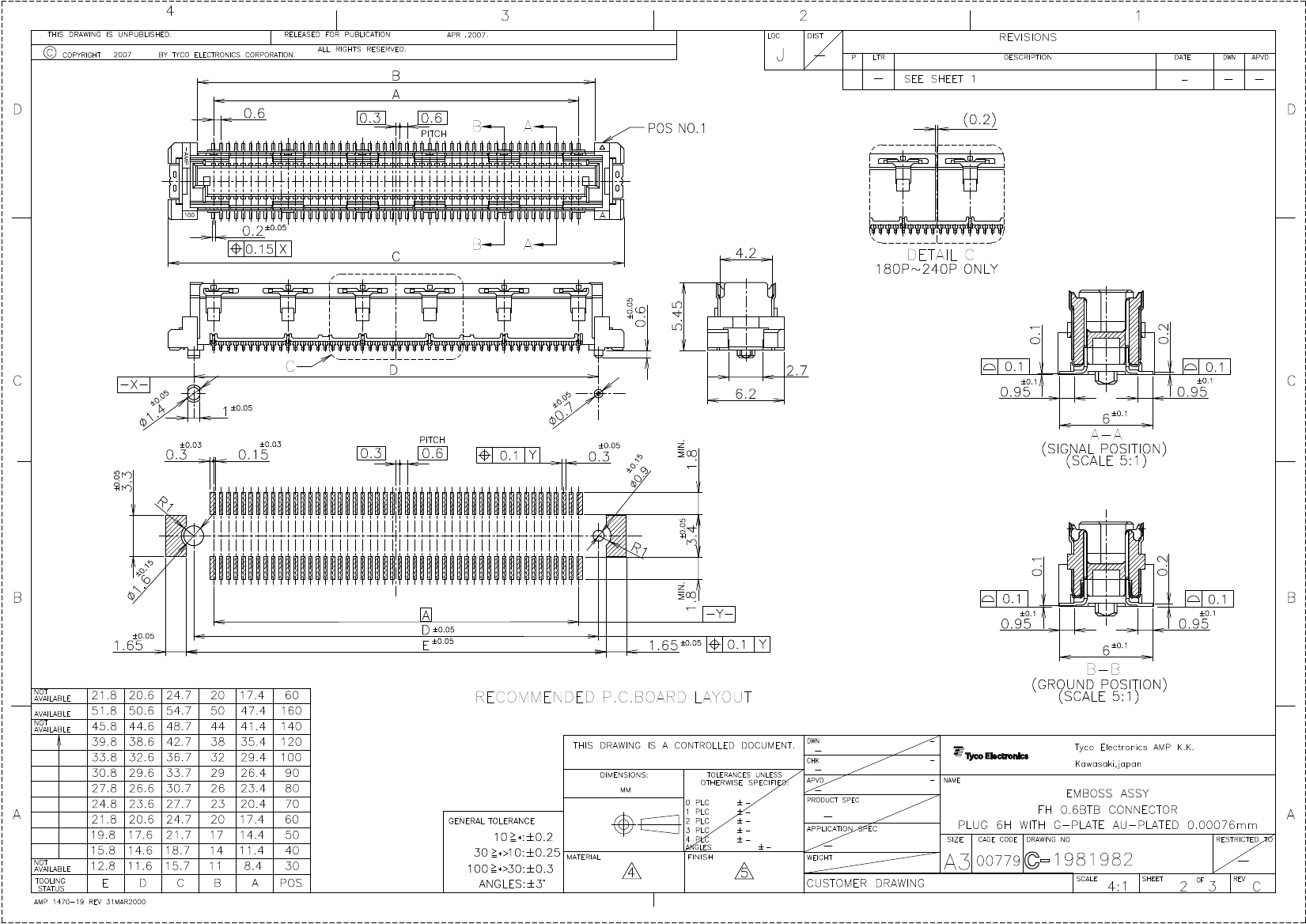

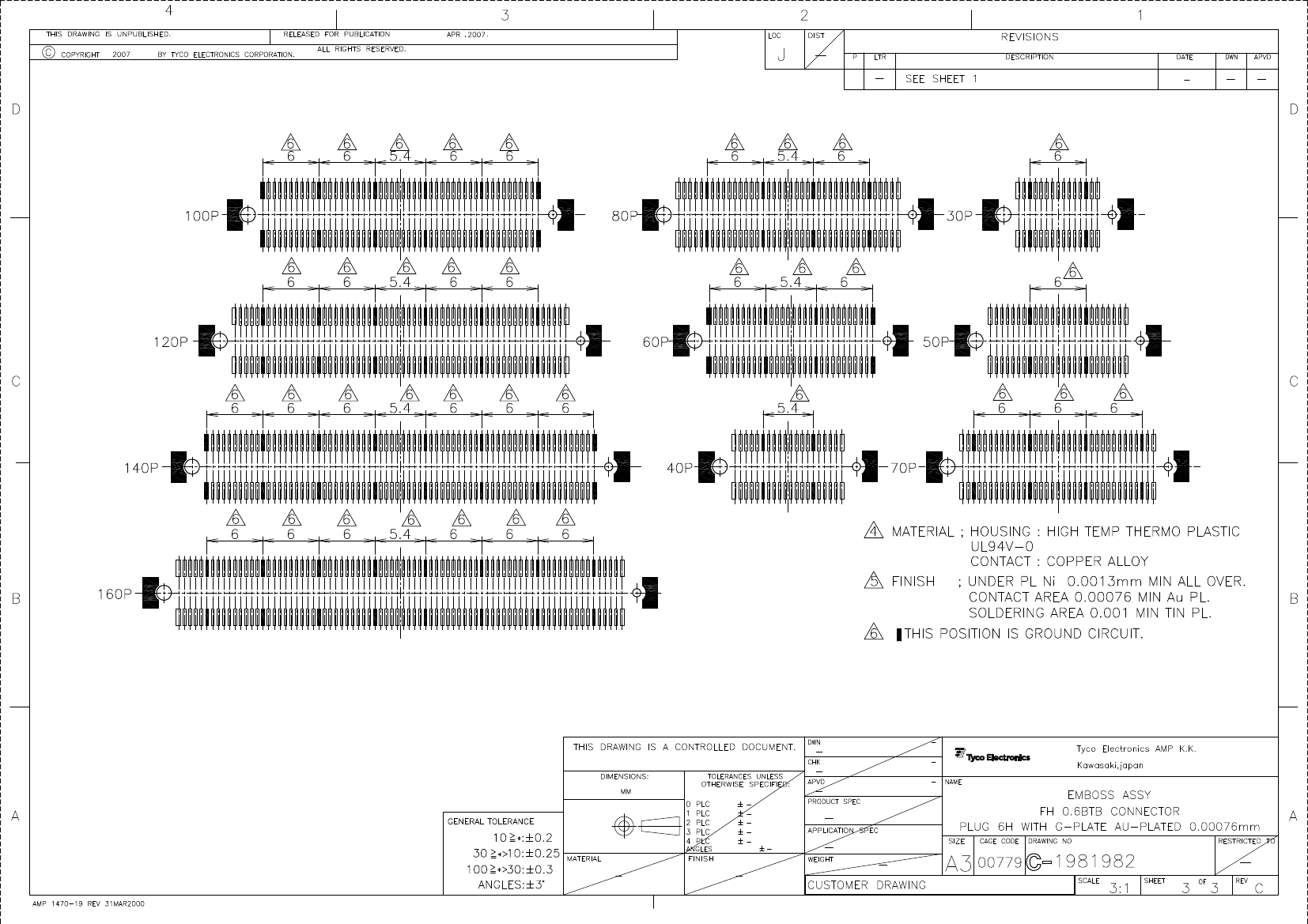

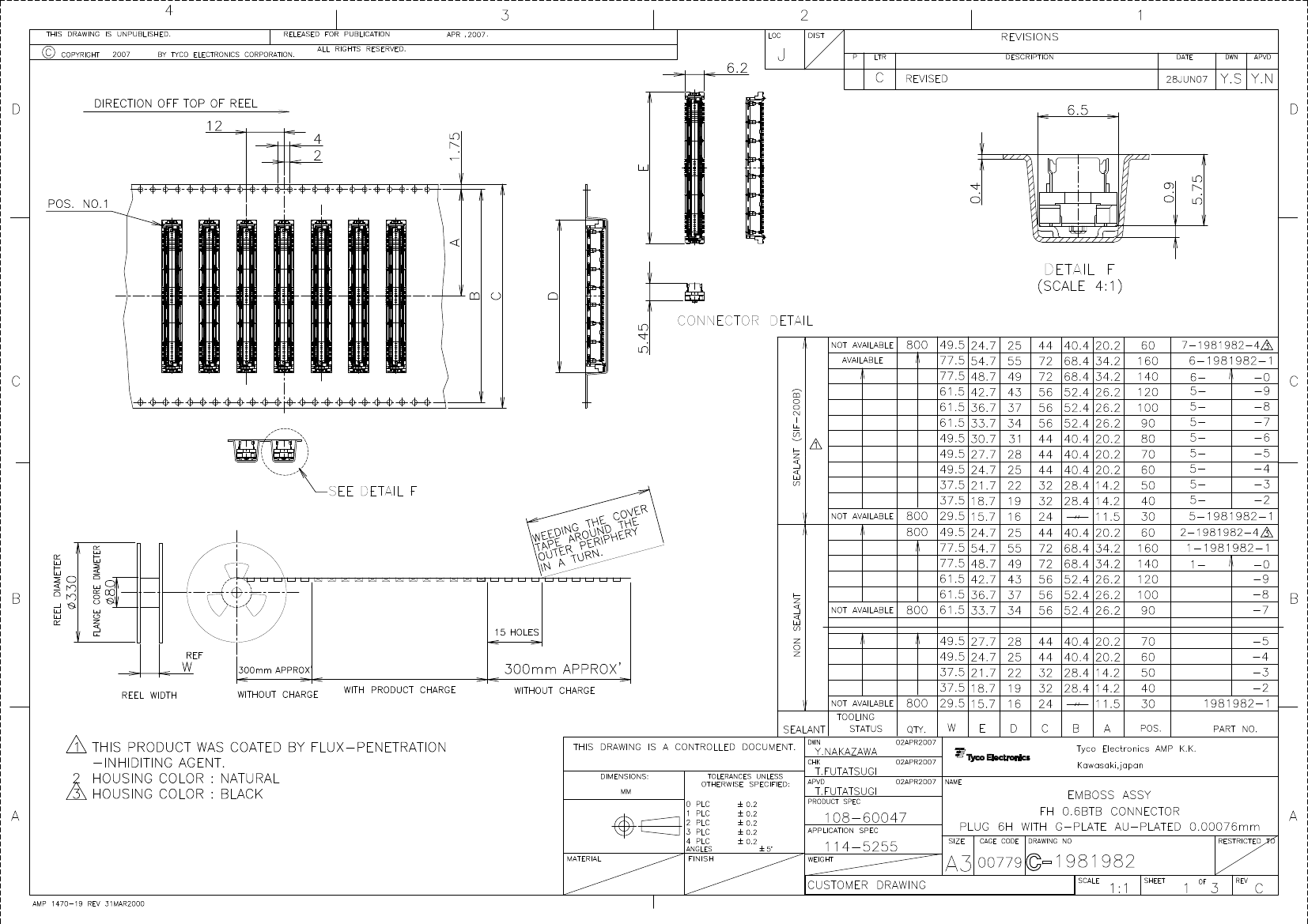

Preview

Download Datasheet

View All

5-1981982-4 Related Products

	5-1981982-4	5-1981982-6	1376666	2-1981982-4	1981982-9	5-1981982-3	1-1981982-1	7-1981982-4	5-1981982-1	5-1981982-5
Description	HEADER CONNECTOR,PCB MNT,PLUG,60 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING,NATURAL	HEADER CONNECTOR,PCB MNT,PLUG,80 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING,NATURAL	ISO cylinder	HEADER CONNECTOR,PCB MNT,PLUG,60 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,120 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING,NATURAL	HEADER CONNECTOR,PCB MNT,PLUG,50 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING,NATURAL	HEADER CONNECTOR,PCB MNT,PLUG,160 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING,NATURAL	HEADER CONNECTOR,PCB MNT,PLUG,60 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,30 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING,NATURAL	HEADER CONNECTOR,PCB MNT,PLUG,70 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING,NATURAL
Objectid	313292682	313292680	-	313292697	313292688	313292683	-	313292696	313292685	313292681
Reach Compliance Code	unknown	unknown	-	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
YTEOL	8.4	8.4	-	8.4	8.4	8.4	-	8.4	-	-
Board mount options	PEG	PEG	-	PEG	PEG	PEG	PEG	PEG	PEG	PEG
body width	0.244 inch	0.244 inch	-	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.244 inch
subject depth	0.215 inch	0.215 inch	-	0.215 inch	0.215 inch	0.215 inch	0.215 inch	0.215 inch	0.215 inch	0.215 inch
body length	0.972 inch	1.209 inch	-	0.972 inch	1.681 inch	0.854 inch	2.154 inch	0.972 inch	0.618 inch	1.091 inch
Body/casing type	PLUG	PLUG	-	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	-	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	-	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE	-	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Dielectric withstand voltage	200VAC V	200VAC V	-	200VAC V	200VAC V	200VAC V	200VAC V	200VAC V	200VAC V	200VAC V
Durability	50 Cycles	50 Cycles	-	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles
maximum insertion force	.8896 N	.8896 N	-	.8896 N	.8896 N	.8896 N	.8896 N	.8896 N	.8896 N	.8896 N
Insulation resistance	100000000 Ω	100000000 Ω	-	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	NATURAL	NATURAL	-	BLACK	NATURAL	NATURAL	NATURAL	BLACK	NATURAL	NATURAL
insulator material	POLYETHYLENE	POLYETHYLENE	-	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	THERMOPLASTIC	POLYETHYLENE	THERMOPLASTIC	THERMOPLASTIC
Plug contact pitch	0.024 inch	0.024 inch	-	0.024 inch	0.024 inch	0.024 inch	0.024 inch	0.024 inch	0.024 inch	0.024 inch
Installation option 1	LOCKING	LOCKING	-	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	-	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	-	2	2	2	2	2	2	2
Number of rows loaded	2	2	-	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	-	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.207 mm	5.207 mm	-	5.207 mm	5.207 mm	5.207 mm	5.207 mm	5.207 mm	5.207 mm	5.207 mm
Plating thickness	30u inch	30u inch	-	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	-	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	-	UL	UL	UL	UL	UL	UL	UL
Terminal pitch	0.6096 mm	0.6096 mm	-	0.6096 mm	0.6096 mm	0.6096 mm	0.6096 mm	0.6096 mm	0.6096 mm	0.6096 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	60	80	-	60	120	50	160	60	30	70
Evacuation force-minimum value	.0973 N	.0973 N	-	.0973 N	.0973 N	.0973 N	.0973 N	.0973 N	.0973 N	.0973 N
