5052-2091: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size39KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

5052-2091 Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Locking, Receptacle

5052-2091 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknow
ECCN code	EAR99
body width	0.335 inch
subject depth	0.55 inch
body length	1.768 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	60 Cycles
maximum insertion force	14.6784 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	5052
Plug contact pitch	0.197 inch
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	5.0038 mm
Termination type	SOLDER
Total number of contacts	9
Evacuation force-minimum value	1.4734 N

5052-2091 Preview

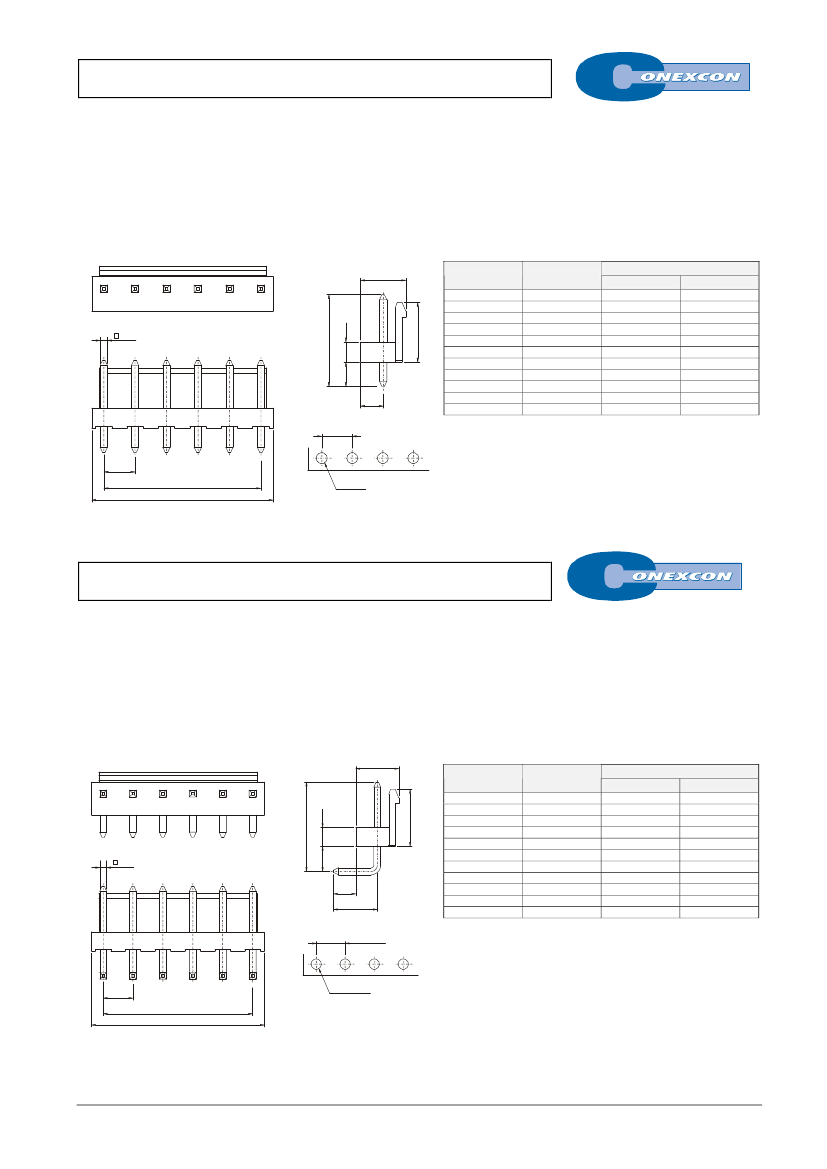

SINGLE ROW STRAIGHT LOCKING HEADER

5051 SERIES.

5.00 mm. (0.197”) . Square Pin Header. For PCB Solder

Features



Available in 2 through 12 circuits

Insulation Material: Nylon 6/6 UL 94V-0

1.14mm(.045”) square pin in tinned brass



Mates with 5050 socket series

Polarised and with locking ramp

For other options consult the Sales Office

Ordering and Dimensional Information

Dimensional Information

8.5

.335

Circuit Size

02

03

04

05

06

07

08

09

10

11

12

Part Number

5051- 2021

5051- 2031

5051- 2041

5051- 2051

5051- 2061

5051- 2071

5051- 2081

5051- 2091

5051- 2101

5051- 2111

5051- 2121

Dimensions

A

5.00(0.197)

10.00(0.394)

15.00(0.591)

20.00(0.787)

25.00(0.984)

30.00(1.181)

35.00(1.378)

40.00(1.575)

45.00(1.772)

50.00(1.969)

55.00(2.165)

B

9.90(0.390)

14.90(0.587)

19.90(0.783)

24.90(0.980)

29.90(1.177)

34.90(1.374)

39.90(1.571)

44.90(1.768)

49.90(1.965)

54.90(2.161)

59.90(2.358)

3.20

.126

9.40

4.80

.189

14.60

1.14

.020

.575

5.00±0.05

.197±.002

5.00

.197

A

B

1.80±0.1

.071±.004

MECANIZADO RECOMENDADO

SINGLE ROW R / ANGLE POLARISED HEADER

5052 SERIES.

5.00 mm. (0.197”). Square pin. For PCB Solder

Features



3.70

.146

Available in 2 through 12 circuits

Insulation Material: Nylon 6/6 UL 94V-0

1.14mm(.045”) square pin in tinned brass



.370

Mates with 5050 socket series

Polarised with locking ramp

For other options consult the Sales Office

Ordering and Dimensional Information

Dimensional Information

8.5

.335

Circuit Size

02

03

04

05

06

07

08

09

10

11

12

Part Number

5052- 2021

5052- 2031

5052- 2041

5052- 2051

5052- 2061

5052- 2071

5052- 2081

5052- 2091

5052- 2101

5052- 2111

5052- 2121

Dimensions

A

5.00(0.197)

10.00(0.394)

15.00(0.591)

20.00(0.787)

25.00(0.984)

30.00(1.181)

35.00(1.378)

40.00(1.575)

45.00(1.772)

50.00(1.969)

55.00(2.165)

B

9.90(0.390)

14.90(0.587)

19.90(0.783)

24.90(0.980)

29.90(1.177)

34.90(1.374)

39.90(1.571)

44.90(1.768)

49.90(1.965)

54.90(2.161)

59.90(2.358)

14.90

1.14

.020

4.00

.157

.587

3.20

.126

3.70

.146

8.50

.335

5.00±0.05

.197±.002

5.00

.197

1.80±0.1

.071±.004

A

B

MECANIZADO RECOMENDADO

FULL LINE CATALOGUE

9.40

.370

F-XX

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
