PC8641MSH1250GB datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> PC8641MSH1250GB

PC8641MSH1250GB: DescriptionMicroprocessor, 32-Bit, 1250MHz, CMOS, CBGA1023, 33 X 33 MM, 2.72 MM HEIGHT, 1 MM PITCH, ROHS COMPLIANT, CERAMIC, BGA-1023; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，110 Pages; Manufacturere2v technologies

Download Datasheet Parametric View All

PC8641MSH1250GB Overview

Microprocessor, 32-Bit, 1250MHz, CMOS, CBGA1023, 33 X 33 MM, 2.72 MM HEIGHT, 1 MM PITCH, ROHS COMPLIANT, CERAMIC, BGA-1023

PC8641MSH1250GB Parametric

Parameter Name	Attribute value
Maker	e2v technologies
Parts packaging code	BGA
package instruction	BGA,
Contacts	1023
Reach Compliance Code	compli
ECCN code	3A001.A.2.C
Address bus width
bit size	32
boundary scan	YES
External data bus width
Format	FLOATING POINT
Integrated cache	YES
JESD-30 code	S-CBGA-B1023
length	33 mm
low power mode	YES
Number of terminals	1023
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	BGA
Package shape	SQUARE
Package form	GRID ARRAY
Maximum seat height	2.77 mm
speed	1250 MHz
Maximum supply voltage	1.15 V
Minimum supply voltage	1.05 V
Nominal supply voltage	1.1 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	BALL
Terminal pitch	1 mm
Terminal location	BOTTOM
width	33 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

Preview

Download Datasheet

View All

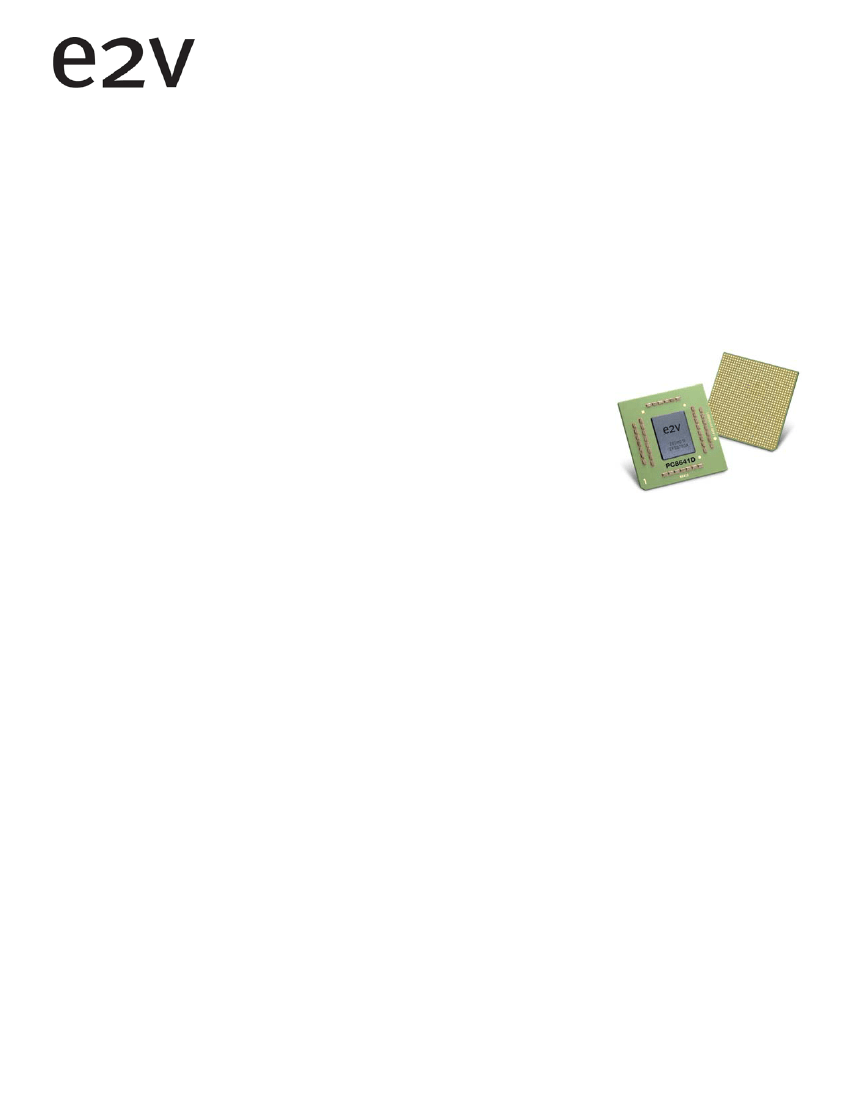

PC8641 and PC8641D

Power Architecture Integrated Processor

Datasheet -

Preliminary Specification

Features

•

Dual-e600 Power Architecture™ Processor Cores

PD Typically 23.9W at 1.25 GHz (V

= 1.05V) ; 32.1W at 1.5 GHz (V

= 1.1V)

Selectable MPX Bus up to 600MHz (64 bits)

Integrated L1: 32 KB Instruction and 32 KB Data Cache (Per Core with Parity Protection)

Integrated L2: 1 MB Per Core with Optional ECC

Serial RapidIO Interface 1x, 4x (1.25, 2.5 and 3.125Gbaud)

PCI Express Interface 1x, 4x or 8x (2.5Gbaud/lane)

Ethernet Interface : Four 10/100/1000 Ethernet Controllers

Memory Controller : Support Dual 64-bit DDR and DDRII with up to 600 MHz Data Rate with ECC

Up to 16GB Per Memory Controller.

DMA Controller : Four Independent Channels with Bandwith Control per Channel

INT

Max = 1500 MHz

BUS

Max = 600 MHz

Overview

The PC8641 processor family integrates either one or two Power Architecture e600 processor cores with system logic

required for networking, storage, wireless infrastructure, and general-purpose embedded applications. The PC8641 inte-

grates one e600 core while the PC8641D integrates two cores.

This section provides a high-level overview of the PC8641 and PC8641D features. When referring to the PC8641 through-

out the document, the functionality described applies to both the PC8641 and the PC8641D. Any differences specific to the

PC8641D are noted.

Figure 1-1 on page 2

shows the major functional units within the PC8641 and PC8641D. The major difference between the

PC8641 and PC8641D is that there are two cores on the PC8641D.

Screening

•

Full Military Temperature Range (T

= -55° C, T

= +125° C)

•

Industrial Temperature Range (T

= -40° C, T

= +110° C)

Visit our website: www.e2v.com

for the latest version of the datasheet

e2v semiconductors SAS 2009

0893B–HIREL–01/09
